update modchip bios

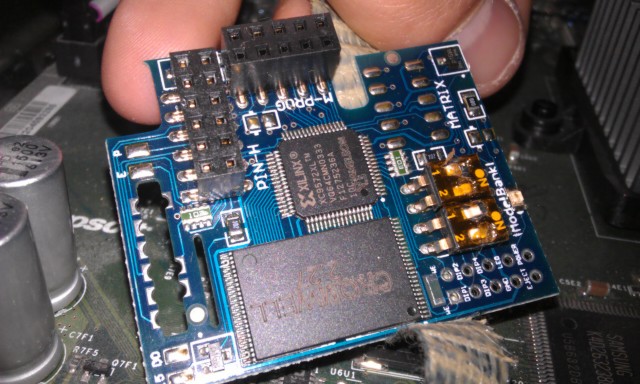

how do i change the bios on a CHAMELEON modchip i have opend the xbox i can see its a camaleon modchip is has switches etc
do i need to chang the swiches to flash if i choose the bios indi 5003 its says erasing windbond etc nothing happend the red led on the modchip keeps flashing ?


i want to install a 500gb sata drive have no idea wat kind of bios is on the chip its says xecuter 2 at the start screen
maybe the chip is locked ? it has switches
wen i trie to erase the bios the modchip red light keeps flashing
maybe it has flash protection i dont know how to turn it off ?

chameleon adapter raw of:00001111
switch 1 off off
switch 2 on on
mode 4 : 2x256 1x512
current bank : 0:00000-3ffff
thanks guys



So which switches are you calling Switch 1 and Switch 2?

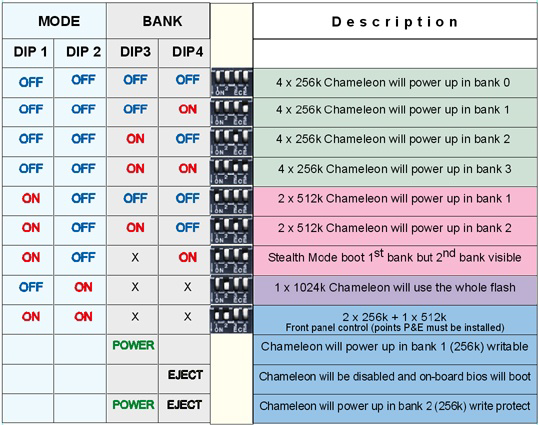

There are four (4) switches total broken down into 2 for Mode and 2 for Bank select.
Looks like your Switch 1 are the two (2) Bank select and Switch 2 are the two (2) mode switches.



The Chameleon User Manual states:

Also, to use EvoX dashboard you need to add commands to the INI file:

In order to take full advantage of the Software Control features you need to use the latest version of
EvolutionX Dashboard and append some lines to your evox.ini file:
(*here is a working example*)

Code:

[Menu]
Section "Root"
{
    Section "System Utils"
    {
        Item "Settings",ID_Settings
        Item "Flash BIOS",ID_Flash_Bios
        Item "Backup",ID_Backup
        Section "Chameleon Mode 1",ID_Chameleon_Mode_1
        {
            Line "Mode 1 (4x256k)"
            Item "Switch To TSOP (Disable Chameleon)",ID_Chameleon_Release_D0,ID_Full_Reboot
            Item "Switch To Bank 0",ID_Chameleon_Bank_0,ID_Full_Reboot
            Item "Switch To Bank 1",ID_Chameleon_Bank_1,ID_Full_Reboot
            Item "Switch To Bank 2",ID_Chameleon_Bank_2,ID_Full_Reboot
            Item "Switch To Bank 3",ID_Chameleon_Bank_3,ID_Full_Reboot
            Line "-=*-*=-"
            Item "Flash Bank 0",ID_Chameleon_Bank_0,ID_Flash_Bios
            Item "Flash Bank 1",ID_Chameleon_Bank_1,ID_Flash_Bios
            Item "Flash Bank 2",ID_Chameleon_Bank_2,ID_Flash_Bios
            Item "Flash Bank 3",ID_Chameleon_Bank_3,ID_Flash_Bios
        }
        Section "Chameleon Mode 2",ID_Chameleon_Mode_2
        {
            Line "Mode 2 (2x512k)"
            Item "Switch To TSOP (Disable Chameleon)",ID_Chameleon_Release_D0,ID_Full_Reboot
            Item "Switch To Bank 0,1",ID_Chameleon_Bank_0,ID_Full_Reboot
            Item "Switch To Bank 2,3",ID_Chameleon_Bank_2,ID_Full_Reboot
            Line "-=*-*=-"
            Item "Flash Bank 0,1",ID_Chameleon_Bank_0,ID_Flash_Bios
            Item "Flash Bank 2,3",ID_Chameleon_Bank_2,ID_Flash_Bios
        }
        Section "Chameleon Mode 3",ID_Chameleon_Mode_3
        {
            Line "Mode 3 (1x1024k)"
            Item "Switch To TSOP (Disable Chameleon)",ID_Chameleon_Release_D0,ID_Full_Reboot
            Line "-=*-*=-"
            Item "Flash Bank 0,1,2,3",ID_Chameleon_Bank_0,ID_Flash_Bios
        }
        Section "Chameleon Mode 4",ID_Chameleon_Mode_4
        {
            Line "Mode 4 (2x256k + 1x512k)"
            Item "Switch To TSOP (Disable Chameleon)",ID_Chameleon_Release_D0,ID_Full_Reboot
            Item "Switch To Bank 0",ID_Chameleon_Bank_0,ID_Full_Reboot
            Item "Switch To Bank 2",ID_Chameleon_Bank_2,ID_Full_Reboot
            Line "-=*-*=-"
            Item "Flash Bank 0",ID_Chameleon_Bank_0,ID_Flash_Bios
            Item "Flash Bank 2",ID_Chameleon_Bank_2,ID_Flash_Bios
        }
    }
}

Flash lines to add for memory chip identification:

Flash = 0x015b,"AMD - Am29LV800B",0x100000
Flash = 0x01da,"AMD - Am29LV800B",0x100000
