Viper GC missing programer

Discussion in 'Modding and Hacking - Consoles and Electronics' started by Korn16ftl3, Jul 18, 2017.

  1. Korn16ftl3

    Korn16ftl3 Robust Member

    Joined:
    Jun 26, 2017
    Messages:
    200
    Likes Received:
    19
    So I bought a random game cube at a yard sale that had a ribbon wire hanging out of the bottom.....so I disassembled it and found a viper gc extreme chip inside....but sadly it has no usb programmer attached to the ribbon wire outside the case....is there anything I can do about this? I can not test the gc because it came with no controllers or wires or anything of that sort

  2. Looney Bin Jim

    Looney Bin Jim Spirited Member

    Joined:
    May 1, 2014
    Messages:
    124
    Likes Received:
    11
    Unfourtunately you cannot flash the chip if it does not have the programmer. More than likely though it already has a bios flashed so it will work fine without the programmer. On another note, if you would like to sell the chip or trade it for an Original Xbox chip, please let me know.

    Korn16ftl3 likes this.
  3. Korn16ftl3

    Korn16ftl3 Robust Member

    Joined:
    Jun 26, 2017
    Messages:
    200
    Likes Received:
    19
    Well guess I get the cords and such around and see what I can figure out I know these things are about as hard to come by an an X3 (which fortunately I did come across one recently) and that the only chip available is the xenogc for the cube anymore....wish we would have more people with the talent of bennydiamond (original xbox chip dev) and Robert webb (dev for the saturn chip I beleive) that developed quality mod chips for older/retro systems

  4. Marmotta

    Marmotta Dauntless Member

    Joined:
    Apr 14, 2009
    Messages:
    755
    Likes Received:
    49
    If the console is running a Cobra BIOS you can update it from a disc.

    Korn16ftl3 likes this.
  5. Korn16ftl3

    Korn16ftl3 Robust Member

    Joined:
    Jun 26, 2017
    Messages:
    200
    Likes Received:
    19
    Excellent to know....what are the actual features of this chip....I mean like I know it plays backups and runs Cobra bios/os and can run cheats as well as has a 2mb flash but is there anything like specific I should look into with it? A different bios or particular homebrew or anything else like that?

    Last edited: Jul 19, 2017
  6. KaosEngineer

    KaosEngineer Robust Member

    Joined:
    Jun 7, 2016
    Messages:
    224
    Likes Received:
    97
    Go back and knock on the door where the yard sale was. Ask if they happen to have anything to go along with the Gamecube you purchased. They might just have a box of games, controllers, cables and that Viper Programmer that's of no use to them anymore.

  7. Korn16ftl3

    Korn16ftl3 Robust Member

    Joined:
    Jun 26, 2017
    Messages:
    200
    Likes Received:
    19
    Took ure advice and went back to where I got it they had a few games for it that I bought on my second visit back and the programmer was in one of the game cases awesome........I also picked up some cords and and controller at a local thrift store started it up and all seems to work.....however it does not appear to be flashed when I turn the dip switch on it just says press a button to flash or press a different button to proceed

    Last edited: Jul 23, 2017
    Turbanator and gladiator5 like this.
  8. gladiator5

    gladiator5 Robust Member

    Joined:
    Jun 25, 2012
    Messages:
    284
    Likes Received:
    17
    Can't help you with the flasher, but nice that you went back and found the programmer xD

    Korn16ftl3 likes this.
  9. KaosEngineer

    KaosEngineer Robust Member

    Joined:
    Jun 7, 2016
    Messages:
    224
    Likes Received:
    97

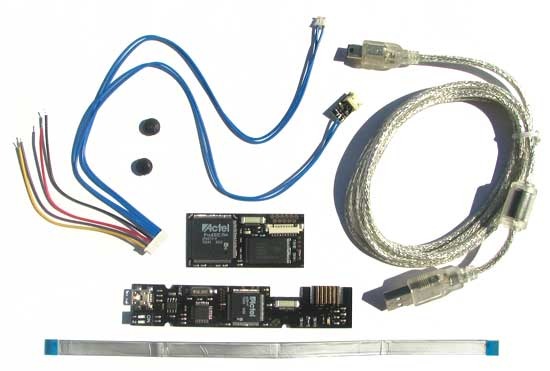

    The entire Viper GC Extreme is now installed.

    ViperGC Extreme Kit Components Complete.jpg

    Only lack the programming software?

    Maybe these files will help!


    Attached Files:

    Last edited: Jul 24, 2017
  10. modrobert

    modrobert Rising Member

    Joined:
    Jul 23, 2005
    Messages:
    68
    Likes Received:
    21
    Cobra BIOS v2.1i (includes manual)

    As mentioned previously, the Viper GC Extreme does not require programmer to update BIOS, it can be updated from disc.

    If anyone wants more information about this specific release, check here:
    http://www.eurasia.nu/modules.php?name=Forums&file=viewtopic&topic=6321&forum=76#35177

  11. Korn16ftl3

    Korn16ftl3 Robust Member

    Joined:
    Jun 26, 2017
    Messages:
    200
    Likes Received:
    19
  12. modrobert

    modrobert Rising Member

    Joined:
    Jul 23, 2005
    Messages:
    68
    Likes Received:
    21
    The only difference is listed, you can update 2.1 from disc, only change.

  13. Korn16ftl3

    Korn16ftl3 Robust Member

    Joined:
    Jun 26, 2017
    Messages:
    200
    Likes Received:
    19
    ok lets give this flashing thing a crack from windows 10 and see if it will work im well aware that most of this stuff is older and completely intended for being ran on windows XP but unfortunately i do not have anything running windows XP available at this point in time

  14. Bad_Ad84

    Bad_Ad84 The Tick

    Joined:
    May 26, 2011
    Messages:
    8,566
    Likes Received:
    1,309
    Worst case, you could download vm ware player, install windows xp then just pass through the USB device. The vm will see it like it's directly plugged into a Windows xp machine.


    But I'm pretty sure I got mine working in at least windows 7, but could have been 8 or 10 -I don't really remember the last time I used it.

    I think there were newer drivers on the Swiss forum iirc

  15. Korn16ftl3

    Korn16ftl3 Robust Member

    Joined:
    Jun 26, 2017
    Messages:
    200
    Likes Received:
    19
    I don have the original usb cable that came with it windows 10 detected it but didn't ask for drivers perhaps I need to install them with the device manager or something I'm not sure on the procedure with all of this when I start the gc with everything plugged in the usb cord the pc and the programmer in the serial port and I press B to flash the screen gables up on me...not sure if I'm supposed to plug the usb cord in after I press B to flash or what....working on getting an old xp machine anyhow I'm looking into other projects for older consoles that are requiring older computers.....seen some guy sellino an xp pc on fb but he wanted $50 it was an old dell optiplex....damn thing is only worth maybe $20 lol

  16. Bad_Ad84

    Bad_Ad84 The Tick

    Joined:
    May 26, 2011
    Messages:
    8,566
    Likes Received:
    1,309
  17. Korn16ftl3

    Korn16ftl3 Robust Member

    Joined:
    Jun 26, 2017
    Messages:
    200
    Likes Received:
    19
    I'm trying to flash via dvd from the cobra flash screen but every time I try it reads the disc and says error reading disc press B to cancel......now I've read a lot about pot tweaking the GC and I have not done that yet....do I need to pot tweak this in order to get it to flash from dvd, and if so what's a good resistance to set this at that's safe for the laser yet works on DVD-R media? It's at DOL-001 model if that helps with determining anything.

  18. Korn16ftl3

    Korn16ftl3 Robust Member

    Joined:
    Jun 26, 2017
    Messages:
    200
    Likes Received:
    19
    well got the BIOS flashed via DVD now im assuming in order to make the 2MB of flash rom space useful to me for DOL files i will have to send them via USB?

    also how do i get my hands on a cheat file for this so i can load the cheats menu up with a selection of codes like an AR?
