Wanted alternative point # 5 Ps1 mod.

Discussion in 'Modding and Hacking - Consoles and Electronics' started by path-neo80, Sep 10, 2016.

  1. path-neo80

    path-neo80 Rising Member

    Joined:
    Jun 10, 2015
    Messages:
    53
    Likes Received:
    1
    Hi, I am installing a modchip (mayumi) of ps1 PU-20
    ie a SCPH 7002, everything just fine that the track point 5 of mobo jumped, and I would need an alternative point on which solder.
    I kindly ask advice I attach scheme that I'm using


    Attached Files:

    Last edited: Sep 10, 2016
  2. turfster

    turfster i grow grass

    Joined:
    Mar 17, 2013
    Messages:
    612
    Likes Received:
    48

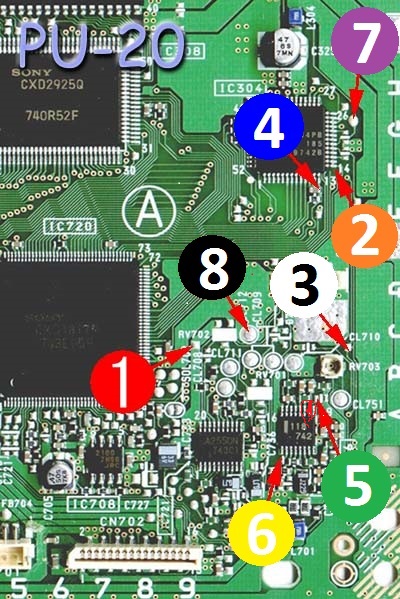

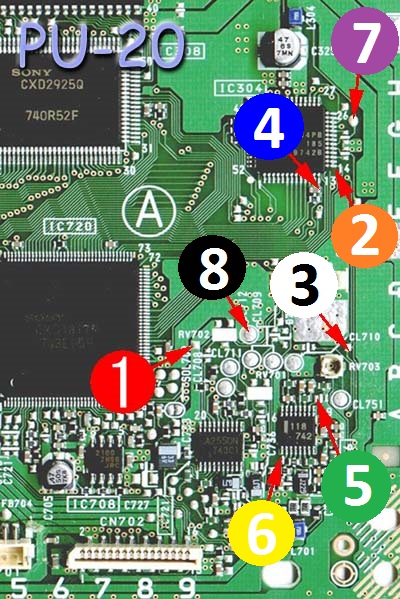

    Mayumi v4 PU-20.jpg

    Right there on the ic chip I painted in red. i dont have that board handy though to be sure. Check with a multimeter.

  3. path-neo80

    path-neo80 Rising Member

    Joined:
    Jun 10, 2015
    Messages:
    53
    Likes Received:
    1
    ok, thank you, just that I neglected to say that he also tore the pin that you've marked in red.
    However, I scraped the surface of the chip and collected a pin filament and I connected the wire them.
    Not sure of the operation, since it does not recognize me the mod. pic.
    Thanks anyway.
    Tested original and working Cd. I do not know.

  4. path-neo80

    path-neo80 Rising Member

    Joined:
    Jun 10, 2015
    Messages:
    53
    Likes Received:
    1
    nothing even tried MM3, reads only backup copies, avoids both original and NTSC cd. I do not understand why used 2 of pic programmers always the same result.
    I remove the modchip and keep it for a future intallation of PSIO, it has seen serial port on the back.
    Thank you.
