Which resistor is it?

Discussion in 'Repair, Restoration, Conservation and Preservation' started by Jackhead, Mar 5, 2019.

  1. Jackhead

    Jackhead Site Soldier

    Joined:
    Apr 2, 2008
    Messages:
    2,433
    Likes Received:
    610

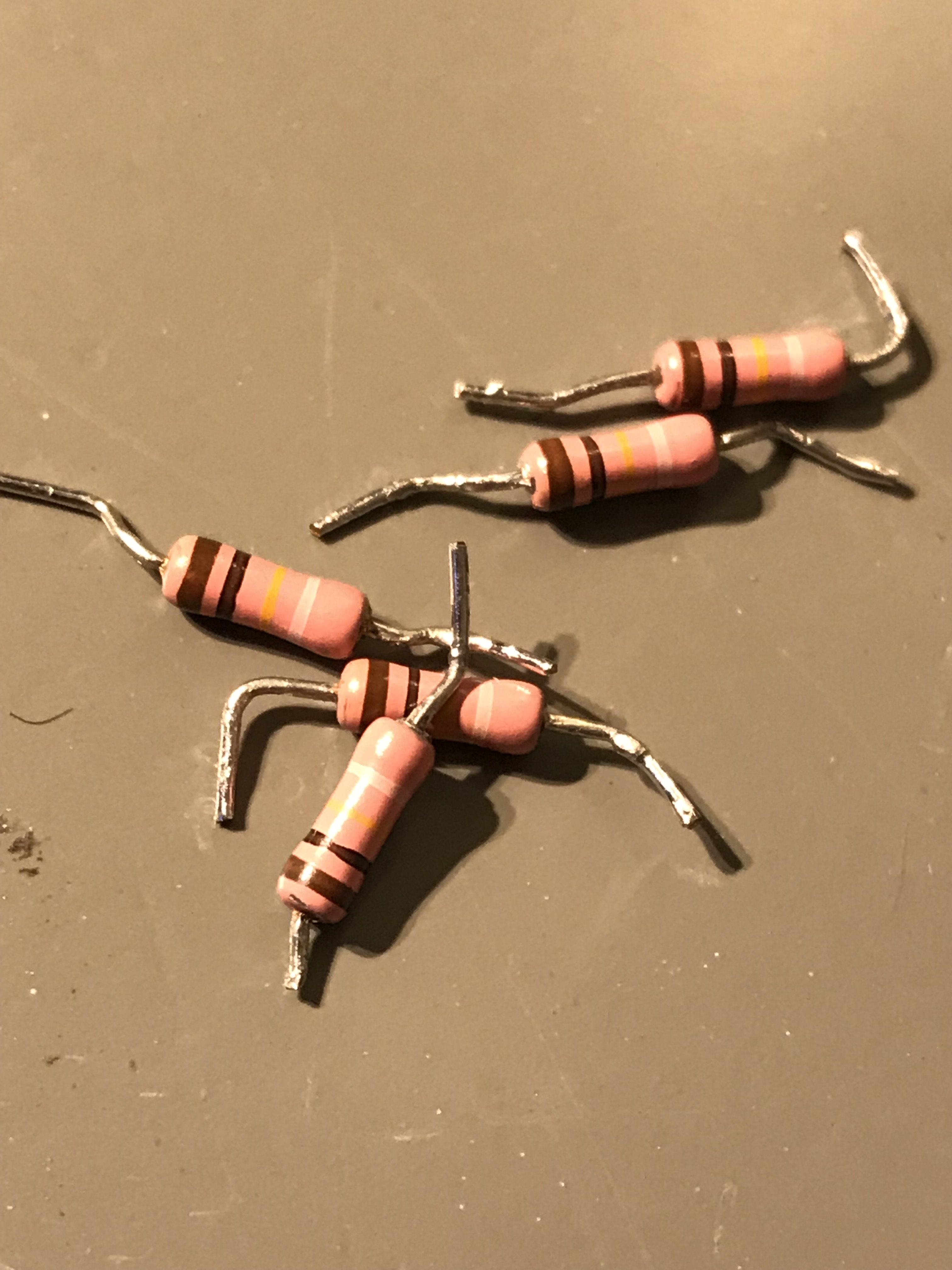

    I know its simple with a multimeter or the colour code, but all the Resistors are gone. I cant check with the multimeter. I was thinking the brown is the first ring? Than the last one musst be silver, but looks like white for me...
    So it can be

    brown - black - yellow - silver = 100k Ohms 10%
    brown - black - yellow - grey = 100k Ohms 0.05%

    Or is it:

    white - yellow - black - brown = 94 Ohms 1%

    What would you say?


  2. -=FamilyGuy=-

    -=FamilyGuy=- Site Supporter 2049

    Joined:
    Mar 3, 2007
    Messages:
    3,031
    Likes Received:
    889
    That looks like 100k ± 10% to me. The first band is on the wider part normally, I've never seen white band for tolerance, but that might be the case here.

  3. Jackhead

    Jackhead Site Soldier

    Joined:
    Apr 2, 2008
    Messages:
    2,433
    Likes Received:
    610
    ok thanks, yeah after 20 years silver can look like white maybe ^^

  4. -=FamilyGuy=-

    -=FamilyGuy=- Site Supporter 2049

    Joined:
    Mar 3, 2007
    Messages:
    3,031
    Likes Received:
    889
    If it's very sensitive equipment, you could use 0.05% resistors as they will certainly work in place of 10% ones without any issue.
    Or ask someone with access to the same equipment to measure it for you with a ohmmeter.

  5. jetmagnum

    jetmagnum Magnum Inc

    Joined:
    Jun 12, 2016
    Messages:
    373
    Likes Received:
    139
    Looks to be white which is weird but looking at it id say grey not silver as its closer to white

    So id say brown black yellow grey

  6. jetmagnum

    jetmagnum Magnum Inc

    Joined:
    Jun 12, 2016
    Messages:
    373
    Likes Received:
    139
    If it ain't white its def grey not silver i zoomed in and everything n it looks white
