Which Scart cable to get for a US Snes

My buddy got one of these.

http://www.amazon.co.uk/gp/product/...=B0092IAA3I&linkCode=as2&tag=scarttohdmiso-21


Now he ordered was a XRGB JP21 cable but got the wrong one,I tried to rewire it but all it does is output composite using the converter.

Which cable would work using this converter.
http://stores.ebay.com/Retro-Access...787760014&_sid=13014864&_trksid=p4634.c0.m322

Any help would be awesome.



Out of those, this one looks like a good value. http://www.ebay.com/itm/201085632324

Your converter takes scart cables. Not for JP21.



One of these 2:
http://www.ebay.com/itm/Super-Ninte...SYNC-FULL-SHIELD-GROUNDED-cable-/201085632324
http://www.ebay.com/itm/Super-Ninte...DED-GROUNDED-cable-cord-US-SNES-/201083310506
Both will work on an snes and rgb modded snes mini but if it's a mini you need to make sure the csync was connected to the multi out if you want to get the c-sync one.



I've bought a few cables from them out of laziness and the build quality appears pretty good. Nothing I can't do myself but as some of you are aware I've been busy.



Grab an official PAL Cube cable.



If you want to spend an arm and a leg I guess.



Eh, a friend recently picked one up for £20 boxed and I got mine off of a kind forum member on another forum for nothing.

Just because they're asking so much on eBay doesn't mean you should pay that.



http://members.optushome.com.au/eviltim/gamescart/gamescart.htm#snes



I bought this cable.
http://www.ebay.com/itm/Super-Ninte...ideo_Game_Cables_Adapters&hash=item2ed1a33f44

Got it yesterday and I plug it in to my scart to hdmi converter and I get barely any video,very dark with no color but sound does work,plus the converter says its outputting AV instead of scart rgb,its not switching over.

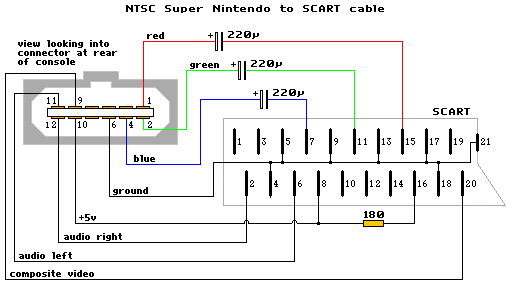

I opened the cable up and its wired just like this.


I'm thinking the composite video is not wired correctly,seems like its wired to composite sync instead.

Here are some pics of said cable.



If anything I can return the cable but wanted to see if you guys can help me out.



Yes you bought the composite sync cable. It should work unless you have a mini that is not rgb modded or is modded and csync wasn't connected to the multi out.



Wow!!!!! How do you use SCART in USA?!?!?!?!? Of course, other than importing a PAL TV from UK, etc.



Scart to hdmi convertor. Like the one in the op had linked to in the 1st post.



If you have a retail SNES display, it uses SCART and inside the big black thing is a large SCART to RGB converter board. If there's demand I could dig it out of my stash and pull the board out for pictures.



Tried on on my super fami and snes,sound but barely and any video and on my pal snes its nothing but a black screen.



Pal snes needs different components in the cable I think so that ones not going to work. Perhaps there is a setting on the hdmi adaptor that needs changed. That cable should work.

maybe pal mode (50hz) button got pushed in by mistake?



Also when messing around with the cable I removed the 5v wire and nothing changed,acted exactly the same.

On the converter it detects the video source,I cannot change it.



So do you have a different one than you linked in the origninal post? Maybe the convertor you have doesn't work with rgb and only composite.

You also maybe blew something in the convertor if you plugged the jap21 cable into it. Your cable is most likely fine and the convertor is the problem.



Well its not mine,my buddy bought it had no idea what he was doing.

I looked more into it,this is the one he bought.
http://www.goodluckbuy.com/scart-hdmi-to-hdmi-converter-upscaler-hdv-8s.html

I downloaded the manual and here is what it says that spikes my interest.
SCART (CVBS)/HDMI---------------------SCART or HDMI input switching button

CVBS is just a fancy term for composite video.



Make sure it's set to 60hz output. If it is, then it probably died when the jap21 cable was plugged into it.



That very well could have been it.Thanks for the help dude.
