Wondermega maintenance videos

Hello,
I've put online bad videos of Wondermega's RG-M1 & RG-M2 maintenance:
Disassemble, cleaning, grease, remount test.
If it can be usefull....

RG-M1:





RG-M2:



Excelent. I need to fix mine as the caps are dieing on the video board.

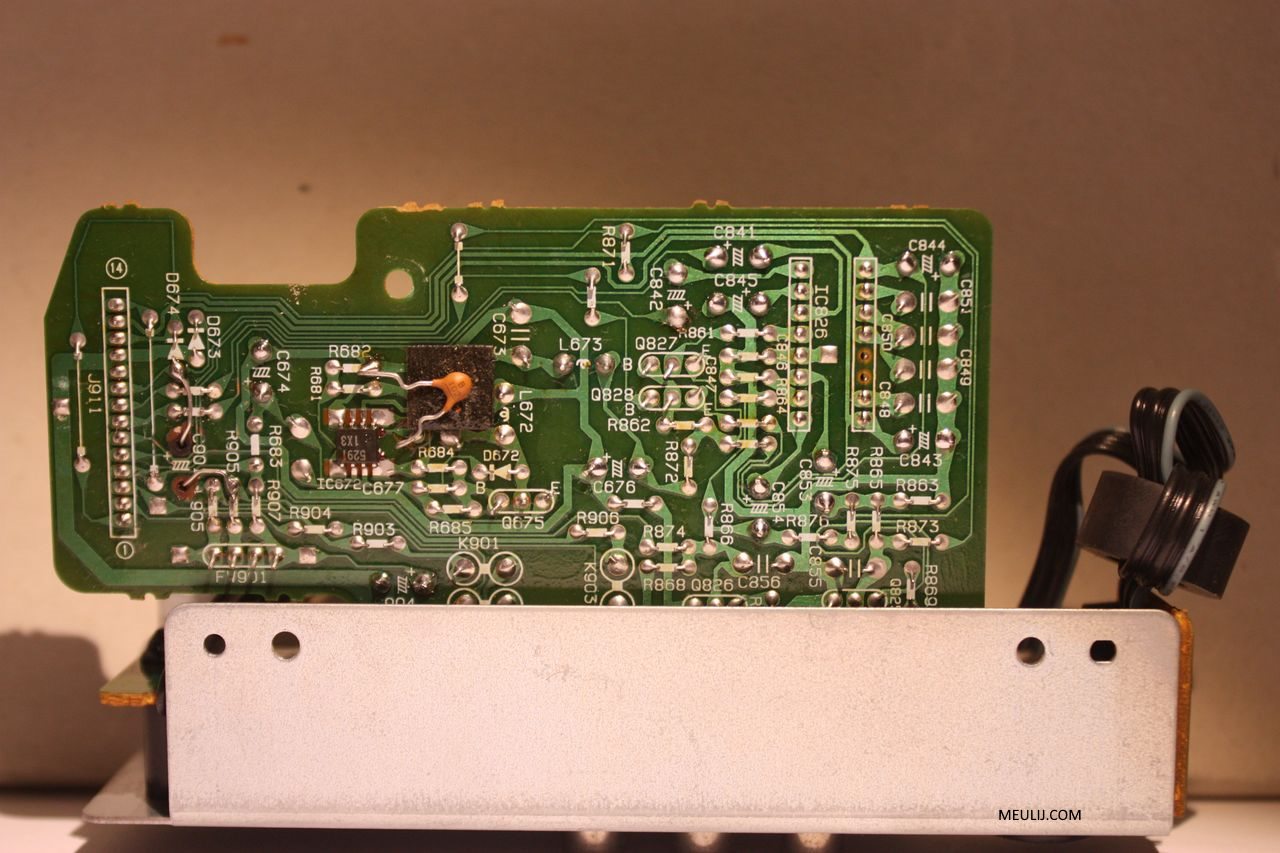

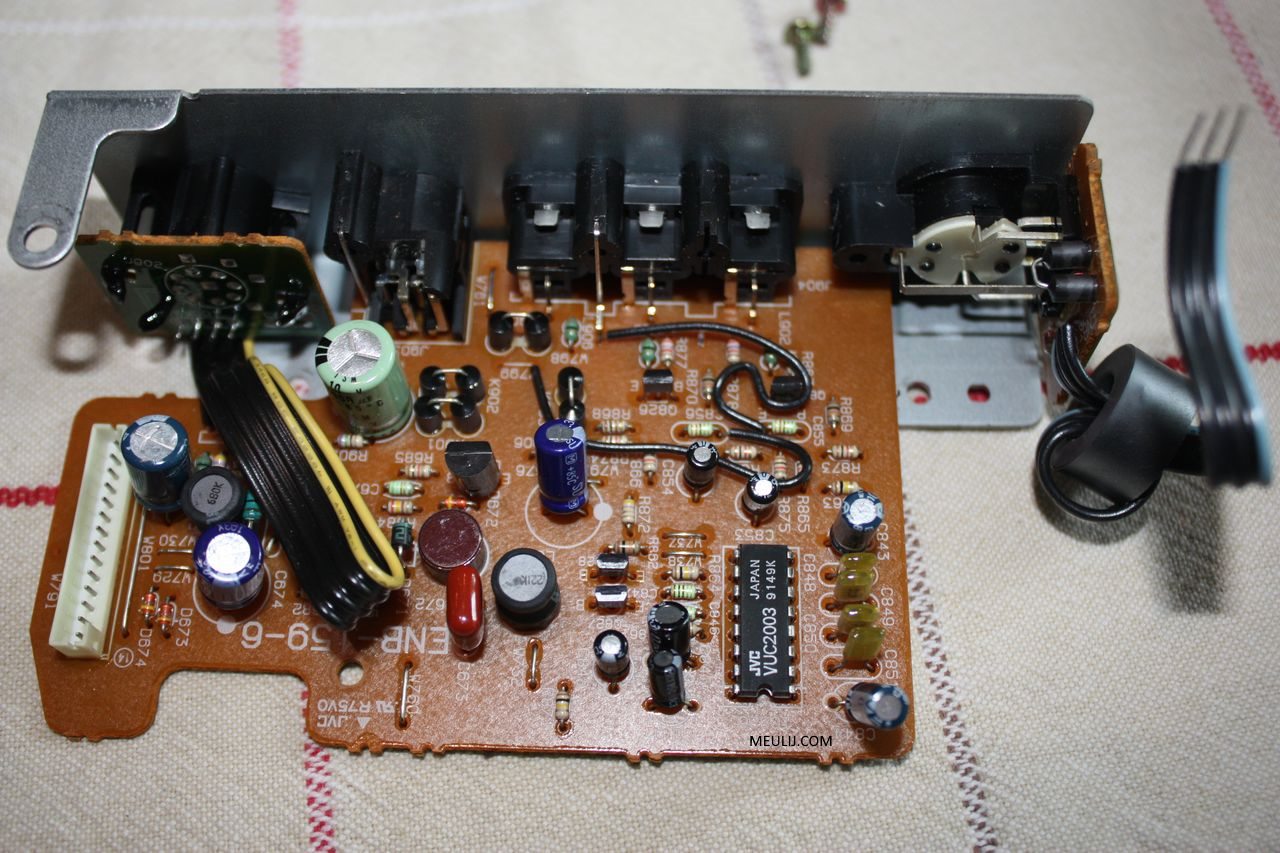

This one ?



Yep, that's the one.



Your lucky, it's the easiest board in the WM.



canceled



Good to know. I once started to take it apart but the amount of stuff jammed in there put me off.



Don't unmount all!
To access to this board, just unscrew the four crew of the MD board (right), this screw are arount the cartridge port.
After just raise this boar at vertical.
Just be carrefull to the three pins connector (blues and black & two plane wire. They are sources of false contacts
The video board is directly accessible, their is one connector and 3 screw to maintain it to the frame.

Check my video, maybe it can this procedure visible.



Thank you very much for the advice.



Very cool stuff. I'd love to see high resolution pictures of the motherboards, if anyone is up for it.



There is few pictures on my page:
http://meulij.com/wondermega_disas.html



Thanks. Your site doesnt let you view them in full res though or save images
Some really interesting stuff in here, lots of JVC branded ICs. and omg look at all those LDOs. Its a pretty unique chipset.



With a right click on the little picture, you save the full rez one. (firefox)



ah I figured it out, my browser was doing something weird. Thanks!
