US WTB Sega Genesis Model 1 RGB Bypass Upgrade Kit

They are sold out everywhere and when I emailed the time frame is pretty far out for new ones. If anyone has a spare one laying around and doesn't need it I'd love to take it off your hands.



I’m making one since I couldn’t find them anywhere. I’ll let you know how it goes. I had to order 4 boards.



I totally forgot about this thread my bad! I ordered three boards last year but have been too lazy to get the components since i couldn't easily find the values of some on the OSH Park project page.



Do you still need one? I have the Model 1 and Model 2 ones hanging around.



Sure, how much for one?

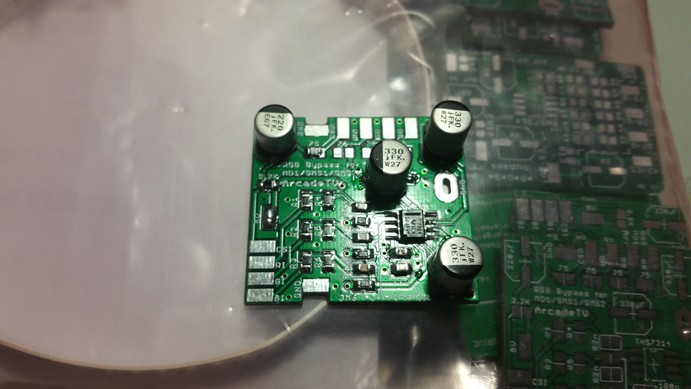

Oh shit! Mine are prettier! Hahahahaha. Well I need to test first.



I want to try them with the 3 x 75ohms for the RGB output. The guide says to remove them.



@Flappyraccoon PM'd!
@josar depends how your cable is built. If there are resistors already on the console end of the cable then you don't need to add the resistors to the the board. Just bridge the pads.



Thanks for the info! I’ll keep that on mind.



True, most cables are already attenuated for 75ohm, which eliminates the need for the RGB amp PCB to have the resistors installed as well.
