Xbox 1.0 with leaked clock capacitor, missing C7G6

Discussion in 'Repair, Restoration, Conservation and Preservation' started by arny91, Jan 20, 2016.

  1. arny91

    arny91 Member

    Joined:
    Jun 9, 2011
    Messages:
    17
    Likes Received:
    4
    Hi,
    Some years ago i bought from ebay a non-working xbox, when i opened it i realized that the clock capacitor had already leaked. I reflowed every smd component in the area, but C7G6 SMD cap is missing, probably it was soaked with the fluid and knocked off. Does anyone here know its value? Thank you.

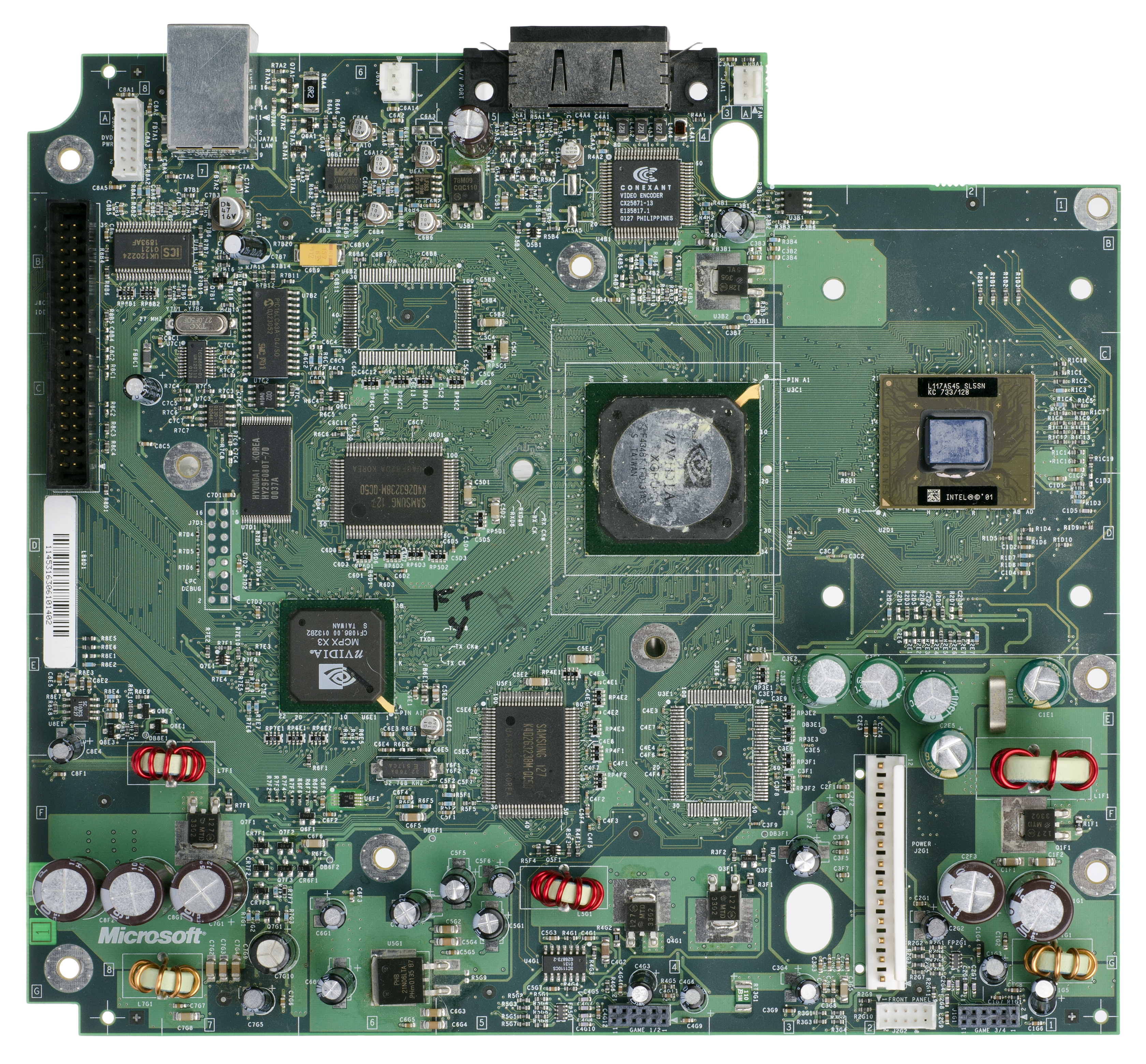

    Here's a picture to better identify the component: it's located under the c7g10 clock cap.

    [​IMG]

  2. DeChief

    DeChief Rustled.

    Joined:
    Jan 25, 2014
    Messages:
    1,704
    Likes Received:
    712
    No idea on the value, but that GPU looks like an ex-GPU.

    As in it looks dead and crusty. :p

  3. darkspire17

    darkspire17 None

    Joined:
    Oct 24, 2014
    Messages:
    447
    Likes Received:
    115
    wow. not too far off from the dreamcast :p (and i know the hole same parts used and planned backwards compatibility)

  4. arny91

    arny91 Member

    Joined:
    Jun 9, 2011
    Messages:
    17
    Likes Received:
    4
    That's just a reference pic, not of the actual board. Mine still have heatsinks.

  5. Kloggmonkey

    Kloggmonkey Member

    Joined:
    Feb 1, 2016
    Messages:
    6
    Likes Received:
    1
    You're looking for a 25V 22μF cap.

    wazzal likes this.
