Xbox 360 fan pin headers blown, anyway fixes?

Discussion in 'Repair, Restoration, Conservation and Preservation' started by Stipo360, Apr 5, 2014.

  1. Stipo360

    Stipo360 Dead Rising & XDKs

    Joined:
    Feb 11, 2014
    Messages:
    1,107
    Likes Received:
    473
    .

    Last edited: Jun 19, 2017
  2. s8n

    s8n Enthusiastic Member

    Joined:
    Dec 10, 2011
    Messages:
    524
    Likes Received:
    74
  3. Stipo360

    Stipo360 Dead Rising & XDKs

    Joined:
    Feb 11, 2014
    Messages:
    1,107
    Likes Received:
    473
    .

    Last edited: Aug 21, 2017
  4. s8n

    s8n Enthusiastic Member

    Joined:
    Dec 10, 2011
    Messages:
    524
    Likes Received:
    74
    in the video you cut the wires roughly halfway from the Fans and Header , the Header isnt used anymore and the 2 wires that come off the Fans get wired to the Drive

  5. Stipo360

    Stipo360 Dead Rising & XDKs

    Joined:
    Feb 11, 2014
    Messages:
    1,107
    Likes Received:
    473
    .

    Last edited: Aug 21, 2017
  6. s8n

    s8n Enthusiastic Member

    Joined:
    Dec 10, 2011
    Messages:
    524
    Likes Received:
    74
    i just realized something while watching another video for the 12V mod..............



    yes thats right but the Header with the wires Blue and Black that havent been cut gets plugged back into the motherboard


    the below video is easier to understand than the first video i posted


    https://www.youtube.com/watch?v=YTHok-72Uzg

  7. gladiator5

    gladiator5 Robust Member

    Joined:
    Jun 25, 2012
    Messages:
    284
    Likes Received:
    17
    12v it, its an easy method.

    you can take the power from the dvd drive, or solder it directly under the power input from the 360 console.

    which console version is the 360 console?

  8. Stipo360

    Stipo360 Dead Rising & XDKs

    Joined:
    Feb 11, 2014
    Messages:
    1,107
    Likes Received:
    473
    .

    Last edited: Aug 21, 2017
  9. kingkat

    kingkat Robust Member

    Joined:
    Nov 16, 2012
    Messages:
    299
    Likes Received:
    8
    Yes, do the 12v fan mod, but don't use the DVD drive rail. Solder to the 12v point directly under the power connector.

  10. Stipo360

    Stipo360 Dead Rising & XDKs

    Joined:
    Feb 11, 2014
    Messages:
    1,107
    Likes Received:
    473
    .

    Last edited: Aug 21, 2017
  11. gladiator5

    gladiator5 Robust Member

    Joined:
    Jun 25, 2012
    Messages:
    284
    Likes Received:
    17
    yeah it does, but it is safer too solder it under the power connector, if you are still using the dvd drive, dont ask me why, cause i have done both, and both were working for me.

  12. Stipo360

    Stipo360 Dead Rising & XDKs

    Joined:
    Feb 11, 2014
    Messages:
    1,107
    Likes Received:
    473
    .

    Last edited: Aug 21, 2017
  13. gladiator5

    gladiator5 Robust Member

    Joined:
    Jun 25, 2012
    Messages:
    284
    Likes Received:
    17

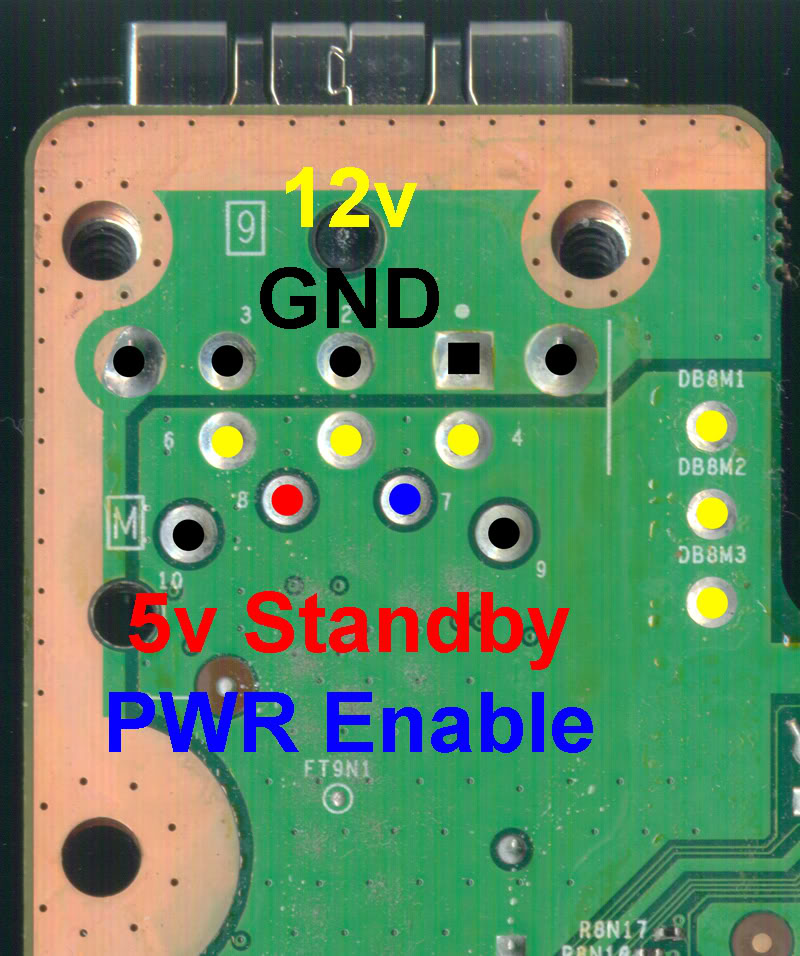

    just use the 12v from the 3 points under the 5 ground points.

    this worked for me :)

    Last edited: Apr 10, 2014
