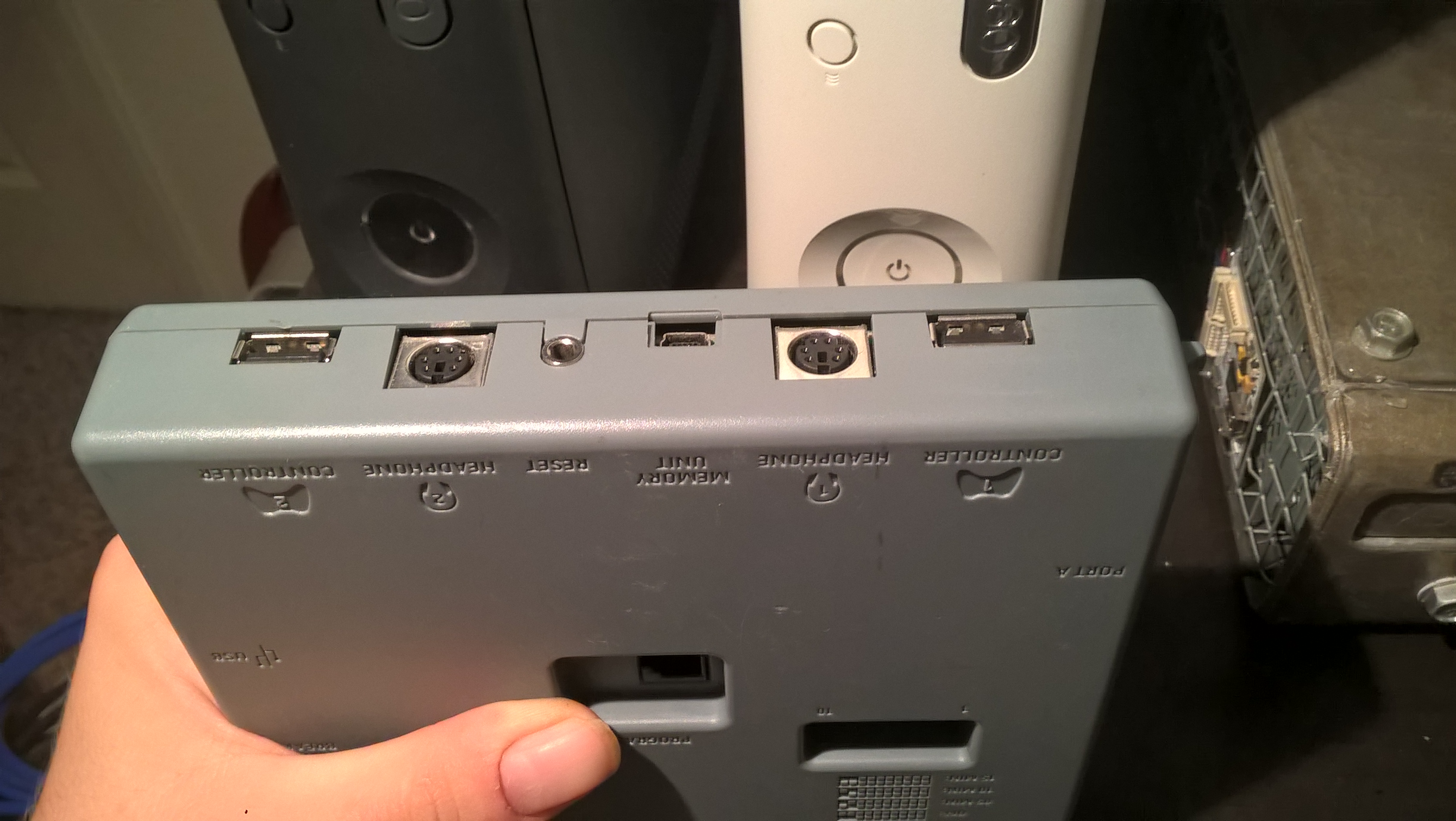

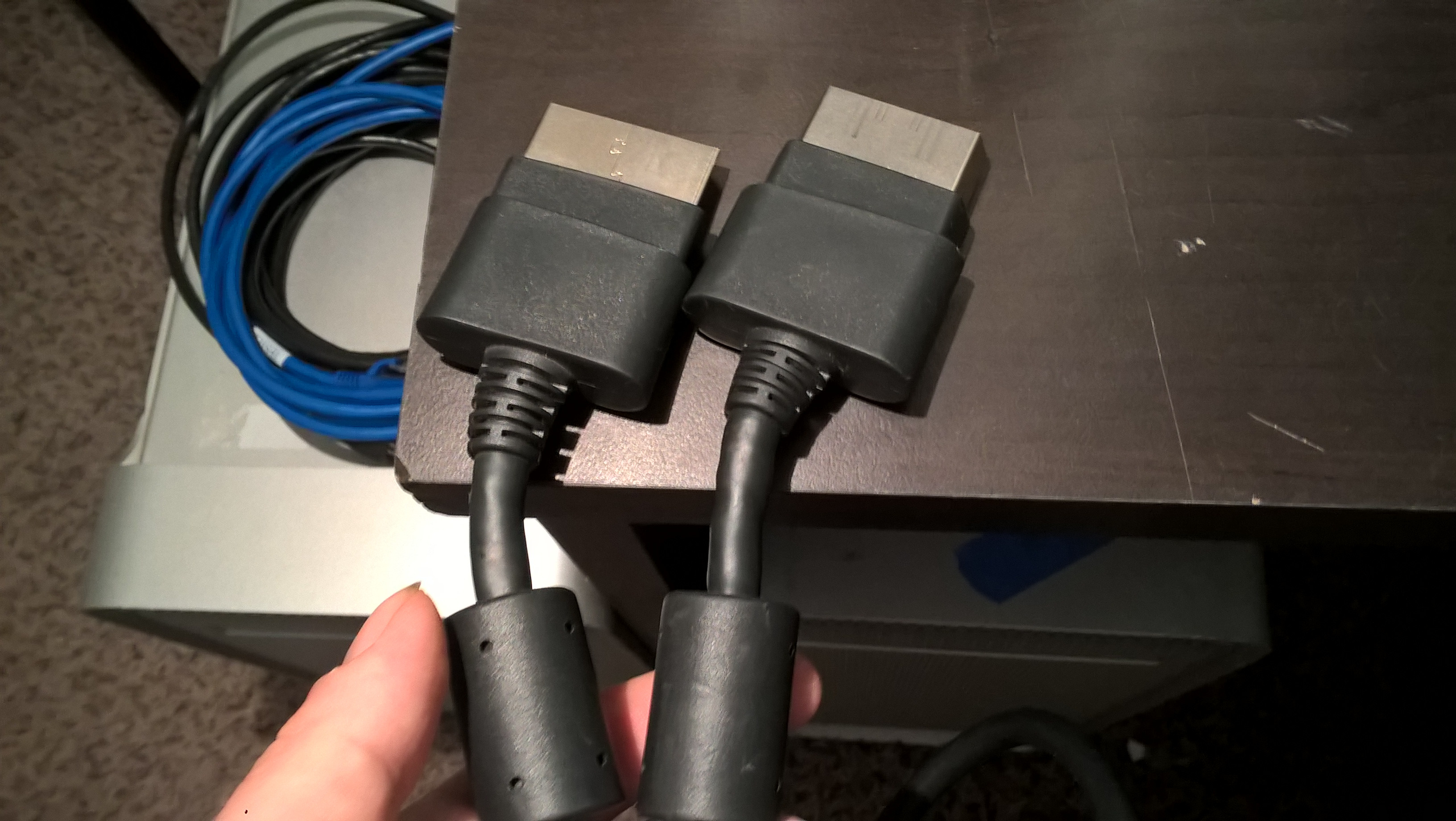

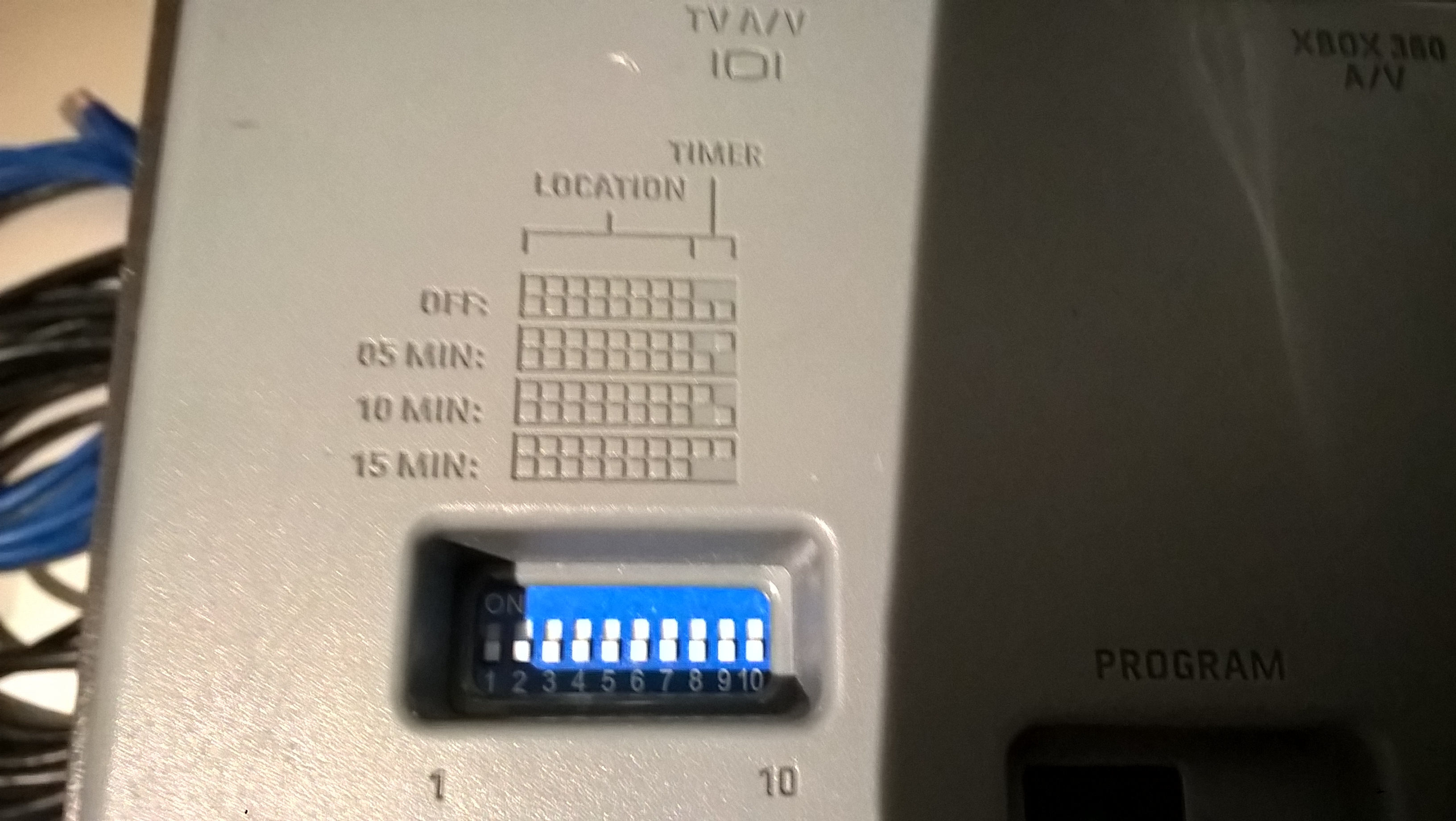

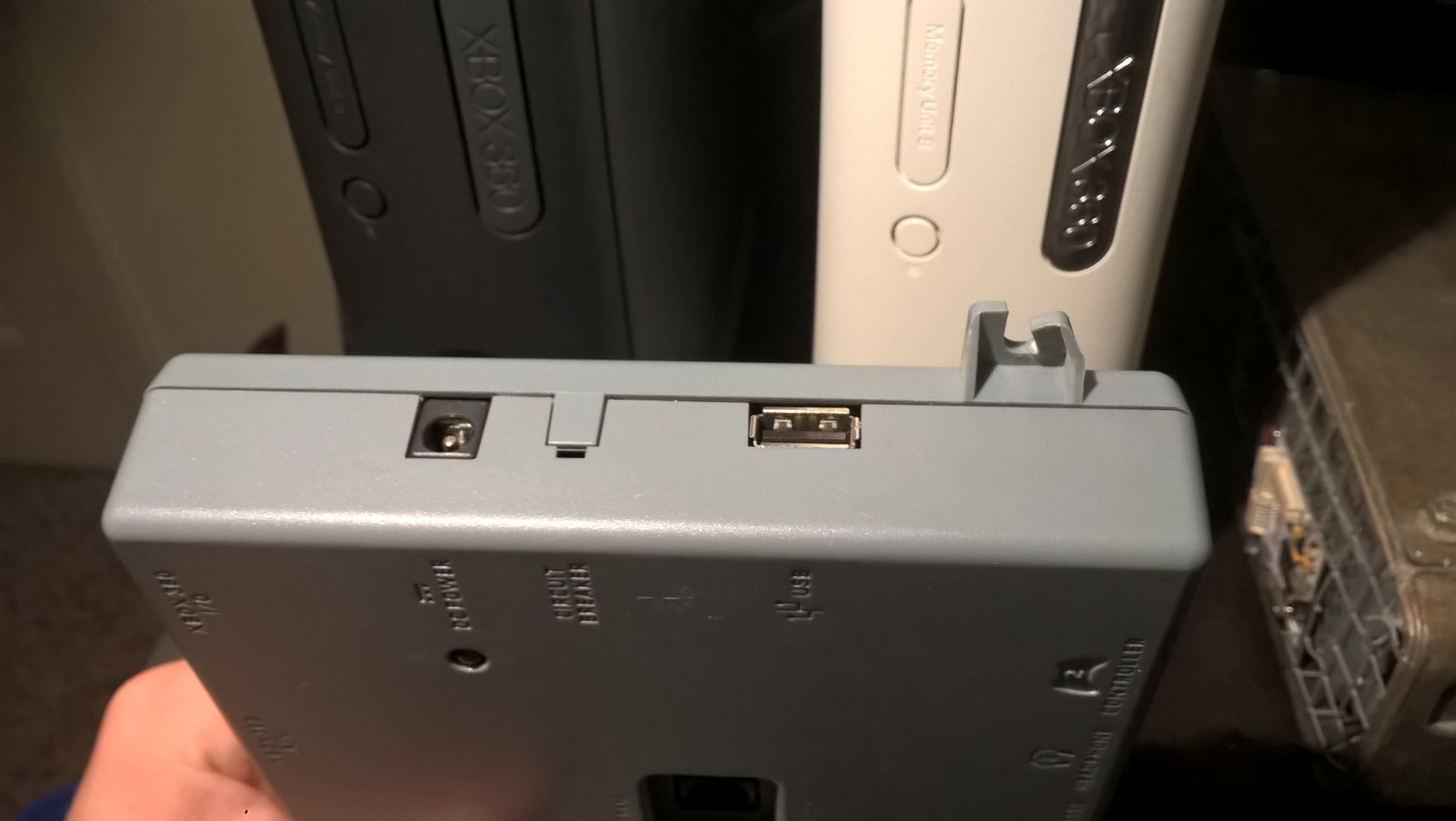

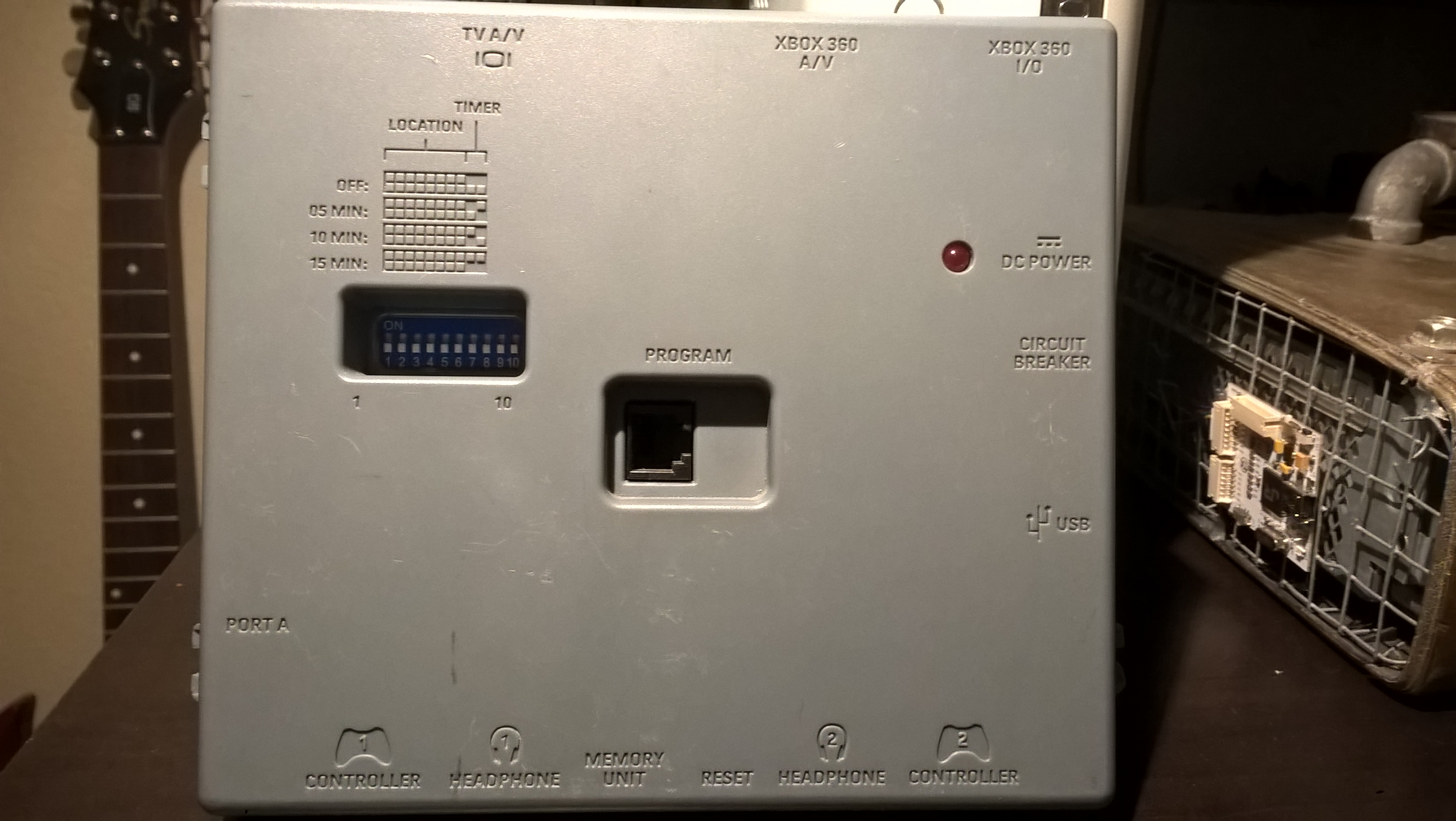

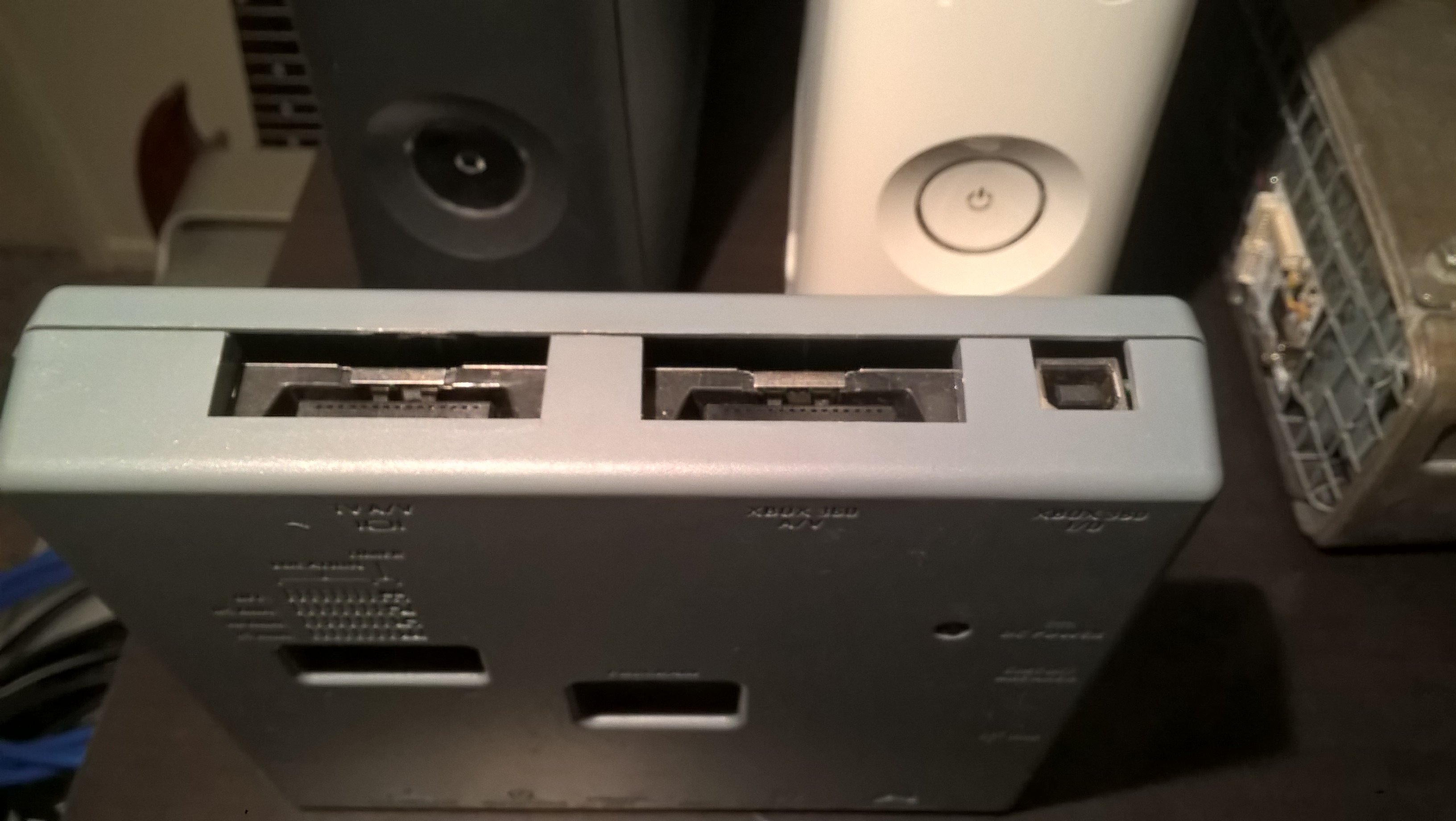

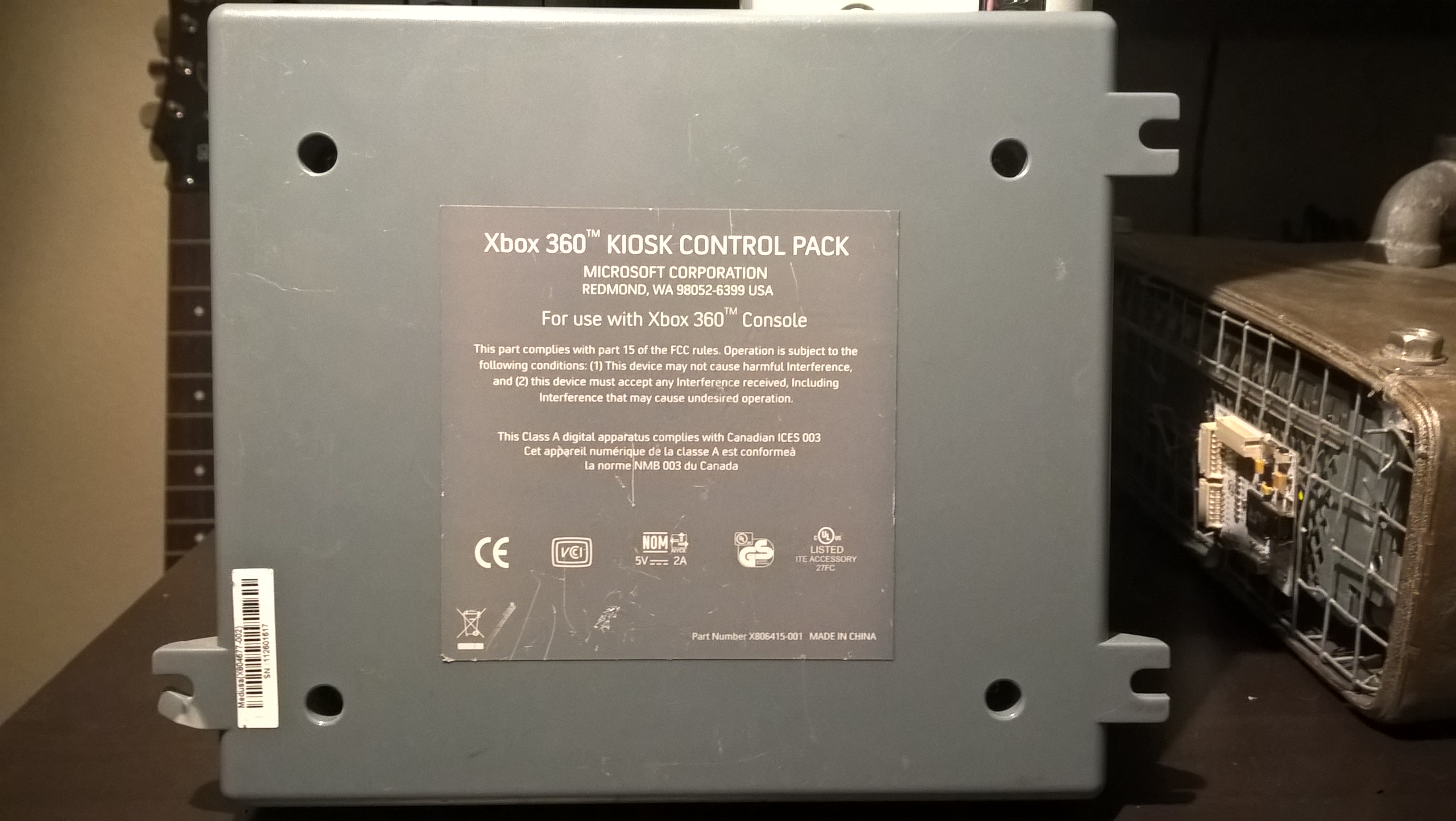

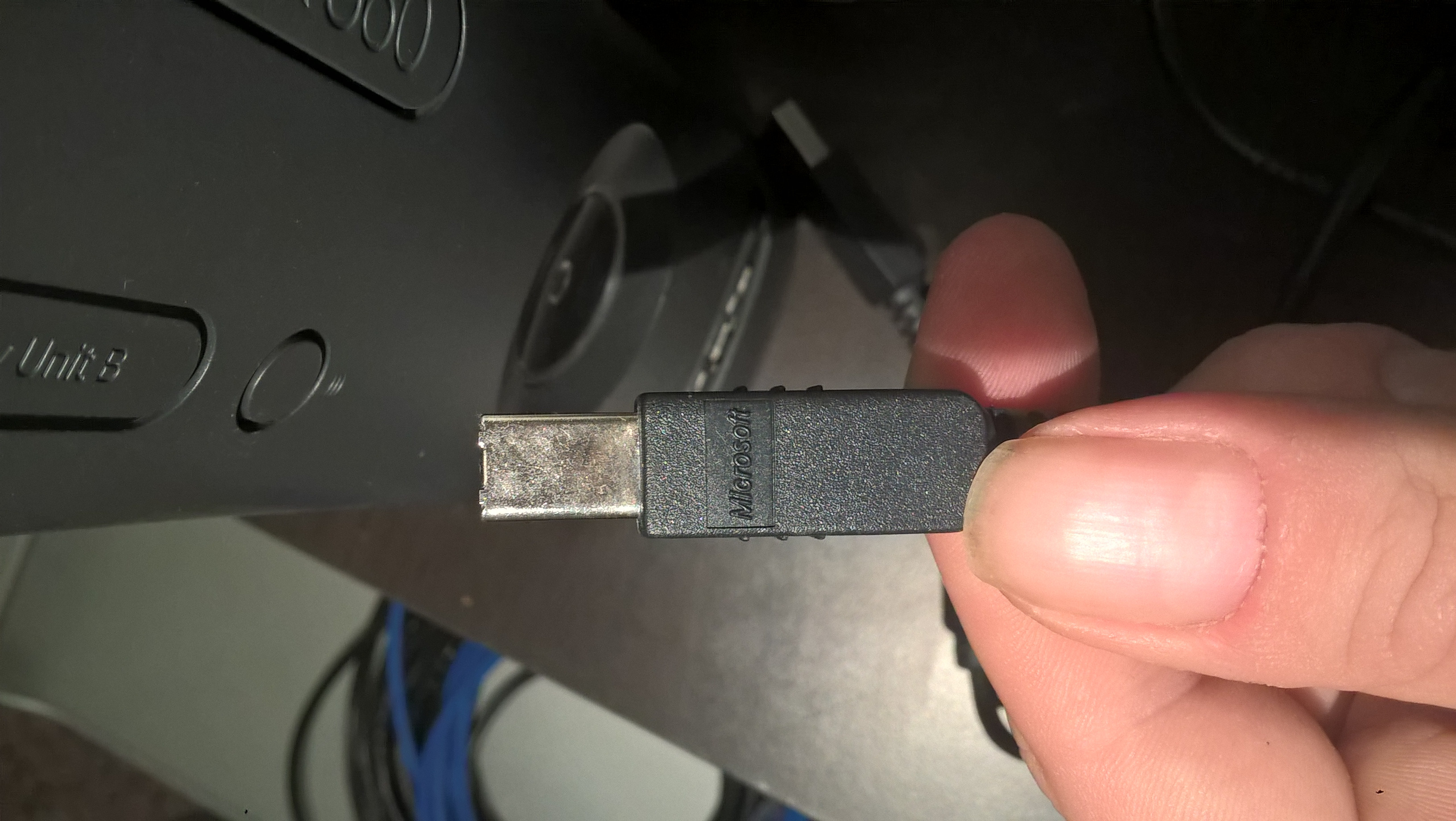

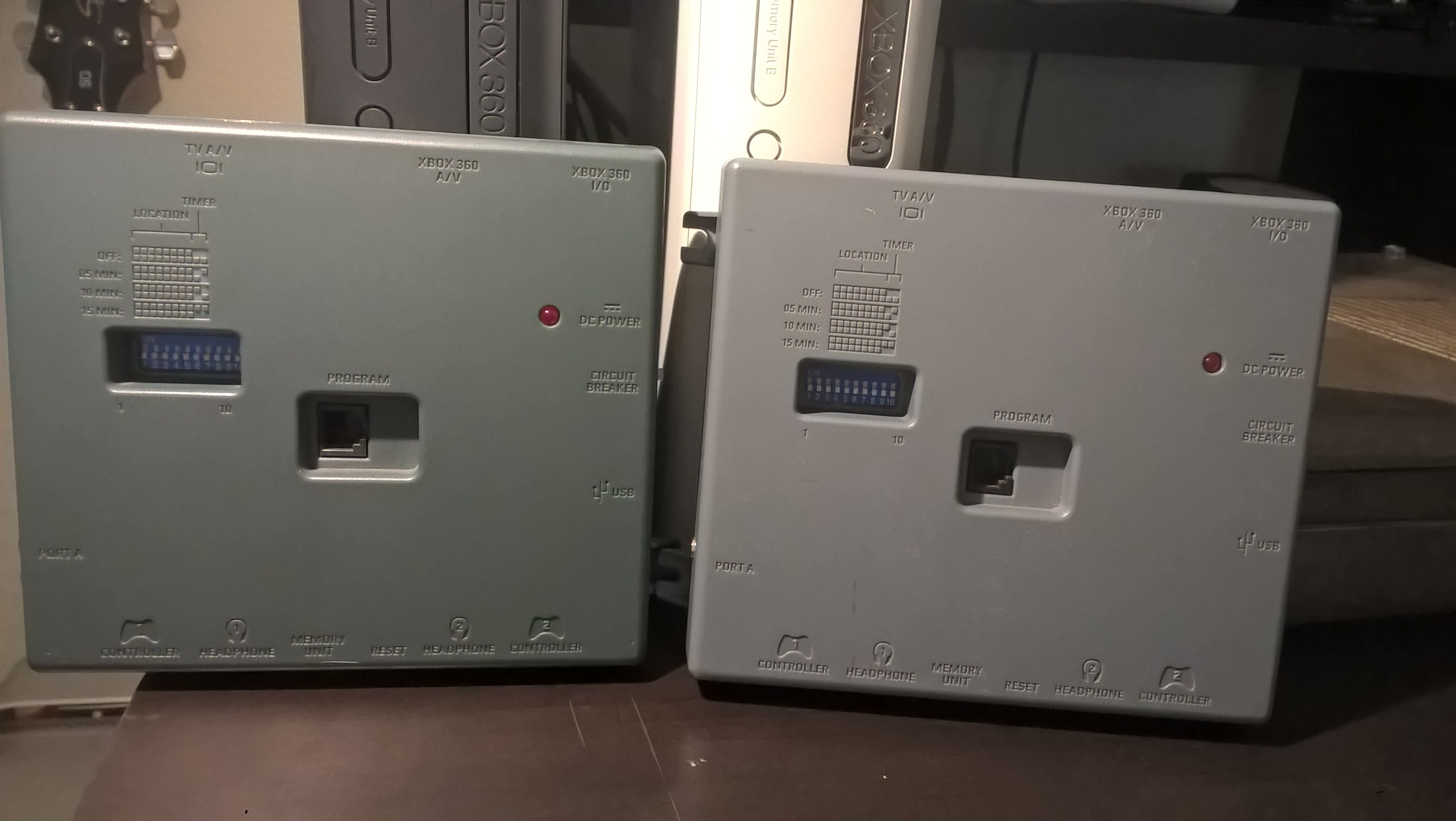

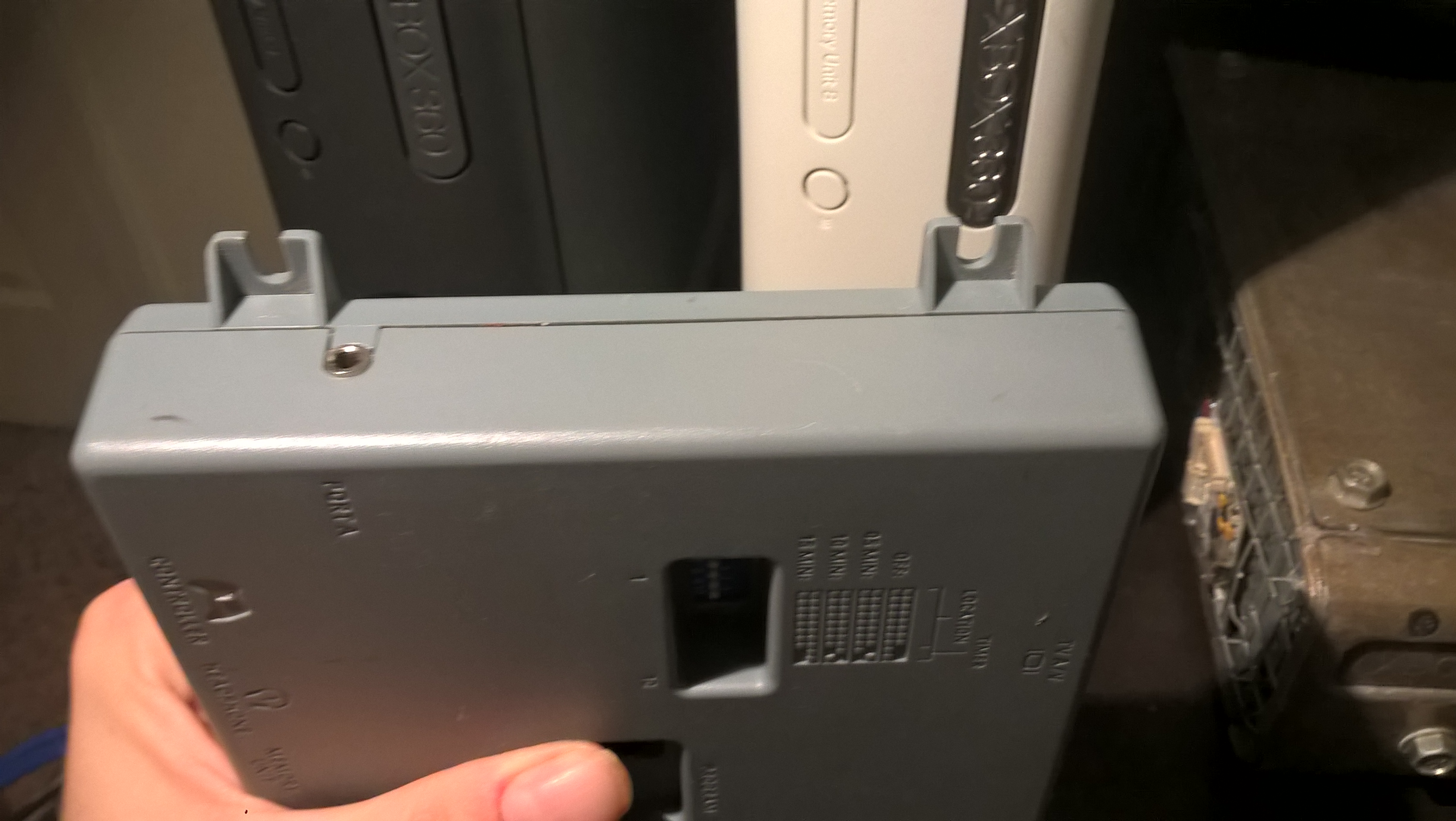

Bare Minimum to use Medusa: Special Medusa AV Loopback Cable (3ft Cable, no logos, 30 pins all connected) USB-A to USB-B Cable (3ft cable, Microsoft logo on each end, plugged into back USB port of Xbox 360) Power Supply ( I do not own a legit one yet) Ports: 2x USB wired Controller ports 2x mini-DIN connectors for Internal and External headphone jacks, with a headphone volume control on the Kiosk (2x 3,5mm TRS per player, 2 buttons (Vol + / Vol -) 1x Mini-USB port on the front used for a Special Memory Card slot on the Front of the Kiosk. (Uses 3.3v instead of 5v) 1 Power Port that uses a 5volt/5amp Power Supply Features: Block access to Xbox LIVE Block access to settings Automates demo time (OFF/5MINS/10MINS/15MINS) Can access "Retailer Specific" images Others: (Thanks Aspect for the specs, was on another post here on assembler) Powered by a PIC16F747-I/PT Internal debugging port at J5 connected to the debugging pins of the PIC A Programming port (RJ25 connector) accessible from the cover of the unit USB hub chip CY7C65640-LFXC takes care of the USB connectors for I/O, controllers, and the memory card ATMEL518 microcontroller near the USB hub that is possibly tied to timer functionality And of course! it would need the Kiosk Disc (I have backups) Ill get inside photos soon!
