Convert PAL NES to NTSC NES

Discussion in 'Modding and Hacking - Consoles and Electronics' started by Sp33dFr34k, Aug 14, 2017.

  1. Sp33dFr34k

    Sp33dFr34k Spirited Member

    Joined:
    Jul 13, 2015
    Messages:
    141
    Likes Received:
    32
  2. Sp33dFr34k

    Sp33dFr34k Spirited Member

    Joined:
    Jul 13, 2015
    Messages:
    141
    Likes Received:
    32
    Nobody who has a clue?

  3. Oakleaf

    Oakleaf Spirited Member

    Joined:
    Nov 9, 2016
    Messages:
    141
    Likes Received:
    26
    Seems correct. But why butcher a PAL one? Why not just get a cheap famicom and av mod it and use a converter? Or even RGB mod it. Then u would have the extra soundchannel and ability to connect a famicom disksystem to.

  4. Sp33dFr34k

    Sp33dFr34k Spirited Member

    Joined:
    Jul 13, 2015
    Messages:
    141
    Likes Received:
    32
    I don't really see it as butchering. I have a couple of PAL machines lying around, NTSC ones aren't that common around here. So it's cheaper to get the parts and just swap them around. The plan is to RGB mod the NES, but I don't want to do it on a (in my eyes) inferior PAL version. Thanks for your input though :)

    EDIT: finding the right crystal with the correct frequency (21.477mhz) seems to be a challenge though.

    Last edited: Aug 16, 2017
  5. Oakleaf

    Oakleaf Spirited Member

    Joined:
    Nov 9, 2016
    Messages:
    141
    Likes Received:
    26
    Sp33dFr34k likes this.
  6. Sp33dFr34k

    Sp33dFr34k Spirited Member

    Joined:
    Jul 13, 2015
    Messages:
    141
    Likes Received:
    32
    Damn, I've been checking Ali for like 15 minutes and couldn't find any, thanks! :D

    Oakleaf likes this.
  7. Marmotta

    Marmotta Dauntless Member

    Joined:
    Apr 14, 2009
    Messages:
    755
    Likes Received:
    49
    Yes, you can change it to NTSC with just the PPU, CPU and crystal. I wouldn't be too bothered about the quality of the crystals, given how hard they are to find - I've done it to a couple of consoles and haven't had any issues with them.

    If you want to RGB mod it, try and get hold of a French console - there's just something satisfying about using an official cable and not having to make holes in the back of the console.

  8. Sp33dFr34k

    Sp33dFr34k Spirited Member

    Joined:
    Jul 13, 2015
    Messages:
    141
    Likes Received:
    32
    Thanks for the confirmation, I also didn't know the French NES came with the multi AV out port, but no RGB despite what the writing above the port says, interesting. It would be a lot cleaner indeed, but I think they are as hard to come by as an NTSC one.

  9. AndehX

    AndehX You got boost power!

    Joined:
    Apr 7, 2016
    Messages:
    356
    Likes Received:
    68
    Its a shame it can't be done just by replacing the crystal alone. Needing the CPU and PPU from an NTSC machine kinda makes the whole thing pointless. You might as well just use the NTSC machine instead of going through the work of swapping the chips and crystal...

  10. Sp33dFr34k

    Sp33dFr34k Spirited Member

    Joined:
    Jul 13, 2015
    Messages:
    141
    Likes Received:
    32
    True, but the chips and crystal only cost me €14 and a NTSC NES would cost 3-4 times that, if not more. But oh well, that way I can test my desoldering iron as well which I will be buying next week :)

  11. AndehX

    AndehX You got boost power!

    Joined:
    Apr 7, 2016
    Messages:
    356
    Likes Received:
    68
    hmm I didn't think of that. Are NTSC chips readily available? ebay?

  12. Sp33dFr34k

    Sp33dFr34k Spirited Member

    Joined:
    Jul 13, 2015
    Messages:
    141
    Likes Received:
    32
    No, but you can use their replacement easily on Aliexpress, see TS :)

  13. DaveyPocket

    DaveyPocket Member

    Joined:
    Aug 27, 2017
    Messages:
    8
    Likes Received:
    5

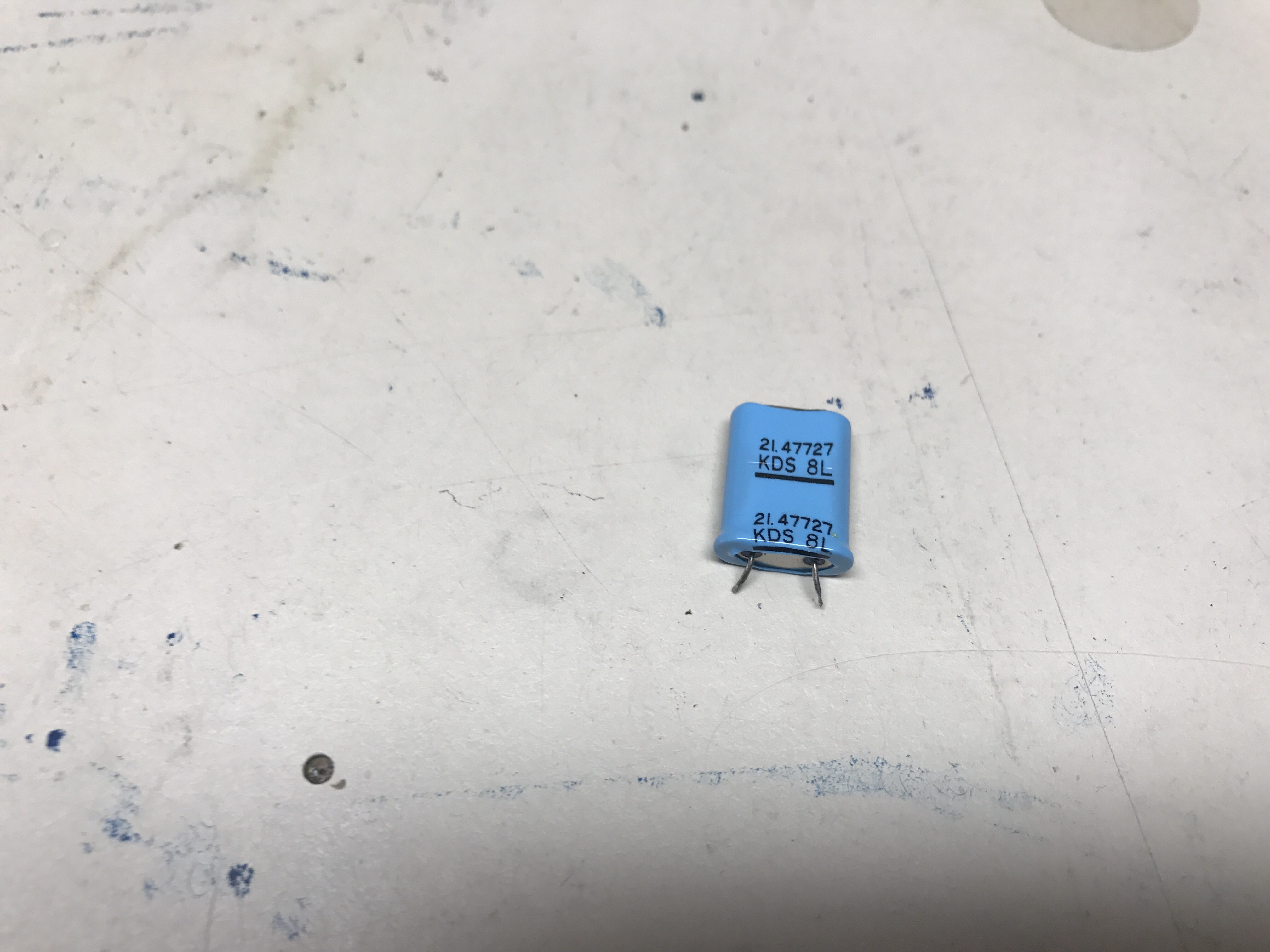

    Need one? This was in my parts drawer. Believe I pulled from a NES.

    Sp33dFr34k likes this.
  14. Sp33dFr34k

    Sp33dFr34k Spirited Member

    Joined:
    Jul 13, 2015
    Messages:
    141
    Likes Received:
    32
    Oeh, nice! I haven't received my Ali Express orders yet, I ordered the CPU/PPU/crystal as above. My desoldering station is on it's way as well. If I encounter any problems with the crystal I ordered, can I get back to you? :)

  15. DaveyPocket

    DaveyPocket Member

    Joined:
    Aug 27, 2017
    Messages:
    8
    Likes Received:
    5
    Of course!

    Sp33dFr34k likes this.
  16. dibmem

    dibmem Rising Member

    Joined:
    Feb 28, 2015
    Messages:
    56
    Likes Received:
    14
    Hopefully you'll receive NTSC and not PAL - UA6527 / UA6528 chips. I believe Jason from GameTech has had trouble getting those from AliExpress in the recent past (for HiDef NES, IIRC).

    Clarification: Most of the images on AE have UA6527 P suffix, indicating PAL.

  17. Sp33dFr34k

    Sp33dFr34k Spirited Member

    Joined:
    Jul 13, 2015
    Messages:
    141
    Likes Received:
    32
    The picture and description mentioned the chips without the P suffix, let's hope I will get the correct ones. Thanks for the warning though, I'll pay extra attention to it :)

  18. Bearking

    Bearking Konsolkongen

    Joined:
    Aug 2, 2010
    Messages:
    856
    Likes Received:
    100
    Are these brand new chips or pulled from old consoles?

  19. Sp33dFr34k

    Sp33dFr34k Spirited Member

    Joined:
    Jul 13, 2015
    Messages:
    141
    Likes Received:
    32
    Brandnew replacement ones, so the ones I will be getting are not the original chips. I'd prefer to have old chips pulled from a console, but I guess it would be crazy for somebody to pull these for me :)

  20. AndehX

    AndehX You got boost power!

    Joined:
    Apr 7, 2016
    Messages:
    356
    Likes Received:
    68
    Interested to see if this works. How much did you pay in total for the crystal and 2 chips?
