F/S Nes Top Loader SNES Style Multi A/V Socket

Hi everyone! Here I have 2 different socket kits for sale for the NES Top Loader and Front Loader that gives it the SNES Socket which allows you to use it with the various AV mods and not alter the physical shell of the Toploader NES with the Full Mount Socket. For more information please see this thread: http://www.assemblergames.com/forums/showthread.php?48990-Sourcing-a-Nintendo-multi-out-socket

The kits each include the socket, the bare PCB for NESRGB or other Mods a 3mm screw to hold the PCB in place and a DC Power jack (for the Full Mount Socket). If you do not want the DC Jack say so but it will not affect price (so just keep them for extras if you don't require them).

Following Links will allow you to pay me directly but are good for one purchase because you won't get a deal on shipping if you want more than 1.

PAYPAL Fees have been added to the purchase page and will show up in the form of TAX, if you don't want to pay this fee then contact me to send payment as a "Gift" or "Sending Money to Friends".



The price for each Full Mount kit will be $33 and shipping is $5 in USA


The price for each Full Mount kit will be $33 and shipping is $8 Outside USA


_________________________


The price for each Screw Mount kit will be $18 and shipping is $5 in USA


The price for each Colored Screw Mount kit will be $20 and shipping is $5 in USA




_________________________



The price for each Screw Mount kit will be $18 and shipping is $8 Outside USA


The price for each Colored Screw Mount kit will be $20 and shipping is $8 Outside USA




There will be 5% off each kit if 5 or more are bought at a time and more so if you buy over 10 (Send PM to Discuss)and will be first come first serve basis unless other arrangements are made with myself through PM. I will be accepting Paypal USD only and no trades please.

I would like to receive payment as a gift to avoid fees but if you decide to go as a normal "Paying for Goods" option use this calculator to figure out what to send me so I receive the amount for your order:
http://thefeecalculator.com/


I have also attached a PDF with the cut out Template for the Screw Socket, make sure to print as Original size.

12PIN_SOCKET_V1_TEMPLATE.pdf







Screw Mount for Front Loader (Toaster):





Composite AV Mod Board (Not included with kit above, contact me for one):




This is the pinout of the PCB since the Numbering is hard to see, Square Hole is Pin 1




Composite AV Mod PCB Install:










Install Pictures of Customer's:
Toploader by DC5Danniel:



Front Loader by Andre Berube:



Just a thought. You might try contacting GameTech.US. He seems to be following this project and might be interested in all of them. He does seem to have an account here so a PM should be possible.



Contact with him has already been established and a large batch will be ordered for him as soon as we finalize details of the deal.

11 Kits Left!



Are you not selling just the screw mounted product yet then??..



PM sent



We currently have only the SNES Sockets for sale since that garnished the most interest, if there is interest in these I can order a small batch but I will need atleast 10 people who plan to buy it so it's worth ordering.

9 Socket Kits left.



Pm Sent



any other mods required to use this?



You need to do some sort of video upgrade mod (A/V or RGB) to your NES.



This applies to the NESRGB board and can be used for an AV mod if you don't have the NESRGB board.

8 kits left.



Sweet i will have to buy a nes top loader just to do this with someday.
nice work.



Got mine! Thanks.

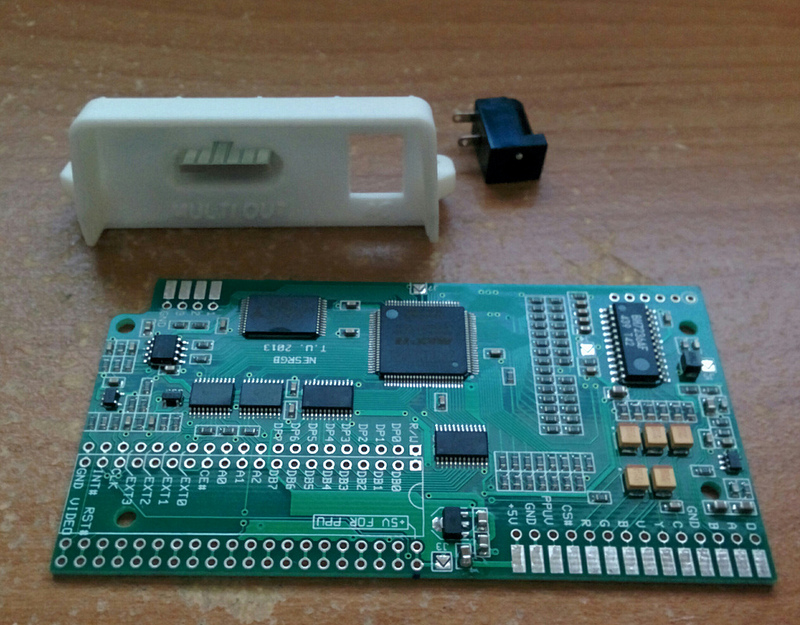

Here's a pic alongside the nesrgb board.



Glad you got it and looks like shipping was fast too.

7 left!

Edit: So everyone who ordered a kit the side leg on the DC jack is somewhat useless so stick to the legs underside, if requested I will snip that leg off before shipping.



Looks like I might expect mine tomorrow! Now I just have to wait for my second NESRGB to arrive...



Aren't NESRGB boards all sold out?



Tim actually has a small stock left, you just have to ask nicely through his email to get one. The reason why they're not for sale in his shop is because he wanted to make sure all the second batch boards shipped so far have the background issue fixed.



Updated first post with the New Screw Sockets, I have 20 in stock with 10 reserved for gametech.us unless he changed his mind.



PM sent.



So far 7 left! Better get them while there is stock as might be a while before next batch.



5 Screw sockets left and 6 of the Full Mount.
