Need GameShark / ActionReplay (GS/AR) Pro ROM

*SOLVED* Need GameShark / ActionReplay (GS/AR) Pro ROM

Hi. I need the ROM for any one of those cartridges.

GameShark or ActionReplay Pro ROM

Please let me know if you have it.

If you dont have it as a dump, but you have it on your cartridge EEPROM, then please dump it if you can ;-)



;-) Google?

I have a gameshark and modded the thing so I can swap eproms and want to dump some to, but if your purpose is research, google gives many working versions. and my version came with Caetla 0.34 i believe, search for that.

hope it helps



He doesnt like to google. Answers must be provided directly.



I was going to say the exact same thing... it's as if he doesn't like to learn on his own when possible.



It is true. I like a direct answer. Also, I can ask questions. You cant do that with Google.

And yes... I tried Google.

I need this ROM so I can decode it and see the boot header used. This way, I can make the PlayStation boot from an EEPROM with a .EXE hopefully and link it up to my FPGA.



You could bring an answer here and ask questions about it however. That is how most people would do it.

"I have found X, but have these questions"



So... im guessing... you do not have the ROM? lol



Small hint

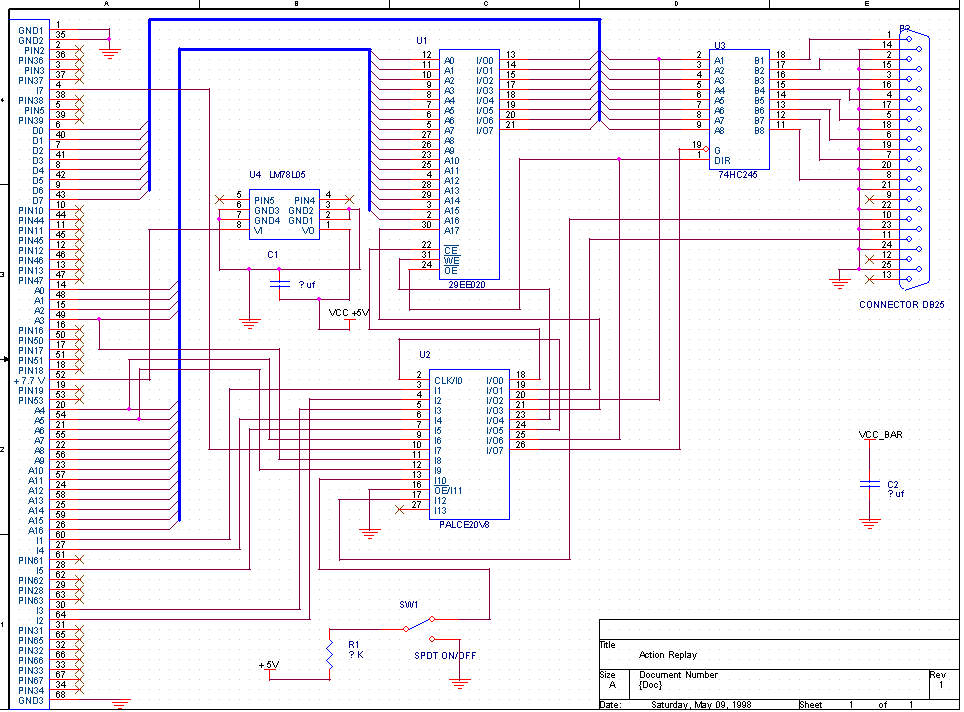

http://hitmen.c02.at/files/hardware/psx-bitmaster/ar.gif

and if you can tell me exactly what that PALCE20V8 chip is doing, like source code or a "truth-table" or whatever it do, ill give a rom dump of my

ActionReplay
:thumbsup:

ps. not my pictures and many thanks to hitmen-console.org/



I have 2 brand new Action Replays, 1 Xplorer and 1 unknown cart. There all together useless.

I need the PRO ROM!

The PAL microcontroller, and all those other useless IC's, are used for the DB-25 connection to the PC I believe. The source code is useless, and you can not find it. There is no truth table either.

After all my research so far, I can tell you that all you need, is an EEPROM with the correct code on it, and the PlayStation will boot from it. I mean, I am pretty sure. I just need to make my own PCB first, then I will put my theory into action. Get it, ACTION? :lol: (lame)...



You'll need to dump the PAL to be able to do that. If it's read protected then you'll need to use something like charles mcdonalds pal reader, otherwise a programmer might do it.

It looks like address decoding for the rom/parallel port and possibly also handles some of the parralel port protocol.



Mainly used for the parallel port to the computer.

I can only test my theory, if I get that ROM! :banghead:



http://www.racketboy.com/forum/viewtopic.php?t=22723

dsofrank has one... But that is what it looks like:



Buy one off ebay, they are like £20 or so then dump it.



Aw man :cur_sonic:

Let me try another method then. It is just a more difficult process.



http://lmgtfy.com/?q=Caetla+utilities+download
I really shouldn't do this



Seriously?

I have ALL the CAETLA tools already.

I have a 46 PlayStation links in my bookmarks that have not seen the light of day for nearly 12 years. Including some people do not know about...

Please dont link me to this stuff ;-)


However, the CAETLA source code would do the trick if I could find that



Foundz it

http://hitmen.c02.at/files/src/psx/CatFlapSource.zip



Yay!

I hope it is the one for the EEPROM on the cartridge and not the .exe on the PC end...



I couldn't even find it on Google either.. Good you found it.



i have 2 gamesharks if thats any help



Do they look like the one above?

GameShark PRO?
