Pinnacle of Tube television for old games playing

Discussion in 'General Gaming' started by ASSEMbler, Sep 27, 2011.

  1. ASSEMbler

    ASSEMbler Administrator Staff Member

    Joined:
    Mar 13, 2004
    Messages:
    19,394
    Likes Received:
    995
    In video production they use special high quality screens for
    accuracy. Costing tens of thousands, they are now clearance for
    almost nothing.

    Usually no bigger than 24 or 32 inch, they can be kept in a small area.
    They will support pal, ntsc, secam, rgb, svideo, component, and on some
    hdmi.

    X-rgb3 on and lcd is about picture size and is an admirable device, however
    this tube is about tube lovers.

    So for those who prefer tube I will share some pictures.

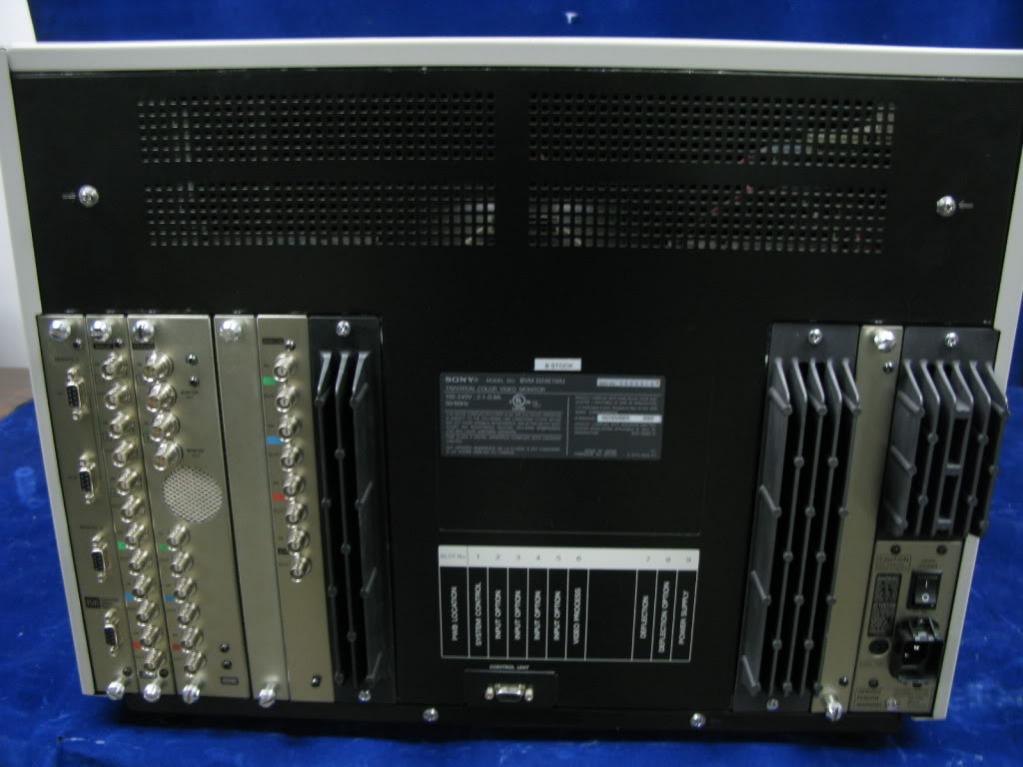

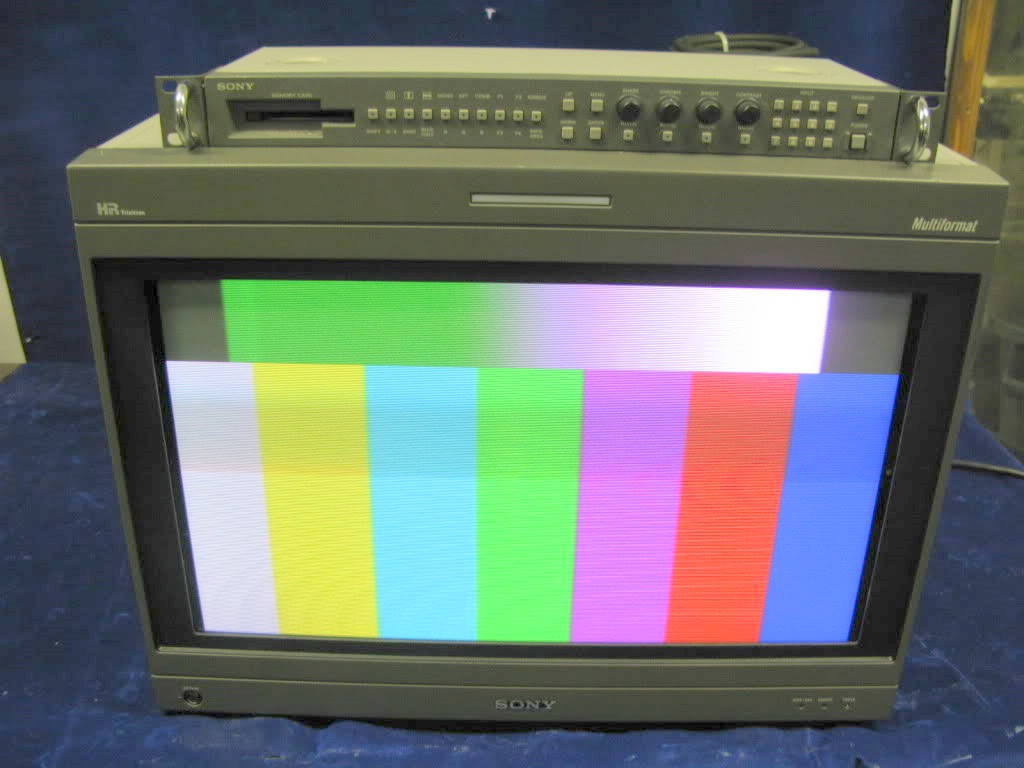

    Sony BVM-D24E1WU

    Resolution: 24" 1000 TV Lines 16:9; 24" 1000 TV Lines 4:3.
    SMPTE C Phosphors: Maintains precise color representation allowing for accurate color reproduction and easy monitor matching.
    Systemization: Allows monitors to be tied together to transport files, input setups, and multiple control positions.
    Supports DTV Formats of 480i, 480p, 720p, and 1080i.
    High Resolution Trinitron(r) CRT System: Sony's exclusive HR Trinitron CRT system for a clear, sharp picture in 22.5" size (viewable area, measured diagonally).
    Switchable Aspect Ratio: Switches between 4:3 and 16:9 aspect ratios.

    This supports low hz rates, so things like x68000, msx, arcade will work fine.




    Attached Files:

    Last edited by a moderator: Sep 27, 2011
  2. ASSEMbler

    ASSEMbler Administrator Staff Member

    Joined:
    Mar 13, 2004
    Messages:
    19,394
    Likes Received:
    995

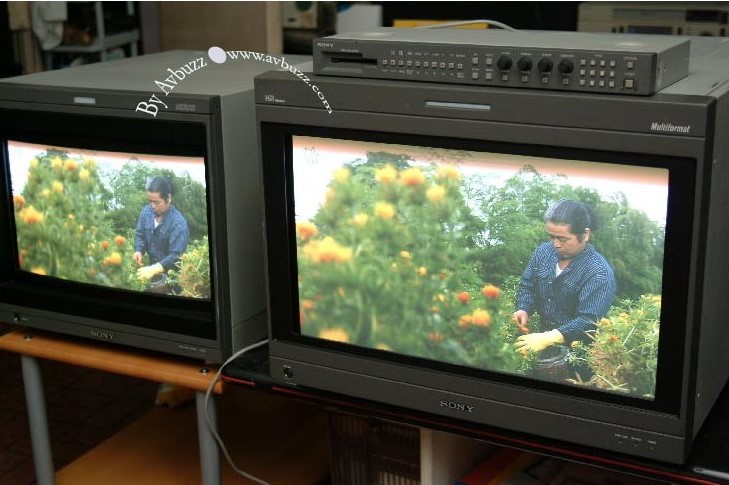

    Sony BVM-D32E1WU 32" CRT

    Sony BVM-D32E1WU
    DTV 32" Color Grading Monitor Display Unit 16:9, 480i, 480p, 720p, and 1080i

    Signal format - 15.625 kHz to 45 kHz
    CRT type - 32-inch HR Trinitron (flat surface, 16:9 aspect ratio)
    AG Pitch - 0.32-0.36mm, 90 delection, 29.1 mm in-line gun
    Visual Screen - 4:3 491.3 (W) x 368.5 (H) x 614.1 (D) mm 16:9 652.2 (W) x 368.5 (H) x 751.7 (D) mm
    Phosphor - SMPTE-C
    Differential gain (DG) - Within 5% for luninance from 0 to 70cd/m2
    Differential phase (DP) - Within 5% for luminance from 0 to 70cd/m2
    Frequency response - 50 Hz to 30MHz + 1dB/-3dB
    DC restoration - Back porch type, back porch level: within 1% of peak luminance, 10 to 90% APL
    Retrace Time - Horizontal: under 3.77 sec Vertical: under 650 sec
    Normal scan - 5% over scan of the effective picture area
    Under scan - 3% under scan of the effective picture area
    Linearity - Less than 1% within circle centered on the screen with a diameter equal to the vertical height; 2% at any other point
    Color temperature - D65/D93/COL 1/COL 2 (user adjustable)
    Convergence - Less than 0.5% within circle centered on the screen with a idameter equal to the vertical height, 0.8% at any other point
    Preset brightness - 70 cd/m2 (when a 1.0 Vp-p 100% white signal is input)
    Stability of raster size - 1% of picture height (at 70 cd/m2 peak luminescence, 10 to 90% APL)
    Scan Delay - Horizontal: Approx. 3/8 line, Vertical: Approx. 1/2 field
    Center resolution - 1000 TV lines (4:3 1000 TV lines)
    Inputs/Outputs
    Video - BNC x 3 with loop through
    Pb/Pr - Y - 0.7 Vp-p±6 dB, high impedance
    Ext Sync - Y - BNC x 1, with loop-through
    Composite - Y - 0.3 to 8.0 Vp-p, high impedance, tri-level bipolar sync
    Remote - Y - RS-232C for BKM11R, Mini DIN 8-pin, RS-422 for BKM-10R, D-sub 9-pin
    Power requirements - Y - 100 V to 240 V AC ± 10%, 50/60HZ
    Power consumption with Option board; Max. - Y - Approx. 170 W (with HD-SDI Option 230W)
    Operating temperature - Y - 0-35 Optimum operating range 20 to 30
    Storage temperature - Y -10 to 40
    Humidity - Y - 0% to 90%, no condensation
    Dimensions 32W X 28D X 22H
    Weight - Y - Approx. 95 kg.


    Attached Files:

  3. GodofHardcore

    GodofHardcore Paragon of the Forum *

    Joined:
    Mar 31, 2007
    Messages:
    11,821
    Likes Received:
    454
    and no speakers?

    I have an HD Wide screen Tube TV but depending on what it's outputting the edges are blurry

  4. sayin999

    sayin999 Officer at Arms

    Joined:
    Mar 13, 2004
    Messages:
    3,407
    Likes Received:
    113
    There great for retro gaming, but they are a bitch to find and if you buy them online the shipping is hell. Reason for no speakers is it's not needed for what they are doing on a set (ie seeing how footage is coming out or if in a news room see what is playing on other networks). You can add speakers to them if you wish and some models have speakers built in or speakers that actually go with them.

    Last edited: Sep 27, 2011
  5. la-li-lu-le-lo

    la-li-lu-le-lo ラリルレロ

    Joined:
    Feb 8, 2006
    Messages:
    5,657
    Likes Received:
    238
    That's pretty cool. It would be weird playing a 4:3 game with bars on the sides, though. No different from how you'd use an LCD I guess, but it seems different on a CRT. Then again, the advantage of a display like that is that you can use it for modern consoles/video sources as well.

    I assume it accepts RGB, doesn't it? I don't envy anyone who has to carry that thing up a flight of stairs; it weighs 200lbs!

    Last edited: Sep 27, 2011
  6. GodofHardcore

    GodofHardcore Paragon of the Forum *

    Joined:
    Mar 31, 2007
    Messages:
    11,821
    Likes Received:
    454
    You get used to it surprisingly fast

  7. Yakumo

    Yakumo Pillar of the Community *****

    Joined:
    Mar 14, 2004
    Messages:
    20,515
    Likes Received:
    1,050
    I used to have a big widescreen HD CRT screen in my games room and I can tell you that was a bitch to move downstairs. Sooooo heavy you wouldn't believe it. And do you know what, the image quality on it compared to a high quality LED was piss poor. Still, you can't beat a real high quality CRT for retro gaming. The downside is that they cost a lot, finding one is not that easy and having space for another screen. I know they may not be a problem for single people but for us married guys, having three screens in the same room is like flushing all your cash down the toilet according to the wife. She wonders why I need 2 HD screen in the room now.

    Yakumo

  8. la-li-lu-le-lo

    la-li-lu-le-lo ラリルレロ

    Joined:
    Feb 8, 2006
    Messages:
    5,657
    Likes Received:
    238
    That problem is easily solved: put it in a different room :D That's what I did.

  9. GodofHardcore

    GodofHardcore Paragon of the Forum *

    Joined:
    Mar 31, 2007
    Messages:
    11,821
    Likes Received:
    454
    .....Or marry a chick that loves games just as much as you do...

    No wonder I'm still single...

  10. Yakumo

    Yakumo Pillar of the Community *****

    Joined:
    Mar 14, 2004
    Messages:
    20,515
    Likes Received:
    1,050
    I live in Japan unfortunately (or not) which isn't know for having big homes like the states. Even UK homes are small. Actually, my house is pretty big for Japanese standards. I'd be willing to place money that I live in a bigger home than any other member of ASSEbler living in Japan :nod:

    Yakumo

  11. la-li-lu-le-lo

    la-li-lu-le-lo ラリルレロ

    Joined:
    Feb 8, 2006
    Messages:
    5,657
    Likes Received:
    238
    I don't mean to underplay the awesomeness of that thing. CRT's are really the king of displays. True, some CRT's suck, but high quality one have an amazing picture. Even my 12 year old Sony Trinitron computer monitor still has an incredibly clear and crisp picture. LED TVs have probably surpassed CRT's in terms of the clarity and brightness of HD content, but CRT's are still ideal for SD content. You can't do much better than a PVM or a BVM.

    It would be pretty cool to play Afterburner Climax on a screen like that. It's too bad pictures and video don't really give a good impression of what it's like to actually see a screen like this.

    Last edited: Sep 27, 2011
  12. ASSEMbler

    ASSEMbler Administrator Staff Member

    Joined:
    Mar 13, 2004
    Messages:
    19,394
    Likes Received:
    995

    Because you live in the sticks lol

  13. HEX1GON

    HEX1GON FREEZE! Scumbag

    Joined:
    May 4, 2011
    Messages:
    9,916
    Likes Received:
    837
    They're rare to come by...

  14. ASSEMbler

    ASSEMbler Administrator Staff Member

    Joined:
    Mar 13, 2004
    Messages:
    19,394
    Likes Received:
    995
    In Japan one gives up gaming for family, sure you might have some shit on your phone, but if you're a wage slave working 16 hours a day it cuts down on the play time.

  15. 7Force

    7Force Guardian of the Forum

    Joined:
    Mar 6, 2009
    Messages:
    4,547
    Likes Received:
    92
    I'm willing to bet there are landfills full of TVs like this.

  16. Oldgamingfart

    Oldgamingfart Enthusiastic Member

    Joined:
    Jun 24, 2008
    Messages:
    509
    Likes Received:
    2
    The (CRT) TV's are being dumped left, right and centre. Saw a very nice Panasonic Tau 32" sat outside someone's house just other day, probably cost around GBP£1500 (in around 2002), and I bet it still worked too!

    I think CRT monitors are still used for some professional studio environments. We've all seen those 'making of' DVD documentaries, with the director often sitting scrutinizing the footage over one of several dinky Sony PVM's. Surely they must work better at low-light levels.

    I must admit even as a fan of CRT, the latest LCD panels have (just about) caught-up in terms of contrast ratio etc....but you just can't beat a good CRT for retro gaming. That BVM is a monster! :drool:

  17. Yakumo

    Yakumo Pillar of the Community *****

    Joined:
    Mar 14, 2004
    Messages:
    20,515
    Likes Received:
    1,050
    :lol: many people think that but I don't really. Sure, it's no Tokyo but it's not exactly like Yamaguch City which is pretty big (1023.31 km².) and the heart of Yamaguchi Ken yet only has a population of 198,971 people. Shimonoseki's population is 280,386 with a size of only 716.14 km2 and that's only so big because the decided to connect all the real stick towns as part of Shimonoseki. It sort of makes you wonder why Yamaguchi City is the main city of this prefecture. Nothing there and a pain in the arse to get to due to all the mountain roads.

    Yakumo

  18. sayin999

    sayin999 Officer at Arms

    Joined:
    Mar 13, 2004
    Messages:
    3,407
    Likes Received:
    113
    It's funny my brother is in the industry, and him and his friend laugh so hard when they hear people want these monitor sets for rgb on old systems. I guess this is an audience the entertainment industry is missing out on.

  19. Segata Sanshiro

    Segata Sanshiro speedlolita

    Joined:
    Aug 5, 2009
    Messages:
    1,279
    Likes Received:
    11
    I saw a Sony WEGA recently dumped too. Shame it was on private property, and that I don't drive.

    Recently bought a Commodore 1081 monitor myself just for low res stuff. Waiting on it now, hoping the SCART socket will support RGB without me having to build a sync stripper and use the other RGB port.

  20. Oldgamingfart

    Oldgamingfart Enthusiastic Member

    Joined:
    Jun 24, 2008
    Messages:
    509
    Likes Received:
    2
    Ah yes, the good old Commodore/ Philips monitors. I reckon it'll work fine so long as there's a composite video feed for the sync (which just about every SCART cable has anyway).
    The geometry controls on these monitors should take care of any RGB centering problems.
