Please help me identifying this old psx modchip

Discussion in 'Modding and Hacking - Consoles and Electronics' started by 360owns, Mar 13, 2013.

  1. 360owns

    360owns Rising Member

    Joined:
    Dec 20, 2012
    Messages:
    68
    Likes Received:
    0
    04092011126.jpg 04092011124.jpg

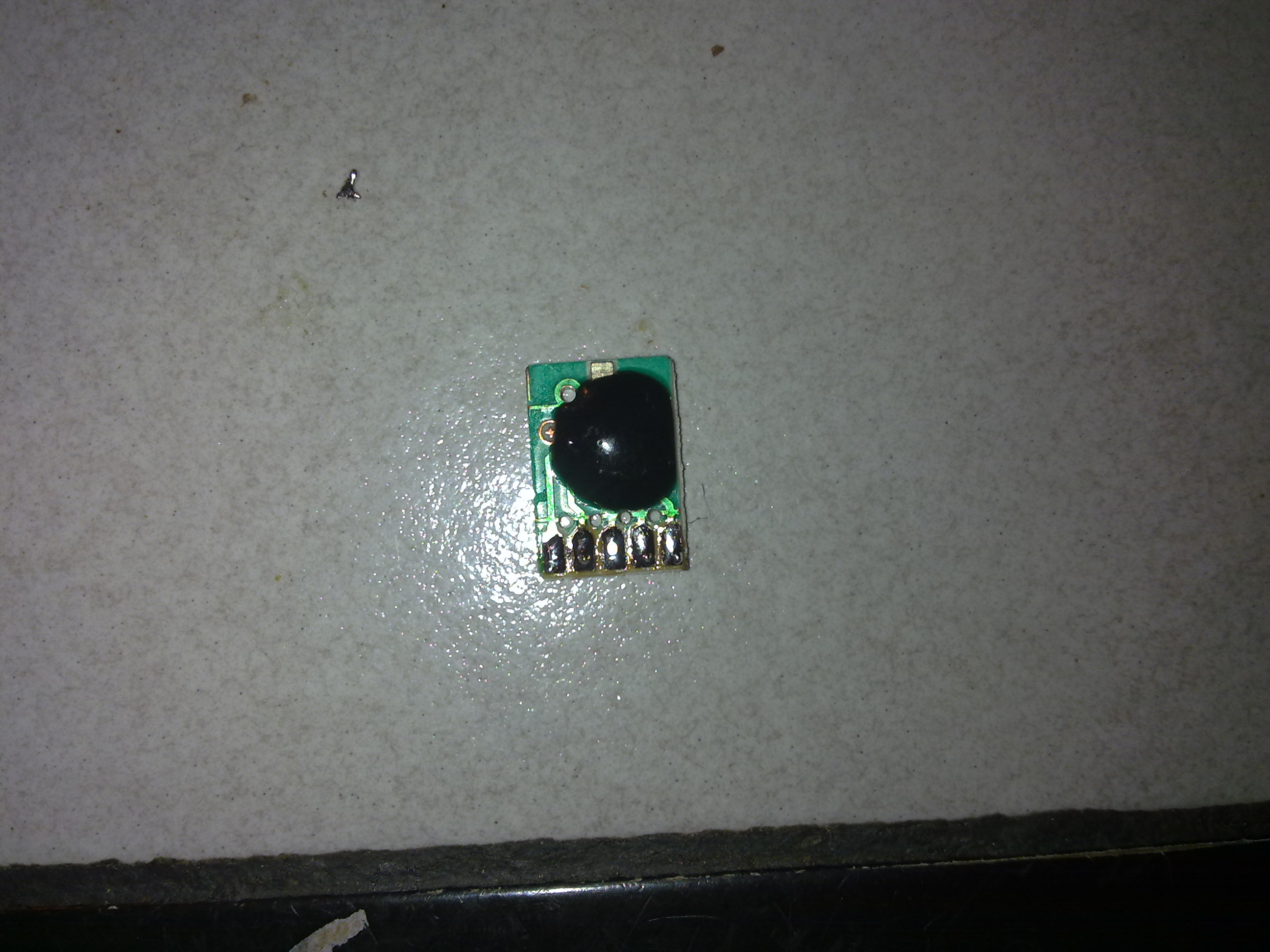

    I have this old chip that came out of a broken scph-500x serie.

    nowhere on the net i can find some info about this thing, i found like 2 images, from google, that rare, but i made these pictures for you guys.

    Does anyone have diagrams for this modchip?

    All info is welcome

    Last edited: Mar 13, 2013
  2. wilykat

    wilykat Site Supporter 2013

    Joined:
    Mar 25, 2012
    Messages:
    991
    Likes Received:
    45
    Almost looks like old crow style wiring. Never seen the black blob though, could have been chinese made modchip for cheap production?

    Bad axe should be able to answer this

  3. master991

    master991 Enthusiastic Member

    Joined:
    Jun 4, 2012
    Messages:
    597
    Likes Received:
    28
    It's a clone of oldcrow hex. It's better to say that is a clone of PIC 12C50X with oldcrow HEX and external oscillator.

  4. ASSEMbler

    ASSEMbler Administrator Staff Member

    Joined:
    Mar 13, 2004
    Messages:
    19,394
    Likes Received:
    995
    wow what a relic.

  5. Dabman

    Dabman Spirited Member

    Joined:
    Jan 31, 2010
    Messages:
    149
    Likes Received:
    2
    very popular in poland!:) old times...

  6. 360owns

    360owns Rising Member

    Joined:
    Dec 20, 2012
    Messages:
    68
    Likes Received:
    0
    Thanx for the comments guy's , finally i know what the hell that ting is lol :D , but now.. i like to put it to use.. does anyone know the pin numbers ? there are 5 solder points on it.

    I like to put it in a very old scph-1000 :encouragement: just 4 wire's right.. would be cool to know what the points on the chip are, i think the far left is power and the far right is ground, that leaves me with 3 point's left..

    But.. if anyone would happen to know of a zip. or something floating around the web with a few installation diagram's that would be more awesome of course.

    Thanks alot for the help guys

  7. 360owns

    360owns Rising Member

    Joined:
    Dec 20, 2012
    Messages:
    68
    Likes Received:
    0
    o and just another little question, does this oldy damage the cd-lens , or is that just a myth

  8. jinn

    jinn Peppy Member

    Joined:
    Feb 8, 2011
    Messages:
    396
    Likes Received:
    4
    I have never heard of a clone PSX chip, most likely it's a MSOP8 12C508 on a custom board, instead of the traditional DIP-8 12C508PIC.
    The points used are

    1 VCC
    2 Oscillator
    5 Gate
    6 Data
    8 GND

    If you want to install it in a 100X series than you can follow any of the 4 wire diagrams for the following points
    1, 5, 6, and 8

    Their are two MoBo version of the 100X series which is 80 pin and 52 pin QFP
    For point 2 you need to solder to pin 22 of the 80 pin QFP and to pin 15 of the 52 pin QFP

  9. master991

    master991 Enthusiastic Member

    Joined:
    Jun 4, 2012
    Messages:
    597
    Likes Received:
    28
    Yeah, it's uber economic modchip sold in the psx era.

  10. 360owns

    360owns Rising Member

    Joined:
    Dec 20, 2012
    Messages:
    68
    Likes Received:
    0
    thanks guys, realy cool to know these thing, bit of history, that's nice to know :) , thanks Jinn for the solder points, i will try to mod (80pin) to night.

  11. 360owns

    360owns Rising Member

    Joined:
    Dec 20, 2012
    Messages:
    68
    Likes Received:
    0
    no succes yet, how do i read the points, when looking at the first picture is it from left 1 to right 8 ? 12568

  12. 360owns

    360owns Rising Member

    Joined:
    Dec 20, 2012
    Messages:
    68
    Likes Received:
    0
    kut chip.jpg

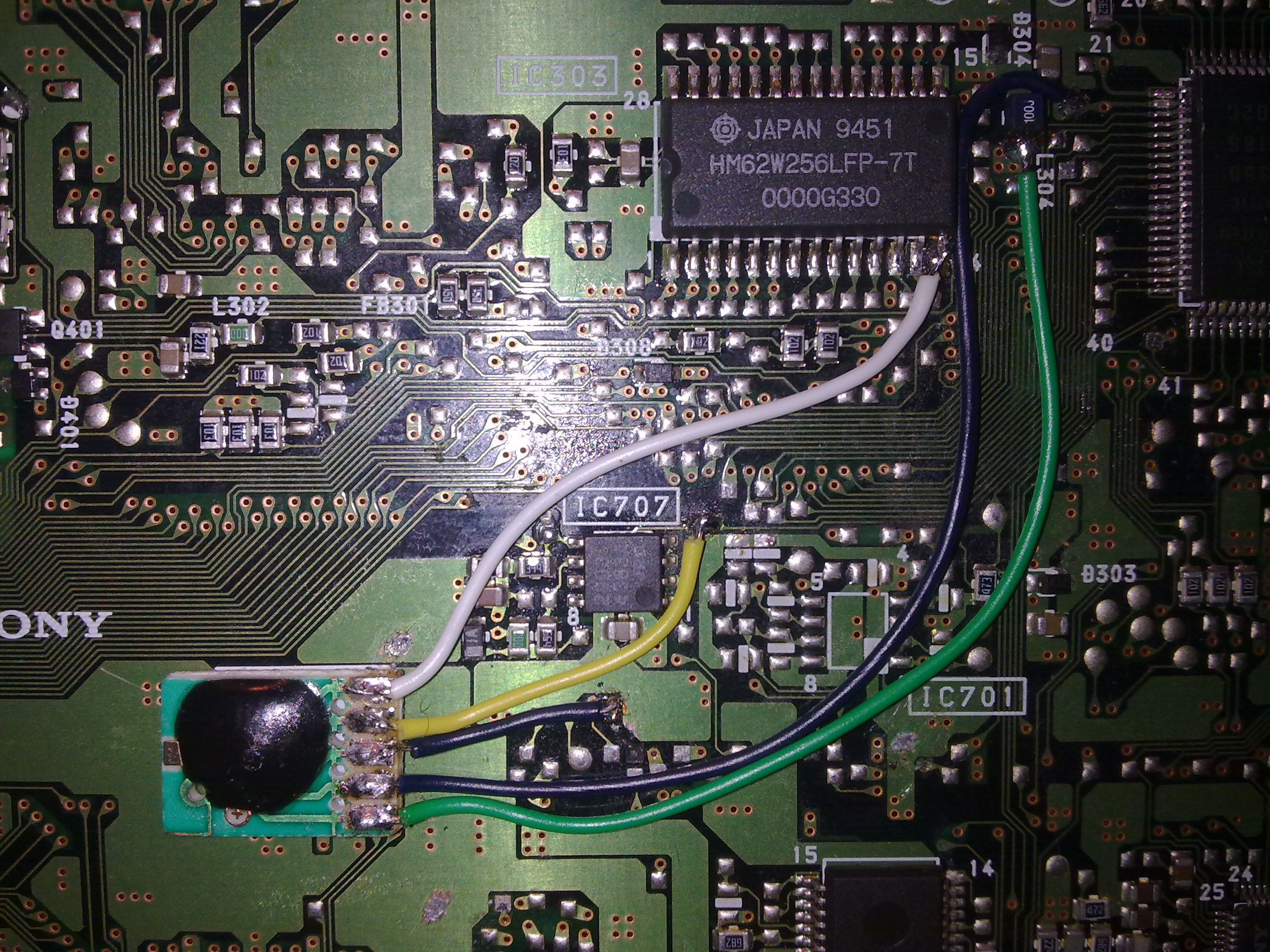

    what am i doing wrong? sorry if it looks messy, but its not that messy , the flash of the camera just reflects on everything, i checked all points they are solid

  13. wilykat

    wilykat Site Supporter 2013

    Joined:
    Mar 25, 2012
    Messages:
    991
    Likes Received:
    45
    No bridge? The picture seemed to show gray wire touching 2 pins on the chip near the top of the picture

  14. 360owns

    360owns Rising Member

    Joined:
    Dec 20, 2012
    Messages:
    68
    Likes Received:
    0
    hey wilykat, i will wire it up again using kynar, i agree it is a bit messy

  15. 360owns

    360owns Rising Member

    Joined:
    Dec 20, 2012
    Messages:
    68
    Likes Received:
    0

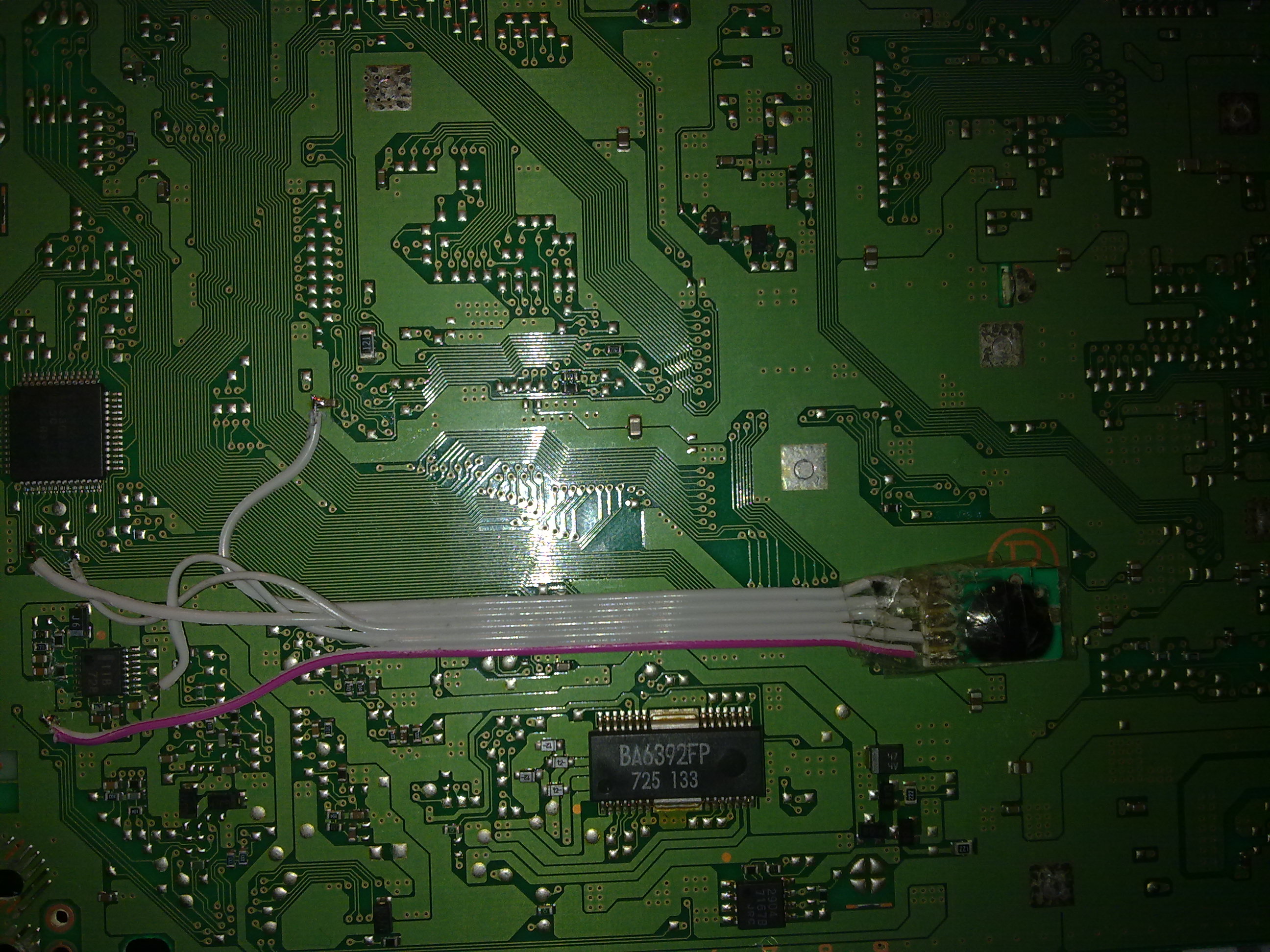

    this is just silly, i re-did all wires, there good. but there is no picture, i dont understand how they used to install these, i think i have figured out what points on the chip are, if you look at the first picture of the chip , its like this (i based this on alot of documents and photo's, like images from when it was originally installed in a 5xx console, and some pictures of the PIC modchips) 1-2-6-5-8 .

    Can anyone confirm this?

    still the disc spins , the laser moves a few inches , then it need's to speed up.. but it doesnt, and there is no real picture, the screen goes from bacl (off console) to light black (console on) looks like its stuck, has to be wrong wire ing , i just cant tell, as to so little i know about it, i am going to try some other way's to wire them , like using different power points ont the board, i dont know.. if anyone can help , please do

  16. 360owns

    360owns Rising Member

    Joined:
    Dec 20, 2012
    Messages:
    68
    Likes Received:
    0
    well i done it, its working, i got one wire wrong, when doing that first picture, then i redid it after i figured out what probely whear the number points on the chip (and i got them right).
    i did a ''ps2 install'' not crossing wires using kynar blah blah blah, i though professional installations where only nessasery on ps2 console's , with ps1 sega's and other consoles i dont mind crossing wires en using all kinds of wire, the install was messy, but the connections where solid, guess this chip is picky.. i would like to thank everyone here that helpt me, and i would like to thank Jinn for putting me in the right direction, as always mate, you rock. thanks alot guys, another mod well done.

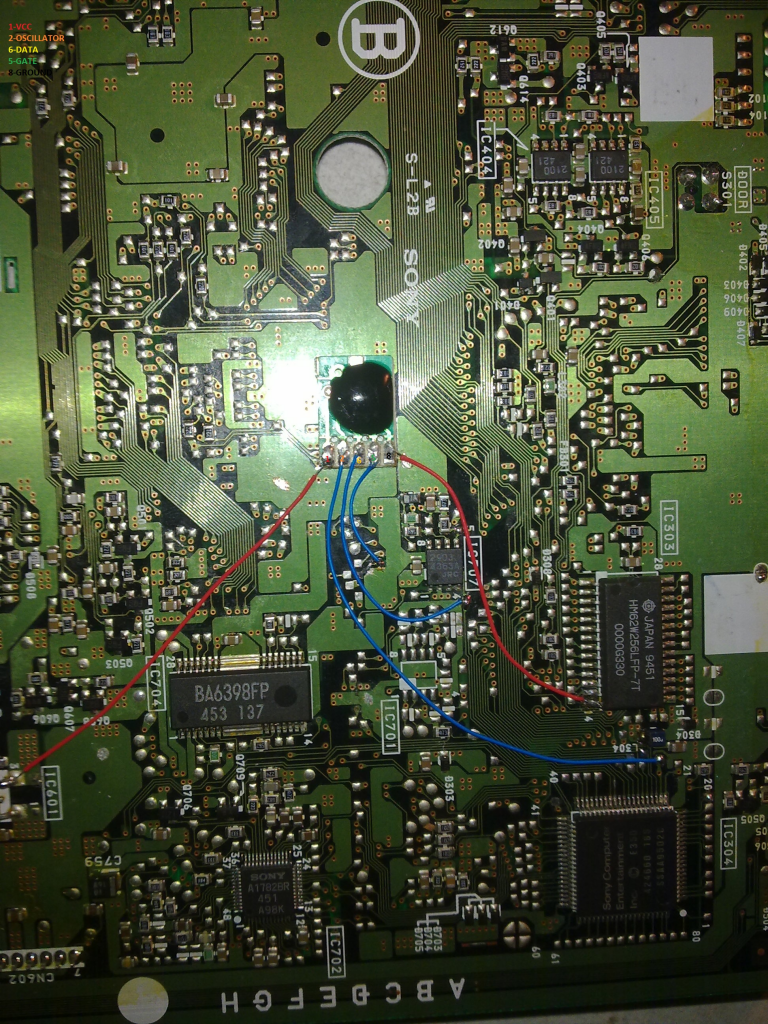

    I liked to share this little diagram i made, its for PU-7 scph-1000 ''old green weird chip.? modchip'' 5 wire .

  17. 360owns

    360owns Rising Member

    Joined:
    Dec 20, 2012
    Messages:
    68
    Likes Received:
    0
  18. 360owns

    360owns Rising Member

    Joined:
    Dec 20, 2012
    Messages:
    68
    Likes Received:
    0
    you have to zoom in, the numbers on the chip are small, sorry im better in winxp with paint

  19. master991

    master991 Enthusiastic Member

    Joined:
    Jun 4, 2012
    Messages:
    597
    Likes Received:
    28
    Install it's a disaster. You must do a better and clean job.
    BTW trow out that shit and buy an original and more stable pic with multimode 2.x code or mayumi V1.

  20. 360owns

    360owns Rising Member

    Joined:
    Dec 20, 2012
    Messages:
    68
    Likes Received:
    0
    check out the new picture above ^ , and yeah i have like 7 mm3 PIC'S only they are (i think ntsc-u) my reseller wont take them back (i wanted PAL) , will be some new pic's in the future, this is just temp. mayumi v1? dont know that one
