PS1 PSU Connector

Discussion in 'Repair, Restoration, Conservation and Preservation' started by williamgentry, Dec 23, 2018.

  1. williamgentry

    williamgentry Rising Member

    Joined:
    Jan 19, 2017
    Messages:
    53
    Likes Received:
    1

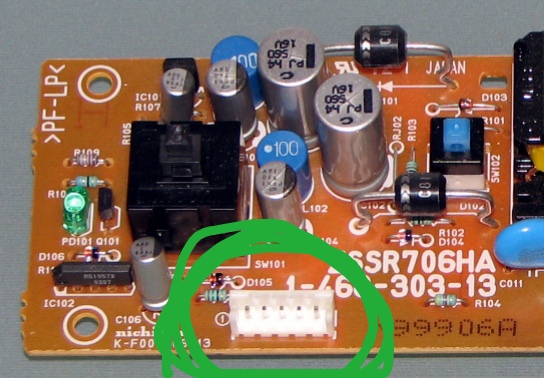

    Please can anyone help, does anyone know what this part is called, it's the white connector that is located on the power supply board of a playstation 1, I have attached an image

    Thank you


    Attached Files:

  2. Gunstar

    Gunstar Member

    Joined:
    Apr 9, 2014
    Messages:
    20
    Likes Received:
    4
  3. TriMesh

    TriMesh Site Supporter 2013-2017

    Joined:
    Jul 3, 2008
    Messages:
    2,324
    Likes Received:
    750
    I'm pretty sure you are right - the service manual identifies it as being B5B-EH-PS-TV4, which would certainly fit in with the part numbering for those EH connectors - although I can't find the 'PS' part in the current datasheet.

    B5B = Shrouded 5 pin header
    EH = Series
    PS = ? (maybe material?)
    TV4 = 0.7mm pins on radial tape

    The matching plug would be an EHR 5

    Gunstar likes this.
  4. williamgentry

    williamgentry Rising Member

    Joined:
    Jan 19, 2017
    Messages:
    53
    Likes Received:
    1

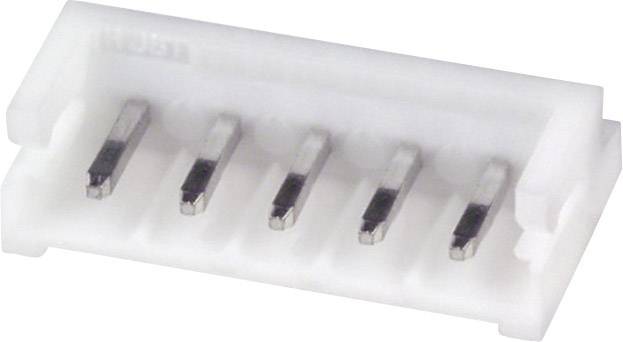

    Thank you, I ordered from RS and they are as follows

    EH Series
    2.5mm pin spacing
