PS1 won't boot games , update and need more help

Discussion in 'Repair, Restoration, Conservation and Preservation' started by s8n, Aug 22, 2017.

  1. s8n

    s8n Enthusiastic Member

    Joined:
    Dec 10, 2011
    Messages:
    524
    Likes Received:
    74
    hi members , you may remember the PS1 i have that won't boot original games but the Laser does work as i tested it in another PS1. Well today i though i might reflow the solder on the CD Driver chip. To my surprise i found the below , there is what i think is a modchip with a loose wire. In my other thread i said there was no modchip , i believed that due to the shielding is still on top of the Motherboard.

    so yeah if i can find where this loose wire is to be soldered to i may be able to get a game to boot , if you closely at J6 the solder looks disturbed which i'm thinking that's where it was soldered to. I'm also thinking of removing it entirely if that doesn't work. Btw what is the other chip contraption ? Color Fix ?

    The Motherboard is a PAL PU-18 , SCPH 5502

    [​IMG]
    [​IMG]

    Last edited: Aug 22, 2017
  2. Bad_Ad84

    Bad_Ad84 The Tick

    Joined:
    May 26, 2011
    Messages:
    8,566
    Likes Received:
    1,309
    Looks like standard 4 wire old crow modchip. However, someone has inverted pins 5-8

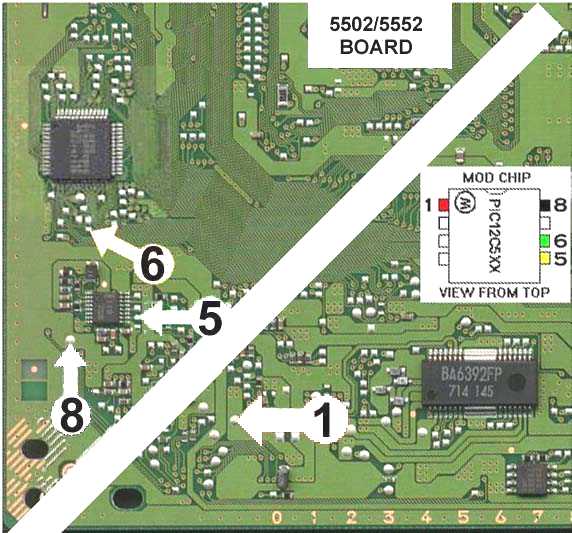

    Reinstall the chip, as per attached installation.



    Last edited: Aug 22, 2017
    Jei likes this.
  3. TriMesh

    TriMesh Site Supporter 2013-2017

    Joined:
    Jul 3, 2008
    Messages:
    2,324
    Likes Received:
    750

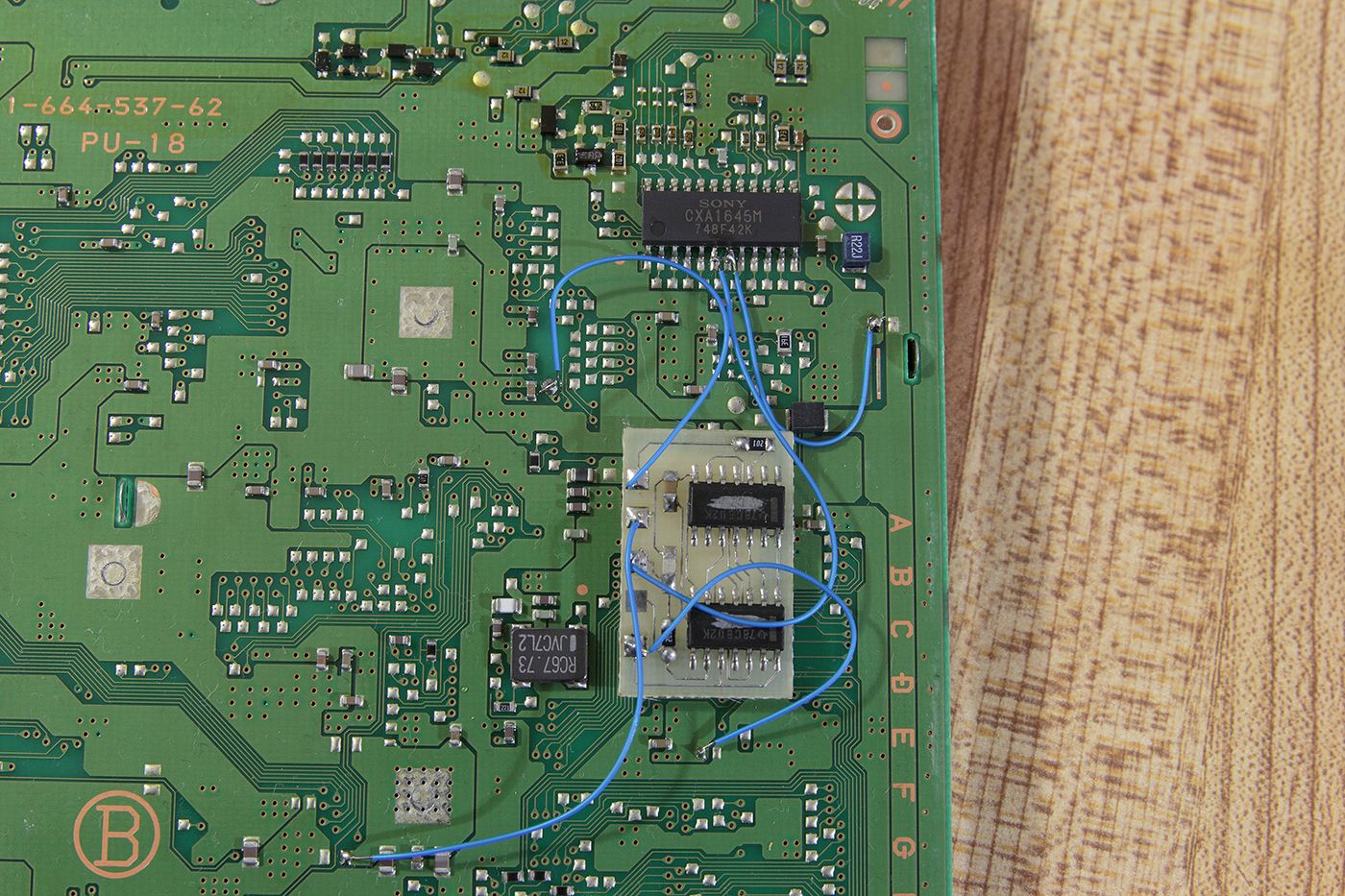

    Yeah, that other board is a color fix - it's taking the 53.203MHz GPU reference clock and doing a /12 on it to get the 4.433MHz color subcarrier. No idea why they bothered scraping the IC numbers off the parts in such an obvious circuit.

    Taijigamer2 likes this.
  4. rama

    rama Gutsy Member

    Joined:
    Dec 17, 2015
    Messages:
    477
    Likes Received:
    112
    Nice and tidy work though. I like it :)
    (Not sure if those unused I/O on the counters are floating though. Is that okay?)

    The modchip Vcc wire came loose. It looks like it used to be attached to that "J6" tantalum capacitor.

  5. Bad_Ad84

    Bad_Ad84 The Tick

    Joined:
    May 26, 2011
    Messages:
    8,566
    Likes Received:
    1,309
    If you look, pin 8 (ground) isnt connected to ground. Ground is connected to pin 5 (which should be connected to where pin 8 is)

  6. rama

    rama Gutsy Member

    Joined:
    Dec 17, 2015
    Messages:
    477
    Likes Received:
    112
    Hm, yeah, this is messed up. It could never have worked that way.

  7. s8n

    s8n Enthusiastic Member

    Joined:
    Dec 10, 2011
    Messages:
    524
    Likes Received:
    74
    hi guys i'm back , just did a rewire as Bad_Ad84 showed in the pic. I tested Toca PAL original disc and it works , then i tested Point Blank 1 NTSC CD-R and that also works. Man i'm pretty stoked right now , thanks for the help and support guys.

    Jei and Bearking like this.
