Saturn modchip--what type is it?

Discussion in 'Sega Saturn Programming and Development' started by turfster, Mar 22, 2014.

  1. turfster

    turfster i grow grass

    Joined:
    Mar 17, 2013
    Messages:
    612
    Likes Received:
    48

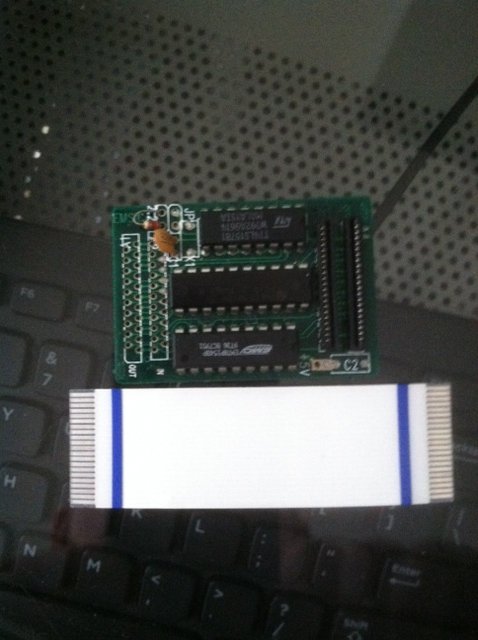

    My friend sent this to me in the mail today saturn modchip.JPG . I have never modded a saturn before and was wondering if someone could tell me what type this is? Also any installation guide's I could use.

    I did some googling and it looks like it should work on both v1 and v2 saturns..

    Thank's in advance for any help..

  2. Druidic teacher

    Druidic teacher Officer at Arms

    Joined:
    Jun 6, 2006
    Messages:
    3,643
    Likes Received:
    129
    x

    Last edited: Jun 22, 2017
  3. turfster

    turfster i grow grass

    Joined:
    Mar 17, 2013
    Messages:
    612
    Likes Received:
    48
    Perfect..thank you..easy enough..now to find the right saturn to install it in.

  4. szczuru

    szczuru Spirited Member

    Joined:
    May 12, 2010
    Messages:
    115
    Likes Received:
    0
    Model 2 ;)

  5. Druidic teacher

    Druidic teacher Officer at Arms

    Joined:
    Jun 6, 2006
    Messages:
    3,643
    Likes Received:
    129
    x

    Last edited: Jun 22, 2017
  6. TriMesh

    TriMesh Site Supporter 2013-2017

    Joined:
    Jul 3, 2008
    Messages:
    2,324
    Likes Received:
    750
    I'm pretty sure you will find that is a 21 pin board - I have never seen one of them that had provision for both sets of sockets and only had the 20 pin ones installed.

    Note that counting the holes on the side of the board that doesn't have the sockets installed is not a reliable indication - lots of them used the same 21 pin footprint for both ends.

  7. Druidic teacher

    Druidic teacher Officer at Arms

    Joined:
    Jun 6, 2006
    Messages:
    3,643
    Likes Received:
    129
    x

    Last edited: Jun 22, 2017
  8. TriMesh

    TriMesh Site Supporter 2013-2017

    Joined:
    Jul 3, 2008
    Messages:
    2,324
    Likes Received:
    750
    You're quite right - I just had a look in my box of bits and found an EMSIC3, which appears identical to that board, and the end the connectors are installed is the 20 pin one. Strange that it seems to have been supplied with a 21 pin FPC.

  9. APE

    APE Site Supporter 2015

    Joined:
    Dec 5, 2005
    Messages:
    6,416
    Likes Received:
    138
    I've got a handful of them in that exact configuration but damned if I can figure out how to get it installed and working in a model 1.

  10. TriMesh

    TriMesh Site Supporter 2013-2017

    Joined:
    Jul 3, 2008
    Messages:
    2,324
    Likes Received:
    750
    Looking at that photo closer, it's got 21-pin sockets installed on the 20-pin end - couple that with the fact that it's got a 21-pin FPC it makes me wonder if it was assembled wrong.

    I was also told by one of the guys that did the original Saturn modchip design that a lot of the later boards had modified firmware that supported the later CD-ROM drives, but were not being tested with the 20-pin drives any more, so they might well not work.

    And no, he doesn't have the source code anymore - I did ask.

  11. turfster

    turfster i grow grass

    Joined:
    Mar 17, 2013
    Messages:
    612
    Likes Received:
    48

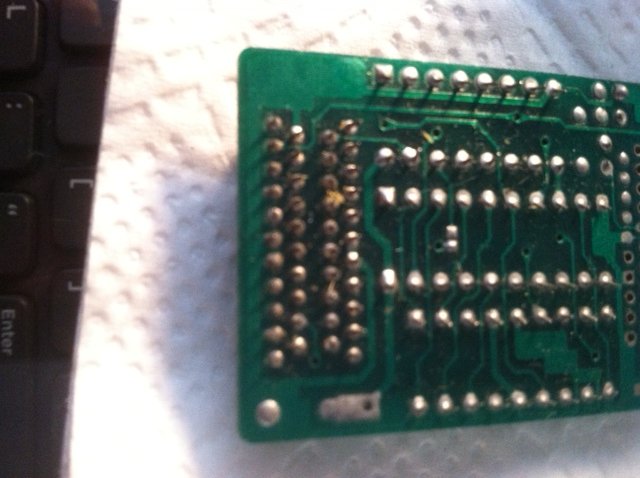

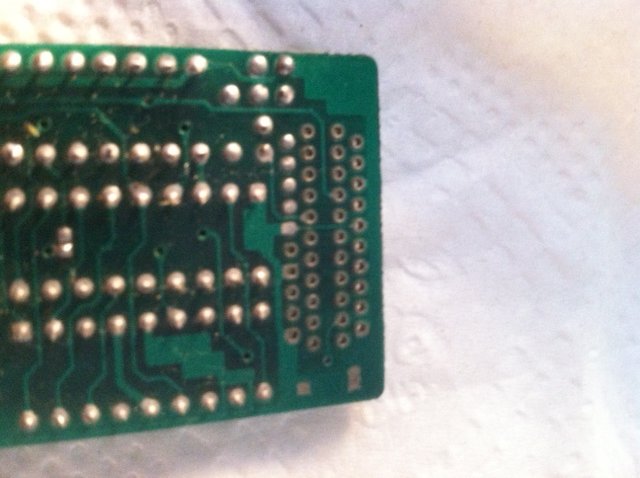

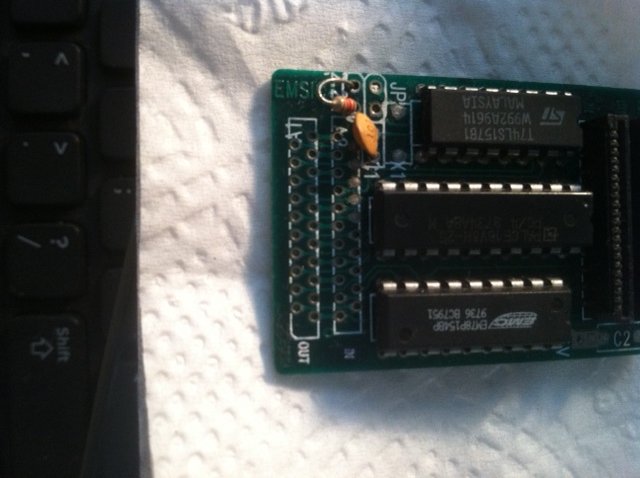

    I count 21 pins on the bottom. Both sides have 21 pin's it looks like. I know absolutely nothing about these modchip's though..Ill take some more pics to show the front and back better. This is a emsic v0.

    http://john2kx.blogspot.com/

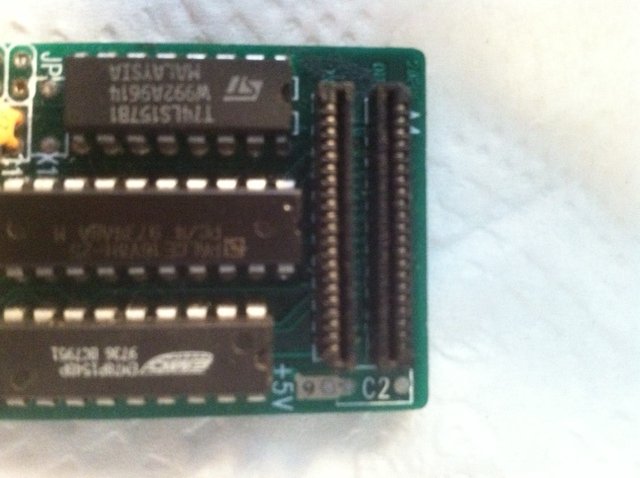

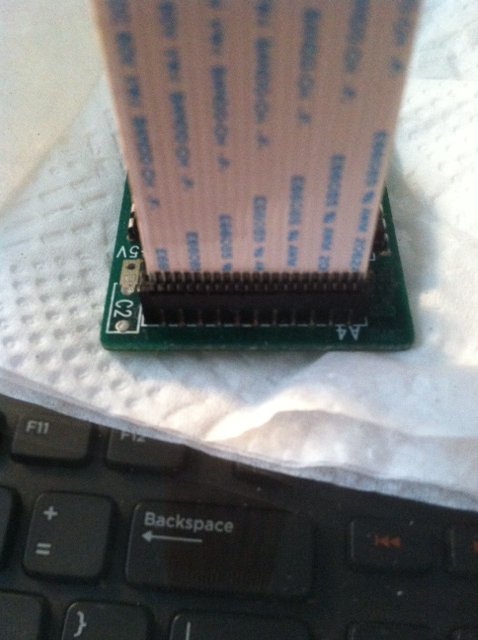

    Edit..the side with socket's does say 20 pin and the other side without socket's says 21 pin on the side. So this ribbon cable is 21 pins. Will it work with a 20 pin socket or can I desolder the socket's and put them on the other side of the chip?


    Attached Files:

    Last edited: Mar 25, 2014
  12. Druidic teacher

    Druidic teacher Officer at Arms

    Joined:
    Jun 6, 2006
    Messages:
    3,643
    Likes Received:
    129
    x

    Last edited: Jun 22, 2017
  13. turfster

    turfster i grow grass

    Joined:
    Mar 17, 2013
    Messages:
    612
    Likes Received:
    48
    http://www.nerdcave.de/stuff/modchip-howto.html

    Found this..looks like it will work on a 20 pin type model saturn after all. The ribbon cable is 21 pins but i will be only using 20 of those pins..the pin closest to the 5v is not used. This is for a Saturn Model 1

    However if i did solder the connectors to the 21 pin side it may or should work on a model 2. But I will see if i can get a model 1 saturn first which i heard is very hard to find.

    http://www.segastyle.com/saturnmod.html

    Last edited: Mar 25, 2014
  14. turfster

    turfster i grow grass

    Joined:
    Mar 17, 2013
    Messages:
    612
    Likes Received:
    48
    Got the saturn today. It was really rusty. The access light was blinking which i learned is normal. However the laser assembly would not move. I took it apart and soaked it in wd-40 and was able to take the slide bar out. It was rusty on both sides so i sanded the rust off, regreased the slide bar on both sides. Happy to say it works and read a cd. I have no saturn games yet to test though.

    Now the modchip is a 20 pin modchip on one side and 21 pin on the other. The 20 pin side has the slots for the 21 pin connector cable. The connection on the saturn is 20 pin. I need some help here to make this 21 pin connection cable work for a 20 pin.

    This is my first saturn modchip install so any help is appreciated. You can pm me too if that makes it easier to discuss..

  15. Druidic teacher

    Druidic teacher Officer at Arms

    Joined:
    Jun 6, 2006
    Messages:
    3,643
    Likes Received:
    129
    x

    Last edited: Jun 22, 2017
  16. turfster

    turfster i grow grass

    Joined:
    Mar 17, 2013
    Messages:
    612
    Likes Received:
    48
    K thanks...I have it set up as you mentioned. But the access light just blinks red and the game doesnt spin at all.

    I soldered the 5v to the bottom 5v spot on the chip and soldered the other in the 5v connector on the power supply(4th hole up).

    If i disconnect the chip it works normally again.

    I tried this many times..

    The drive says enr-007 on it if that helps...ill take pics tomorrow to show you how I installed it

    Last edited: Mar 29, 2014
  17. APE

    APE Site Supporter 2015

    Joined:
    Dec 5, 2005
    Messages:
    6,416
    Likes Received:
    138
    I've got some 21 pin slots here somewhere that can and do fit nicely.

  18. turfster

    turfster i grow grass

    Joined:
    Mar 17, 2013
    Messages:
    612
    Likes Received:
    48
    Sounds like a plan..ill take them and get a v2 saturn...Id like to buy a working saturn chip for a model 2 from you as well..just in case this chip is just bad.

    Last edited: Mar 29, 2014
  19. Druidic teacher

    Druidic teacher Officer at Arms

    Joined:
    Jun 6, 2006
    Messages:
    3,643
    Likes Received:
    129
    x

    Last edited: Jun 22, 2017
  20. turfster

    turfster i grow grass

    Joined:
    Mar 17, 2013
    Messages:
    612
    Likes Received:
    48
    No it doesnt move..well tries for a brief second sometimes..with modchip installed

    I think the ribbon cable going into the motherboard isnt in enough..I cant get it to go in anymore..i just read i may need to file the edges so it goes in more

    I will mess with it more tomorrow and report back. I believe I aligned the ribbon cables correct. Is there alt. 5v I can use instead of the power supply one? Maybe its the chip not getting power properly.

    Ill start over tomorrow and see what happens..

    It still works fine without the modchip though.

    Last edited: Mar 29, 2014
