Saturn Model 1 Motherboard removal.

Discussion in 'Repair, Restoration, Conservation and Preservation' started by netbattleskills, Sep 8, 2015.

  1. netbattleskills

    netbattleskills Member

    Joined:
    Sep 8, 2015
    Messages:
    8
    Likes Received:
    1
    Hello!
    I'm cleaning up my Model 1 Saturn, but upon getting to the Mother Board, I can't seem to remove the area near the controller ports. It seems there are two visible upside down screws, with no visible way to unscrew them. Any help?

  2. netbattleskills

    netbattleskills Member

    Joined:
    Sep 8, 2015
    Messages:
    8
    Likes Received:
    1

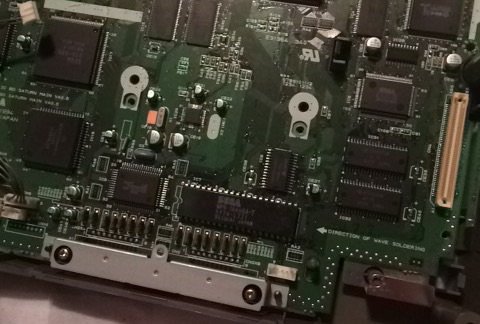

    There's the screws, upside down next to the gold ones. (Those are unscrewed).


    Attached Files:

  3. Sephirothkefka

    Sephirothkefka A very interesting person

    Joined:
    Jan 3, 2015
    Messages:
    403
    Likes Received:
    1
    Those upside down screws can be accessible by taking the motherboard out. If I am right, those other 2 screws should be taken out which are also on that bracket. I'm not too sure seeing how I have a model 2.

  4. TriMesh

    TriMesh Site Supporter 2013-2017

    Joined:
    Jul 3, 2008
    Messages:
    2,324
    Likes Received:
    750
    Those two screws just go into the metal bracket, and there is no need to remove them to get the main board out. As long as all the other screws are removed, the board should just lift out...

  5. netbattleskills

    netbattleskills Member

    Joined:
    Sep 8, 2015
    Messages:
    8
    Likes Received:
    1
    I mean, I can't get the little RF shield over the controller ports, so I can't remove the motherboard.

  6. netbattleskills

    netbattleskills Member

    Joined:
    Sep 8, 2015
    Messages:
    8
    Likes Received:
    1
    Thanks. The gold screws in the controller port were a little off balance. Got it out, time to clean excess...hairs? Ew.
