SNES Cyclone Advanced Entertainment Diskdrive

Hi Guys,
anyone have this rare interesting items? I've need more infos on it.
Thanks in advance



From what I remember reading, this is a Japanese rip off of the Wild Card copier from Front Far East.

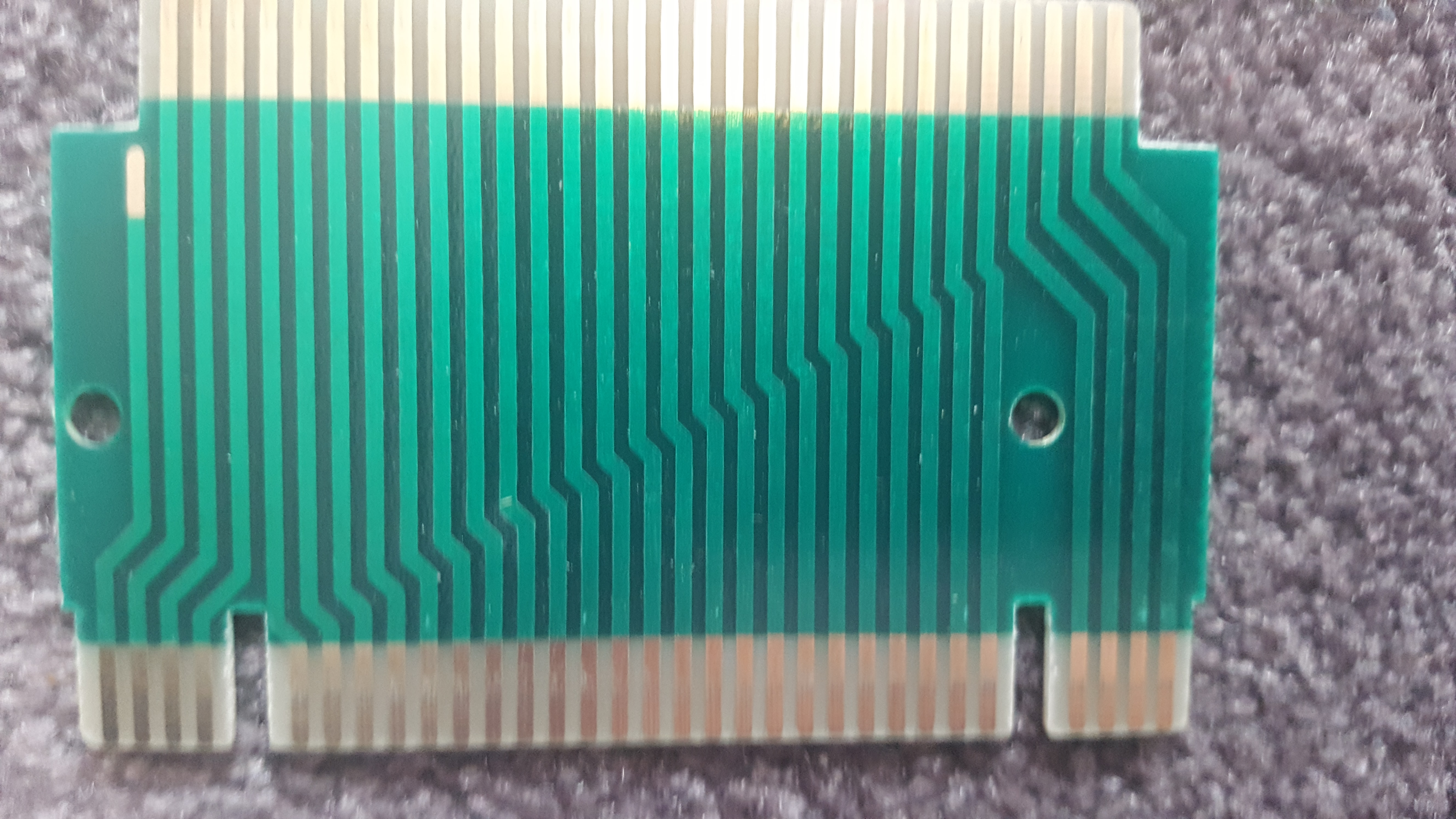

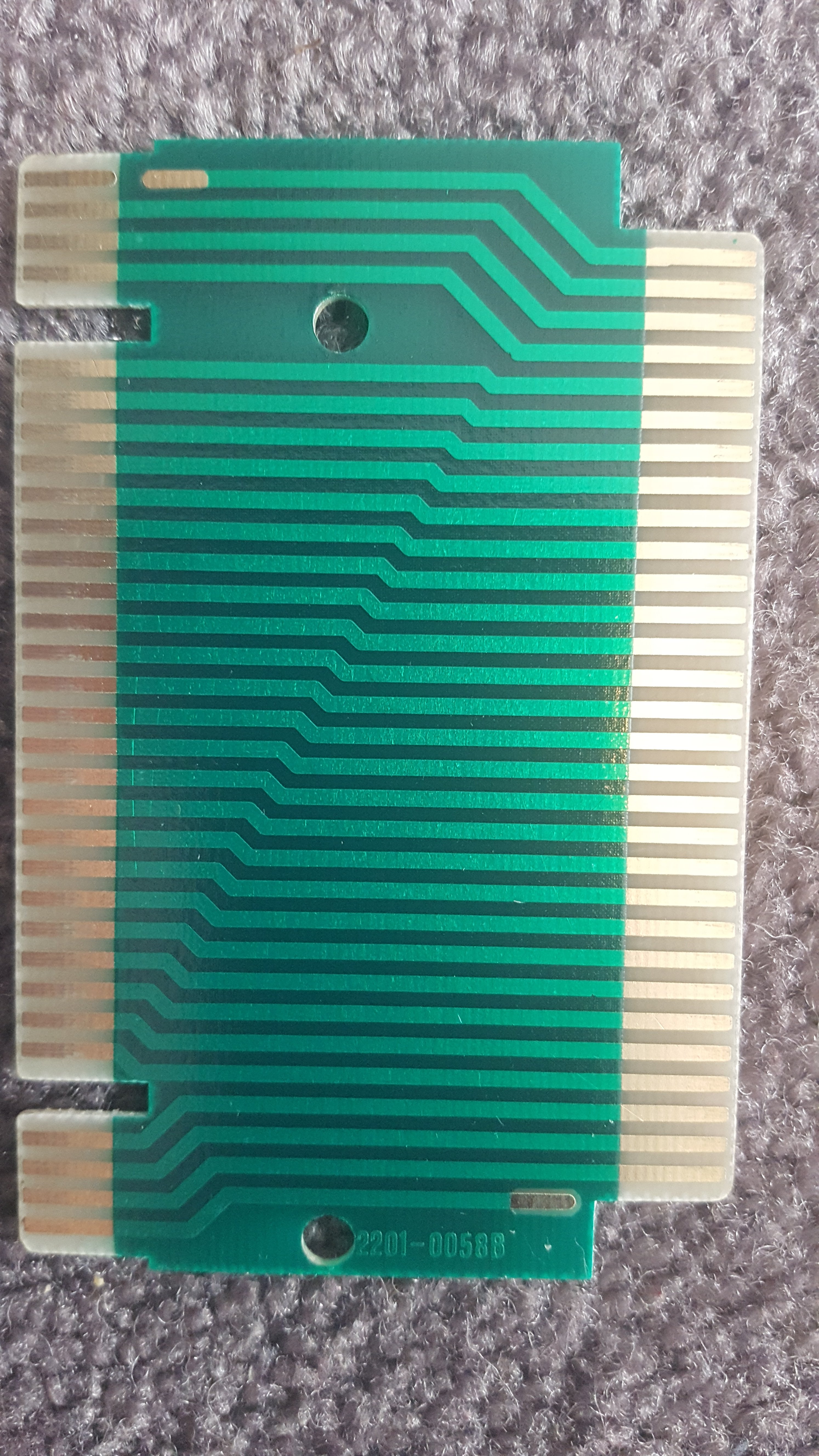

I have the small black adapter between the copier and the snes. Got it in a lot off ebay but couldnt match it to any backup units i knew of. Thanks for helping me identify it. I can take photos of the board if you need?



yes i need photo of small adapter because i've the device without adapter :-( and i cannot test it.
thank you
mike



Back

Front



Oook thank you it is . If you sound like to sell me please let me know soon.
Thx in advance
Mike



haven't seen anything like this before, Pretty neat.



a japanese SWC? Nice, some one have pictures from the menu? How much ram?



I miss adapter so i cannot take menu or working...but i think that its 32m



It wouldnt be too hard to recreate the PCB. You could then at least use it



How i can do it?



If I get a little free time, I'll knock one up for you.

Without the original dimensions, it won't fit a case. But you will be able to put it in the console and copier and use it.



Ok thank you so i will wait that djimport99 does give us infos...on inches of adapter.



When I say won't fit a case, I mean a cart slot case. Even if I make one exactly the same dimensions, you don't have the original plastics. Unless you got one 3d printed I guess, but that's going to start getting expensive.



I have just noticed that my adaptor has 4 screws on the front so may be a different fit. Can you send a pic of the bottom of the backup unit so i can confirm it will fit before i start messing around with the measurements?



The best thing you could do is scan the PCB. Then just measure the width of the PCB, so I can ensure the scan is accurately sized.

I can then create the outline very very easily.



Hi I havent got a scanner so the best i can do is photos next to a ruler



It doesn't really help, to make it fit a cart, you would need to measure all the corners etc.

I can make one that won't fit a plastic shell from what you have posted already.

I already know the cart slot dimensions as it's same as normal cart.



Here pics of my cyclone device unit



Bump!
