SNES Cyclone Advanced Entertainment Diskdrive

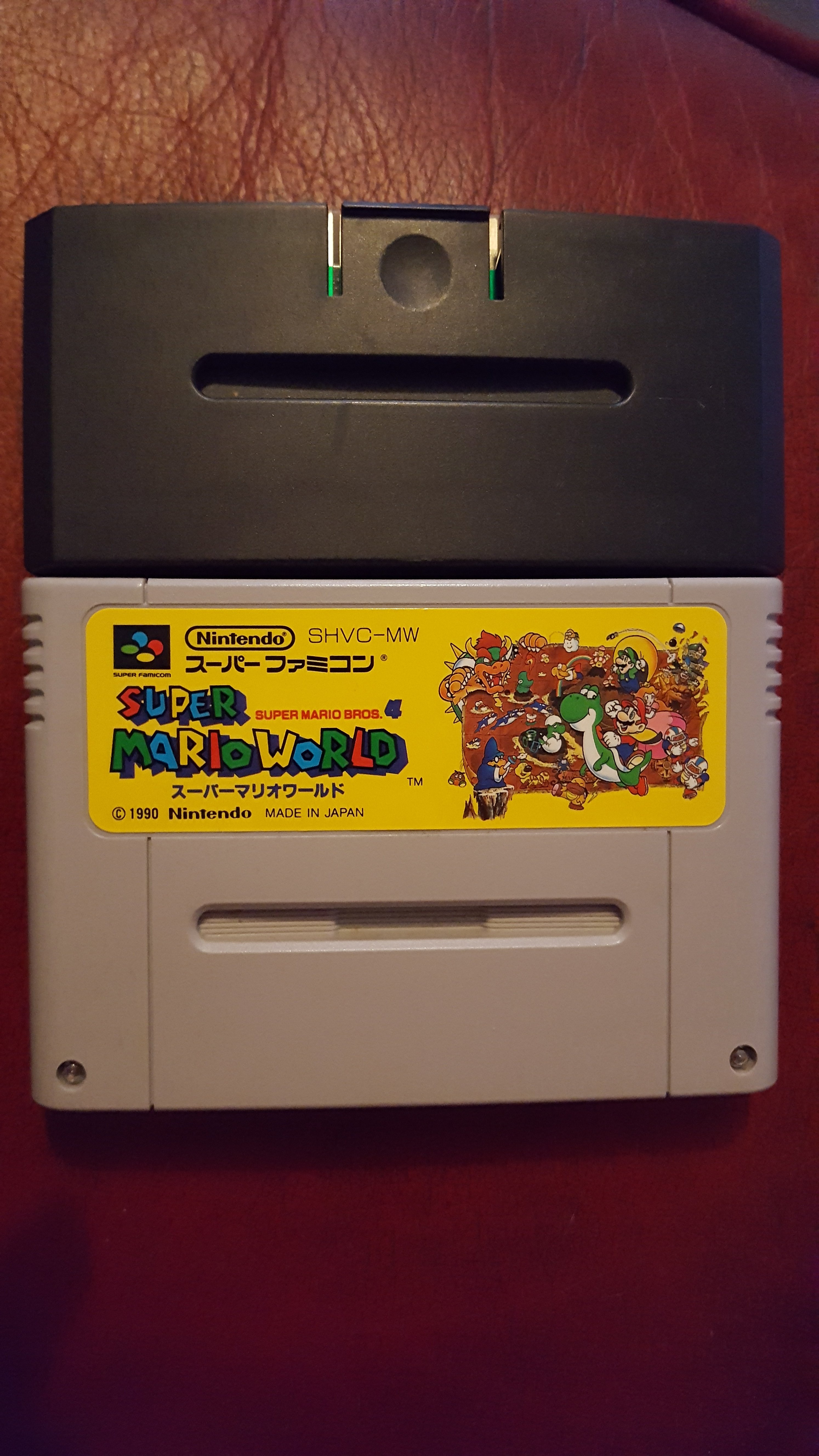

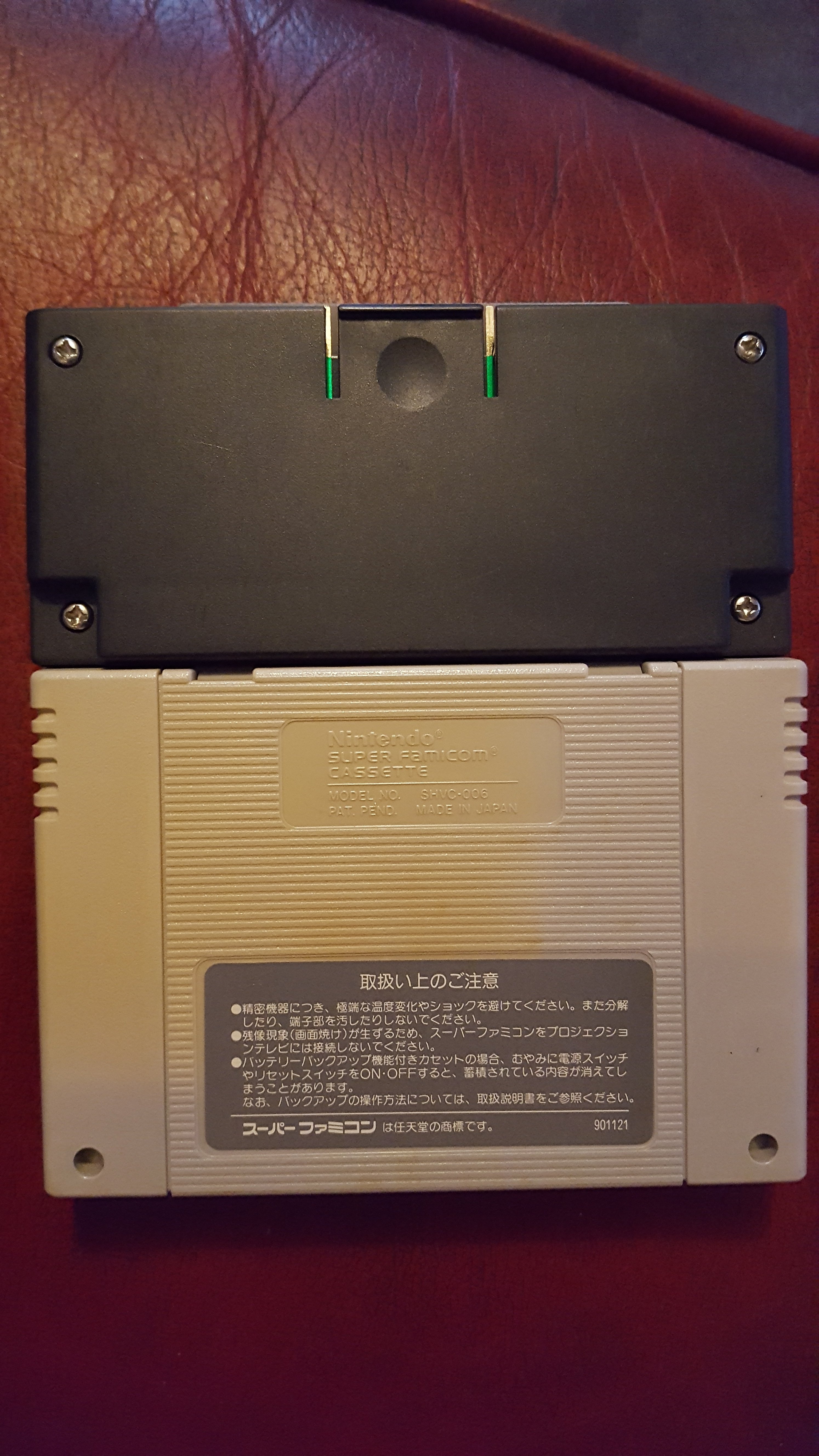

Will this fit the cyclone as looks a little different



Hi mate,
Djimports have posted other detailed photos are good for you for made the board?
Thank yoy
Mike



The Cyclone is not a clone of the Super Wild Card AFAIK even though the interface looks quite similar. I think you're mixing it up with the SWC DX AD-HOC as both were Japan exclusive. The Cyclone was made by a HK company, EXA.

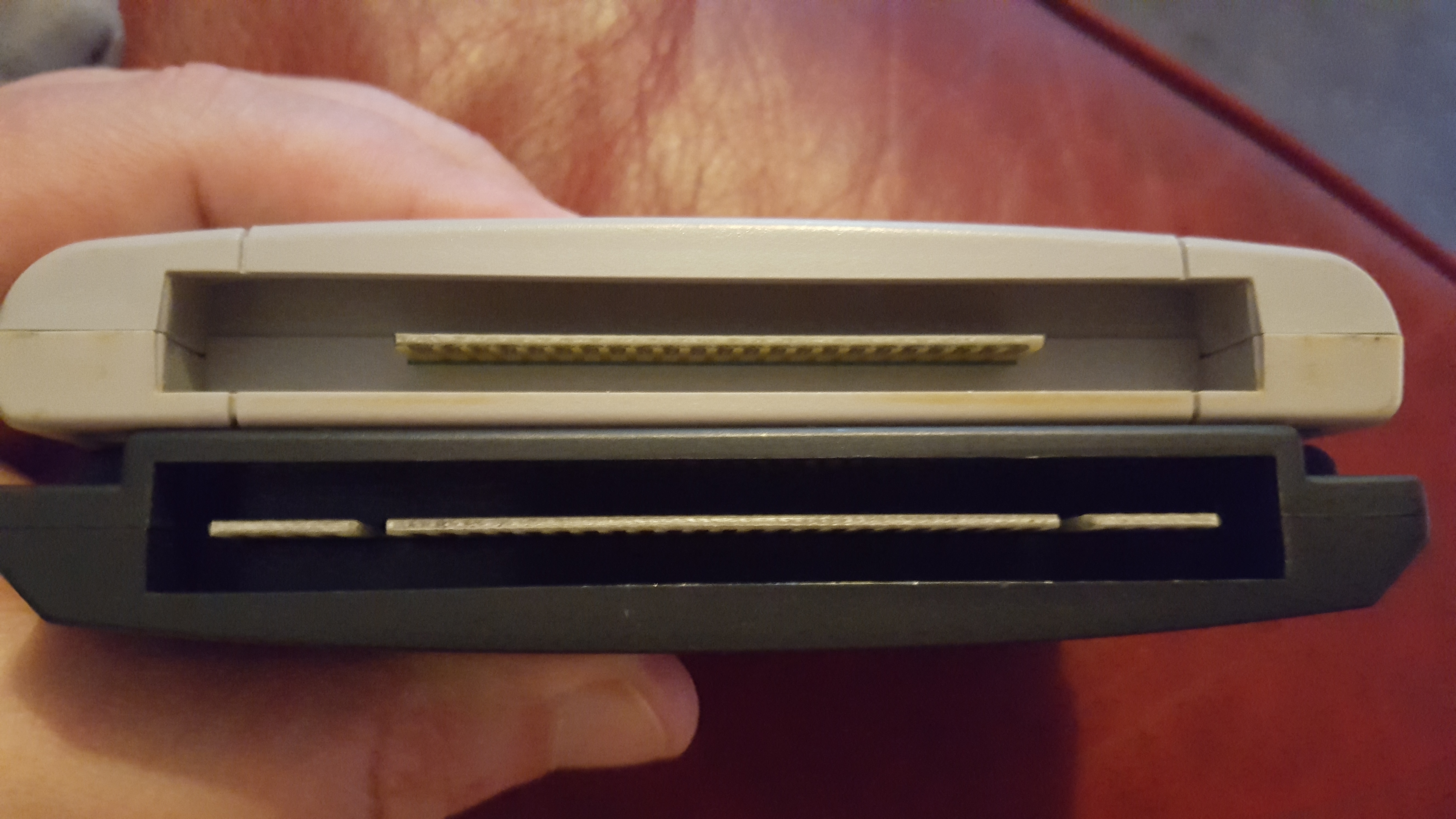

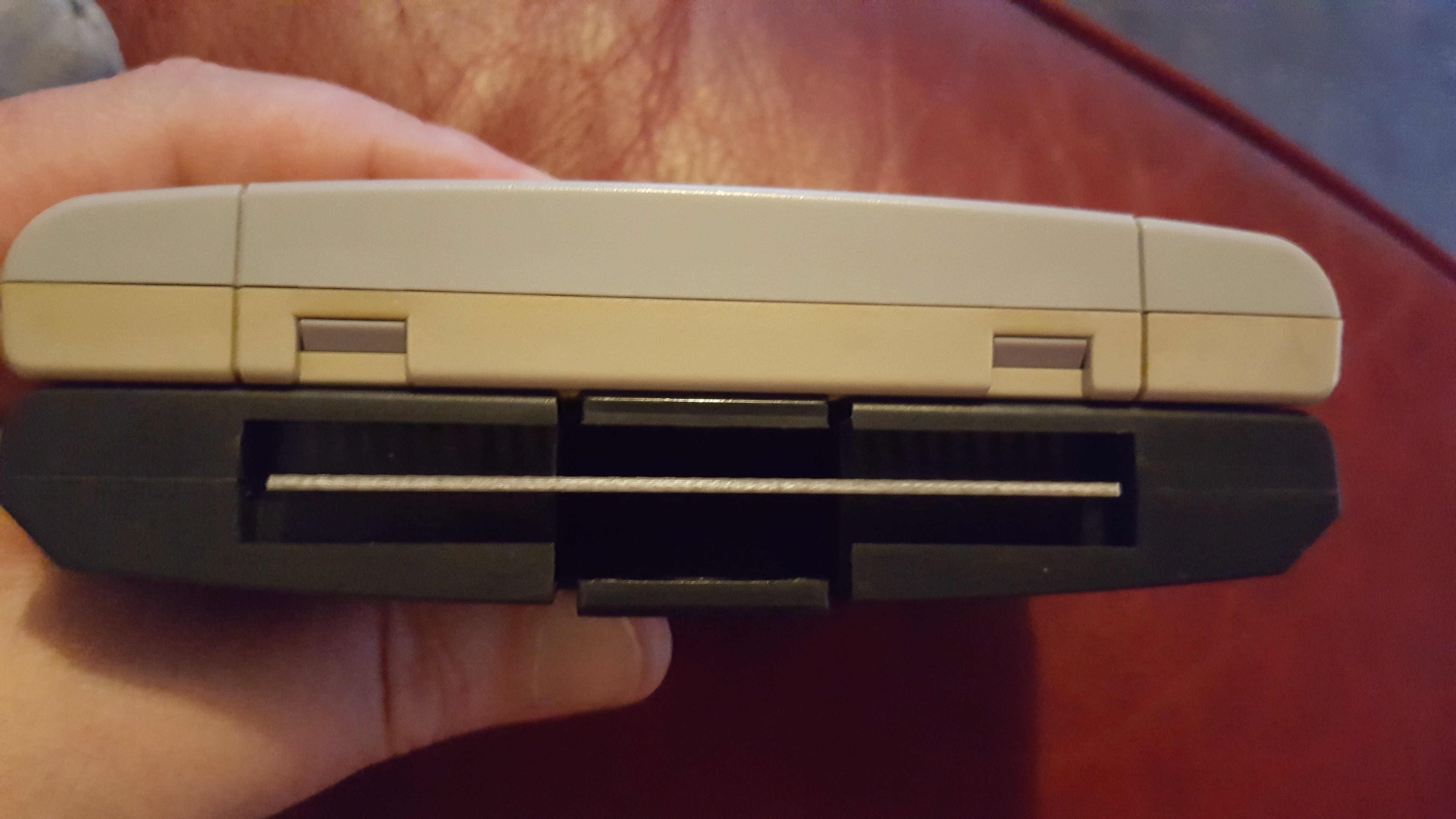

Yep that looks like it'd work, if you plan on using that cart to build your own adapter. Note that the JPN cart doesn't have the notches at the bottom that that Cyclone cart-thingy has, meaning you would have to remove the tabs from an US SNES just like with a normal region mod. Or just dremel those corners off the cart.
