[TUTORIAL]Reset Glitch Hack on Slim

I: Software and Hardware needed

Prerequisites :

1. Installed XillinX Lab Tools

​

Software :

1. Python and Pyton Crypto
2. Impact (from Xilinx Lab Tools)
3. NandPro (>= v2.0e)

​

Hardware :

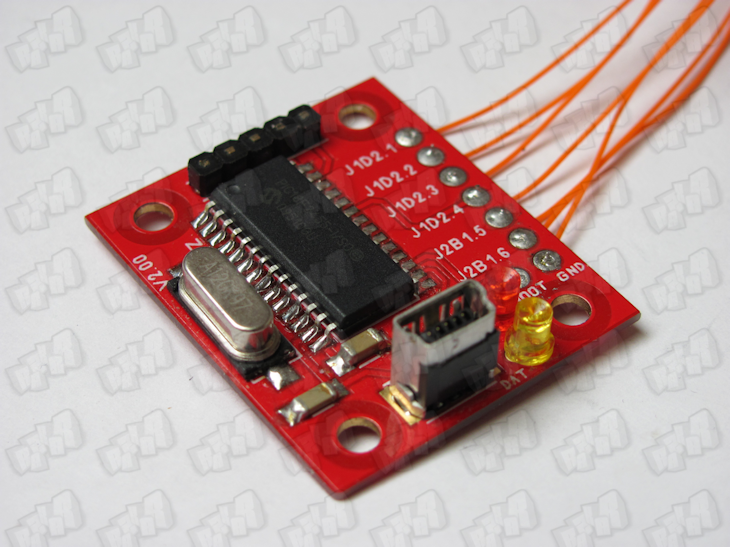

1. USB SPI Programmer to dump/flash the Xbox360's NAND

1. A XC2C64A CoolRunner-II CPLD (aka Digilent C-mod), matching socket and a XilinX JTAG Programmer cable

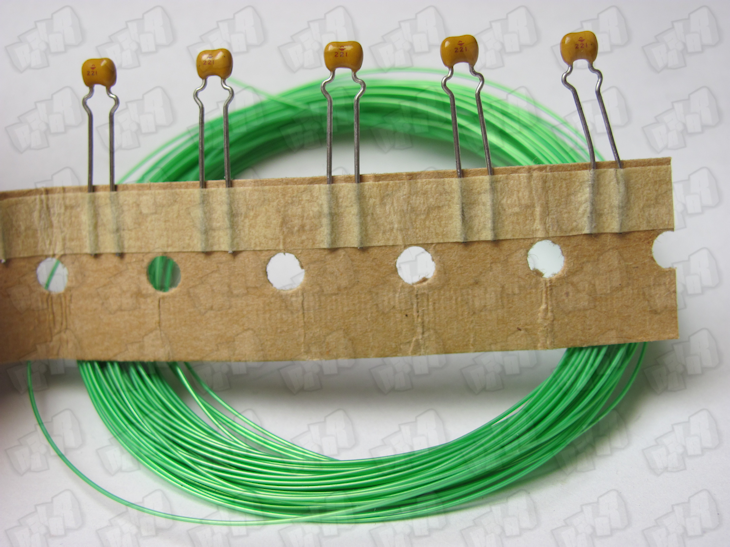

1. A 220pF capacitor
2. Soldering material & Soldering experience


1. II: Dumping NAND

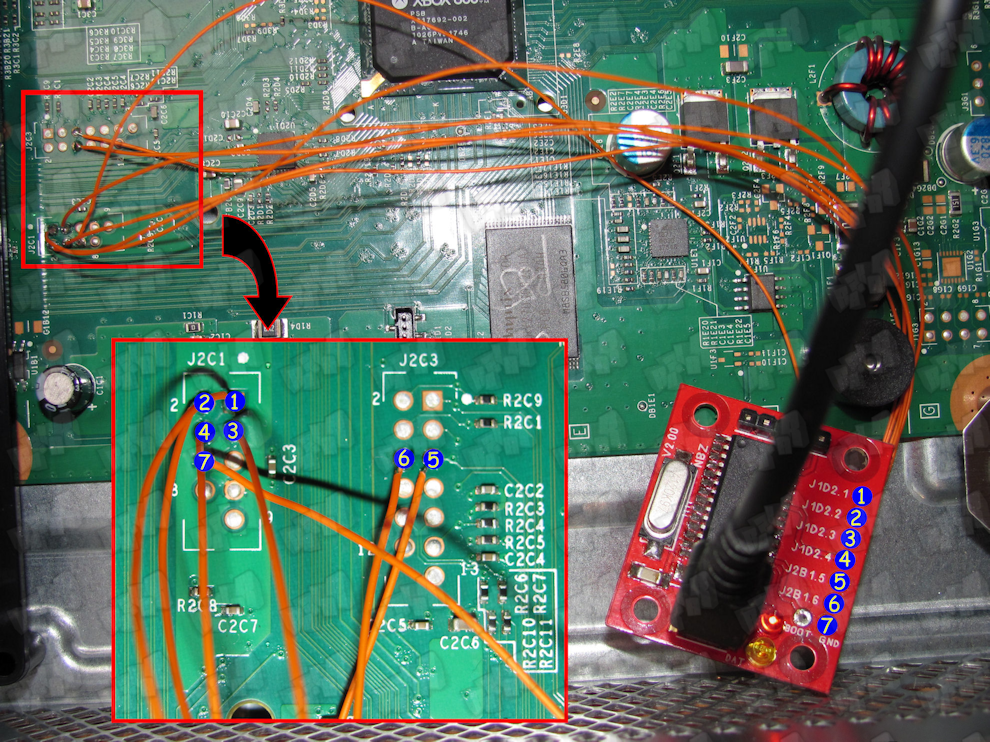

Step 1 : Use the following diagram to Solder your USB SPI Programmer to the Xbox 360 motherboard




Step 2 : Open windows’s command prompt and launch NandPro.

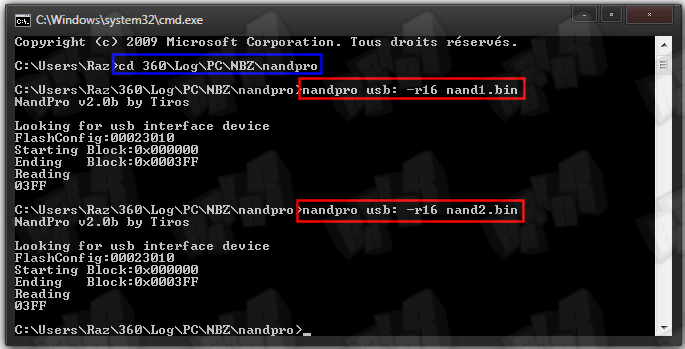

Step 3 : Dump your nand twice by using the read command for 16MB NAND :

Step 4 : Compare the two dumps with the following command (you can use md5checksum too) :

You should have something like FC : No difference found. If the two dumps don’t match, do a new dump and check again.


II: Installation of Python and Python Crypto

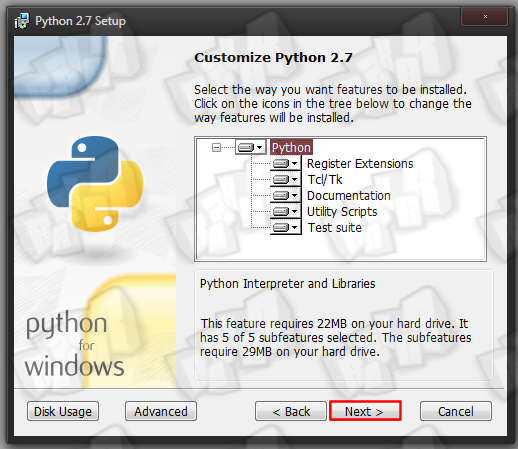

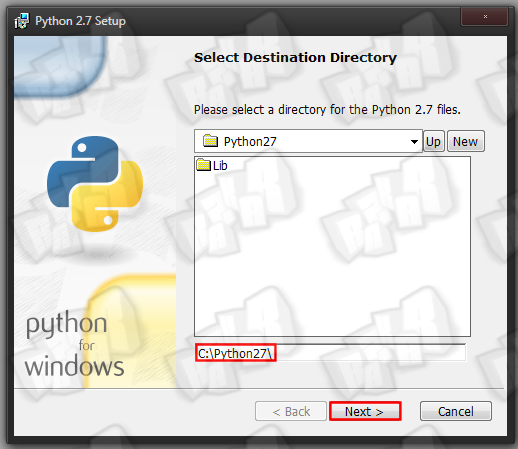

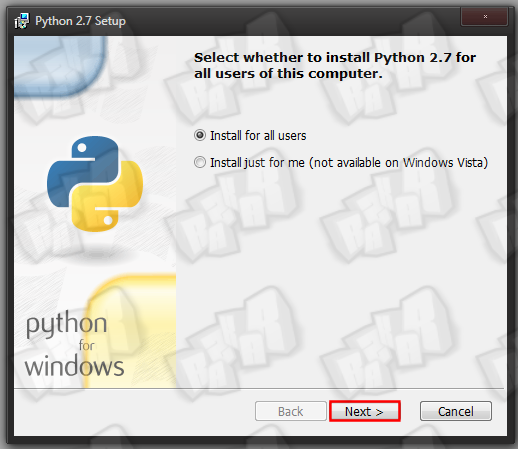

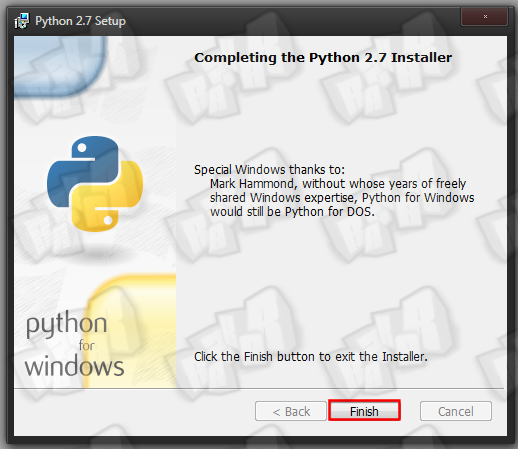

Step 1 : Install Python 2.7 (32bit!) with the default settings :

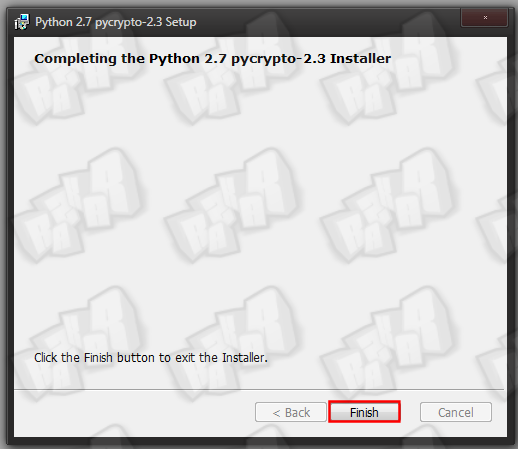

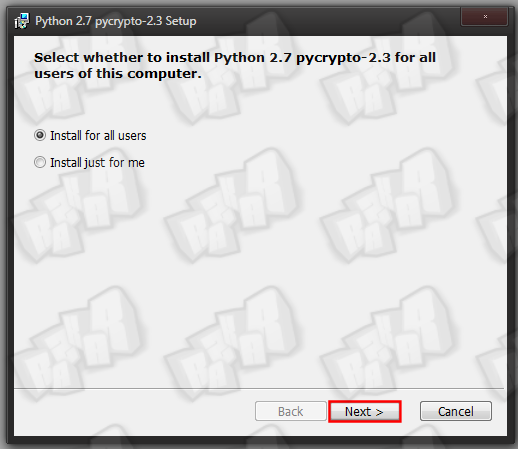

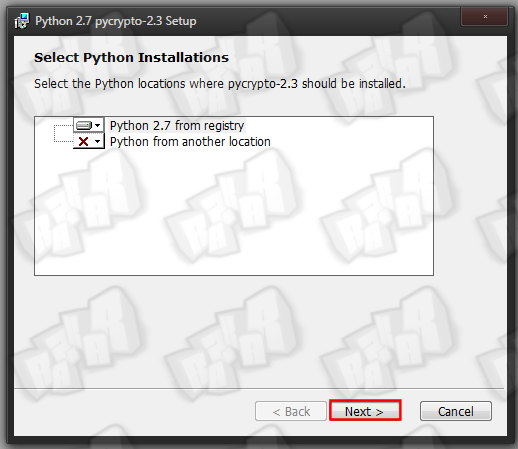

Step 2 : Install PyCrypto 2.3 with the default setting :







To enable python in windows’s command prompt, we will have to modify the environment variables .

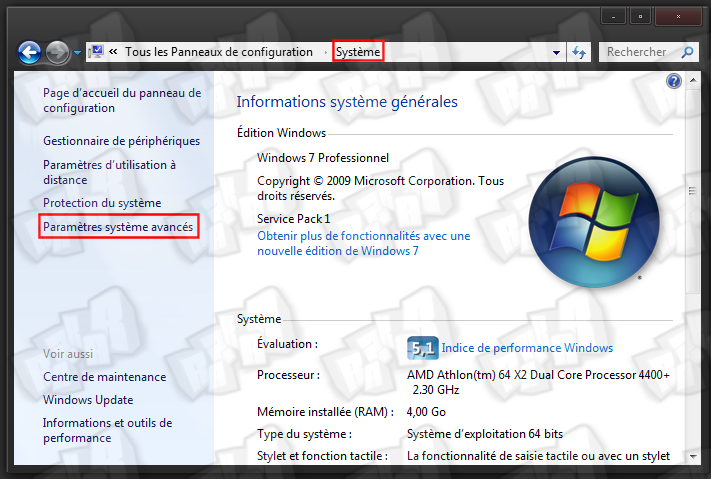

Step 3 : Go in Control Panel > System > Advanced system settings

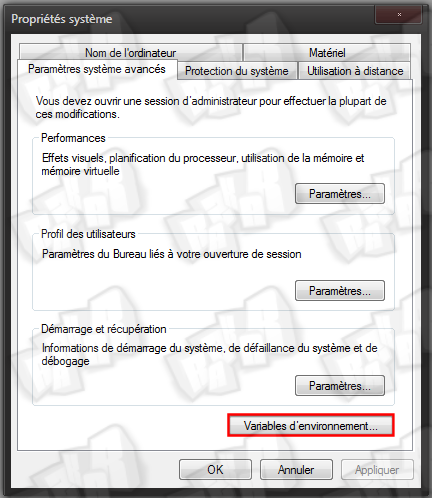

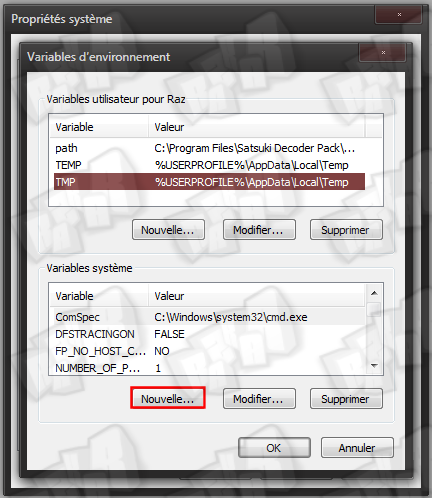

Step 4 : Click on environnement variables



Step 5 : Click on new in system variable

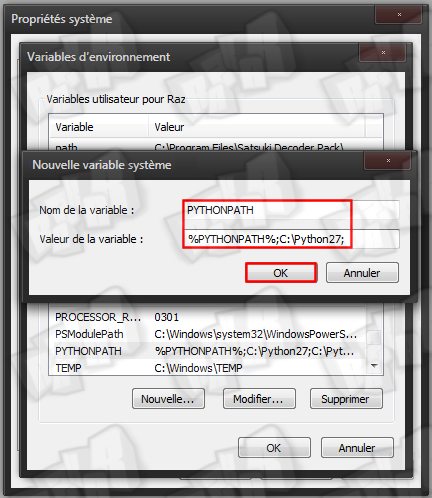

Step 6 : Add this for the name and the value of the variable :

III: Creating the Hackimage

Step 1 : Download this archive

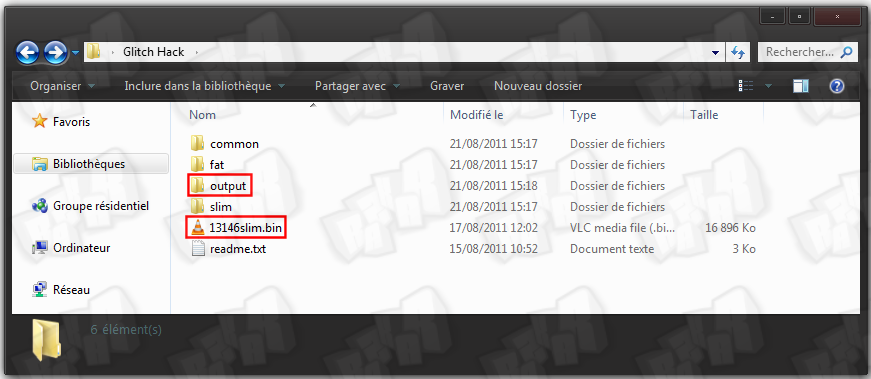

Step 2 : Put your original NAND dump in the root of the gggggg-folder and create an output folder (in the root aswell).

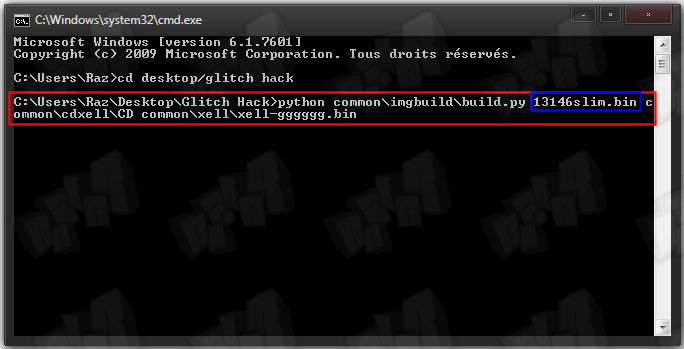

Step 3 : Open windows’s command prompt again and navigate to the gggggg-folder, then type this python command (don’t forget to modify it with your NAND dump name) :

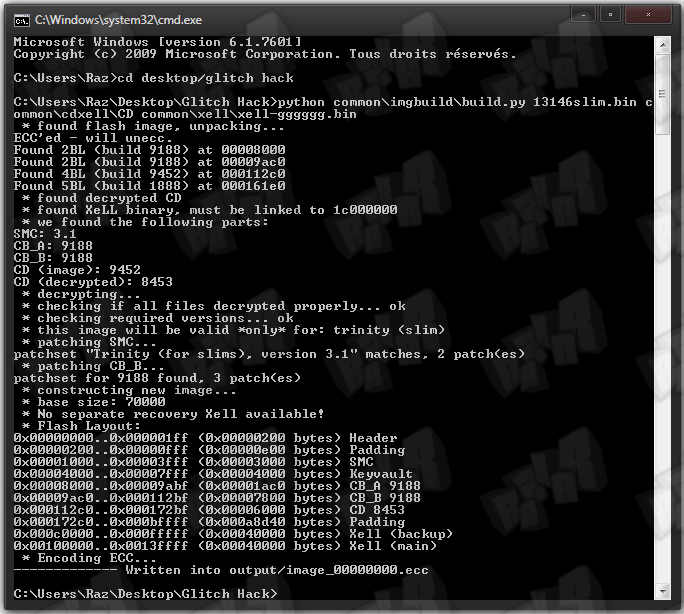

You should see the following :

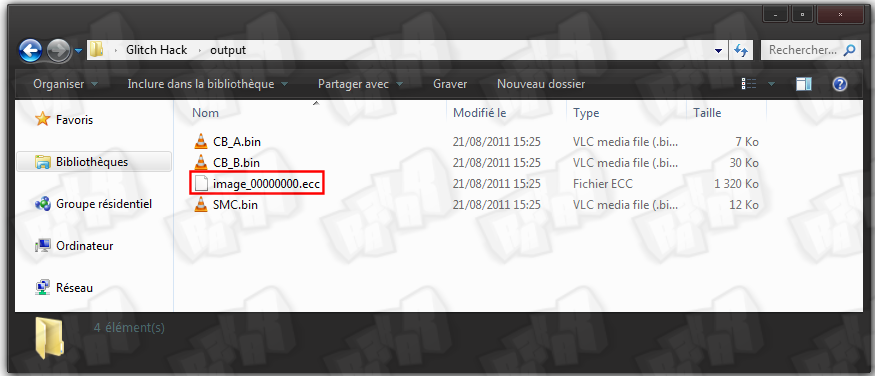

The file image_00000000.ecc is located in the output folder now.



Step 4 : Copy this file into your nandpro folder and navigate to the folder via commandpromt again

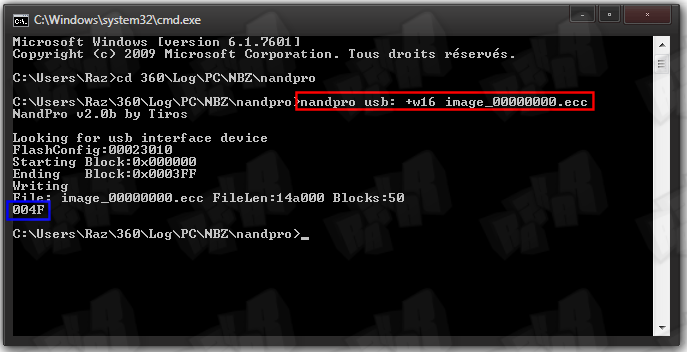

Step 5 : Use the following command to flash the image to your console's NAND.

/!\ Pay attention that you have to use the +w16 switch and not the -w16 one /!\




The flashed file has a size of 50 blocks so you should see 004F when the flashing is over.

IV: Programming the CPLD

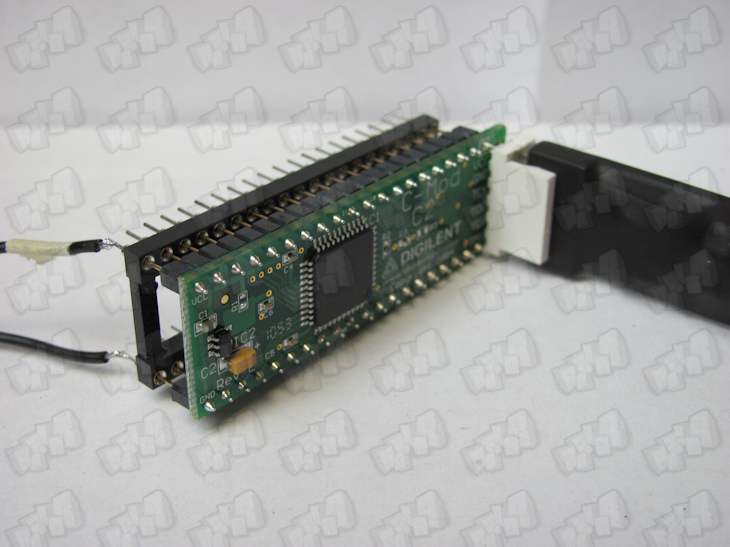

Step 1 : Power your CPLD with 3.3V on pin 20 and GND on pin 21. There are many solution to do this ... here are some of them :

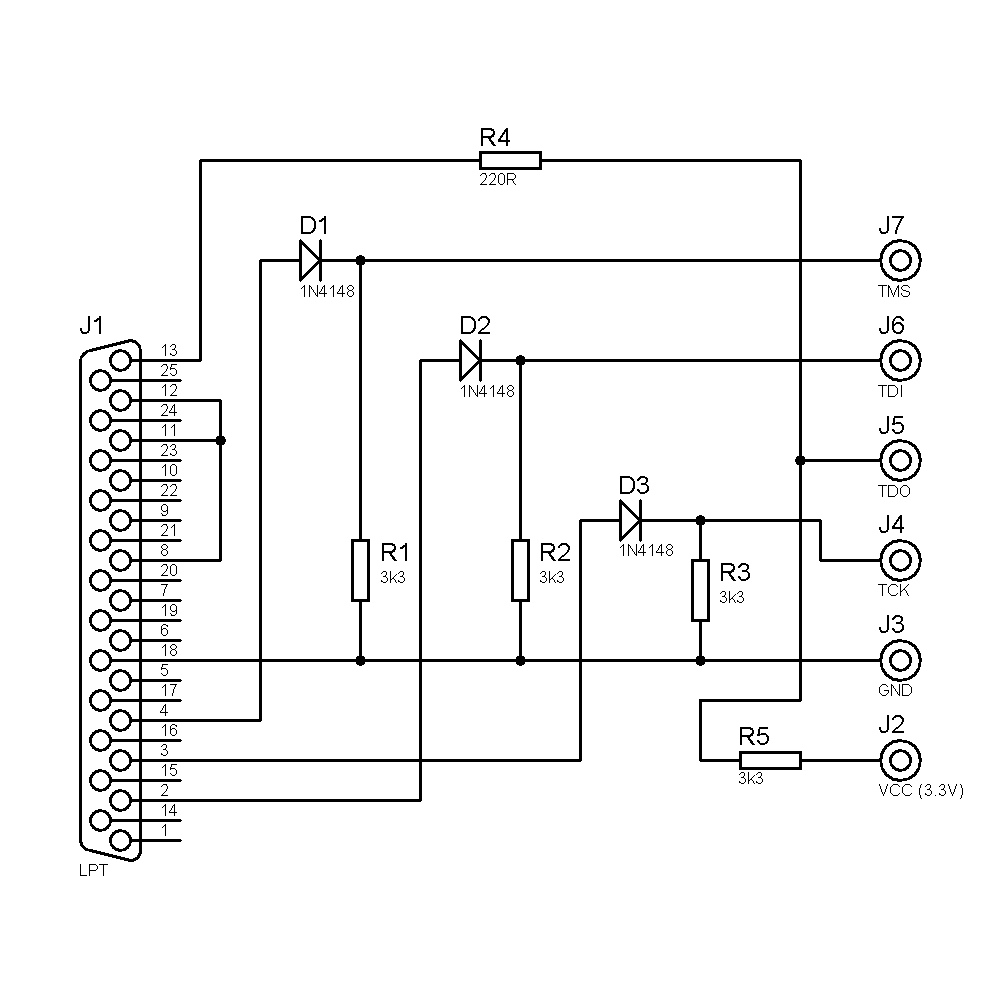

Step 2 : Grab your LPT/USB XilinX JTAG programmer cable. If you don't have one, you can use GliGli's schematic to build a LPT JTAG Programmer. Connect the cable to the PC and the CPLD.

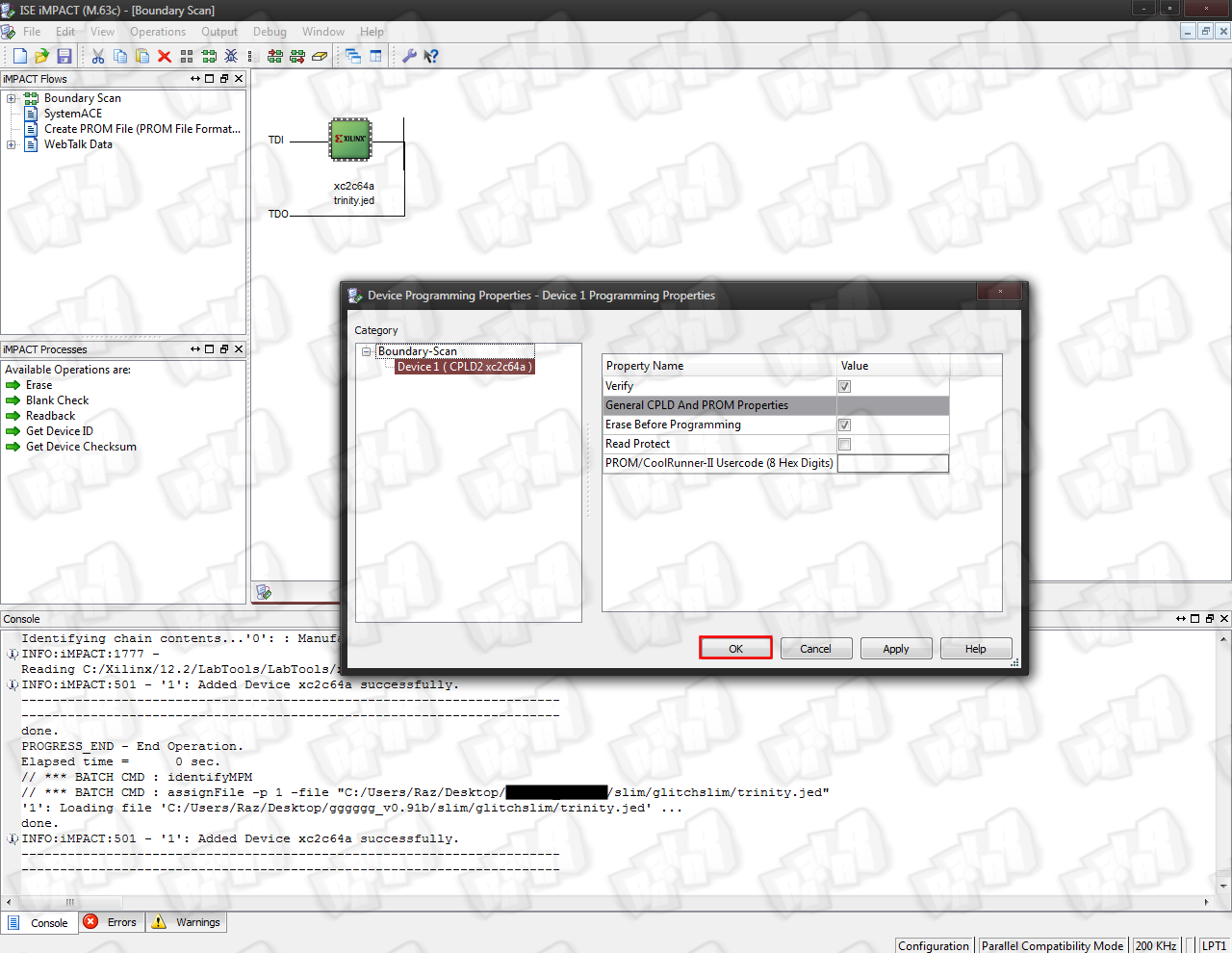

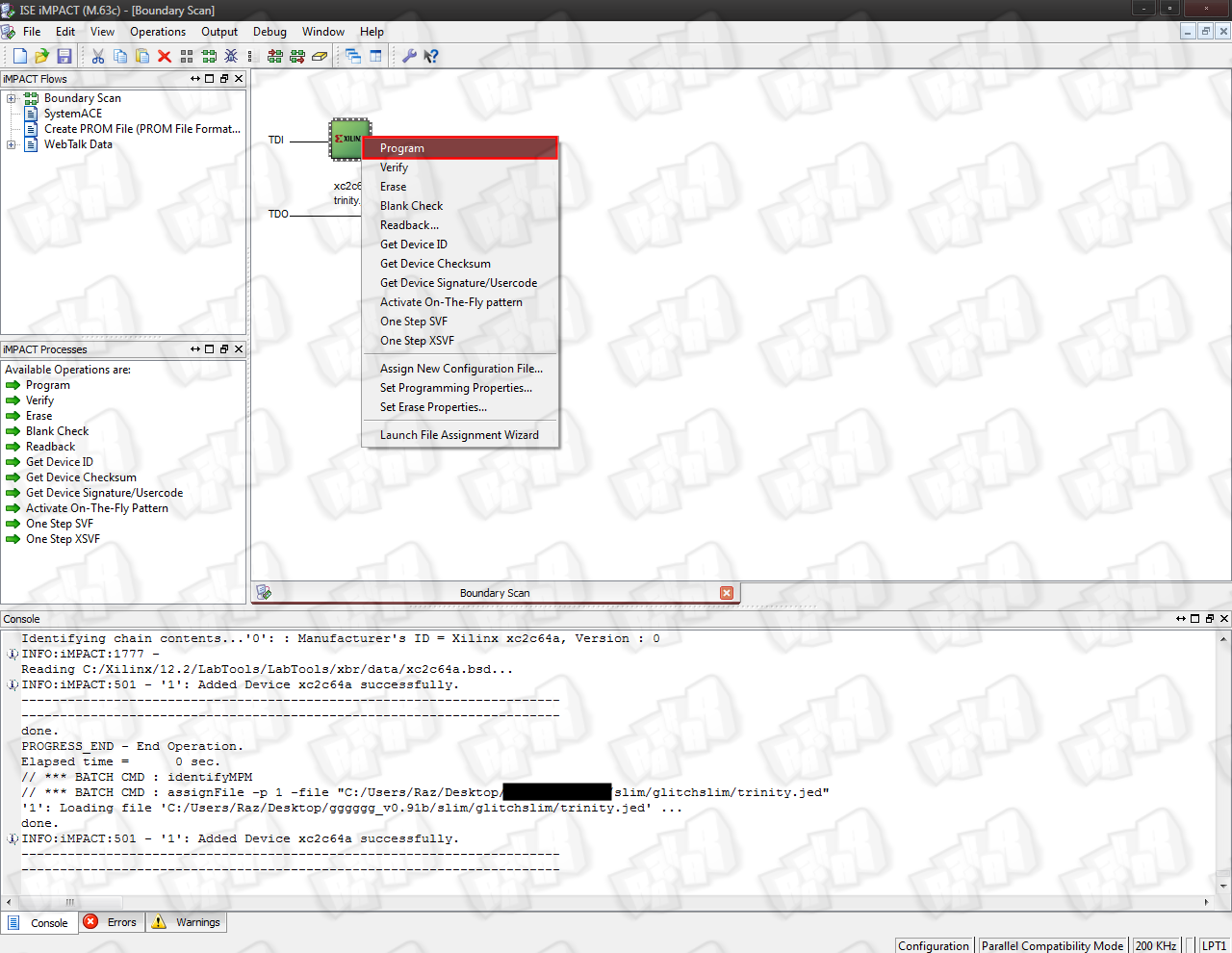

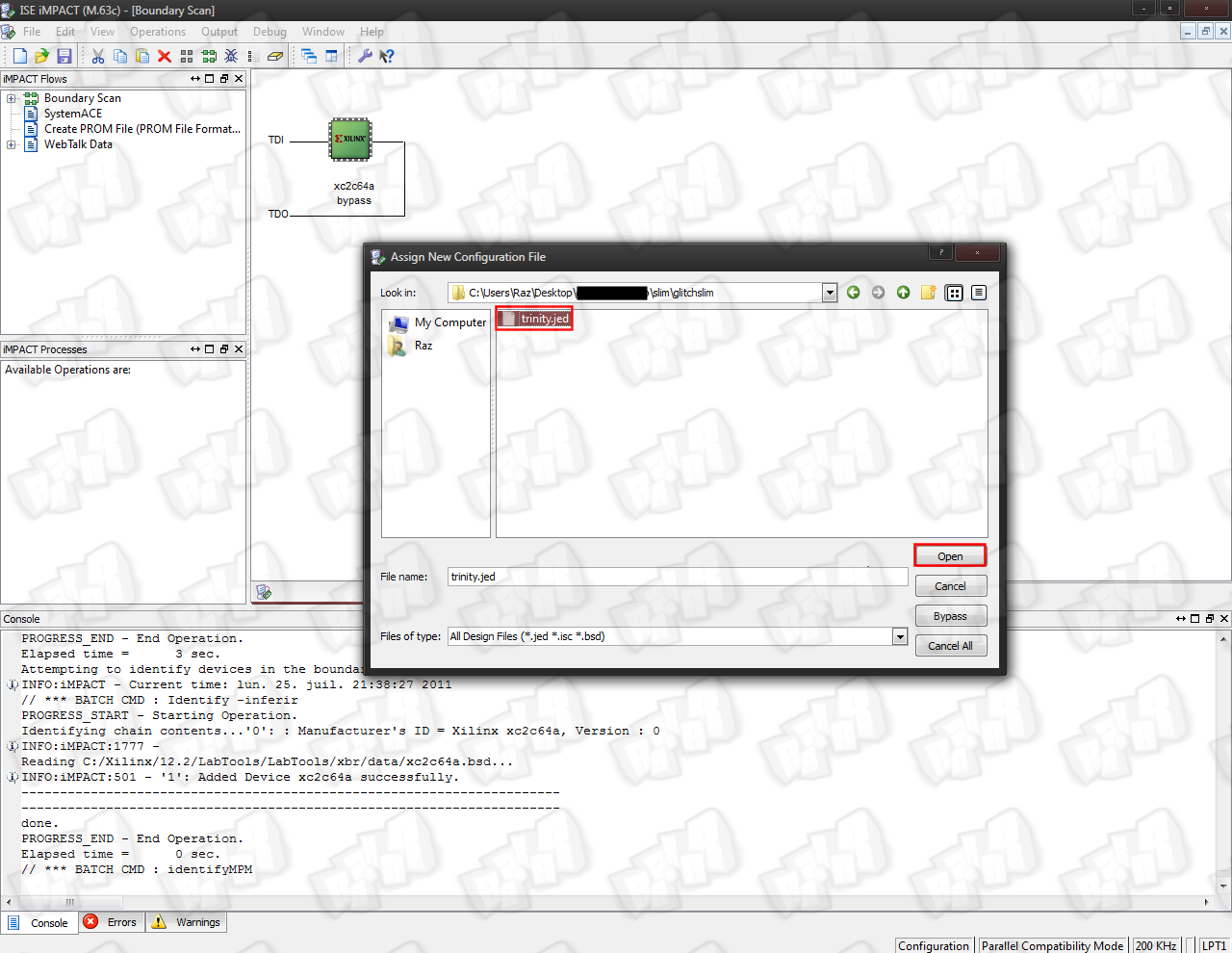

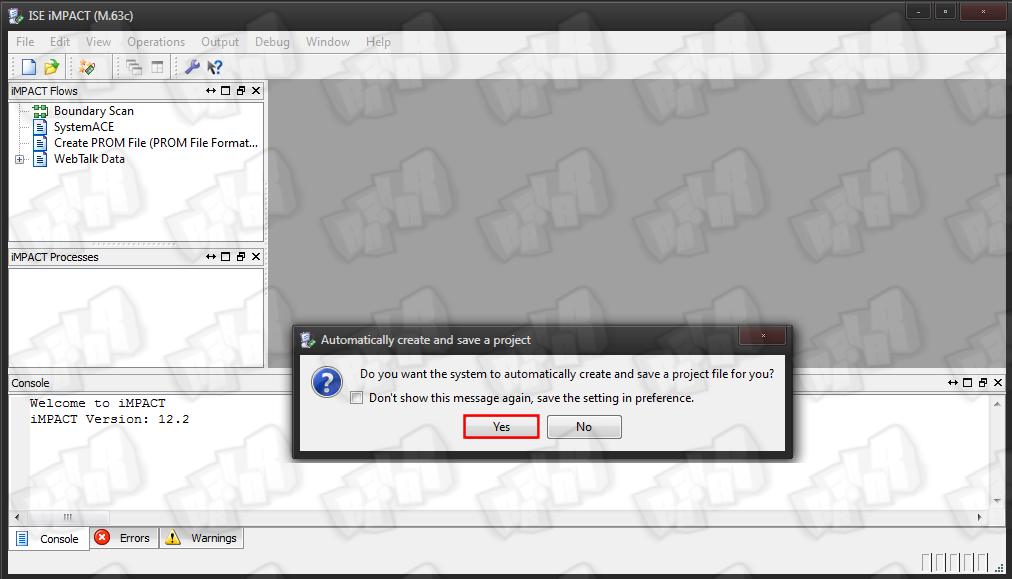

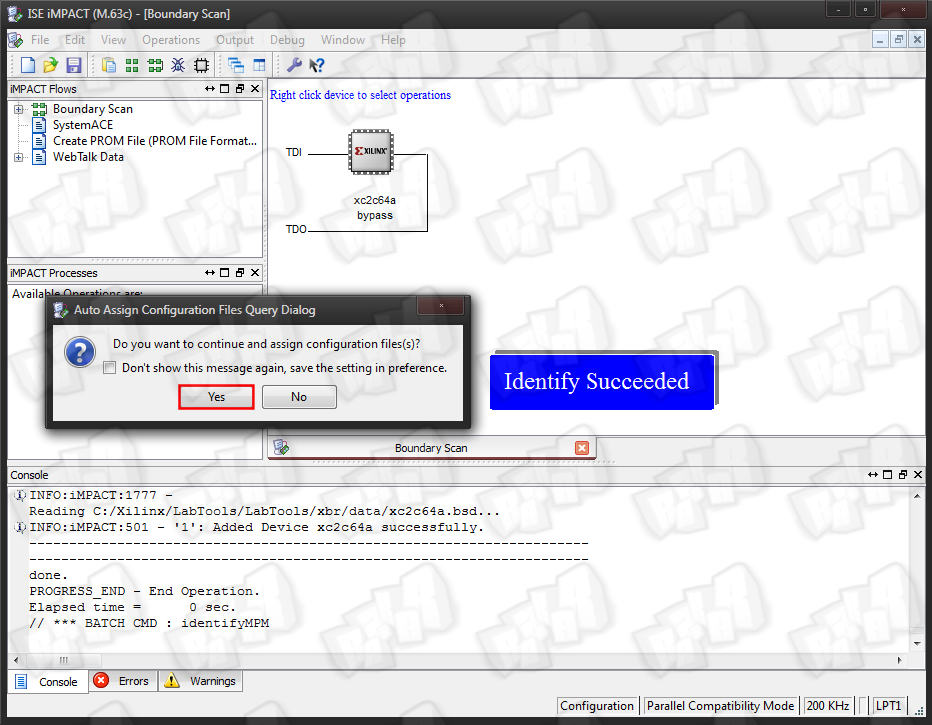

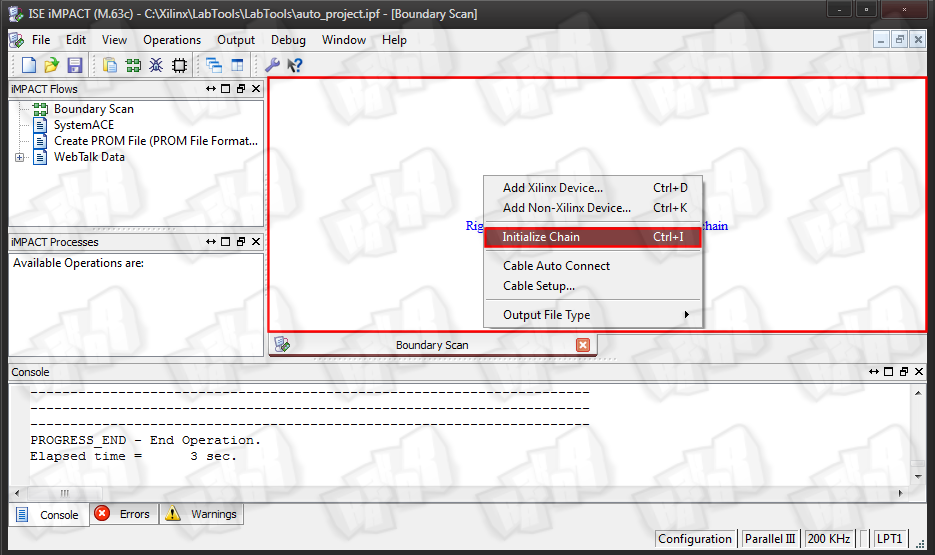

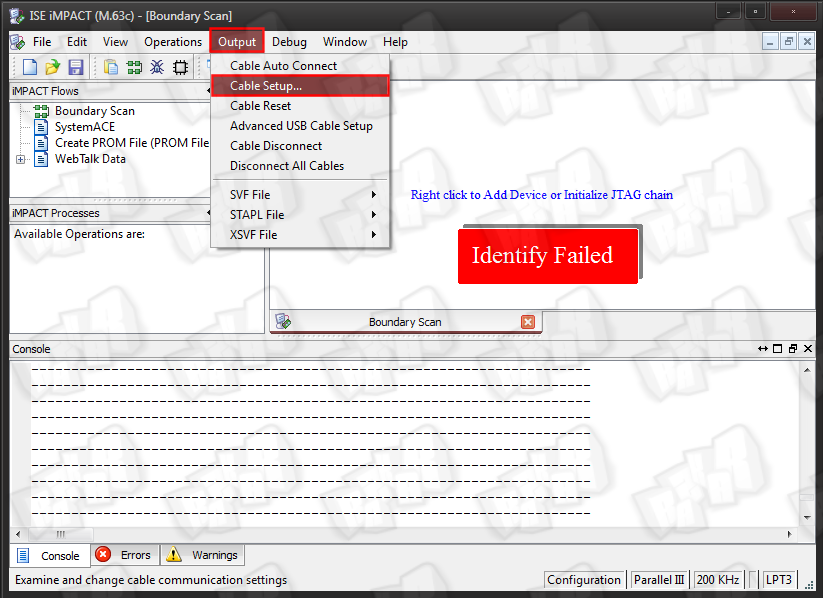

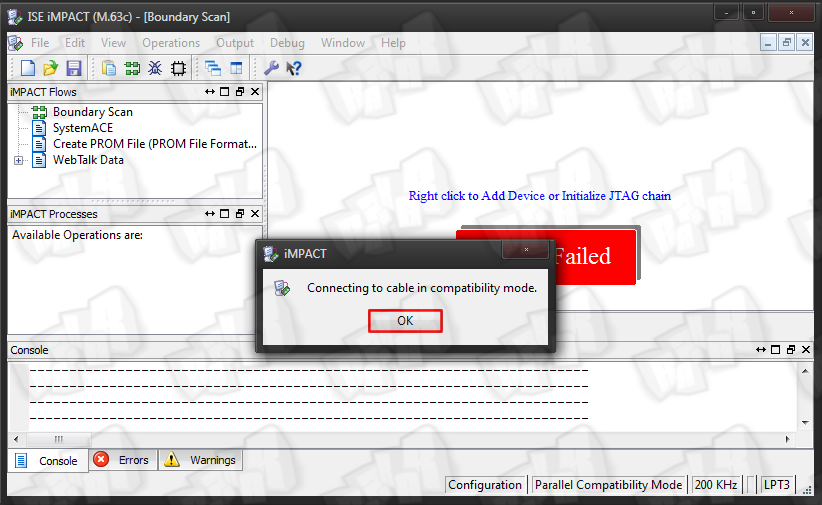

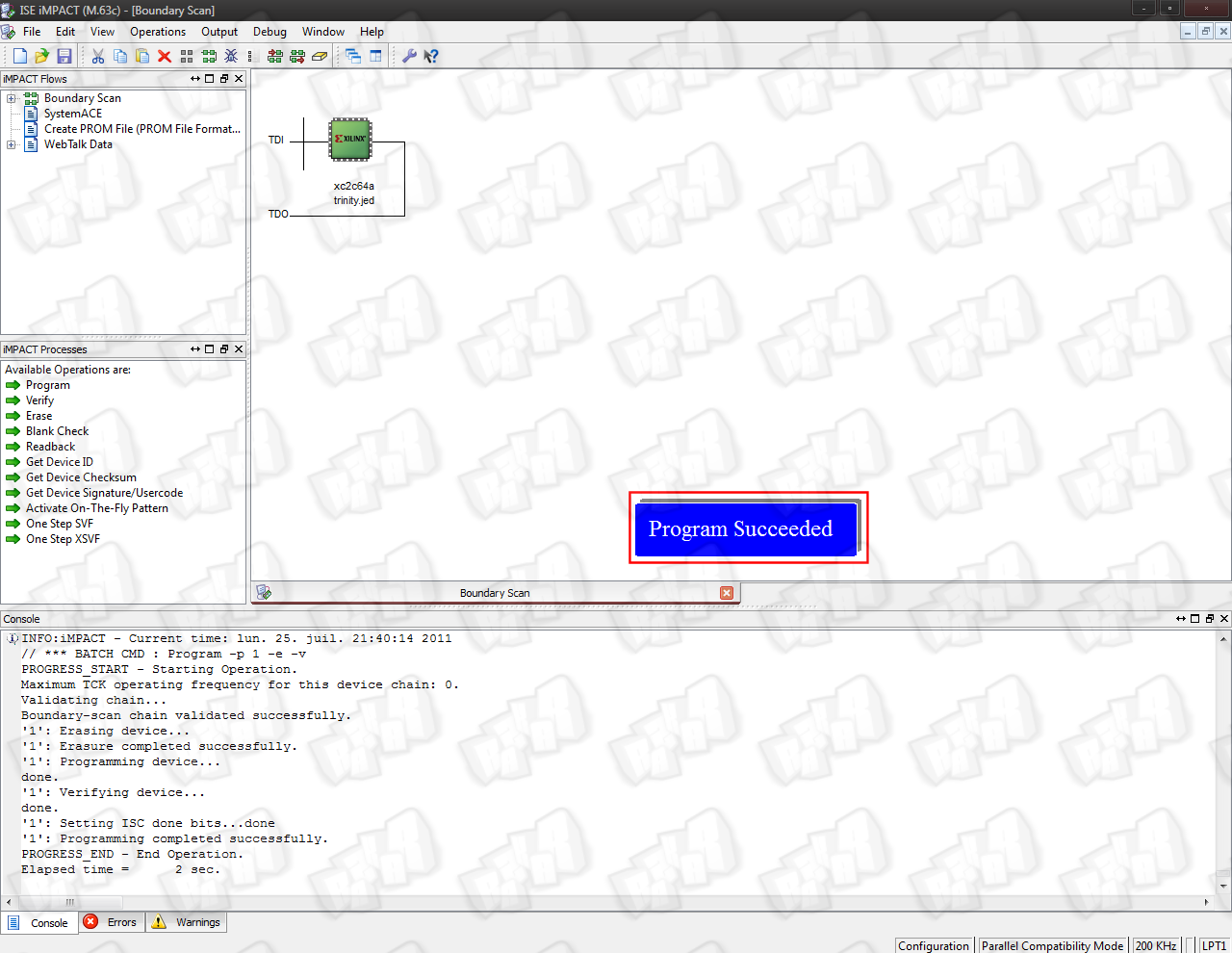

Step 3 : Launch "iMPACT" (from XilinX Lab Tools) and let's start the programming ... just follow the images.



















IV: The wiring

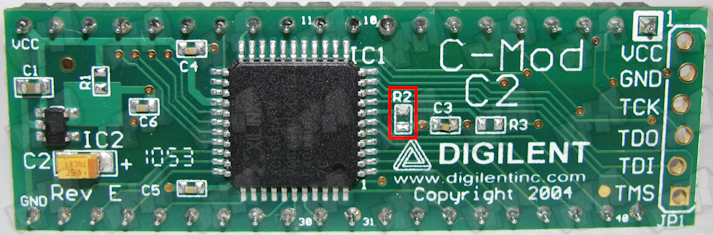

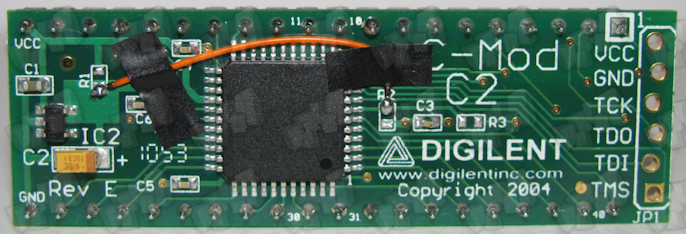

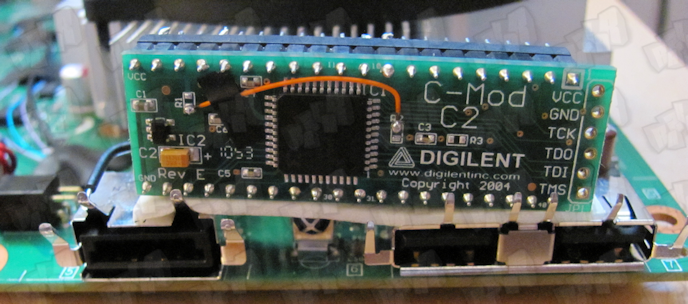

Step 1 : On the CPLD, remove the Resistor R2 and connect R2's upper pad to R1's lower pad.

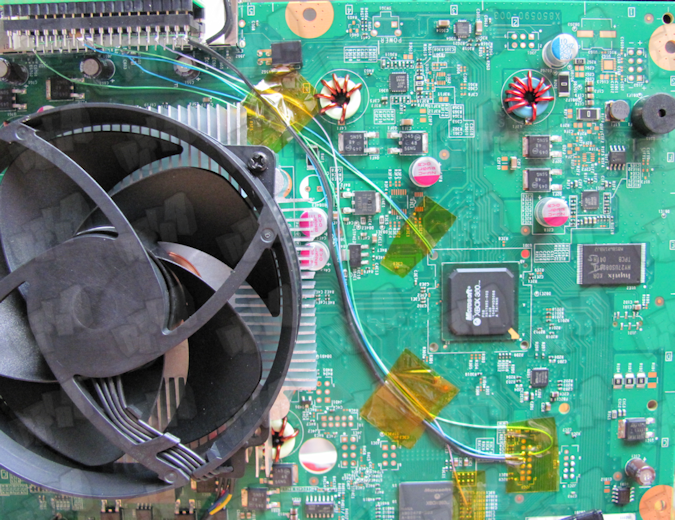

Step 2 : Place the CPLD on the motherboard like you see on the picture. We recommand to use double coated tape + material to isolate the CPLD.

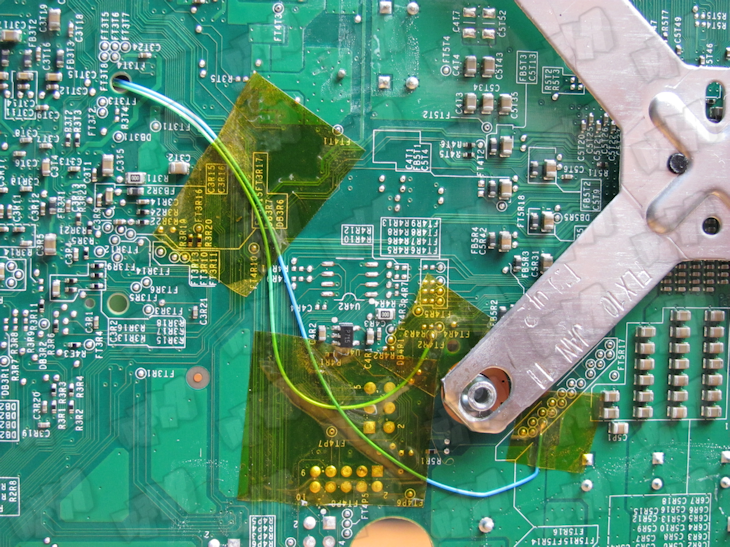

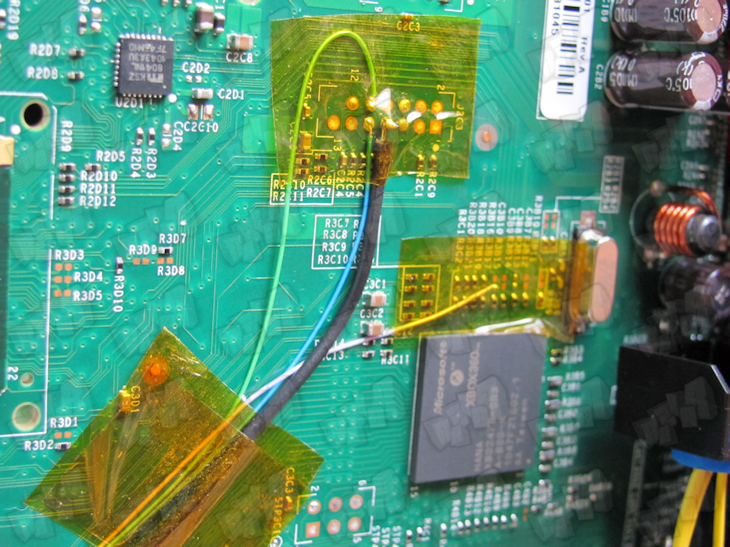

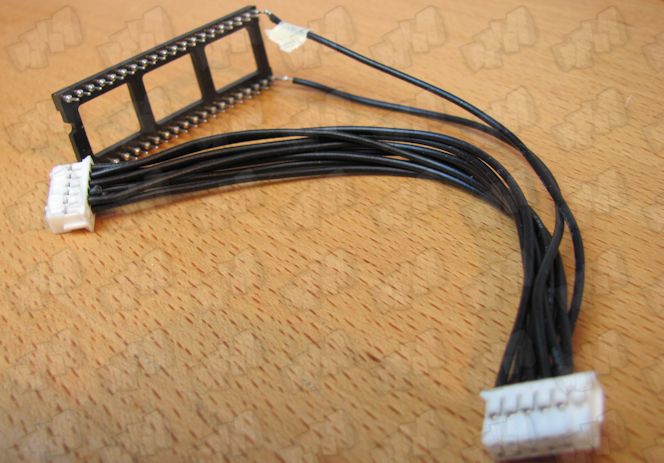

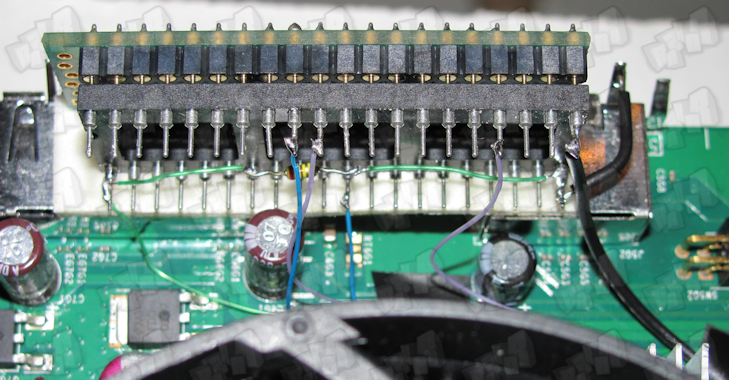

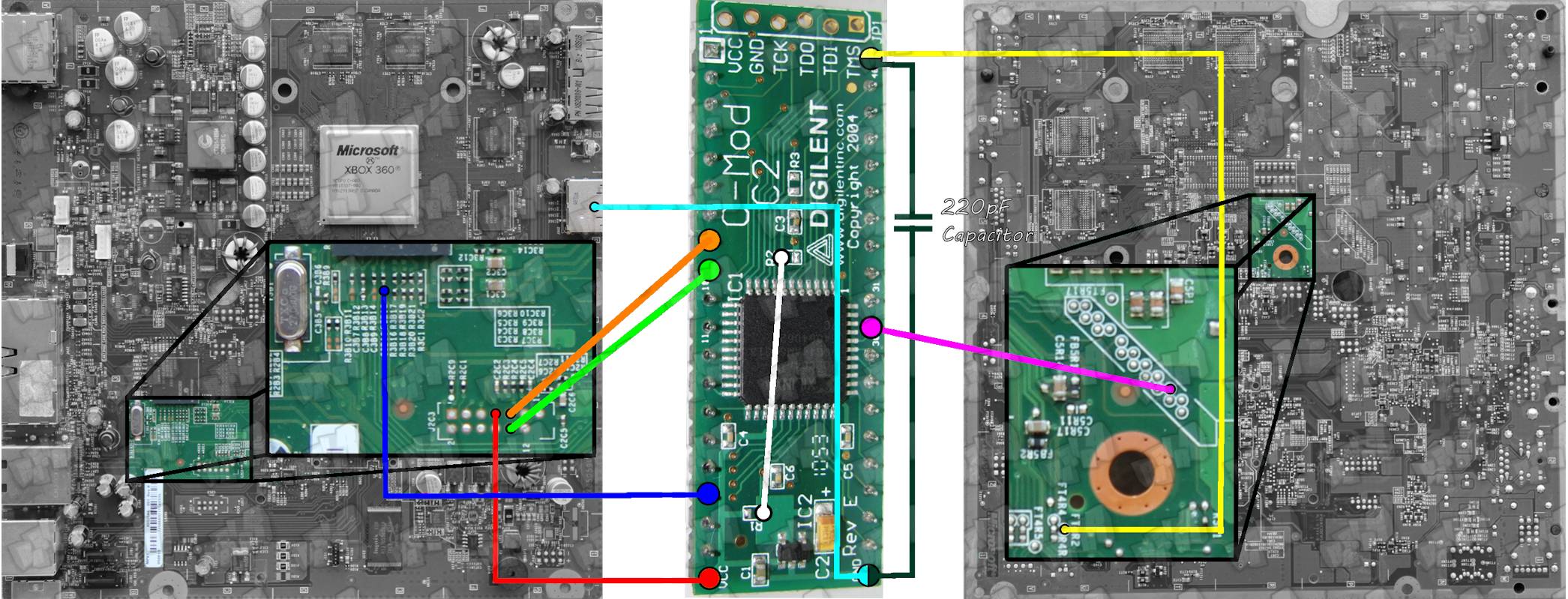

Step 3 : Use the following diagram to solder all needed connections. It’s recommended to use a socket!









V: ENJOY :033:

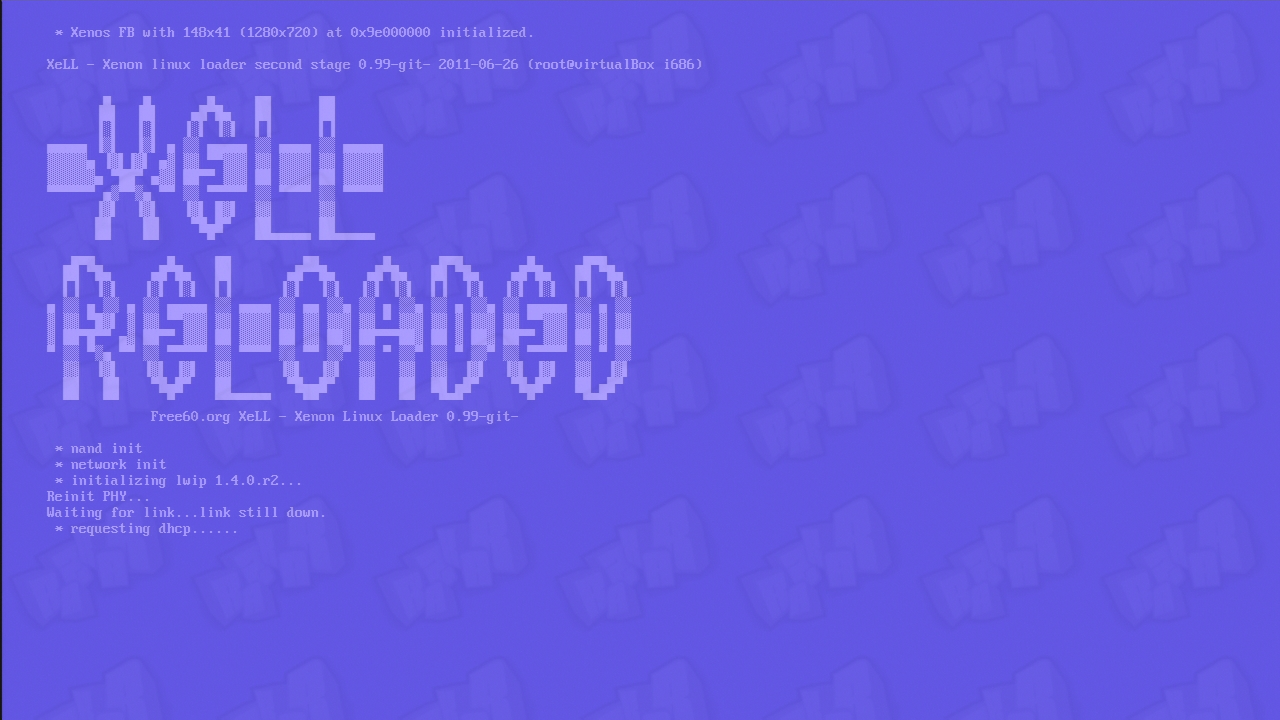

You can now start your console normally and see XeLL boot within 2 minutes. You can now enjoy running unsigned code on your slim.



VI: GREETZ


Time for the Gold Stars delivery:

★ GliGli for his patience and all the explanations he gave me.
★ GliGli and Tiros for the hack
★ Cancerous, Ced2911, Tuxuser et [cOz] for their helps and support.
​

Tutorial done by Razkar for Logic-Sunrise.com
Dont distribute/modify without permission!

​

​
