Bad_Ad84 said: ↑

Change the 6.8k resistor to something higher (or the 2.2k to something lower) and the 100ohm for 75ohm.

This way your impedance is correct for your TV and adjusting the 6.8k wont change that, but will still reduce brightness etc.

If you had a scope, you could make accurate measurements to compute the values. But trial and error and "it looks ok" will work.

Edit:

I have done some calculations and assuming what you get now looks correct with 100ohms, changing the 2.2k resistor for 1.8k and the 100ohm for 75 ohm should give the same result in brightness.
Click to expand...

This appears to work nicely. Thank you

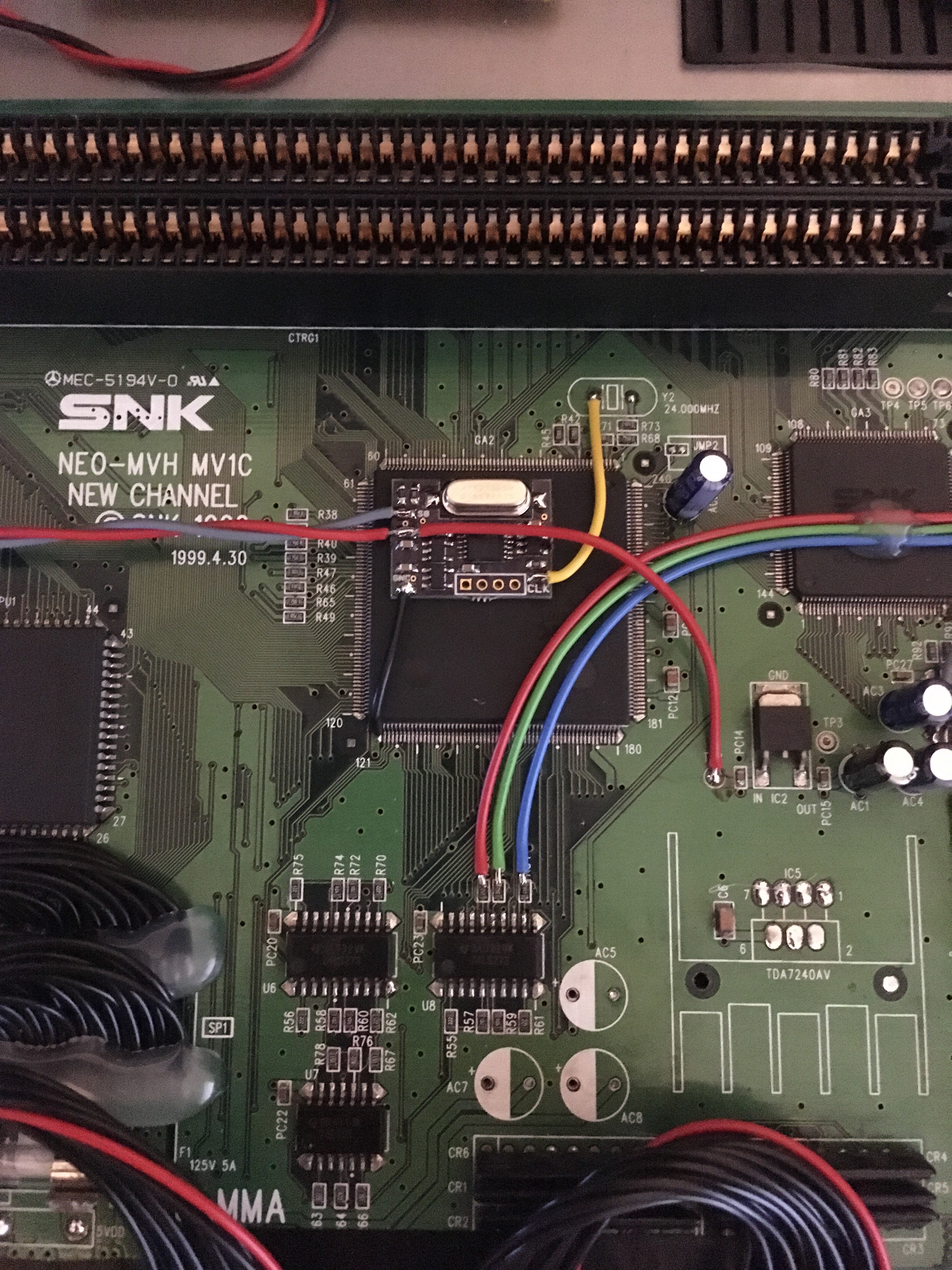

Also got the DFO mod installed, so now I can switch between 59.18 and 59.94Hz = no more stutter on modern displays
