Dreamcast Devbox Bios on retail Console!

Discussion in 'Sega Dreamcast Development and Research' started by alphagamer, Nov 4, 2009.

  1. LVNeptune

    LVNeptune Member

    Joined:
    Jun 20, 2010
    Messages:
    21
    Likes Received:
    0
    Let me know when everyone receives them. US people should be getting them now.

  2. APE

    APE Site Supporter 2015

    Joined:
    Dec 5, 2005
    Messages:
    6,416
    Likes Received:
    138
    I got mine day after you shipped it. California gets Nevada mail within 1-2 days without fail.

    Started to solder it in tonight and gotta pick up the resistors tomorrow. Having to resort to soldering 41 odd wires in there as my solder skills aren't up to the crazy Russian standards yet. If anyone could link me to a tutorial on soldering gaps like that I'd be grateful, though I'm about 15 wires short of being done. If it fails I'm going to start pulling hair....

    Then I'd have to buy another chip and find someone to stab.

    Last edited: Sep 25, 2010
  3. APE

    APE Site Supporter 2015

    Joined:
    Dec 5, 2005
    Messages:
    6,416
    Likes Received:
    138
    Question, because I'm paranoid. Are pins on the DC's onboard BIOS supposed to be grounded around 35/36? I'm too tired to count these tiny pins but my multimeter tells me two are shorted but aren't shorted on the piggybacked chip until I jump the piggyback pins to the onboard's pins.

  4. DarthCloud

    DarthCloud Fiery Member

    Joined:
    Dec 26, 2007
    Messages:
    874
    Likes Received:
    14
    pin 32 is ground and pin 33 (/BYTE) is connect to ground too (This put the flash chip in 8bit mode).

    Using wire for this is the hard way, you could flat all flash pin and solder them directly on top of the other bios.

    Last edited: Sep 25, 2010
  5. DarthCloud

    DarthCloud Fiery Member

    Joined:
    Dec 26, 2007
    Messages:
    874
    Likes Received:
    14

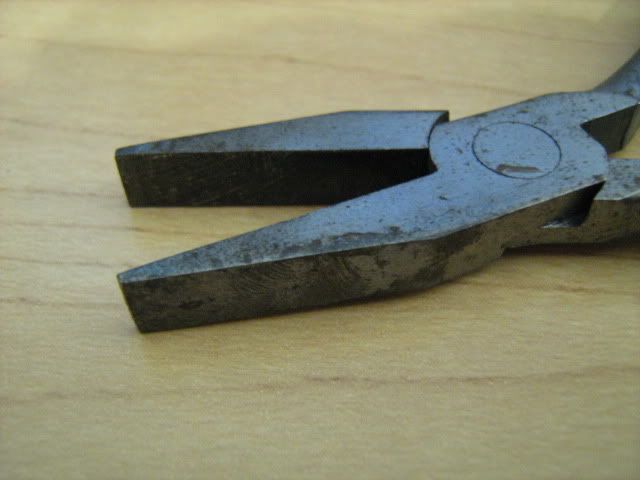

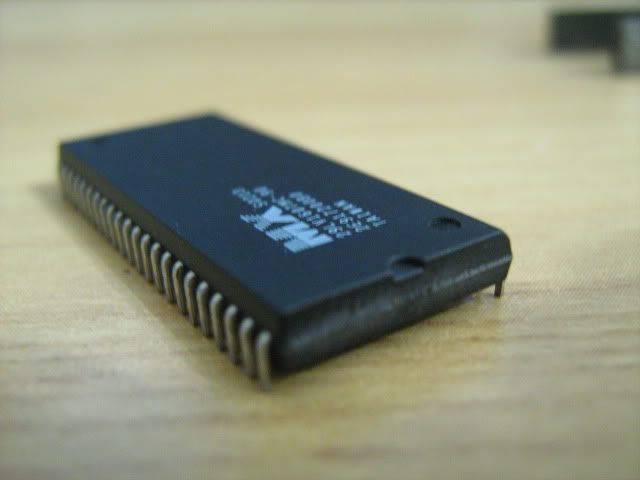

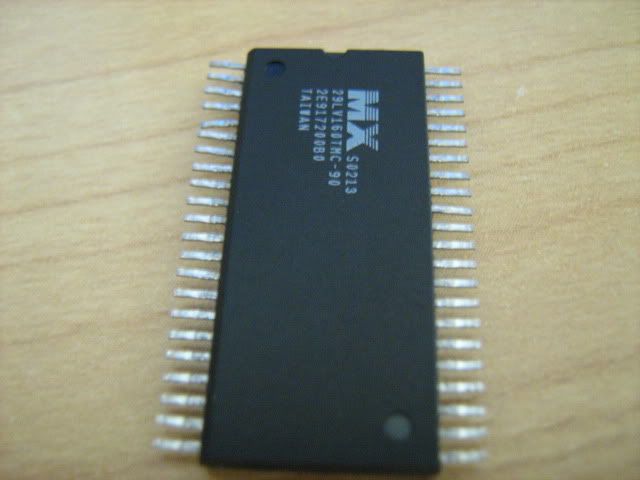

    Some advise to get the chip easily soldered on top of bios, start by using a flat pliers to flatted all pin of the flash chip like this:

    [​IMG]

    [​IMG]

    [​IMG]

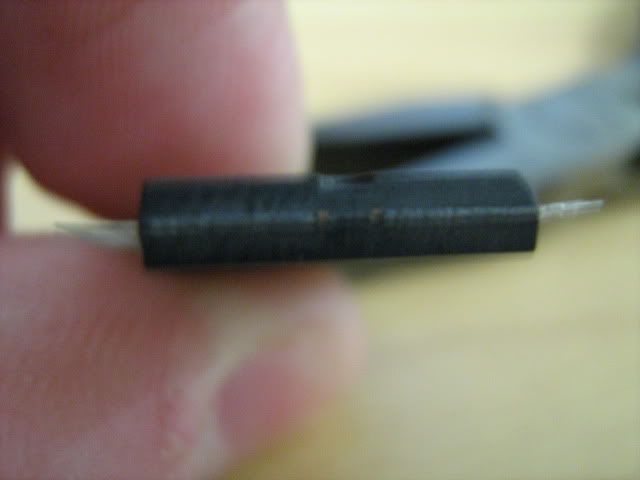

    After that use a flat surface like a table to bend all pin at once vertically much like a DIP chip.

    [​IMG]

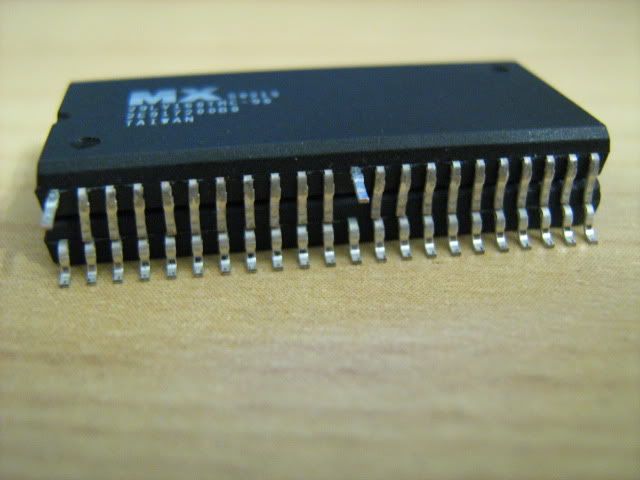

    Now pull up back the needed pin. (Be carefull to not break them)

    [​IMG]

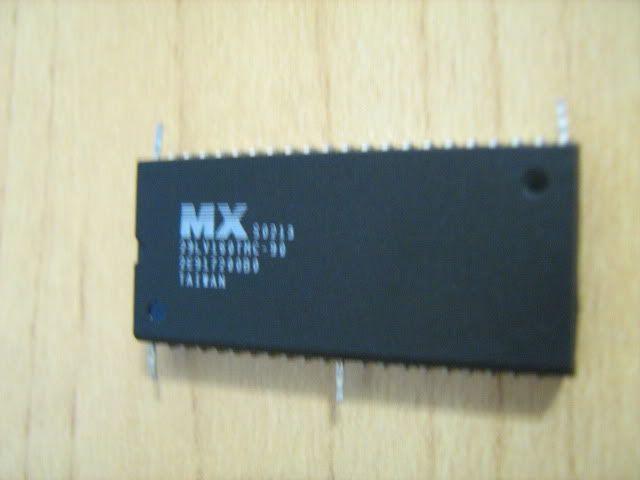

    Now all pin will touch the pin of the original bios (Or almost) so you can solder easily.

    [​IMG]



    Also I would suggest anyone not much skilled in soldering to use flux pen (either Alcohol or Rosin based) so solder get easier to go on pin.

    Kester make those pen, #186 is rosin (leave rosin after solder, it's ok but not nice to see. You can clean it with alcohol)
    #951 is alcohol based, (don't leave any trace, but the alcohol evaporate so you need to solder quickly after application unlike rosin based one.)

    Their are both available from Digi-key.

    Last edited: Sep 25, 2010
    APE likes this.
  6. n64coder

    n64coder Robust Member

    Joined:
    Mar 25, 2009
    Messages:
    248
    Likes Received:
    1
    Darthcloud, thanks for the helpful suggestion and pictures. Much appreciated!

  7. APE

    APE Site Supporter 2015

    Joined:
    Dec 5, 2005
    Messages:
    6,416
    Likes Received:
    138
    Yeh thanks. I'm skilled enough to handle most SMD soldering but I don't make a living at it. I tried to use a pair of needlenose pliers to flatten the pins but I was paranoid as to how much flexing I had before I broke them (been a while since I tried to do this particular procedure).

    Flux helps a lot, and so do those pictures. My gaps are about 3-4mm and yours look like 1mm at most. My solution is UGLY but with that info about BYTE and GND being shorted (like I was paranoid about) it should work out. Live and learn, then close the case and never show your horrible soldering job to anyone. Now to head to Rat Shack to get 10k ohm resistors.

  8. alphagamer

    alphagamer What is this? *BRRZZ*.. Ouch!

    Joined:
    Jun 25, 2008
    Messages:
    3,255
    Likes Received:
    10
    Unless it stops working and someone insists on fixing it for you :) but I hope not! :thumbsup:

  9. APE

    APE Site Supporter 2015

    Joined:
    Dec 5, 2005
    Messages:
    6,416
    Likes Received:
    138
    I just wired up the switch and if it doesn't work I will soooo end you.

  10. APE

    APE Site Supporter 2015

    Joined:
    Dec 5, 2005
    Messages:
    6,416
    Likes Received:
    138
    Turned it on, nadda. Crack it back open, oh hey look CE is shorted when the shielding/heatsink is screwed down. Derp.

    Piece of paper later and it boots! Now to flash the chip and see what happens.

    Last edited: Sep 25, 2010
  11. LVNeptune

    LVNeptune Member

    Joined:
    Jun 20, 2010
    Messages:
    21
    Likes Received:
    0
    Take pics !

    I still haven't had time to mess with mine yet. I will probably mod one White and one Black :)

    P.S. Anyone looking to sell a Black BBA? I have obtained a white one! Just need black now :>

  12. APE

    APE Site Supporter 2015

    Joined:
    Dec 5, 2005
    Messages:
    6,416
    Likes Received:
    138
    [​IMG]

    Tis all I can offer for now, still waiting to see if Link83 will PM me a link to his hacked BIOS proper. You can see the god awful soldering job I did that, somehow against all odds, has no shorts in it. I don't know if it's properly piggybacked or not yet but this damn thing won't be going anywhere. Could have made the wires shorter but my fingers are kinda stubby. You can clearly see how CE got shorted across both chips though. Followed DarthCloud's setup since it looked rather nice.

    If anyone has the BIOS Link83 made and he said it's OK to share it I'd love to get a PM. :)

    Last edited: Sep 25, 2010
  13. alex81

    alex81 Rising Member

    Joined:
    Mar 27, 2010
    Messages:
    74
    Likes Received:
    3
    This BIOS included in Dreamshell
    \shared\bios\1_011_01_hacked.bios

  14. DarthCloud

    DarthCloud Fiery Member

    Joined:
    Dec 26, 2007
    Messages:
    874
    Likes Received:
    14
    Is the /WE line connected to pin 9 of your DC flash? Just want to make sure you didn't followed my instruction to much ;) (Like connecting /WE to pin 7), my DC was different than your, you need to follow DC-SWAT instruction in your case with /WE to pin 9.

    Btw Link83 bios file do not match that 1_011_01_hacked.bios, wonder what the difference though.

    Last edited: Sep 25, 2010
  15. APE

    APE Site Supporter 2015

    Joined:
    Dec 5, 2005
    Messages:
    6,416
    Likes Received:
    138
    Yeh no I didn't follow it too precisely just a stupid mistake by not paying attention to clearances.

    I did note that I needed pin 9 over pin 7 on there though, found the original datasheet for it and triple checked everything. Pin 7 simply doesn't have a trace jutting out on my DC revision. Mine is from October 1999 and looks virtually identical to the one I've had since X-Mas 99 that was manufactured in September 1999. First glance at the pin count told me that it was an entirely different chip. Pain in the ass to locate the datasheet though.

    Last edited: Sep 25, 2010
  16. DarthCloud

    DarthCloud Fiery Member

    Joined:
    Dec 26, 2007
    Messages:
    874
    Likes Received:
    14
    no need for exact datasheet this are standard parallel tsop flash chip. The fisrt DC like mine used 128k flash, where later one used (uselessly) 256k flash (upper address line is hardwired to gnd (or vcc) so only 128k is accessible)


    So:
    40 pin => /WE on pin 9
    32 pin => /WE on pin 7

    Last edited: Sep 25, 2010
  17. APE

    APE Site Supporter 2015

    Joined:
    Dec 5, 2005
    Messages:
    6,416
    Likes Received:
    138
    I don't work with tsop chips that often but being the paranoid type I wanted to be 100% sure. So far this has worked out better than I had anticipated and am glad I spent some time learning how to use my fine point iron tips.

  18. APE

    APE Site Supporter 2015

    Joined:
    Dec 5, 2005
    Messages:
    6,416
    Likes Received:
    138
    There goes that attempt for now. ImgBurn doesn't handle self-booting CDI images apparently and had to grab DiscJuggler to make sure it burnt right. Then as it was booting the unsecured switch pulled the pin out of the piggybacked chip. Joy.

    Will have to pull out my dremel tool in the morning and see if I can grind away enough packaging to solder a wire to what is inside. Thanks for all the help and worst comes to worst I'll just be stuck with a standard Dreamcast boot up sequence. Right now it doesn't do anything without that pin in place. Bleh.

    And if anyone happens to have a compatible chip about drop me a PM, I want a backup just in case this goes wrong.

    Last edited: Sep 26, 2010
  19. APE

    APE Site Supporter 2015

    Joined:
    Dec 5, 2005
    Messages:
    6,416
    Likes Received:
    138
    And AFAIK (I've never seen one myself anywhere) there was only white BBAs produced. Obviously that'll clash a bit with the black Sports DC but it'll clash with the nice red/blue of the Bio Hazard limited edition DCs as well.

    I'd suggest some spray paint if you really want a black one. I picked up some that was capable of sticking to plastic without any need for prep beyond a simple cleaning of the plastic. Made a beige Zip100 drive match my black case nicely. Though it did add a noticeable amount of bulk to the casing that made it a tad more difficult to insert disks.

  20. alphagamer

    alphagamer What is this? *BRRZZ*.. Ouch!

    Joined:
    Jun 25, 2008
    Messages:
    3,255
    Likes Received:
    10
    There actually was a black BBA, but it is scarce as hell. Expect to pay around double what the white one is worth.
