F/S Nes Top Loader SNES Style Multi A/V Socket

I have 4 on hand so yes they are available.

Edit: Try again as I added stock to the button.



It seems the kit is out of stock. Is it still possible to pre-order? I'm located in US. Thanks.



Yes you can pre order, just pm with your paypal email address and I'll invoice you. Just know it's going to be around the end of the month when stock arrives roughly 2 weeks.



I too am interested in the next batch of the full panel kit. I'll send you a PM in a minute.



Just a heads up, of the 20 I have coming in the next two weeks only 3 haven't been sold. so if someone wants one from this batch just PM me with the info needed for an invoice to prepay.



A few questions

I'm looking to install this in a PAL NES TopLoader, any issues I need to know. Also the modder I'm hiring doesn't have a lot of experience with this, do you have more detailed instructions?



You need to be more clear on the install, is it the NESRGB? If so I would go look for instructions on that since the socket is simple to do, just removes the RF Shield and DC jack. If you mean the AV Composite Board just look at the pictures for isntall points. Maybe find someone more experienced.

Also I have restocked the sockets but very limited Full Panel Toploader Sockets.



Oh yes, I'm talking bout the NESRGb Board, he's one of the official installers on etims website



Then this should be a piece of cake for him. The first post has the socket pinout for easy reference.



Are the full mounts sold out?



Yes but in I should have stock tomorrow.



I have stock again for full and screw sockets.



I live in Australia, the international full mount link is giving me "Sold Out"?



No problem I'll fix it later today. So you can try in 8 hours or so.



Fixed it and added one more to the International Orders in case someone else overseas wants one.



I completed the AV Mod with practically no modding experience of a console before, it is relatively simple from the pictures provided. I've also provided pictures for the PAL (AUS) top loader a page or two back for reference.



Hi everyone, I currently have the 12 pin multi out panel kit, but I've found information about the 6 pin connector only. Does it work if I just connect GND, Composite Video, +5V, Left Audio (mono) and Right Audio pins to the pins pointed out in the photos of the other version?

Thanks in advance!



6 pin connector? I'm not sure what you're talking about. Post pictures and links so I know what it is you're talking about. Just connecting the points above to the connector and as long as the cable is wired for those connections it should work.



Hey Helder, I have this connector:



But in the example, you use this one, which actually has 6 pins:



the question is, if I just connect those points into the 12 pin PCB should work?, I'm kinda confused about left audio pin (picture above) and mono audio (picture below). they are the same? which one do I solder?, because in the first diagram left and mono audio shares the same pin.



Thanks in advance



It's still the same connector but it's his composite video and stereo audio mod version and not the one you have. He only has 7 wires in that one picture because that's all it needs. Stereo audio is on the correct pins and if I had to guess, he is mixing mono into the stereo channels or adding a switch to swap between dual mono and stereo, something that is popular in the NES stereo mods.

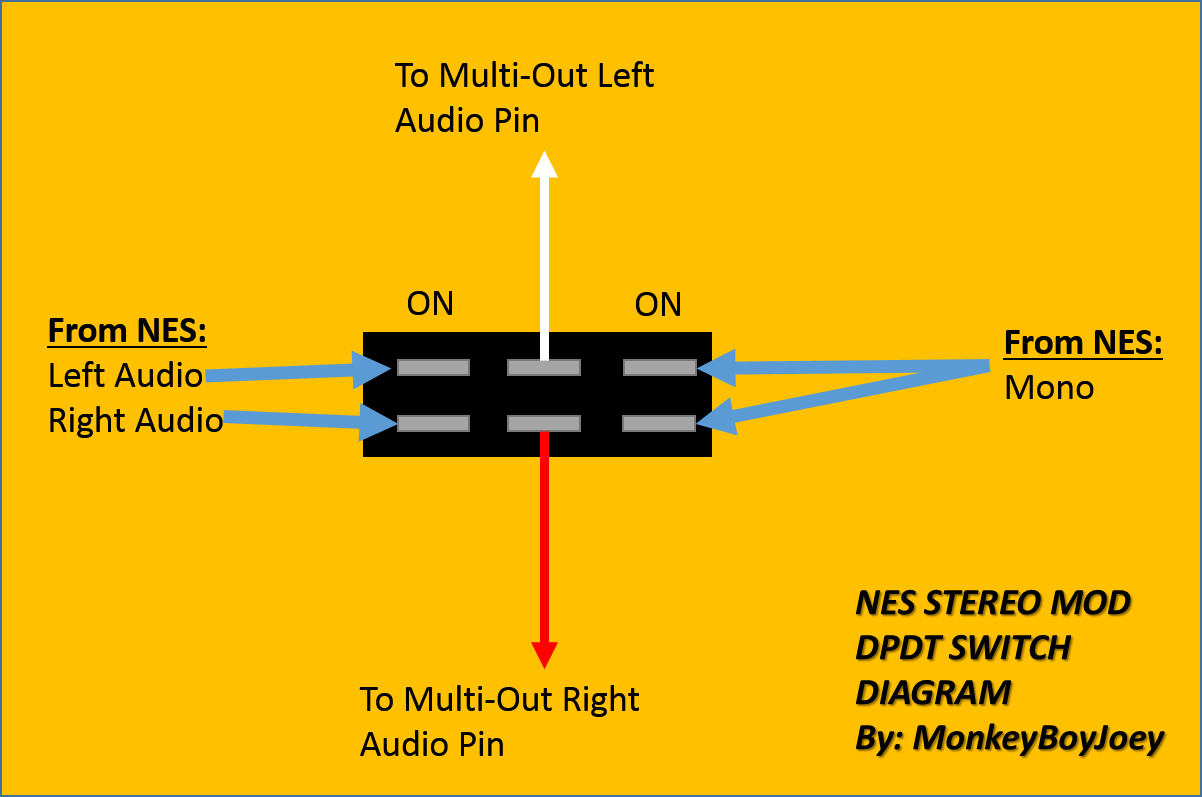

If you have the NESRGB installed, then solder everything to the correct pins. As for the audio pins, Left Audio is usually mono in electronics when stereo isn't available. Wiring it up depends on whether or not you are doing the stereo mod. If you aren't putting a switch for swapping between mono and stereo, then don't wire up mono to the connector and just use left/right audio. If you are adding a switch, use a DPDT switch and wire it like this:
