No mine is same as megas. But you have to use swiss.. With no sd card the game cube will autoboot the dvd. With sd card it will autoboot swiss. Which in turn you could boot from dvd drive at that point.



Ah yeah, you might as well just autoboot to Swiss anyways. Then run DVD from there.



My thought for having it on the front is that the whole GC library does not fit on a single SD card. I'm fine with it being inaccessible if I've never gonna swap it, but I can see myself switching between a few SD cards with a themed collection on each.

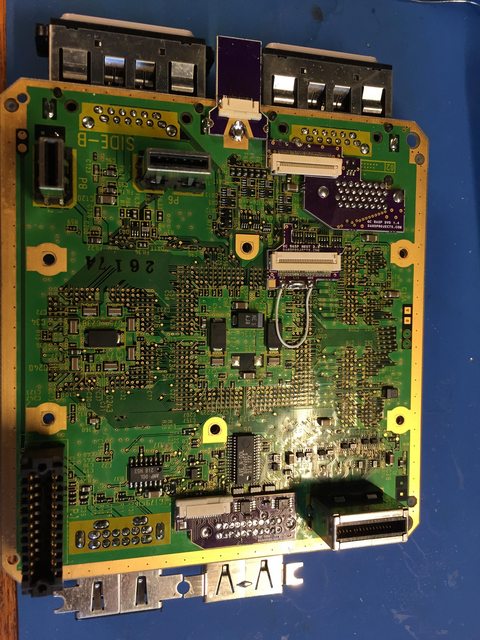

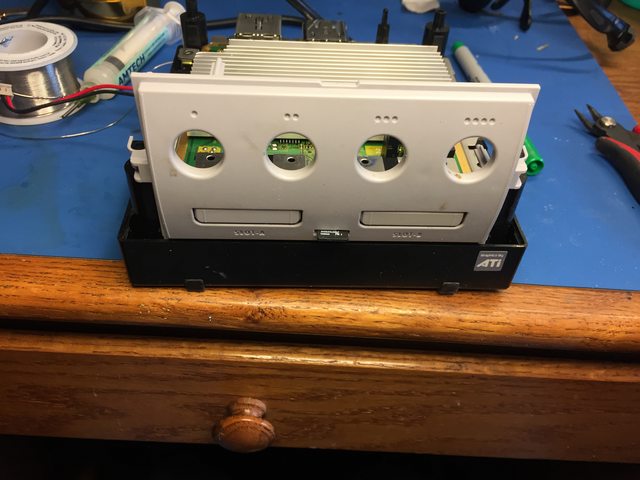

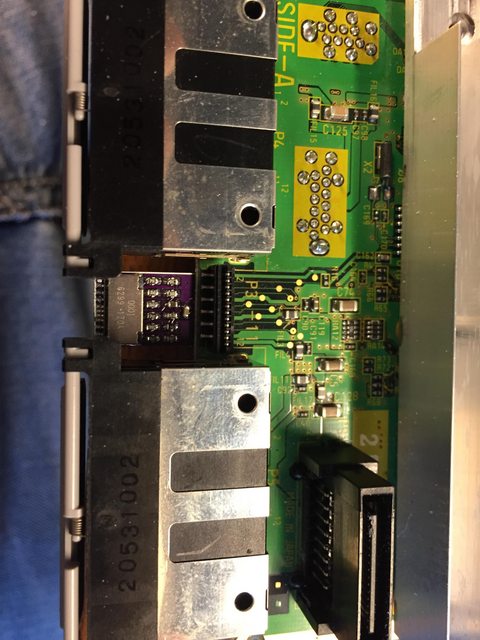

Here are some pictures of the Micro SD, works well.



Looks pretty clean. What do you use to make a cut like that?



Just a small drill bit and miniature files



Wow if you do sell these wasp fusions and hdmi mods I will buy both from you asap! Awesome work citrus3000psi!



Send me a PM.

I wanted to be clear, that I do not have wasp fusions for sale. I can only do the QSB's etc



Added MicroSD board link and BOM to first post.



Sort of a necrobump, but was about to order the WASP QSBs from oshpark, but wondered whether to select 0.8mm thickness, which I would usually do for something like a QSB, but thought maybe their regular 1.6mm boards would work better for castellations?



Both thicknesses will work. But it will be easier to solder the .8mm



Thanks, parts ordered



Updated first post with New HDMI design.

I will be doing a handful of installs to recoup design costs. So hit me up if you would like to me to mod your cube. Price is 125 installed. I'm located in Indiana.

I will also take trades I'm looking for a nuon controller. Can't find one for the life of me.



Excellent! I will definitely be building one of these soon. Thank you for sharing

How is the Wii-version coming along?



I have a new partial design done. I've scraped the old design. I'm waiting to see how my new HDMI + RGB Gamecube board does first (The new Wii is based off this design). I'm also trying out a new QSB to connect to the data points on the Wii motherboard.

One of these days I will get it finished.



Great



Nice work



@citrus3000psi

The flat ribbon cable is not listed in the BOM on Oshpark. Can you point me to the correct one?

Also the flash memory is sold out at digikey. Is there a suitable replacement part or do you use another supplier?
https://www.digikey.com/products/en?keywords=M25P40-VMN6PB

Edit:
Looking om mouser, they recommend this part as a replacement:
https://www.digikey.com/product-det...gies/AT25DF041B-SSHN-T/1265-1228-1-ND/6124884

That's pretty kewl how their webstores have information about suitable replacements

What did I need to program these again? I've got a Xilinx Platform Cable USB, would that do?

Also, any news about the Wii version?



This part on digikey will work fine: WM11474-ND

The board is setup to SPI flash only. There isn't any JTAG ports due to size.

This is a walk through of how to flash the epprom via spi with a 6 dollar programmer.

https://github.com/citrus3000psi/GCVideo-Hardware-Designs/tree/master/Gamecube/DVI



Thank you very much! I already have the tools required to program using ISP so that's nice. I appreciate the link to the guide, that will come in handy.

Boards already ordered from oshpark, and I'll probably order the parts this weekend. Will let you know how this turns out. Looking forward to comparing this to the original component cables.
