    Yes the different pinout was really the issue with DOL-013. However, no cable mod would be necessary with an externally powered LM1881, so perhaps that makes it worth it.

    Jaguar cable: will look into this next, then perhaps SCPH-1052. (Just to reiterate, these work for me with externally powered LM1881)

    Perhaps another possibility would be to design the switch so as to draw power from pin 8 OR pin 16 if no power is present at the [yet to be added] DC jack.

    Last edited: May 17, 2014
  2. superg

    superg Site Supporter 2013,2014,2015. Tape Drive Donor.

    Joined:
    May 30, 2012
    Messages:
    1,041
    Likes Received:
    345
    My switch needs power not only for LM1881 but for other components such as multiplexer and priority encoder. These don't eat a lot of power but it will not work at all otherwise.

    So you mean that Jaguar and PSX+SCPH-1052 work through switch with turned off LM1881 and using external one through your SCART->XRGB adapter? If so - it's power issue and will also be resolved using external DC.

    I thought about powering switch from pin 16, but it's usually connected through some resistance so it will not work. Currently the only solution I see is to add DC power jack and override any SCART-supplied voltage (and use either pin 8 or pin 16 just for detection).

    Neo Geo Omega CMVS: can you check that it provides stable 5V or higher from pin 8? (it would be good to check voltage when it's turned on through switch directly before voltage regulator, that way we'll make sure there is no any resistance on pin 8)
    And some stable voltage from pin16? (it's used for automatic detection)

    EDIT:
    No need to try SCPH-1052, I know what was wrong with it!
    Official cable doesn't provide enough power - that's why it was very unstable. I see 1.82V under load, which is not always enough even to power multiplexers! And in current design LM1881 drain power even if it isn't used (should be able to turn it off with same switcher in future). Official cable works perfectly if I power switch externally.

    Last edited: May 17, 2014
  3. airs

    airs Spirited Member

    Joined:
    Apr 26, 2013
    Messages:
    130
    Likes Received:
    7
    Okay, understood.

    Yes, sounds good.

    Sounds like the best plan, cool.


    Will try to test this today.

    Wow, 1.82V is so small. No wonder.

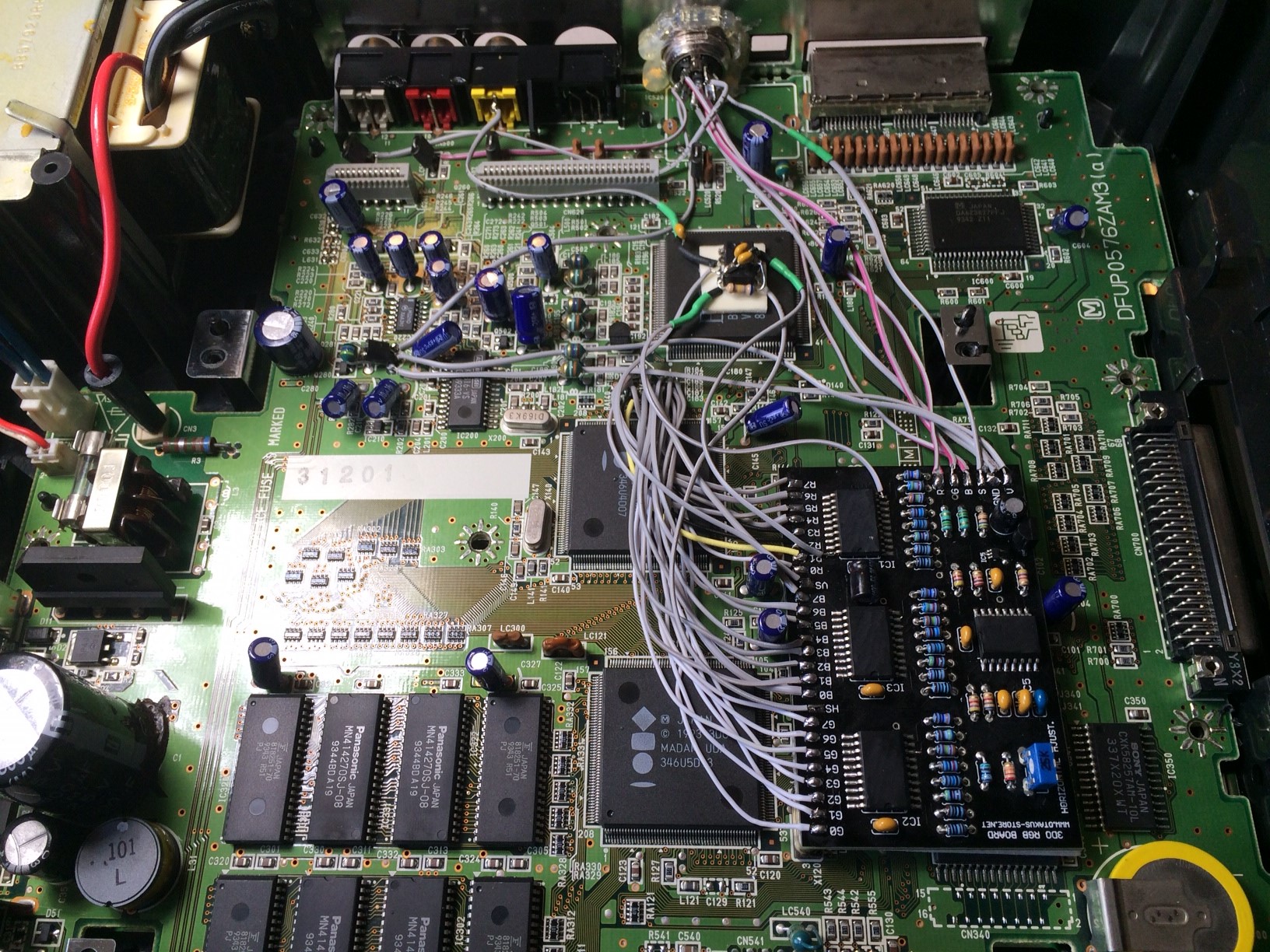

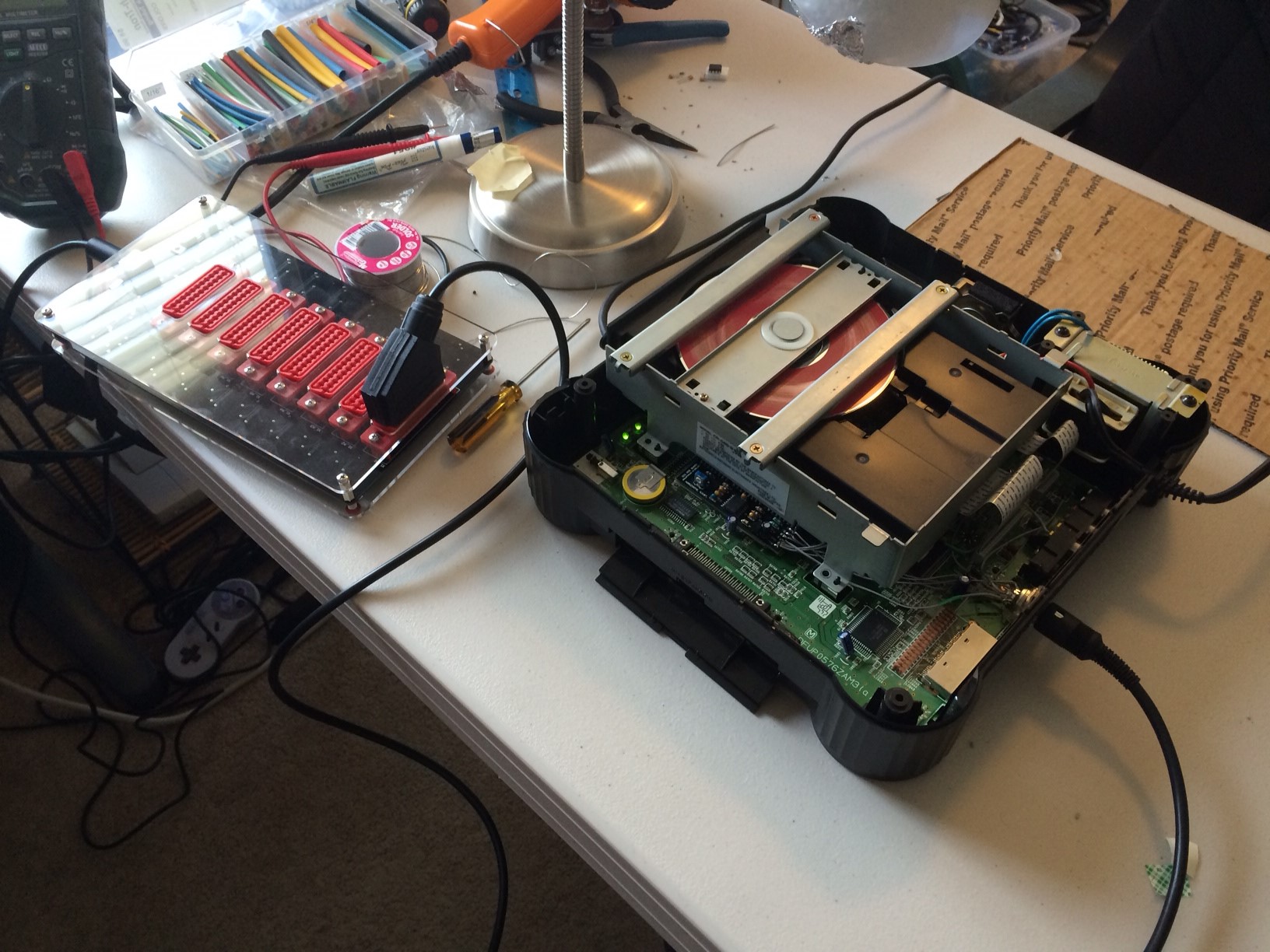

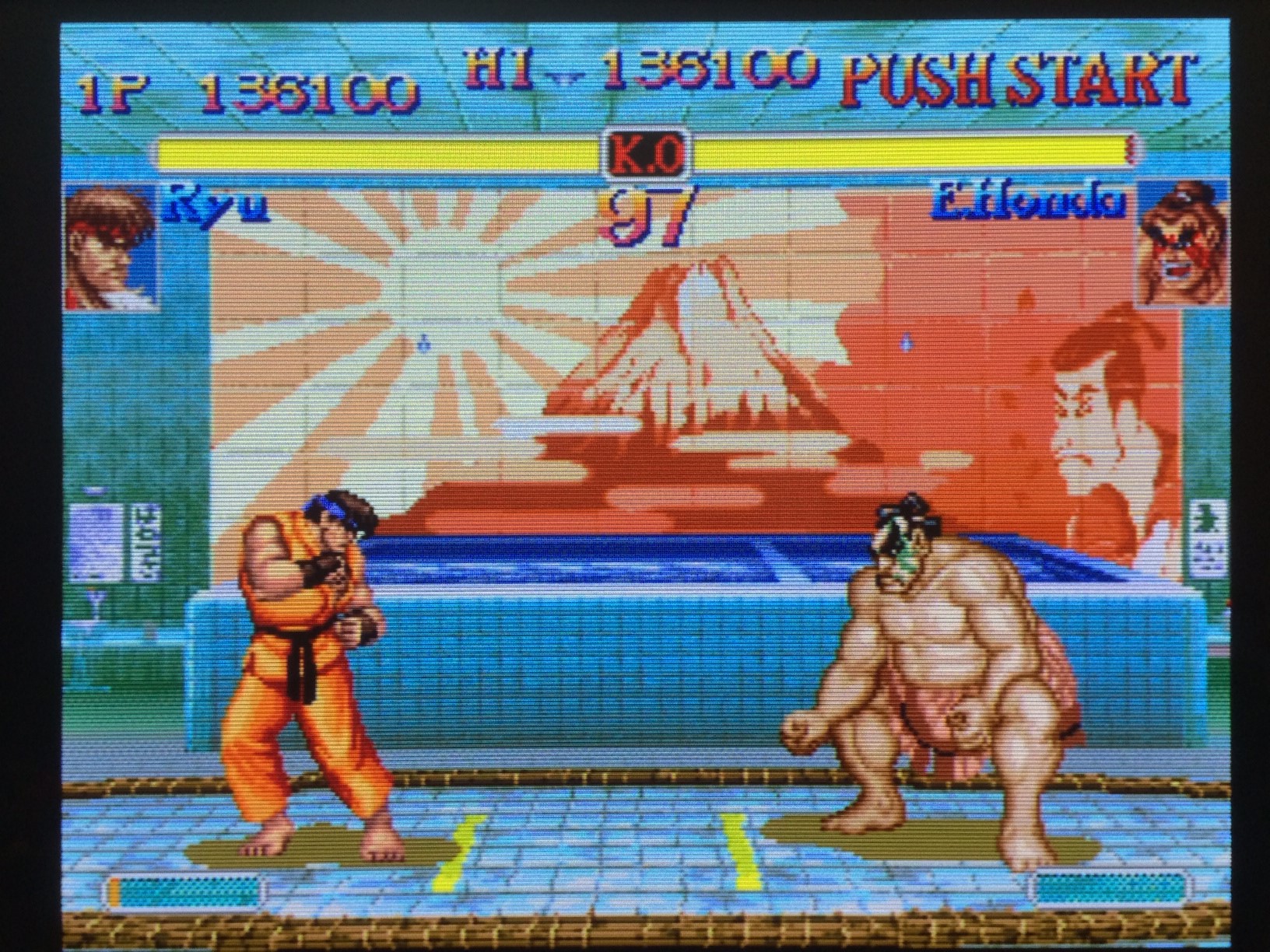

    Also wanted to mention - I received the RGB kit from Otaku's store (http://www.otakus-store.net/en/modding-kit/279-3do-rgb-modding-full-kit.html) on Friday and had some time to install it yesterday. The kit requires a LM1881 to be installed with my version of the console (BT9101) so that HS and VS can be acquired from composite video and the image can be centered with a potentiometer on the board. Happy to say the the results for 3DO with this kit and your switch is success!

    [​IMG]
    [​IMG]
    [​IMG]

    Last edited: May 18, 2014
  4. superg

    superg Site Supporter 2013,2014,2015. Tape Drive Donor.

    Joined:
    May 30, 2012
    Messages:
    1,041
    Likes Received:
    345
    Good job! Judging from pictures it was quite a pain to install it.
    It's great it works with my switch :).
    I still want to buy that kit but IMHO it's a bit overpriced.

  5. airs

    airs Spirited Member

    Joined:
    Apr 26, 2013
    Messages:
    130
    Likes Received:
    7
    Yeah, overpriced and they removed all markings on the chip to prevent someone from making their own from components...boo :(

    The 24 solder points (8 for each color) were the hardest. Very tiny and close together. I had a friend helping me and it still took about four hours.

    Last edited: May 18, 2014
  6. superg

    superg Site Supporter 2013,2014,2015. Tape Drive Donor.

    Joined:
    May 30, 2012
    Messages:
    1,041
    Likes Received:
    345
    I believe it can be identified if needed. Another question is whether it will be ethical ;).

  7. hundredtwenty

    hundredtwenty <B>Site Supporter 2014</B>

    Joined:
    Jan 17, 2014
    Messages:
    44
    Likes Received:
    0
    I might be a little late to the party but wanted to chime in: Once you’re done and selling them (with a DC Jack) I’m getting two! Whoohoo! :D

  8. superg

    superg Site Supporter 2013,2014,2015. Tape Drive Donor.

    Joined:
    May 30, 2012
    Messages:
    1,041
    Likes Received:
    345
    I have 3 options to add DC jack to current design:
    1. create SCART cable with DC female lead (will use 1 SCART input)
    2. solder female DC lead to SCART output connector (will look a little bit weird but I think it's best option)
    3. solder female DC lead directly to voltage regulator (will not use any SCART input, but will not look good)

  9. airs

    airs Spirited Member

    Joined:
    Apr 26, 2013
    Messages:
    130
    Likes Received:
    7
    I was hoping for two DC jacks - one in (XRGB Mini supply), and one out (to XRGB Mini). That would mean all new design and PCB though, I guess?

  10. beharius

    beharius Resolute Member

    Joined:
    Sep 13, 2011
    Messages:
    923
    Likes Received:
    101
    I have its schematics, actually it's not designed by Arcade Otaku... They are someone else's work and publicly available...



  11. citrus3000psi

    citrus3000psi Housekeeping, you want towel?

    Joined:
    Nov 8, 2013
    Messages:
    1,051
    Likes Received:
    418
    Not to steer this thread off topic, but if you would have used a smaller gauge wire it would make it a lot easier. I've installed this in an fz-10 and didn't think it was all that bad.

  12. superg

    superg Site Supporter 2013,2014,2015. Tape Drive Donor.

    Joined:
    May 30, 2012
    Messages:
    1,041
    Likes Received:
    345
  13. airs

    airs Spirited Member

    Joined:
    Apr 26, 2013
    Messages:
    130
    Likes Received:
    7
    Agreed, smaller gauge would have been great. Probably should have waited for the mouser order to come but I was itching to get it done since I had a friend over who was willing to help. The other thing that would have helped is a finer iron tip (ordered one!).

    Desoldering the RF connector and using the hole for the DIN8 was part of that four hours - if you enlarge the hole and use the ring they provide with the DIN8, it won't be able to screw down due to the proximity to the board...so we improvised :)

    Oh okay, great! Thanks.

    Last edited: May 19, 2014
  14. superg

    superg Site Supporter 2013,2014,2015. Tape Drive Donor.

    Joined:
    May 30, 2012
    Messages:
    1,041
    Likes Received:
    345
  15. airs

    airs Spirited Member

    Joined:
    Apr 26, 2013
    Messages:
    130
    Likes Received:
    7
    Last edited: May 19, 2014
  16. superg

    superg Site Supporter 2013,2014,2015. Tape Drive Donor.

    Joined:
    May 30, 2012
    Messages:
    1,041
    Likes Received:
    345
    Last edited: May 22, 2014
  17. superg

    superg Site Supporter 2013,2014,2015. Tape Drive Donor.

    Joined:
    May 30, 2012
    Messages:
    1,041
    Likes Received:
    345
    So I got all components for external power supply and resolved these issues.
    Final "promotional" price for first 5 switches will be $85 (airs got one, another person is waiting for it, so 3 more are available).
    Output SCART connector now has DC jack wire. You can power up switch using any PSU 7-12V, center is "-". For example you can use Mega Drive/Genesis PSU.
    Electrolytic capacitor installed on board to resolve unstable power issues (Dreamcast 12V from SCART is unstable).
    If your cables are routed according to Tim's schematics - most likely you will not need external power supply.
    Today I have retested all my consoles (NES, SNES, GC, WII, SMS, SMD1, SMD2, SAT, DC, PSX, PS2, PS3, Jaguar, Xbox), everything works perfectly.
    Later I will create some FAQ where I will describe possible cable/power/sync issues with every console.

  18. sdekaar

    sdekaar Rapidly Rising Member

    Joined:
    Apr 15, 2011
    Messages:
    95
    Likes Received:
    0
    @airs
    i see the sync stripper, there are not a pure rgb sync on the mother board ?

  19. VGPBuckA51

    VGPBuckA51 Rising Member

    Joined:
    Apr 1, 2014
    Messages:
    51
    Likes Received:
    1
    Hi, I'd be very interested in reviewing this under scrutiny with a capture card once it is done. Will you make a mini-din to SCART breakout so that it can be used as a traditional SCART switch too?

    Don't take this the wrong way, I completely support your efforts, but I've never once found a automatic SCART switch with no manual override that has worked for me. Usually this is due to slight inconsistencies etc on the wiring of SCART cables. If you can nail this then absolutely hats off to you :)

  20. superg

    superg Site Supporter 2013,2014,2015. Tape Drive Donor.

    Joined:
    May 30, 2012
    Messages:
    1,041
    Likes Received:
    345
    By default I provide MiniDIN->SCART cable, here in topic you can find picture of 3 switches with such cables.
    Hmm, automatic detection isn't that hard. As long as your SCART cable has pin16 routed correctly - there shouldn't be any problems.
