huge Game Boy pirate cart

Discussion in 'Rare and Obscure Gaming' started by mdmx, Aug 15, 2010.

  1. Getta Robo

    Getta Robo Robust Member

    Joined:
    Sep 28, 2008
    Messages:
    201
    Likes Received:
    26
    Ok, here's mine:
    [​IMG]
    [​IMG]
    [​IMG]



    It had a different sticker, featuring mostly other known games, such as spiderman, but I removed it since it wasn't in a good shape.

    Last edited: Aug 20, 2010
  2. Mystic_Merlin

    Mystic_Merlin Active Member

    Joined:
    Aug 19, 2010
    Messages:
    37
    Likes Received:
    27
    Hello guys,

    Actually this topic is a good way to introduce myself.
    I've been willing to post about a pirate cart I got not so long ago. This one has been manufactured much later than the ones displayed here.

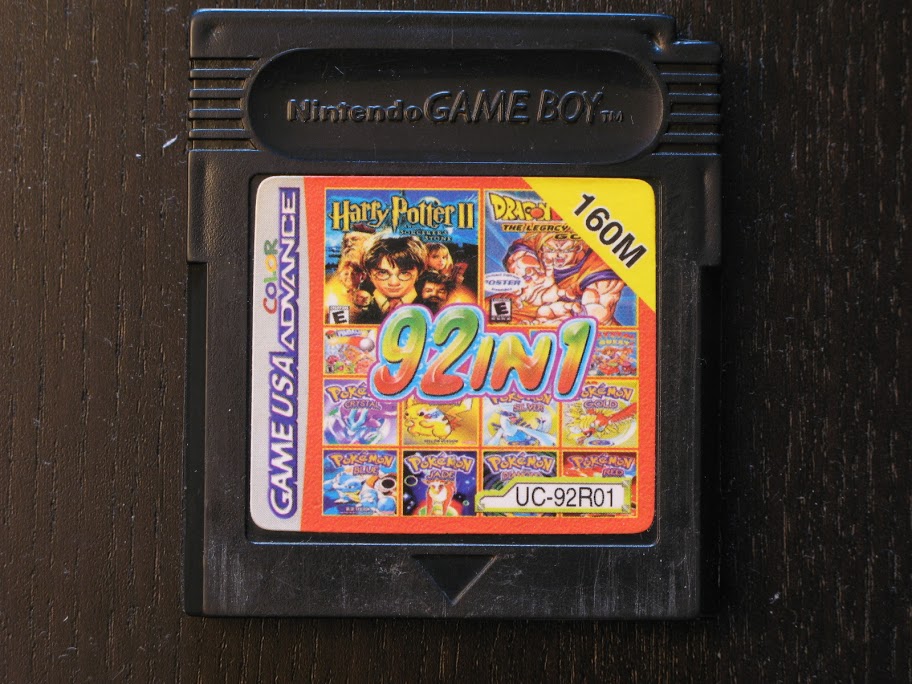

    [​IMG]


    The cart claims 160Mbits and 92 games which is almost right...There are 92 unique games but I only counted 144 Mbits

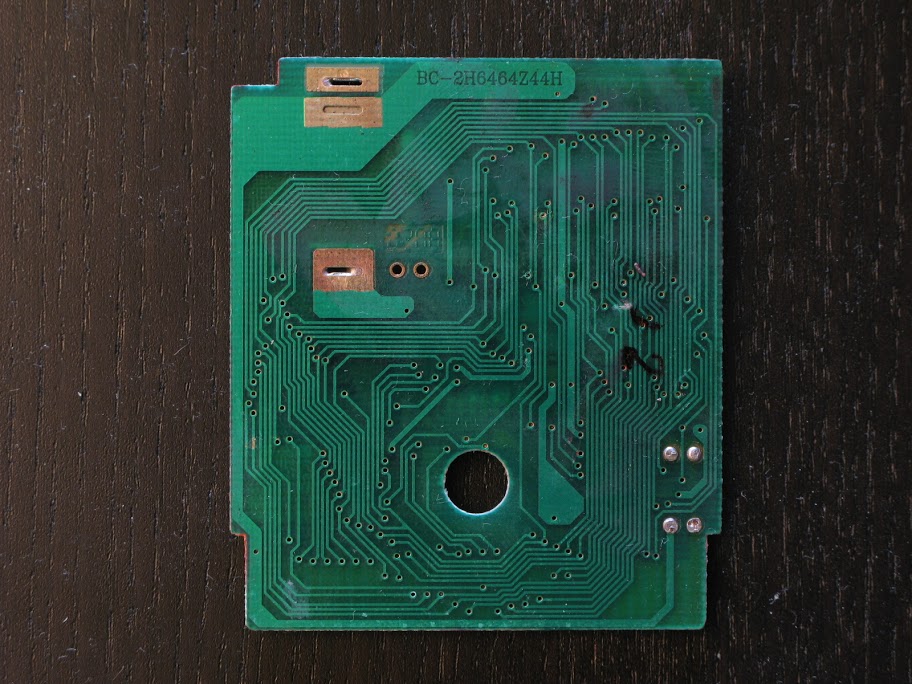

    [​IMG]
    [​IMG]

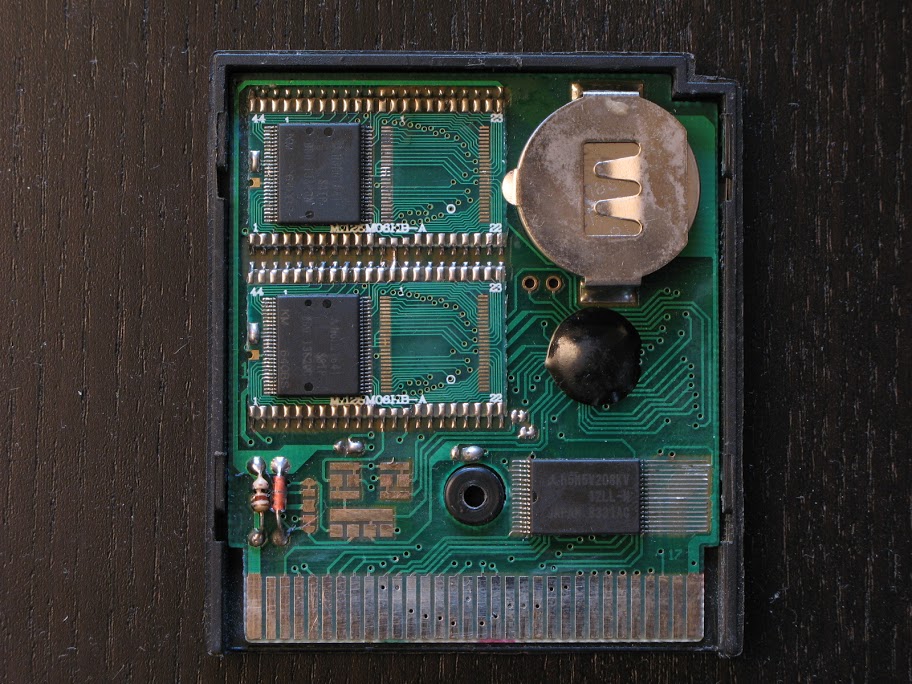

    There are 2x64Mbits Flash TSSOP m6mgt641s8tp and one m5m5v208kv-12LL-W for the backup ram. From what I read on the datasheet, the m5m5v208kv-12LL-W is 16Mbits and not 32Mbits.
    I believe these carts were manufactured at a time when Flashcarts where already flooding the market and were cheaper to produce than the regular ones, the same kind of xxxin1 I've seen on the NDS.

    Now the question is: can this cart be easily modded to turn it into a real Flash cart?

    I guess the blob is the menu and can't be reprogrammed to adress the proper locations of the roms we would hypothetically store in the Flash, so it'll have to be bypassed.
    Calpis, if you're reading ;-)

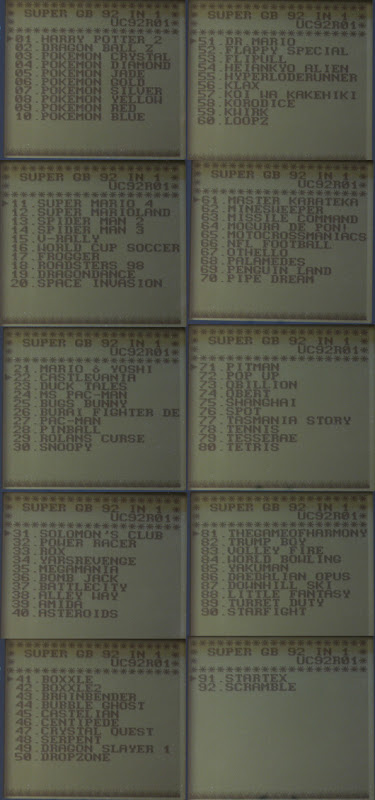

    Now here's the most interesting part maybe, the full listing of the games:
    [​IMG]

  3. l_oliveira

    l_oliveira Officer at Arms

    Joined:
    Nov 24, 2007
    Messages:
    3,879
    Likes Received:
    245
    The blob is the mapper chip.

    The menu is usually on the first "block". I had an broken multigame cart (Zelda games) which I hacked into a vanilla Tetris cartridge.

  4. Alchy

    Alchy Illustrious Member

    Joined:
    Apr 6, 2004
    Messages:
    6,216
    Likes Received:
    19
    "Game USA Color Advance"

    I can't help but crack a smile when I see labels like that.

  5. c_rpg

    c_rpg Spirited Member

    Joined:
    Jun 1, 2008
    Messages:
    179
    Likes Received:
    0

    Hah I remember one of the kids in my class used to have a cart like this. Everyone wanted to play Pokémon Diamond :rolleyes:

  6. Mystic_Merlin

    Mystic_Merlin Active Member

    Joined:
    Aug 19, 2010
    Messages:
    37
    Likes Received:
    27
    Thanks for your input l_oliveira. So the menu just send the corresponding adress for each game to the mapper that bankswitch the correct game?

    Let's say I can write on the Flash and want to make my own multigame, does it mean I just need to modify the jump locations in the menu accordingly?

    If you have documented your hack, I'd be curious to read ;-)

  7. Calpis

    Calpis Champion of the Forum

    Joined:
    Mar 13, 2004
    Messages:
    5,906
    Likes Received:
    21
    There will be a MBC-like mapper, then another mapper on top of it to handle the higher bankswitching (or ROM offset) and address masking. You can check whether the cart is programmable without reworking by tracing the /WE strobe from the flash. I believe GB linkers use the audio pin on the connector for this purpose.

    And Getta: pleae use thumbnails! I'm on a 1024x600 netbook

  8. Mystic_Merlin

    Mystic_Merlin Active Member

    Joined:
    Aug 19, 2010
    Messages:
    37
    Likes Received:
    27
    Hey Calpis,

    Glad to see you here! I'll try that indeed.
    On a side note I got confirmation that the article will be published in the october edition so I need to translate it and send it to you asap ;-)

  9. Darkflame

    Darkflame Member

    Joined:
    Nov 16, 2009
    Messages:
    12
    Likes Received:
    0
    I have a weird game boy cartridge which is marketed as a GBA game and in the same size case as a GBA game but actually runs as a GBC game (so it doesn't work in a DS/GBA Micro) - so it is possible, with the help of a Blaze Xploder I can actually run the cartridge on a Gameboy Colour. Although I don't have it at the moment and can't take pictures; I took it apart and found nothing apart from a few SMD resistors and capacitors and a glop top. Advertised as 129 in 1 but actually has 10 games.

  10. Trenton_net

    Trenton_net AKA SUPERCOM32

    Joined:
    Apr 13, 2007
    Messages:
    2,378
    Likes Received:
    58
    You could perhaps use a Game Bridge to see if your GBA cartridge would boot on a regular GBC unit?

  11. Calpis

    Calpis Champion of the Forum

    Joined:
    Mar 13, 2004
    Messages:
    5,906
    Likes Received:
    21
    The Bung bridge thing? That multiplexes the GBA ROM to 8-bit and obscures everything behind the GB MBC mapper. If the GBA cart runs using GBC mode already, that couldn't work. I think all you could do with such a cart is pull it from its case and try to fit it in a GB case somehow.

  12. Darkflame

    Darkflame Member

    Joined:
    Nov 16, 2009
    Messages:
    12
    Likes Received:
    0
    I can run it on a GBC with nothing apart from a cheat device. The only
    reason it won't go straight into a GBC is that it is not long enough.

    It only has GBC/GB games on it and on the GBA it boots in GBC mode; so it doesn't fit in a DS/GBM because of the tabs.

  13. jccochez

    jccochez that's why i'm here.

    Joined:
    Jun 22, 2006
    Messages:
    331
    Likes Received:
    0
    I also have one (had?), but for Game Boy Advance. It has 253 games on one or so.

    If I remember correctly, there are like 10 GBA games, 30 Snes games in it. Everything else is either GB / GBColor or nes.

    If I find it, I'll post some pictures.

    Last edited: Aug 27, 2010
  14. splith

    splith Resolute Member

    Joined:
    May 2, 2010
    Messages:
    997
    Likes Received:
    4
    30 SNES games, did they have sound and run at normal speed?

  15. MottZilla

    MottZilla Champion of the Forum

    Joined:
    Feb 1, 2006
    Messages:
    5,066
    Likes Received:
    102
    Highly doubt it. Likely uses the SNES emulator for GBA (PocketSNES?) as no pirates would go to the trouble of developing their own emulator when you are talking something as complex as SNES on a system as limited as GBA.

  16. derboo

    derboo Spirited Member

    Joined:
    Mar 21, 2010
    Messages:
    113
    Likes Received:
    0
    The only GB bootleg I own is an ordinary Pokemon pirate copy :(

  17. splith

    splith Resolute Member

    Joined:
    May 2, 2010
    Messages:
    997
    Likes Received:
    4
    That's what I was thinking. Never know though ;p

  18. gravitone

    gravitone Member

    Joined:
    Dec 15, 2009
    Messages:
    8
    Likes Received:
    0
    It's great to see one of these oversized carts again. An uncle of mine bought one back in 1991-1992. Used to play revenge of the gator mostly as far as I remember. A heap of the games were weird japanese card & mahjong games. Any chance you can put up a gamelist for this baby?

  19. mdmx

    mdmx Familiar Face

    Joined:
    Nov 3, 2005
    Messages:
    1,300
    Likes Received:
    29
    my cart contains the following games:

    Tetris
    Mario Land
    66 Pinball
    Qix
    Seaside Volley
    Burger Time
    Bugs Bunny
    Castlevania
    Navy Blue
    Quarth
    Spider-Man
    Lock'n Chase
    Burai Fighter
    Solomon's Club
    Shi Kin Jyo
    Pac-Man
    Super Tank
    Flipull
    Mahjong
    Klax
    Loopz
    Lode Runner
    Macth Mania
    Alleyway
    Puzzle Road
    Amida
    Pala Medes
    Korodice
    Dragon Slayer
    Dr.Mario
    World Bowling
    QBillion
    Space Invaders
    Pitman
    Tennis
    Snake
    Flappy Special
    Tasmania Story
    Trump Boy
    Penguin Land
    Hong Kong
    Pipe Dream
    Ishido JPN Ver
    Volleyfire
    Soko Ban
    Koi Wa Kakehik
    Battle City
    Heiankyo Alien
    Shanghai
    Mine Sweeper

  20. everett1911

    everett1911 Robust Member

    Joined:
    Jul 30, 2008
    Messages:
    232
    Likes Received:
    2
    I'm amazed that this cartridge has 92 unique games. I used to own a 32-in-1 cartridge from game usa color advance which really only had 8 games, with the other 24 titles having different titles that each loaded the same 8 titles with no differences.
