I found a weird SCPH-7501. It's a SCPH 7501 with a PU-18 board

Discussion in 'Repair, Restoration, Conservation and Preservation' started by Stevie Goodwin, Jun 5, 2018.

  1. Stevie Goodwin

    Stevie Goodwin Spirited Member

    Joined:
    Oct 20, 2016
    Messages:
    142
    Likes Received:
    6
    Today at a Florida vacation, I bought two fat PS1's off a Facebook marketplace which had a July 1997 Scph-5501 and this weird SCPH-7501 made August 1998 with a PU-18/SCPH-5501 bottom plastic. An SCPH-7501 would normally have a PU-22 and a KSM-440AEM and more vents in the plastic bottom.
    Here are some photos if you want to see.

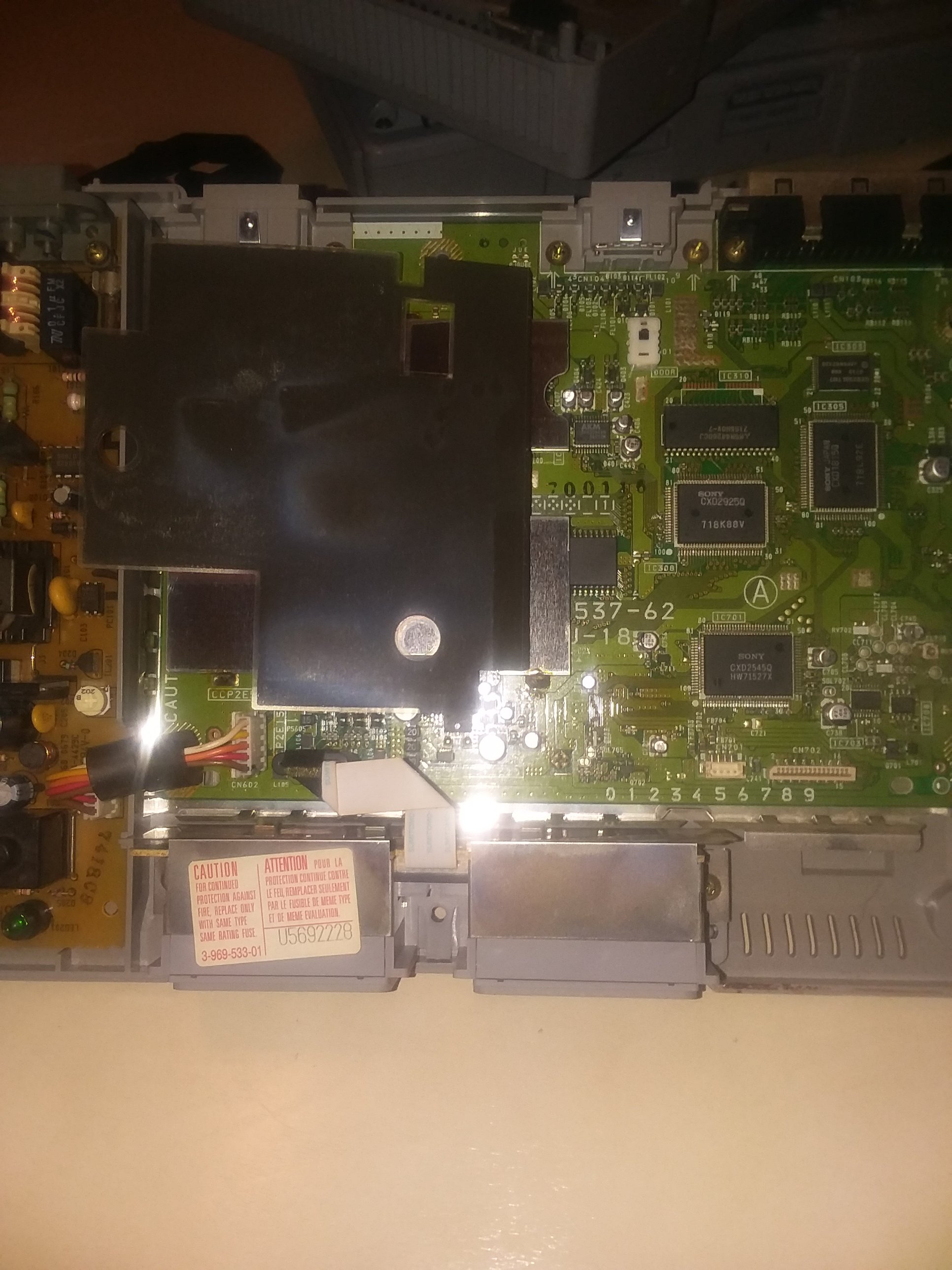

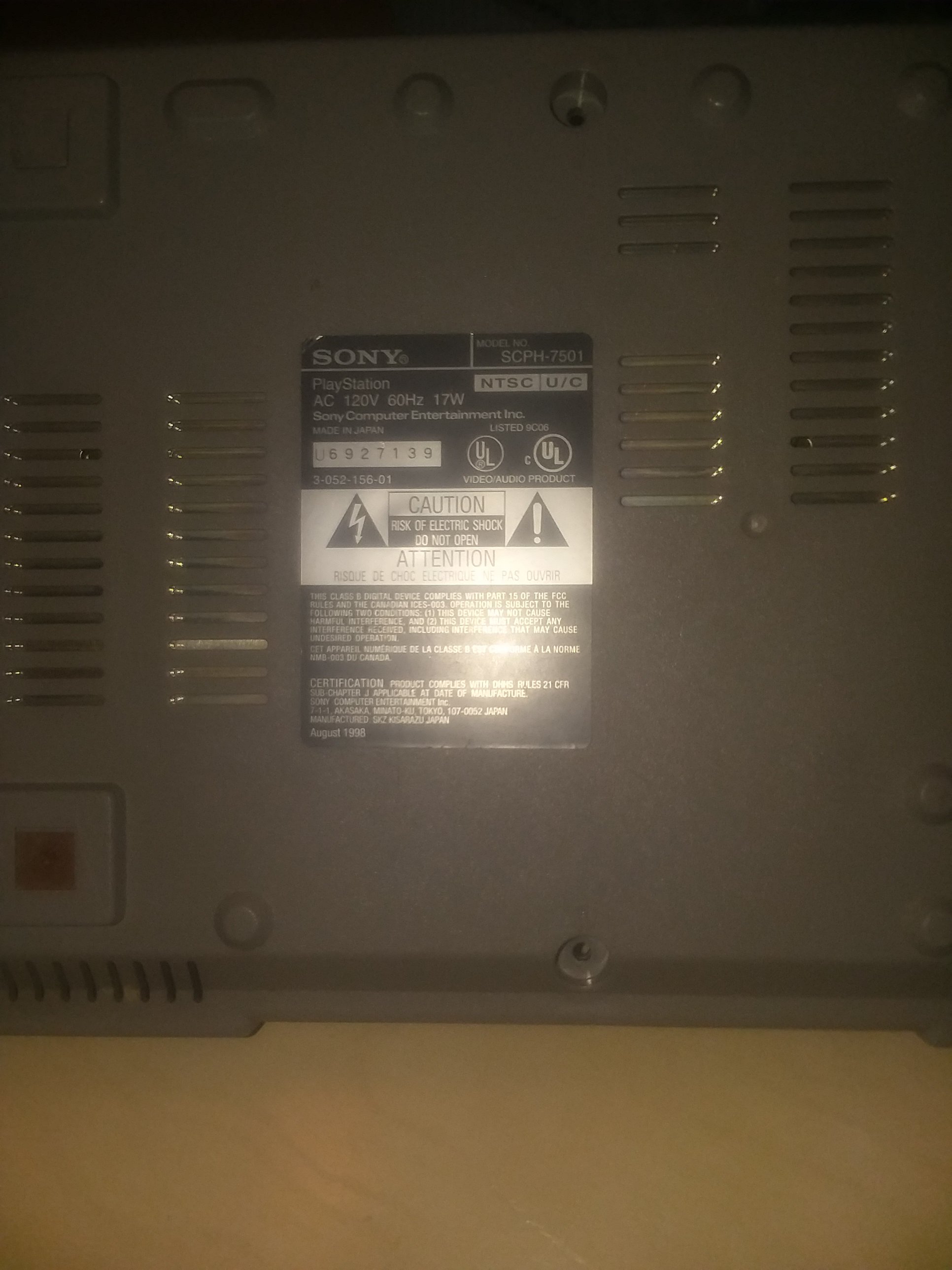

    This is the console in question:
    [​IMG]

    [​IMG]





    I first heard about SCPH-7501's having PU-18's in them that TriMesh in a post saying Early Mexican SCPH-7501 has a PU-18. The one I have is not a Mexican and says was Made in Japan.
    Are these either rare, parts were swapped or leftover parts from production?

    This is what I first heard of: https://assemblergames.com/threads/best-playstation-1-model.51396/


    Attached Files:

  2. rama

    rama Gutsy Member

    Joined:
    Dec 17, 2015
    Messages:
    477
    Likes Received:
    112
    Well, one odd thing is that the serial numbers on the controller port and the case bottom don't fit.

  3. TriMesh

    TriMesh Site Supporter 2013-2017

    Joined:
    Jul 3, 2008
    Messages:
    2,324
    Likes Received:
    750
    Honestly, really hard to tell - although the dogeared corner and the little crease at the bottom of the label makes me suspect someone might have just swapped the label over. I guess it's possible that one of the Japanese factories might have had left over US spec PU-18 boards, but the gap between the date codes on the PCB and the date on the housing is about a year, which is a really long time by consumer electronics manufacturing standards.

    Syclopse likes this.
