Jtagable 360, any recent guides?

Discussion in 'Xbox 360 Development' started by ASSEMbler, Apr 21, 2011.

Watch Thread
Page 2 of 4
  1. derekb

    derekb Well Known Member

    Joined:
    Jan 7, 2009
    Messages:
    1,964
    Likes Received:
    44
    he mentioned in OP that it was an opus/falcon, so it definitely cant KK

    derekb, Apr 25, 2011 Report
    #21 + Quote Reply
  2. ASSEMbler

    ASSEMbler Administrator Staff Member

    Joined:
    Mar 13, 2004
    Messages:
    19,394
    Likes Received:
    995

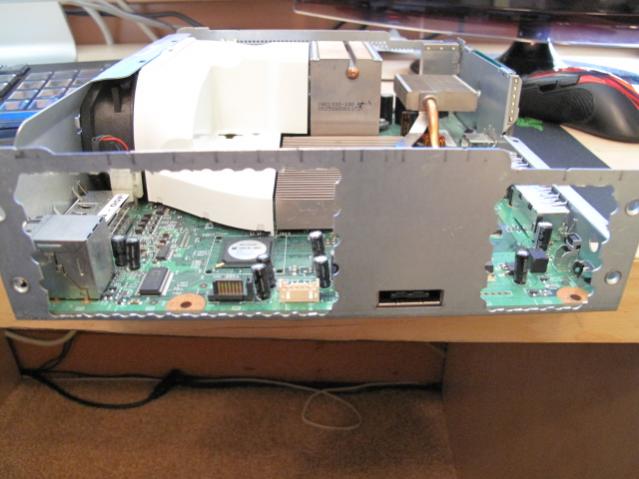

    So I began modifying the 360 in anticipation of my pic based flash reader arriving

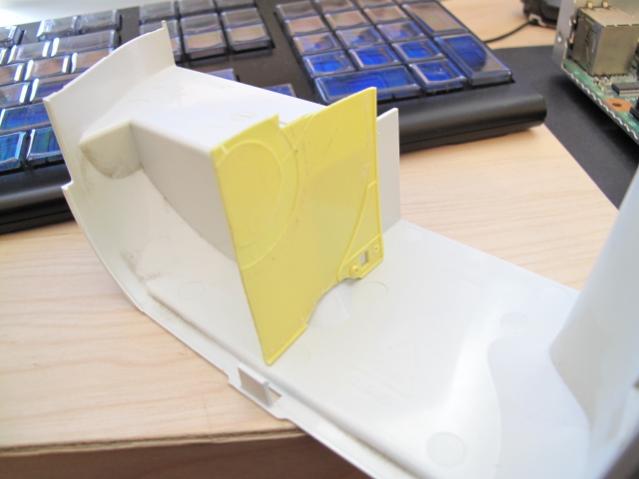

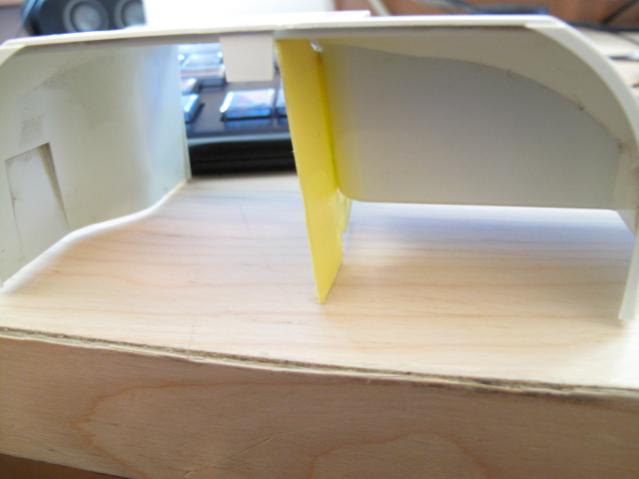

    I plan to modify a spare bottom plastic insert (the grey one on the bottom of the 360)
    with two 70mm scythe fans I had around blowing nice cool air into the 360.

    The fans and gpu fan will be tied into 12v from a spare power adapter I have around.

    I had though of this mod as well: The stock fans could be modified with a dpdt so I can run the stock fans after shutoff from the external power to ensure safe cooldown.
    I would use a 4 pin extension cable modified for this.

    I don't know if it would help much given the gpu and two case fans will run independent of the stock fans already. It's probably overkill.


    Attached Files:

    Last edited by a moderator: Apr 25, 2011
    ASSEMbler, Apr 25, 2011 Report
    #22 + Quote Reply
  3. ASSEMbler

    ASSEMbler Administrator Staff Member

    Joined:
    Mar 13, 2004
    Messages:
    19,394
    Likes Received:
    995

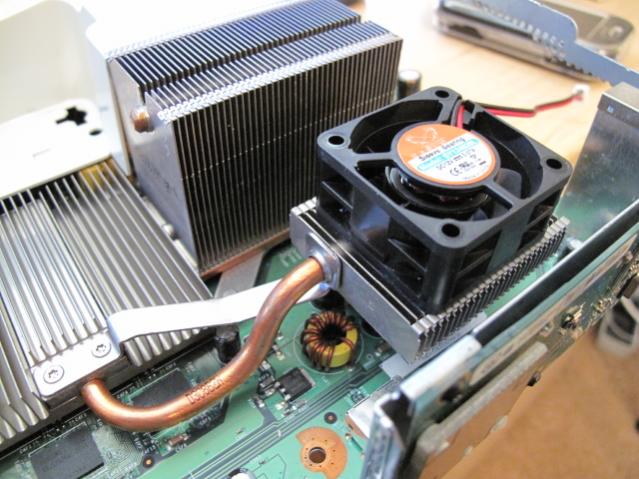

    Then I ran into a small issue, the nice quiet scythe minikaze I bought it too thick and won't make good airflow. I will swap out a socket 7 fan for the kaze and put the kaze on the socket 7.


    Attached Files:

    ASSEMbler, Apr 25, 2011 Report
    #23 + Quote Reply
  4. sneakypeanut

    sneakypeanut Pika CHUUUUUU!!!

    Joined:
    Apr 14, 2010
    Messages:
    1,055
    Likes Received:
    10
    assembler thats a xenon not a opus, and wooow your keyboard is cool

    sneakypeanut, Apr 25, 2011 Report
    #24 + Quote Reply
  5. ASSEMbler

    ASSEMbler Administrator Staff Member

    Joined:
    Mar 13, 2004
    Messages:
    19,394
    Likes Received:
    995
    Ah ok. I got it from MS same time opus came out, and thought it was one due to the new style heat sink on it.

    ASSEMbler, Apr 25, 2011 Report
    #25 + Quote Reply
  6. sneakypeanut

    sneakypeanut Pika CHUUUUUU!!!

    Joined:
    Apr 14, 2010
    Messages:
    1,055
    Likes Received:
    10
    its got the older scaler chip, small av port and the line of jtag points at the front. good old xenon to be fair it proberly make your life easier in the end

    sneakypeanut, Apr 25, 2011 Report
    #26 + Quote Reply
  7. derekb

    derekb Well Known Member

    Joined:
    Jan 7, 2009
    Messages:
    1,964
    Likes Received:
    44
    Assembler what dashboard is it on?

    Also, personally I just run my JTAG fans prepatched to 100% rather than doing 12v mod

    derekb, Apr 25, 2011 Report
    #27 + Quote Reply
  8. ASSEMbler

    ASSEMbler Administrator Staff Member

    Joined:
    Mar 13, 2004
    Messages:
    19,394
    Likes Received:
    995
    I'm trying to save my hearing 100% is insanely loud.

    ASSEMbler, Apr 25, 2011 Report
    #28 + Quote Reply
  9. sneakypeanut

    sneakypeanut Pika CHUUUUUU!!!

    Joined:
    Apr 14, 2010
    Messages:
    1,055
    Likes Received:
    10
    a 360 on 100% still quieter than my pc on 100%, yeah i know your pain there noisey pile of junk some wisper fans may be worth the cash if u still want you hearing in 3 weeks time

    sneakypeanut, Apr 25, 2011 Report
    #29 + Quote Reply
  10. ASSEMbler

    ASSEMbler Administrator Staff Member

    Joined:
    Mar 13, 2004
    Messages:
    19,394
    Likes Received:
    995
    Just a warning you can damage your hearing sleeping in a room with a noise pc with fans.

    You will get tinnitus.

    ASSEMbler, Apr 25, 2011 Report
    #30 + Quote Reply
  11. sneakypeanut

    sneakypeanut Pika CHUUUUUU!!!

    Joined:
    Apr 14, 2010
    Messages:
    1,055
    Likes Received:
    10
    im more likly to get it from music than my pc i think heheh i turn my pc off at night its far to loud to sleep with it on. even thought its quite quiet compaired to the other ones in the house

    sneakypeanut, Apr 25, 2011 Report
    #31 + Quote Reply
  12. Dwack

    Dwack Active Member

    Joined:
    Feb 5, 2011
    Messages:
    28
    Likes Received:
    18
    65% Fan speed Xenon, never had an issue. I replaced the x-clamps but that was it.

    Dwack, Apr 25, 2011 Report
    #32 + Quote Reply
  13. halo3

    halo3 Robust Member

    Joined:
    Jul 20, 2010
    Messages:
    251
    Likes Received:
    2
    Lol then if you have seen pics my water cooled dev imagine how loud my industrial fan is XD
    Btw lol why not just water cool it?:nod: It might be a fun project to do and your 360 will run super cool, and i can help you out with it;-) obviously it doesnt need to be as huge as mine lol

    halo3, Apr 25, 2011 Report
    #33 + Quote Reply
  14. sneakypeanut

    sneakypeanut Pika CHUUUUUU!!!

    Joined:
    Apr 14, 2010
    Messages:
    1,055
    Likes Received:
    10
    main reason becuse some of use dont want a MASSIVE radiator sticking out the top of are 360 and taking up half the room. and i think assembler is wanting to keep his 360 looking stock

    sneakypeanut, Apr 25, 2011 Report
    #34 + Quote Reply
  15. halo3

    halo3 Robust Member

    Joined:
    Jul 20, 2010
    Messages:
    251
    Likes Received:
    2
    he is adding 2 fans out the side, but lol you dont need a giant radiator i choose that so it would protect my investment, it was a fun project, my 360 runs soooo cool, and i made the biggest most extreme water cooling system ever on the 360 XD You can have a perfectly nice internal water cooled system as we have seen before.

    Last edited: Apr 25, 2011
    halo3, Apr 25, 2011 Report
    #35 + Quote Reply
  16. ASSEMbler

    ASSEMbler Administrator Staff Member

    Joined:
    Mar 13, 2004
    Messages:
    19,394
    Likes Received:
    995
    Well the fans will be inside the chassis actually.

    I would like watercooled but I am cheap, and $15 in parts vs $150 in waterblocks
    on an old outdated system, no reason to waste the money.

    Last edited by a moderator: Apr 25, 2011
    ASSEMbler, Apr 25, 2011 Report
    #36 + Quote Reply
  17. derekb

    derekb Well Known Member

    Joined:
    Jan 7, 2009
    Messages:
    1,964
    Likes Received:
    44
    I thought about grabbing the whisper fans since theyre supposed to both run quieter and push a higher volume of air. Still waiting for info on dashboard revision

    derekb, Apr 25, 2011 Report
    #37 + Quote Reply
  18. ASSEMbler

    ASSEMbler Administrator Staff Member

    Joined:
    Mar 13, 2004
    Messages:
    19,394
    Likes Received:
    995
    The thing about the whisper fans is the damn leds.

    ASSEMbler, Apr 25, 2011 Report
    #38 + Quote Reply
  19. Cyantist

    Cyantist Site Supporter 2012,2013,2014,2015

    Joined:
    Oct 28, 2008
    Messages:
    4,158
    Likes Received:
    20
    My main problem with whisper fans. They're ment to be low profile. But when it comes to the colour they are fucking LOUD.

    Cyantist, Apr 26, 2011 Report
    #39 + Quote Reply
  20. ASSEMbler

    ASSEMbler Administrator Staff Member

    Joined:
    Mar 13, 2004
    Messages:
    19,394
    Likes Received:
    995

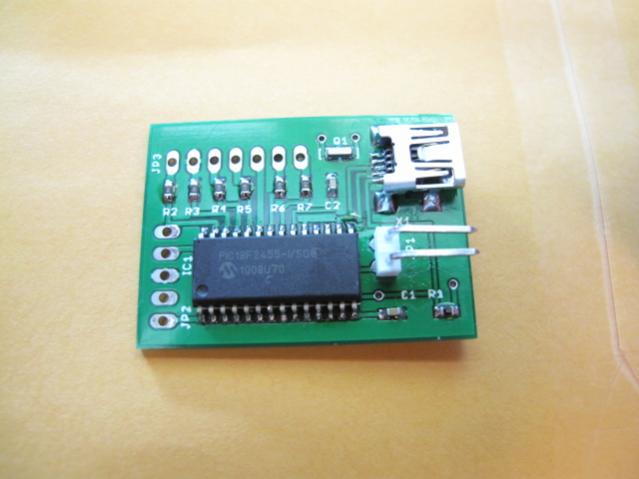

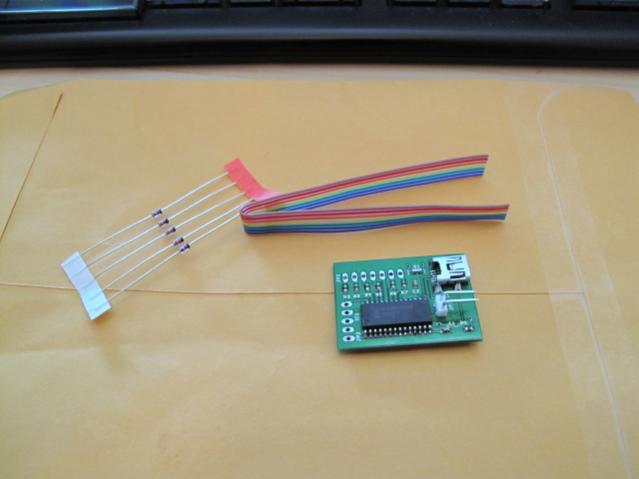

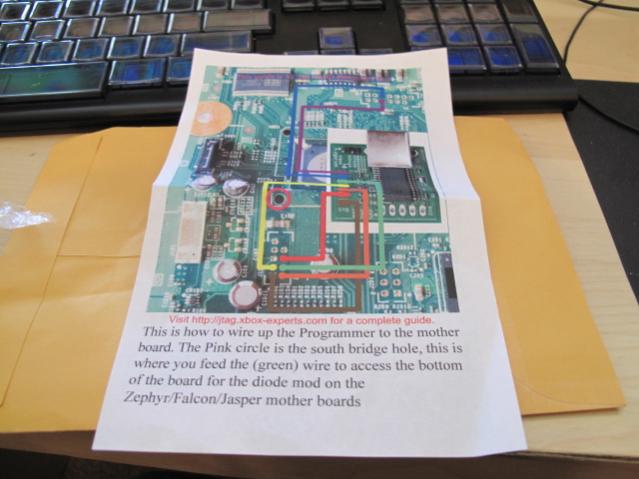

    Programmer arrived.

    Board is tiny.

    You'd really have to be crazy to install it off only
    the paper instructions.


    Attached Files:

    ASSEMbler, Apr 29, 2011 Report
