Jtagable 360, any recent guides?

Wired it up as per instructions on the site,it's not detected.

Not happy atm.



Seems my notebook doesn't push enough power to usb.

Detected but win 7 won't let me install the unsigned driver...

Have to try on the vista box.



This programmer specifically can't be run with power on!



I'd have to reboot and then remount all my encrypted volumes.

I'll just use another pc elsewhere.



The kit uses two diodes, they are not included in the kit and cost under $2 more.

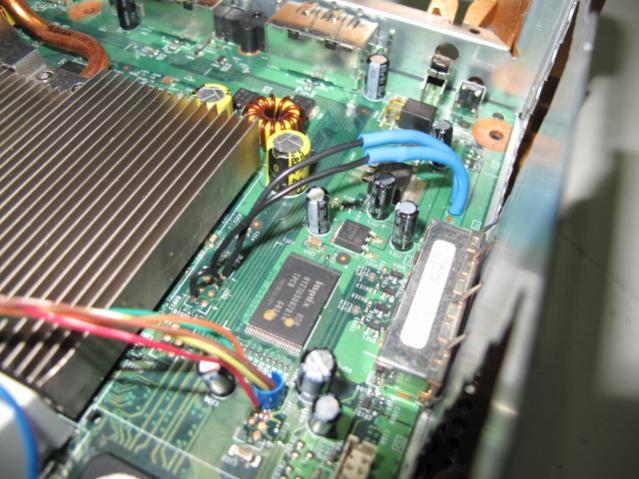

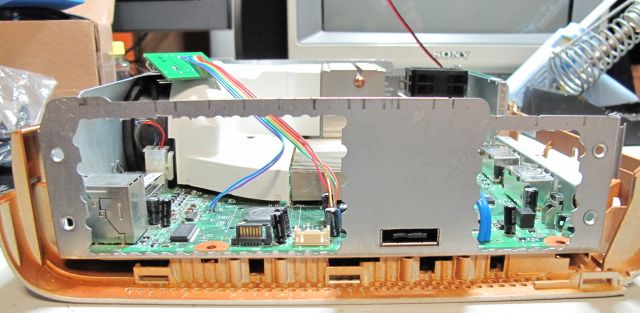

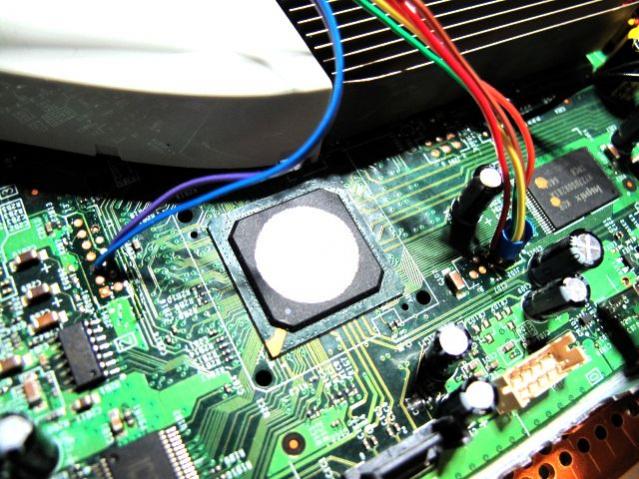

One of the pinheader eyes was malformed, so I just scuffed the eyelet and tacked it to the top (red wire). All the others are through the eyelets.

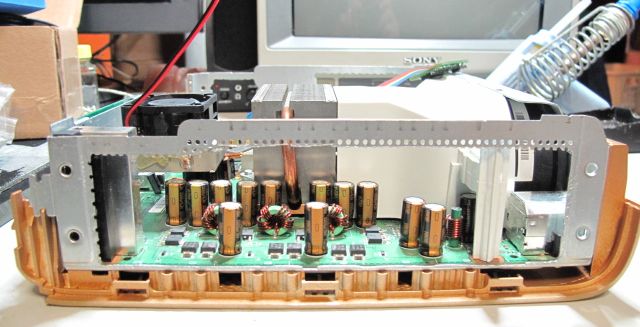

I removed the grilling to enhance air flow for the fans.

I had some old auto paint around, so gold it is.

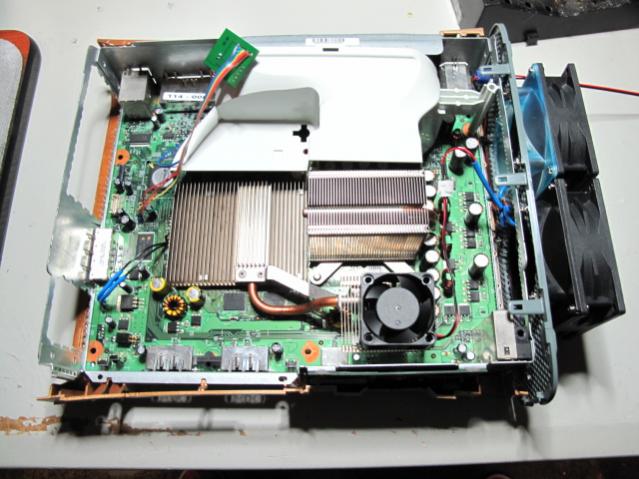

I used a scythe fan instead of a smaller fan due to noise. The scythe fan is taller and I had to cut the top grill away on the shielding, but it's silent and shifts as much air as the noisy small fans.

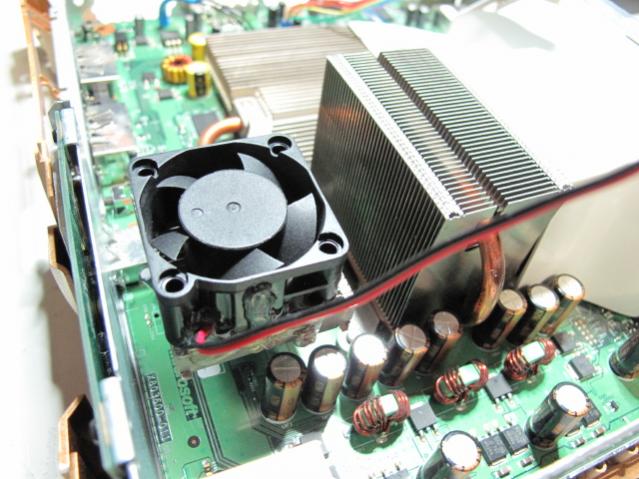

I just tacked it on with hot glue. If it ever gets hot enough to melt it, the
360 is garbage by then anyways.

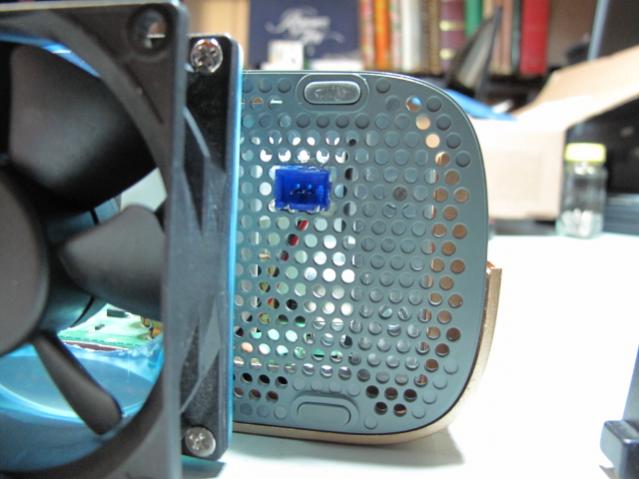

The fan uses a small disconnect so I can detach it from power when I remove the bottom panel.

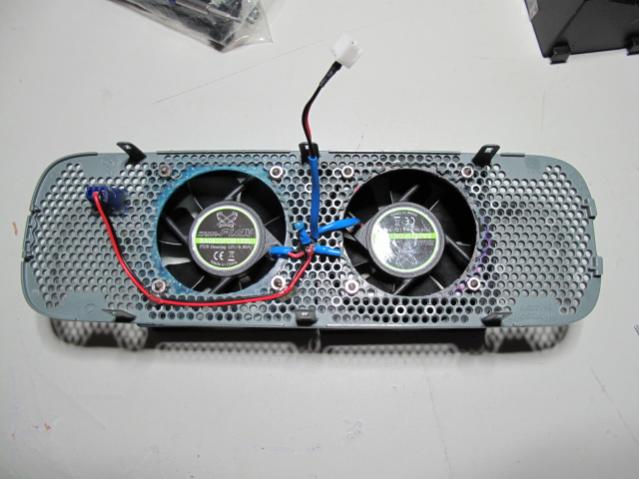

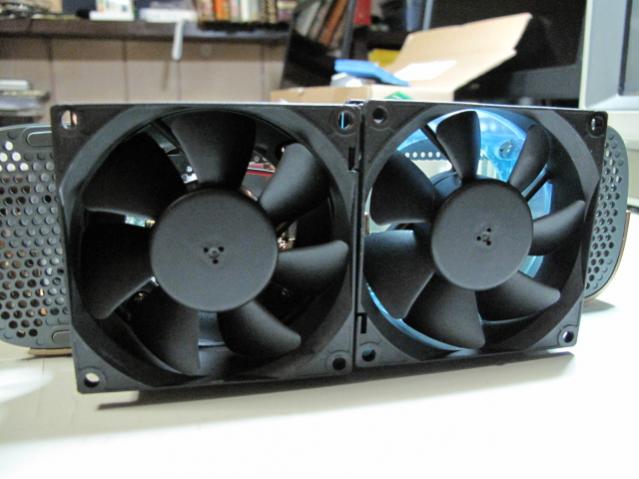

I reused two 80mm fans I had, they are scythe. Quiet and push a lot of cfm.
I had to use 80-60mm adapters. They were hard to get and were clearance
for $0.99 but the colors didn't match.

The wires were already covered in shrink tubing so wiring was
a bit unpleasing aesthetically. It's inside an unseen so who cares.



Power connector. I can run these near silent fans after power down, the system
can't bake and warp.



It doesn't mention that at all in the instructions or on the site. however it does say in huge letters not to power it on while connected. Just being cautious.
