Official Rhea Discussion

bahamutfan64 · Sep 17, 2016

Have you tried to convert the Japanese images to US ones via Saturn Region Patcher?

Slashbunny · Sep 17, 2016

S_crumb said: ↑

I seem to be the guy who can't do anything right with the Rhea.
I have a US Saturn. I've got the Rhea installed and running US CDI's, but I can't get Japanese .CDI's to play. I've created a Rhea.ini and have tried setting the region to U as 5200fanatic suggested. No luck. I even tried setting the region to Japan.
Click to expand...

By setting the region in Rhea.ini, you are turning region patching on. So you definitely always want it set to your console's region so the Rhea can patch the game to your system. By omitting the setting, region patching is turned off (and Japanese games would need to be patched manually).

Can you paste your Rhea.ini exactly?

S_crumb said: ↑

Possibly of note, I've tried updating the firmware several times. I'm not certain that it's actually worked. I have followed the instructions to the letter but the LED does not behave as described. When I turn on the Saturn the LED lights up for a few seconds and goes out. Then it turns on for 3 seconds and turns off. Then on again for 3 sec etc etc.
Click to expand...

What size is your SD card? I had this behavior because I was using a 64GB card. It's formatted with FAT (instead of exFAT) and games work fine, but I could never get the firmware update to work with it. I tossed the firmware on a cheap 1GB SD card and it worked perfectly the first try. There is a difference between how the Rhea reads the SD card when it's normally operating versus the firmware update process.

I'd try another SD card for the firmware update.

Atolm · Sep 17, 2016

S_crumb said: ↑

I seem to be the guy who can't do anything right with the Rhea.
I have a US Saturn. I've got the Rhea installed and running US CDI's, but I can't get Japanese .CDI's to play. I've created a Rhea.ini and have tried setting the region to U as 5200fanatic suggested. No luck. I even tried setting the region to Japan. The Japanese .CDI's still didn't load but US .CDI's did. It's clear that the .ini isn't being recognized by the Rhea. I thought the Rhea was supposed to auto region patch.

Possibly of note, I've tried updating the firmware several times. I'm not certain that it's actually worked. I have followed the instructions to the letter but the LED does not behave as described. When I turn on the Saturn the LED lights up for a few seconds and goes out. Then it turns on for 3 seconds and turns off. Then on again for 3 sec etc etc. This is the latest run of Rhea's surely Deunan installed the latest FW before shipping?

Does anyone know what's going on with my Rhea?
Click to expand...

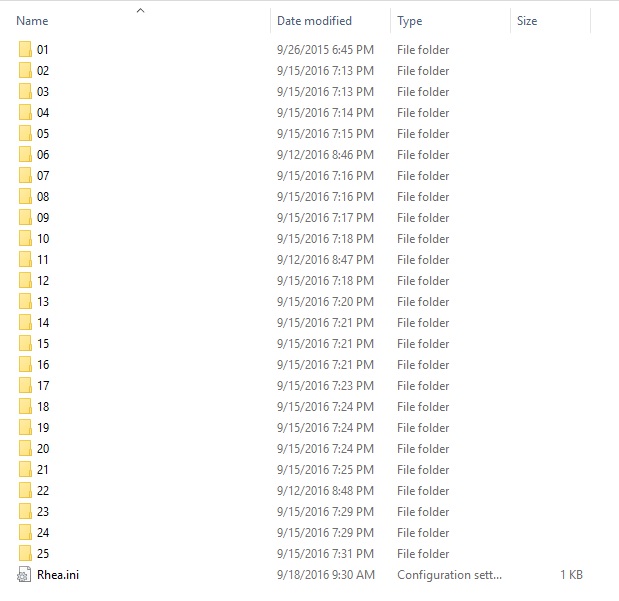

Post a desktop image grab of the root of your SD card, as well as your rhea.ini contents.

Your memory card should be formatted for FAT32

S_crumb · Sep 18, 2016

Bahamut, I haven't tried that yet. That was my next step, I did try one command line version that kept crashing on Win10.

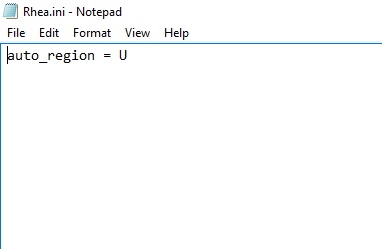

Slashbunny, I'm using a Sandisk 32GB card. Formatted in FAT32 32k cluster. US images play perfectly. With the region set to U or 2 in the ini I still get the "this disc is unsuitable for this system" when I try to boot a Japan image. Same if I set the region to Japan in the ini.
I've tried spaces and no spaces around the = sign as 5200fanatic suggested.

Atolm · Sep 18, 2016

Your .ini looks correct. Not sure what's going on. Maybe try updating the firmware again. The file needs to be renamed "Rhea.fw" Slide the lock tab on the memory card put it in the saturn and turn it on. The LED should rapidly flash for about 3 secs, and then just slowly blink. Turn off the saturn, slide the tab back to unlock then put it in. If none of this is working, try another SD card, if that doesn't work. Shoot off an email to the guy.

You shouldn't have to manually region patch any Japanese CD images. They all work flawlessly on mine with the region patcher ini.

fille · Sep 18, 2016

do you use rheamenu?

S_crumb · Sep 19, 2016

I do use rmenu.

Since the FW update has never acted like it should. I will try to update again tonight. If that doesn't work then I'm just going to region patch all of my images. Its a step I shouldnt have to take, but it's a minor one.

krisk77 · Sep 19, 2016

Try using this on a separate SD card:

auto_region = 3
open_time = 500
detect_time = 250
reset_goto = 1

neuroacid · Sep 19, 2016

S_crumb said: ↑

I do use rmenu.

Since the FW update has never acted like it should. I will try to update again tonight. If that doesn't work then I'm just going to region patch all of my images. Its a step I shouldnt have to take, but it's a minor one.
Click to expand...

This may sound like a strange question, but... are sure you have a Rhea?
I only ask this, because on the last page a while ago, when you were considering which device to buy, you asked for help identifying which Saturn type you had.
To which NightbreedUK promptly responded, helping you arrive at the conclusion that you have a type 3 Saturn and so you should order a Phoebe.

So, if what you have is a Phoebe, then the file has to be named Phoebe.ini for it to be read correctly... anyway you should always refer to Deunan's blog, all the info you need is there: https://gdemu.wordpress.com/operation/phoebe-operation

As for the firmware, since you are using Rmenu, you can check which update version your ODE has installed by hitting the (C) button for info (should be the latest one if you acquired it recently).

Regarding your problem updating the firmware, I've experienced some problems myself when attempting to update it while using a Sandisk 32GB microSD card with an adapter, simply changing the adapter worked for me, so if you still need to update it you can try with another card/adapter, as it was already suggested.

krisk77 said: ↑

Try using this on a separate SD card:

auto_region = 3
open_time = 500
detect_time = 250
reset_goto = 1
Click to expand...

What exactly would this accomplish?
He said he has a US Saturn, so it should be 2 or U for auto_region, besides there's no point setting the timers with their default values (unless you are hot-swapping SD cards). Furthermore the "reset_goto" is something that shouldn't be used at all, since it doesn't work as indented at the moment (reset button doesn't trigger drive reset signal), in fact that's probably why it isn't even mentioned anywhere on the Rhea/Phoebe operation pages in Deunan's blog.

krisk77 · Sep 19, 2016

neuroacid said: ↑

What exactly would this accomplish?
He said he has a US Saturn, so it should be 2 or U for auto_region, besides there's no point setting the timers with their default values (unless you are hot-swapping SD cards). Furthermore the "reset_goto" is something that shouldn't be used at all, since it doesn't work as indented at the moment (reset button doesn't trigger drive reset signal), in fact that's probably why it isn't even mentioned anywhere on the Rhea/Phoebe operation pages in Deunan's blog.
Click to expand...

It was a copy and paste from a different source. Didn't see his console as a US.

Atolm · Sep 19, 2016

I'd try and keep it simple before giving up completely. Grab a different SD card, format it. Try the firmware update. Try the .ini with a JP image in folder 01, nothing else on the card.

S_crumb · Sep 19, 2016

You guys were right. I dug up an old 1gb SD card, formatted it and loaded the FW. The LED performed as Deunan said it would. Batusgun fired up, first try.

Neuroacid, I was helping a friend get his Rhea going, he has had it for a while and was nervous to install it. My Phoebe was straightforward so I couldn't understand why the other was causing a problem.

Thanks again guys!

Atolm · Sep 19, 2016

What memory card were you using that was causing issues? I've got a cheapo 64 gig I formatted FAT32 that works without issues.

msimplay · Sep 29, 2016

team_andromeda said: ↑

I'm super new but I wanna contribute. If anybody is interested, I wrote a Powershell script to alphabetically sort all of the CDI files on your SD card so you don't have to drag and drop a million files when you decide to add Astal to your card later

Just drop your new CDI files anywhere on the card and run the script.

I'm new at coding as you can obviously see, and this only works with CDI files as it's easier to sort single files in single folders.

Strangely enough, open Explorer windows to the card while the script is running causes my Powershell ISE to freeze and I had to hard reboot. I put in lots of warnings just in case it can happen to others! Please don't run this if you can't read it. I shouldn't even have run it but I want to learn Powershell. It works great now, if you can deal with the quirks.

Feel free to edit or distribute elsewhere! Hopefully I save you guys some time with my Teletubbies-level coding.

The Saturn Rhea/Phoebe CDI Alphabetizer

Code:

Write-Host "Saturn Rhea/Phoebe CDI Alphabetizer v.0.6"
Start-Sleep -s 1
Write-Host "by team_andromeda"
Start-Sleep -s 1
Write-Host "=========================================="
Start-Sleep -s 1
Write-Host ""

$path = Read-Host -Prompt 'Input drive letter for SD card (with semicolon)'


$title = "Drive Letter"
$message = "Is " + $path + " the correct drive letter?"

$yes = New-Object System.Management.Automation.Host.ChoiceDescription "&Yes", `
    "Deletes all the files in the folder."

$no = New-Object System.Management.Automation.Host.ChoiceDescription "&No", `
    "Retains all the files in the folder."

$maybe = New-Object System.Management.Automation.Host.ChoiceDescription "&Maybe", `
    "Pauses for 60 seconds and then asks again about deleting the files."

$options = [System.Management.Automation.Host.ChoiceDescription[]]($yes, $no, $maybe)

$result = $host.ui.PromptForChoice($title, $message, $options, 1)

switch ($result)
    {
        0 {
             Write-Host "You selected Yes."
             Start-Sleep -s 1
             Write-Host "Moving on..."
             Start-Sleep -s 1
             Break
          }
        1 {
             Write-Host "You selected No."
             $path = Read-Host -Prompt 'Input drive letter for SD card (with semicolon)'
             $title = "Drive Letter"
             $message = "Is " + $path + " the correct drive letter?"

             $yes = New-Object System.Management.Automation.Host.ChoiceDescription "&Yes", `
                 "Deletes all the files in the folder."

             $no = New-Object System.Management.Automation.Host.ChoiceDescription "&No", `
                 "Retains all the files in the folder."

             $maybe = New-Object System.Management.Automation.Host.ChoiceDescription "&Maybe", `
                 "Pauses for 60 seconds and then asks again about deleting the files."

             $options = [System.Management.Automation.Host.ChoiceDescription[]]($yes, $no, $maybe)

             $result = $host.ui.PromptForChoice($title, $message, $options, 1)

             switch ($result)
                 {
                     0 {
                          Write-Host "You selected Yes."
                          Start-Sleep -s 1
                          Write-Host "Moving on..."
                          Start-Sleep -s 1
                          Break
                       }
                     1 {
                          Write-Host "You selected No."
                          Start-Sleep -s 1
                          Write-Host "Start over."
                          Start-Sleep -s 1
                          Write-Host "3"
                          Start-Sleep -s 1
                          Write-Host "2"
                          Start-Sleep -s 1
                          Write-Host "1"
                          Start-Sleep -s 1
                          Exit

                       }
                 }

          }
    }

if ( -Not (Test-Path $path.trim() ))
{
Clear-Host
Start-Sleep -s 2
Write-Host "...wait a sec..."
Start-Sleep -s 2
Write-Host "The path you entered does not exist."
Start-Sleep -s 2
Write-Host "Maybe you forgot the semicolon?"
Start-Sleep -s 2
Write-Host "???????"
Write-Host $path "ain't no drive I ever heard of."
Write-Host "???????"
Start-Sleep -s 2
Write-Host "Start the script again."
Start-Sleep -s 2
Read-Host "Press ENTER to exit"
Exit
}

cd $path
$tmpDir = $path + '\tmp'
$counter = 1;
$foldercounter = 1;
$foldersize = 1;
$GameListTxt = $path + '\FullGameListing.txt';


Read-Host "Close all Windows Explorer windows accessing the SD card..."
Clear-Host
Read-Host "Did you close them all?"
Clear-Host
Read-Host "Are you SURE??? This will potentially lock up your PC"
Clear-Host
Read-Host "Alright then...press ENTER to proceed..."
Write-Host "5"
Start-Sleep -s 1
Write-Host "4"
Start-Sleep -s 1
Write-Host "3"
Start-Sleep -s 1
Write-Host "2"
Start-Sleep -s 1
Write-Host "1"
Start-Sleep -s 1
Write-Host "GO!"
Start-Sleep -s 1


if ( -Not (Test-Path $tmpDir.trim() ))
{
New-Item -Path $tmpDir -ItemType Directory
}

Get-ChildItem $path -Recurse -Include *.cdi | Move-Item -Destination $tmpDir
Get-ChildItem -recurse | Where {$_.PSIsContainer -and `
@(Get-ChildItem -Lit $_.Fullname -r | Where {!$_.PSIsContainer}).Length -eq 0} |
Remove-Item -recurse

if (Test-Path $GameListTxt.trim() )
{
Remove-Item -Path $GameListTxt
}

Write-Host "All unique files have been moved to the tmp directory"
Write-Host "You may take this time to clean up any errors/duplicates."
Read-Host "Be sure to close all Windows Explorer windows accessing the SD card..."
Clear-Host
Read-Host "Did you close them all?"
Clear-Host
Read-Host "Are you SURE??? This will potentially lock up your PC"
Clear-Host
Read-Host "Alright then...press ENTER to proceed..."
Write-Host "5"
Start-Sleep -s 1
Write-Host "4"
Start-Sleep -s 1
Write-Host "3"
Start-Sleep -s 1
Write-Host "2"
Start-Sleep -s 1
Write-Host "1"
Start-Sleep -s 1
Write-Host "GO!"
Start-Sleep -s 1

Write-Host "Creating folders..."
dir $tmpDir -Recurse -include *.cdi |
sort @{e={$_.basename}} |
%{
      # set folder name with zero filling for sorting
      $foldername = ("$path\{0:00}" -f $foldercounter)

      # if folder doesn't exist create
      if(!(Test-Path -Path $foldername))
      {
            $folderpath = md $foldername
      }

      # Check to see if file name
      if(($counter % $foldersize) -eq 0)
      {
            move $_.fullname $folderpath
            $foldercounter++
      }
      # if file doesn't
      elseif(($counter % $foldersize) -ne 0)
      {
            move $_.fullname $folderpath
      }

      # Increment counter
      $counter++
      Write-Host $foldername
}

Get-ChildItem -recurse | Where {$_.PSIsContainer -and `
@(Get-ChildItem -Lit $_.Fullname -r | Where {!$_.PSIsContainer}).Length -eq 0} |
Remove-Item -recurse

if ( -Not (Test-Path $GameListTxt.trim() ))
{
New-Item -Path $GameListTxt -ItemType file
}
Get-ChildItem -include *.cdi -Recurse -name | Out-File $GameListTxt
Write-Host "Done!"
Write-Host "See new directory listing in" $GameListTxt
Read-Host "Press ENTER to exit..."

If you have more than 100 images on your SD card, change the following line of code:

Code:

$foldername = ("$path\{0:00}" -f $foldercounter)

to this:

Code:

$foldername = ("$path\{0:000}" -f $foldercounter)

Click to expand...

Hi could you make your script compatible with the RMENU I have around 168 games off the top of my head and sometimes I feel like adding a new one sorting them takes ages.

Slashbunny · Sep 29, 2016

This might not be useful to anyone else out there (this is probably only going to work if you are on a Linux machine), but I made a bash script to create the SD card structure in alphabetical order. It uses symbolic links, so it doesn't actually need to move any data around and you don't need to rename the actual game directories wherever you store them.

Assumptions:

Your games are in separate folders, under one parent folder (see "gamedir" variable)

Folder symlinks will be created (02...99) in another folder (see "carddir" variable)

The "carddir" variable is not actually the SD card. It should just be in the same file system as the games, in another directory.

You have some way to copy the symlinked directories from the "carddir" to the real SD card. I personally copy from this folder over a Samba share on a Windows machine onto the SD card.

You copy RMENU into 01 as you normally would and run the RMENU executable as you normally would. This simply creates the other folders in alphabetical order, it doesn't replace the need to do the normal RMENU stuff.

Link to the script:

https://gist.github.com/Slashbunny/0d846164df206cff05cd97194d9980c3

Damn-Deal-Done · Sep 30, 2016

msimplay said: ↑

Hi could you make your script compatible with the RMENU I have around 168 games off the top of my head and sometimes I feel like adding a new one sorting them takes ages.
Click to expand...

You can use the SD card tool for GDEMU. Works perfectly for Rhea too. It takes all your images and puts them into folders on the SD card.

evilashxero · Oct 5, 2016

Is there any way to skip the "Sega" and "Saturn" logos? Like a quick boot?

MeteK · Oct 5, 2016

Yes, launch your game with the start button.

evilashxero · Oct 5, 2016

Ah OK. Thanks.

MeteK · Oct 8, 2016

Is it normal that with the lastest FW 3.8.1, when i set the auto freq on, and launch an EU image, the Sat is not siwtching in 50Hz ?

Obviously i soldered the pin 79 to the Rhea, the Rhea.ini is at the root of my sd and correctly configured, and it's not a multi region image...

Official Rhea Discussion

bahamutfan64 Active Member

Slashbunny Newly Registered

Atolm Spirited Member

S_crumb Member

Atolm Spirited Member

fille Rapidly Rising Member

S_crumb Member

krisk77 Peppy Member

neuroacid Rising Member

krisk77 Peppy Member

Atolm Spirited Member

S_crumb Member

Atolm Spirited Member

msimplay Member

Slashbunny Newly Registered

Damn-Deal-Done Spirited Member

evilashxero Active Member

MeteK Rapidly Rising Member

evilashxero Active Member

MeteK Rapidly Rising Member

Share This Page

Official Rhea Discussion

bahamutfan64 Active Member

Slashbunny Newly Registered

Atolm Spirited Member

S_crumb Member

Atolm Spirited Member

fille Rapidly Rising Member

S_crumb Member

krisk77 Peppy Member

neuroacid Rising Member

krisk77 Peppy Member

Atolm Spirited Member

S_crumb Member

Atolm Spirited Member

msimplay Member

Slashbunny Newly Registered

Damn-Deal-Done Spirited Member

evilashxero Active Member

MeteK Rapidly Rising Member

evilashxero Active Member

MeteK Rapidly Rising Member

Share This Page

Useful Searches
