Replacing the DC PSU

Discussion in 'Sega Dreamcast Development and Research' started by Rocky5, Sep 26, 2014.

  1. -=FamilyGuy=-

    -=FamilyGuy=- Site Supporter 2049

    Joined:
    Mar 3, 2007
    Messages:
    3,034
    Likes Received:
    891
    That's clean and I love the fabric wires, but there's much more of them than needed. You need three...

    You mean atx pin9? Vga pin9 is NC for video AFAIK.
    How do you power it through the Hanzo?

  2. Rocky5

    Rocky5 Site Supporter 2015

    Joined:
    Jan 17, 2014
    Messages:
    524
    Likes Received:
    95
    Pin 9 on the VGA male connector on the Hanzo.
    (Supplies 5v)

  3. Kuririn84

    Kuririn84 Spirited Member

    Joined:
    Mar 9, 2015
    Messages:
    163
    Likes Received:
    108
    Thanks :)
    I wanted to keep all the lines connected (the 12v is tucked in there) incase I ever had a reason to stick the GDROM back in there.

    Anthony817 likes this.
  4. -=FamilyGuy=-

    -=FamilyGuy=- Site Supporter 2049

    Joined:
    Mar 3, 2007
    Messages:
    3,034
    Likes Received:
    891
    Well you needed four then, not ten-ish. That said, I still think it's very clean, just a bit bulky. In contrast, mine is hackish, but has minimal footprint. [​IMG]

    Post a picture with the shell on!

    If that standard? I always thought that pin needed to be grounded...

    Last edited: Apr 20, 2016
  5. Rocky5

    Rocky5 Site Supporter 2015

    Joined:
    Jan 17, 2014
    Messages:
    524
    Likes Received:
    95
    Not sure if it is on the new Hanzo, but on the original ones yes, +5V is supplied to pin 9 by default.
    (to support monitors that don't power there own eeprom or something. EDID)

    It was causing issues with my VGA to HDMI converter, but I bought a new one & it powers it via pin 9, so no USB cable needed :)

    Last edited: Apr 20, 2016
  6. -=FamilyGuy=-

    -=FamilyGuy=- Site Supporter 2049

    Joined:
    Mar 3, 2007
    Messages:
    3,034
    Likes Received:
    891
  7. Rocky5

    Rocky5 Site Supporter 2015

    Joined:
    Jan 17, 2014
    Messages:
    524
    Likes Received:
    95
    That's the info I was supplied by the creator, breaking off pin 9 is simpler.

    (Removed the image, so someone doesn't go ahead and do it)

  8. -=FamilyGuy=-

    -=FamilyGuy=- Site Supporter 2049

    Joined:
    Mar 3, 2007
    Messages:
    3,034
    Likes Received:
    891
    But I mean, you did this so there's NOT 5v on pin9, because of the problem it cause to your old display?

  9. Rocky5

    Rocky5 Site Supporter 2015

    Joined:
    Jan 17, 2014
    Messages:
    524
    Likes Received:
    95

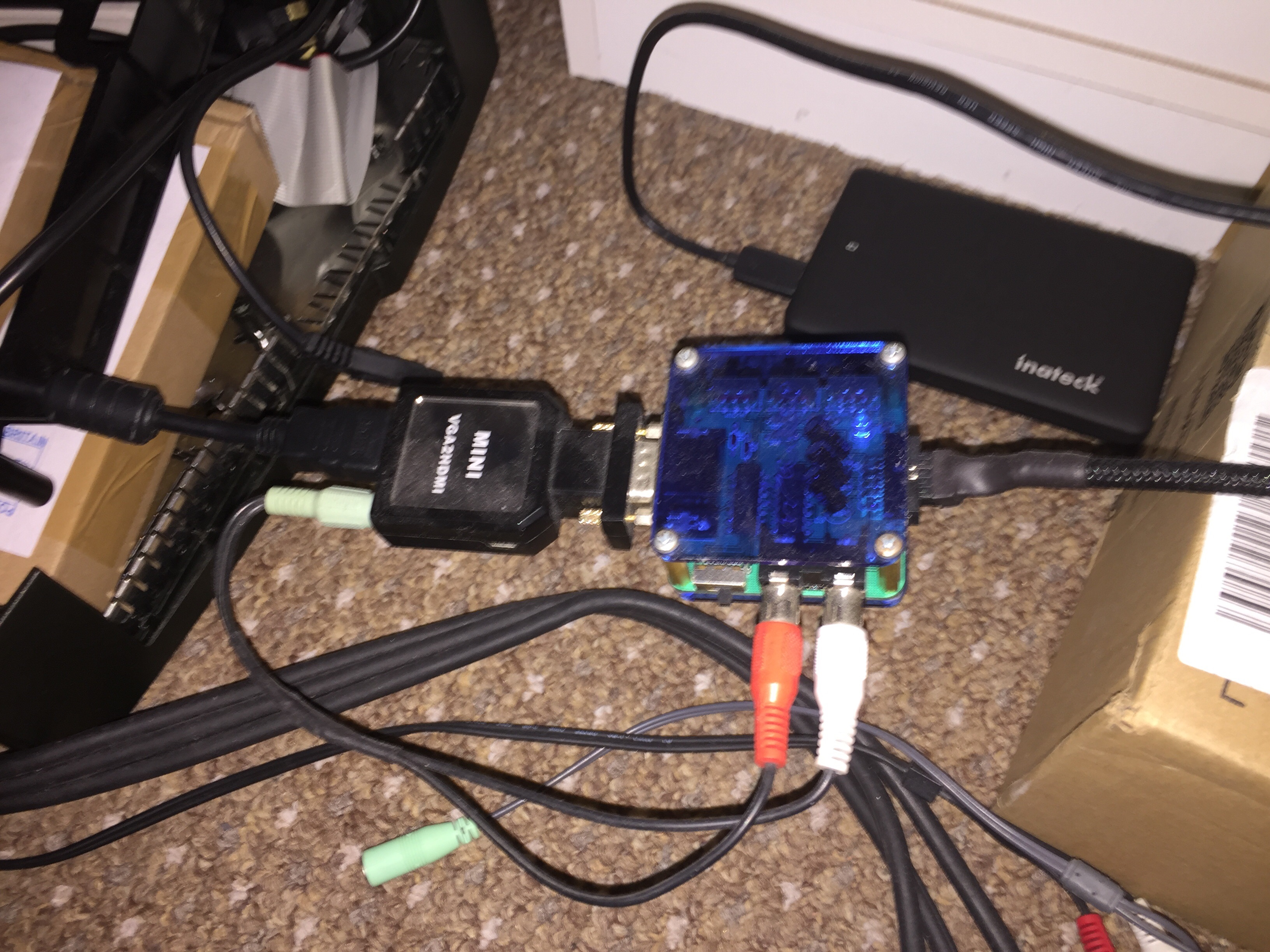

    No I just bought a new adaptor, that's powers via pin 9. So I don't need to use the supplied usb cable.

    The maker of Hanzo suggested I just cut the trace if I didn't need the 5v, I ended up needing it so I never cut the trace.


    Attached Files:

    -=FamilyGuy=- likes this.
  10. Rindaman

    Rindaman Member

    Joined:
    Feb 6, 2016
    Messages:
    11
    Likes Received:
    0
  11. smoke monster

    smoke monster Rapidly Rising Member

    Joined:
    May 2, 2013
    Messages:
    93
    Likes Received:
    17
    I'm shopping for a Pico PSU for my upcoming gdemu DC build. I see that there are 160w and 80w versions on eBay. A few people in this thread have mentioned wanting to use the 80w, but I can't find anyone who has actually installed one, unless I've overlooked a post.

    Can anyone please confirm that:
    1. 80w Pico PSU is sufficient to power a gdemu DC
    2. If so, does it run significantly cooler than the 160w version?

    Edit: Nevermind, after reading the thread, it seems like even a 60w Pico would do the job.

    Last edited: Apr 25, 2016
  12. -=FamilyGuy=-

    -=FamilyGuy=- Site Supporter 2049

    Joined:
    Mar 3, 2007
    Messages:
    3,034
    Likes Received:
    891
    The DC with gdrom uses around 30W, I can't remember exactly. It will be even less with the gdemu. The smallest picoPSU you can find will be perfect.

    smoke monster likes this.
  13. smoke monster

    smoke monster Rapidly Rising Member

    Joined:
    May 2, 2013
    Messages:
    93
    Likes Received:
    17
    Thanks :D

    Last edited: Apr 27, 2016
  14. smoke monster

    smoke monster Rapidly Rising Member

    Joined:
    May 2, 2013
    Messages:
    93
    Likes Received:
    17
    My 80-watt Pico arrived today and I used parts from a bad DC PSU to wire it. Works great powered by a nice 12V/2A brick. Now to wait for my gdemu to arrive.


    Last edited: Apr 27, 2016
    Anthony817 and Kuririn84 like this.
  15. spinksy

    spinksy Peppy Member

    Joined:
    Oct 1, 2010
    Messages:
    351
    Likes Received:
    7
    Just to make sure this pin out is the same for a 100w PSU.

    I have a 100 one that I brought awhile ago - finally doing this mod tomorrow and just wanted to be safe before I do so -

    This is the pin layout too isn't it lol?

    [​IMG]

  16. spinksy

    spinksy Peppy Member

    Joined:
    Oct 1, 2010
    Messages:
    351
    Likes Received:
    7

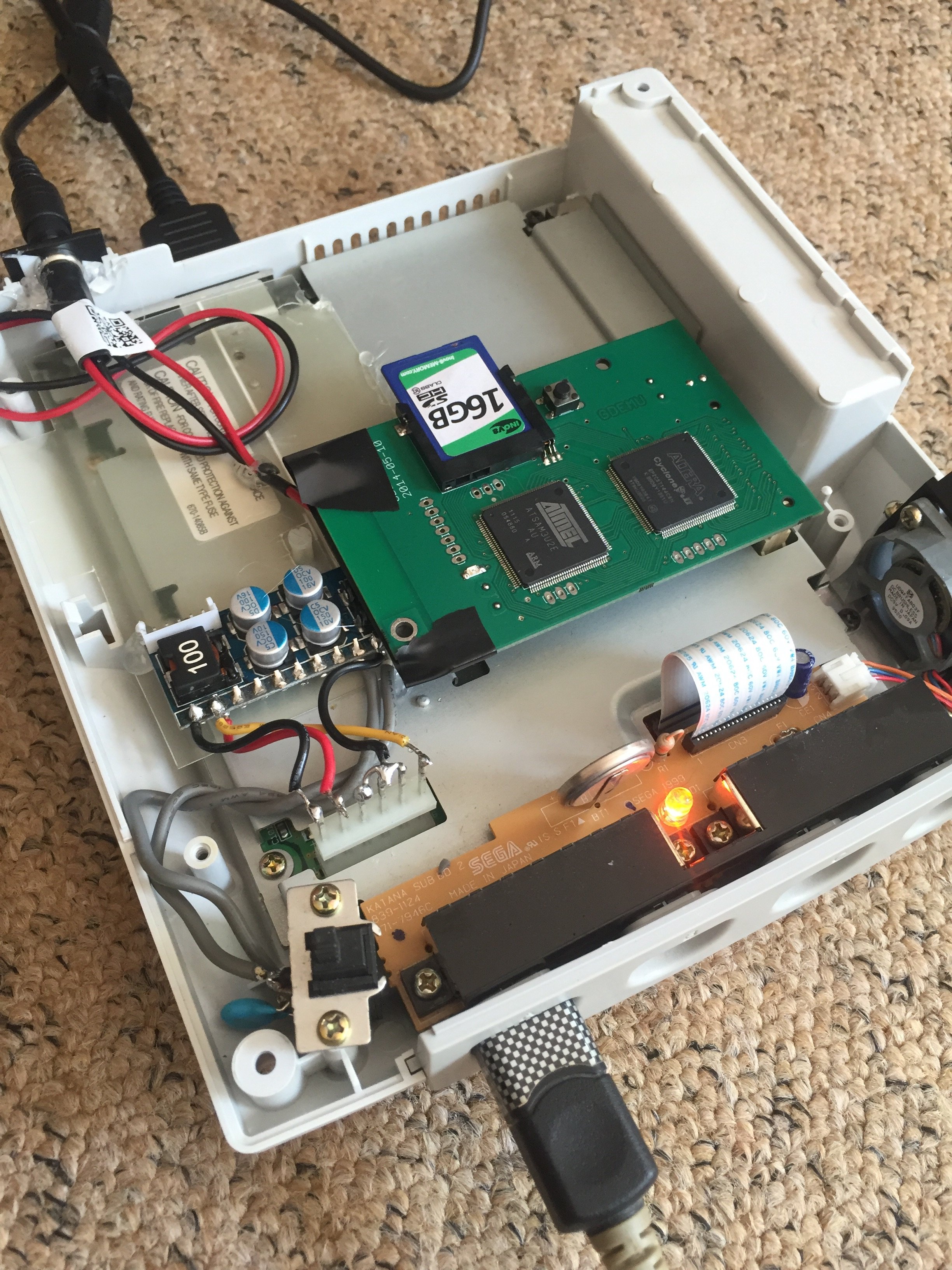

    We'll post above can be ignored, went with it as I thought and its working lovely with my GDemu board.

    Learnt a few lessons, will redo this mod (probably on another Dreamcast with another psu) and make it neater.

    Here's pics from my phone

    I need to shorten the 2 wires going to the power input.


    Attached Files:

    Last edited: May 7, 2016
  17. smoke monster

    smoke monster Rapidly Rising Member

    Joined:
    May 2, 2013
    Messages:
    93
    Likes Received:
    17
    Here's a Franken-Dreamcast composed of: VA0 case, VA0 heatsinks, VA1 motherboard, VA1 fan (which I'll swap out with a metal VA0 fan once I work that out), and VA1 controller sub-board. Word of warning, never switch VA0 with VA1 controller boards or you'll fry the mobo.

    I also installed the 80-watt Pico PSU and used the nifty overpriced 3D-printed pico power jack mount. It's powered by a 12V/2A brick. The next step will be to recap it and add some internal voltmeters for a little flair once the gdemu arrives.

    [​IMG]
    GD-ROM is for testing. The fan is also temporary until I get the metal VA1 back in. I also installed a rechargeable LIR-2032 battery.

    [​IMG]
    [​IMG]

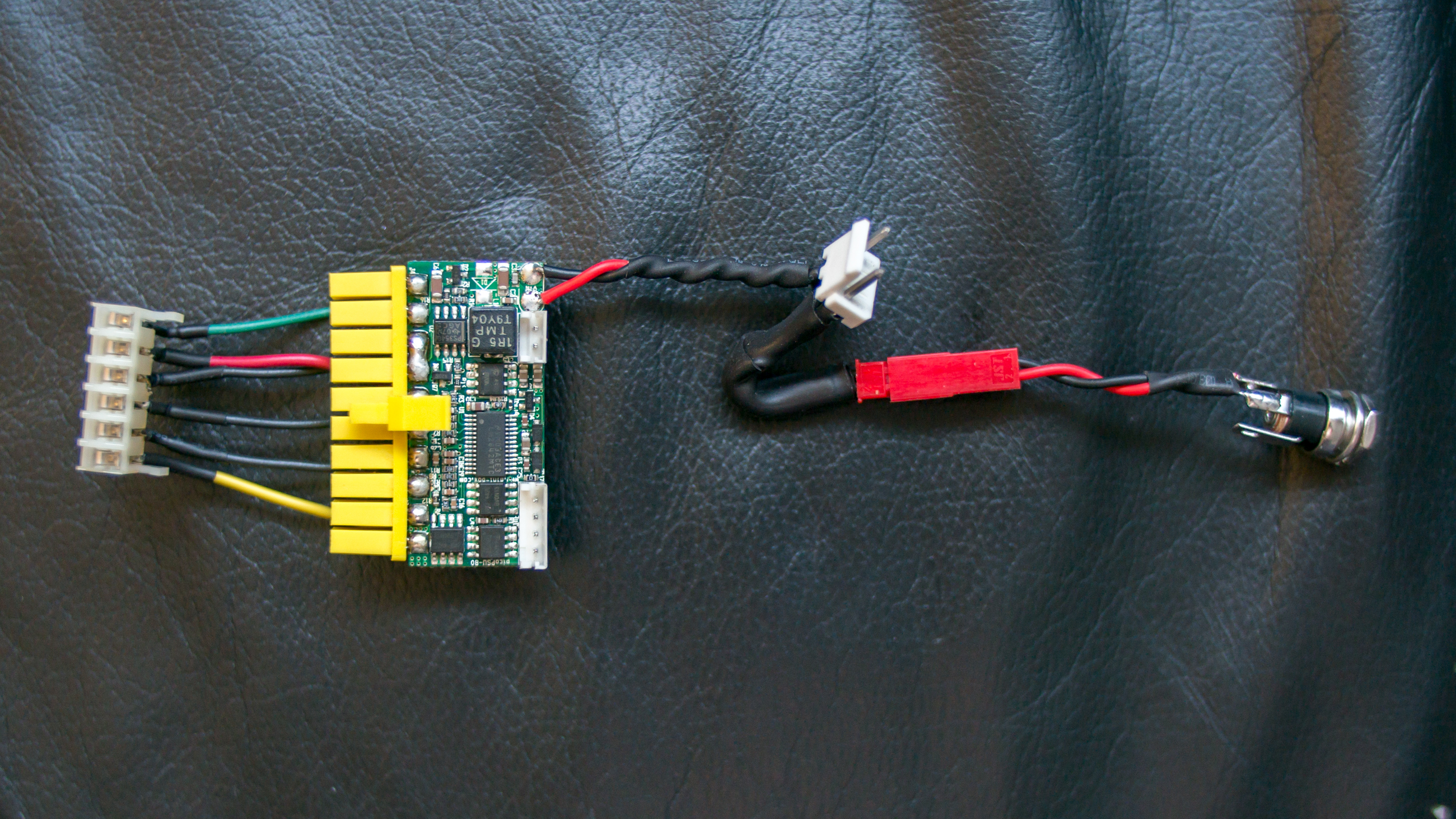

    The connectors were taken from a dead DC PSU, making the PicoPSU modular. The ferrite doesn't matter, but I have a box of them to get through before I die.

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    Sony CR-2030 PVM. Photographed with an old Canon 50mm f1.2 on a Sony NEX-6 & focal reducer.

    Update: I recapped it using nice 105C long-life rated Rubycons.
    [​IMG]
    [​IMG]

    Last edited: May 13, 2016
    RXShorty, Anthony817 and Rocky5 like this.
  18. RXShorty

    RXShorty Rising Member

    Joined:
    Apr 19, 2016
    Messages:
    50
    Likes Received:
    9
    Thanks for the pictures!
    I am going to order my PicoPSU soon so I can start with modding my Dreamcast :)

  19. Anthony817

    Anthony817 Familiar Face

    Joined:
    May 12, 2010
    Messages:
    1,078
    Likes Received:
    535
    So how is it hooked up? S-Vidio or Scart or what? Guessing that TV didn't do VGA although I am sure a few did. So guess it is something like a trinitron?

  20. smoke monster

    smoke monster Rapidly Rising Member

    Joined:
    May 2, 2013
    Messages:
    93
    Likes Received:
    17
    It's a Sony PVM-2030 so I used Scart RGB. I have a Hanzo VGA setup, but I'll need to add a sync combiner in order to get VGA in to this particular PVM. I plan on making one in the future.

    Anthony817 likes this.
