Sony PVM-14N2U Issue

Discussion in 'Repair, Restoration, Conservation and Preservation' started by Poorcomputerman, Sep 12, 2016.

  1. Poorcomputerman

    Poorcomputerman Active Member

    Joined:
    Jun 14, 2016
    Messages:
    44
    Likes Received:
    1

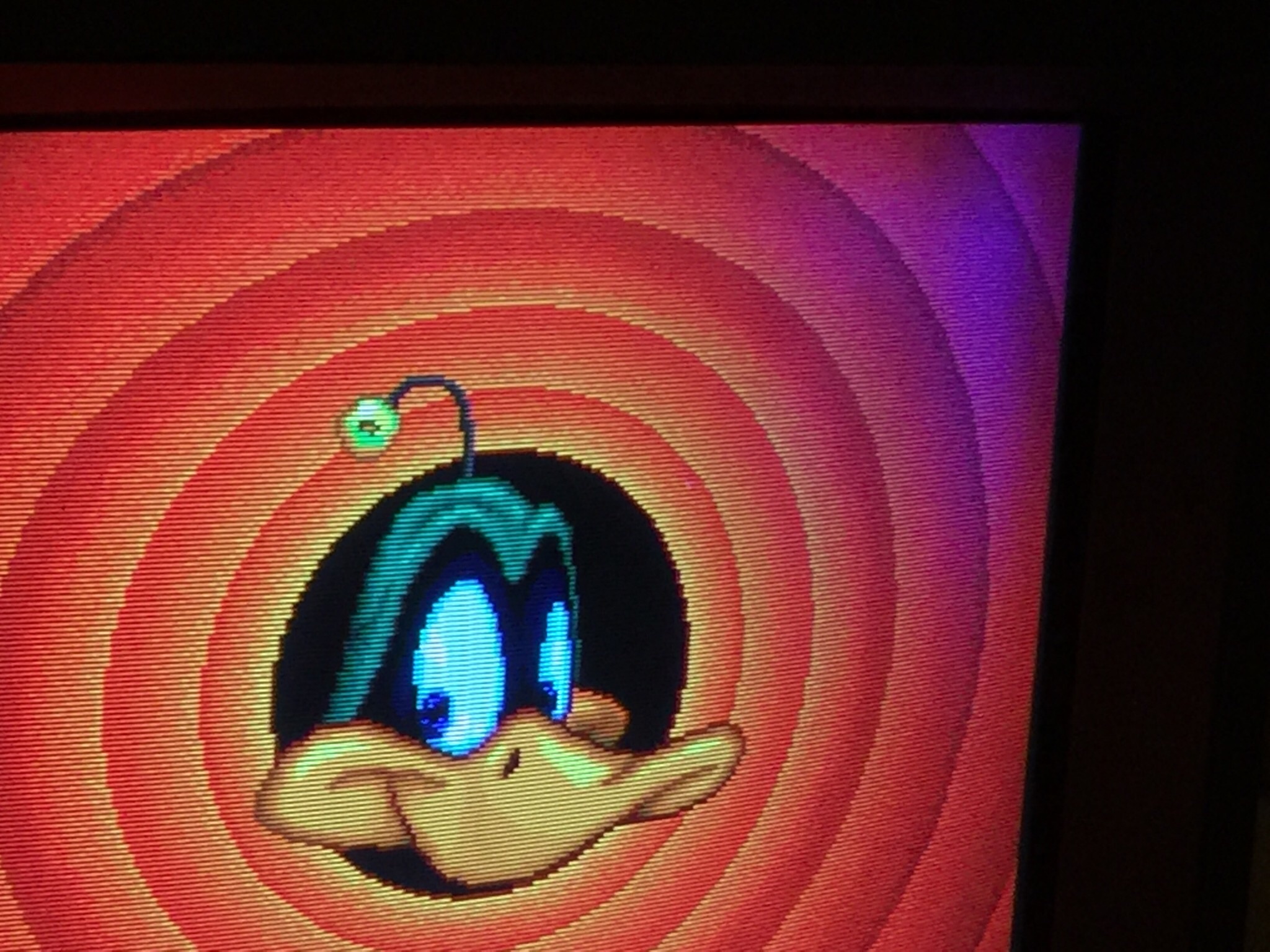

    image.jpg I purchased a Sony PVM-14N2U from Ebay and there seems to be color distortion on the upper right side of the monitor. Can this be fixed or will I need to return it.?

  2. Syclopse

    Syclopse .

    Joined:
    Dec 17, 2013
    Messages:
    1,508
    Likes Received:
    537
    Don't happen to have a speaker or any magnets next to the TV do you?

  3. TriMesh

    TriMesh Site Supporter 2013-2017

    Joined:
    Jul 3, 2008
    Messages:
    2,324
    Likes Received:
    750
    Try running a few degauss cycles on it (leave it a few minutes between each one) - if it doesn't get any better then I suspect that one of the disc magnets on the back of the tube has fallen off - I would return it.

  4. Poorcomputerman

    Poorcomputerman Active Member

    Joined:
    Jun 14, 2016
    Messages:
    44
    Likes Received:
    1
    I have not found a way to run a degauss cycle. There does not seem to be an option in the menu. I do not have speakers by it.

  5. TriMesh

    TriMesh Site Supporter 2013-2017

    Joined:
    Jul 3, 2008
    Messages:
    2,324
    Likes Received:
    750
    Does it buzz when you turn it on from cold? If so, try power cycling it a few times with about 15 minutes between the power cycles

  6. Syclopse

    Syclopse .

    Joined:
    Dec 17, 2013
    Messages:
    1,508
    Likes Received:
    537

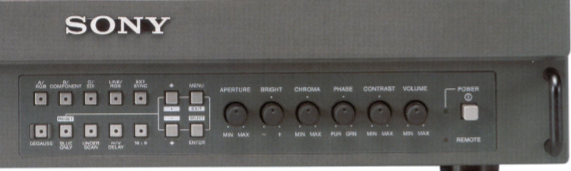

    The manual DEGAUSS button is on the bottom left.
    These are for the M series, not sure if it's the same as the N series. But as TriMesh said, just powering it on does the degauss.

  7. TriMesh

    TriMesh Site Supporter 2013-2017

    Joined:
    Jul 3, 2008
    Messages:
    2,324
    Likes Received:
    750
    I think the N series has a much simpler control panel - basically, just input selectors and 4 buttons for the menu.

  8. Xzx123

    Xzx123 Robust Member

    Joined:
    Mar 19, 2013
    Messages:
    271
    Likes Received:
    65
    You can get an external degauss coil that, with proper technique, might give you better results than the set's built in function. I'd try that before returning it.
