xbox one white devkit

got it today, some reports will follow. I m tired as of now
the previous statements still apply (loud fan, black screen with kryptos in ascii art)
What I could mention so far :

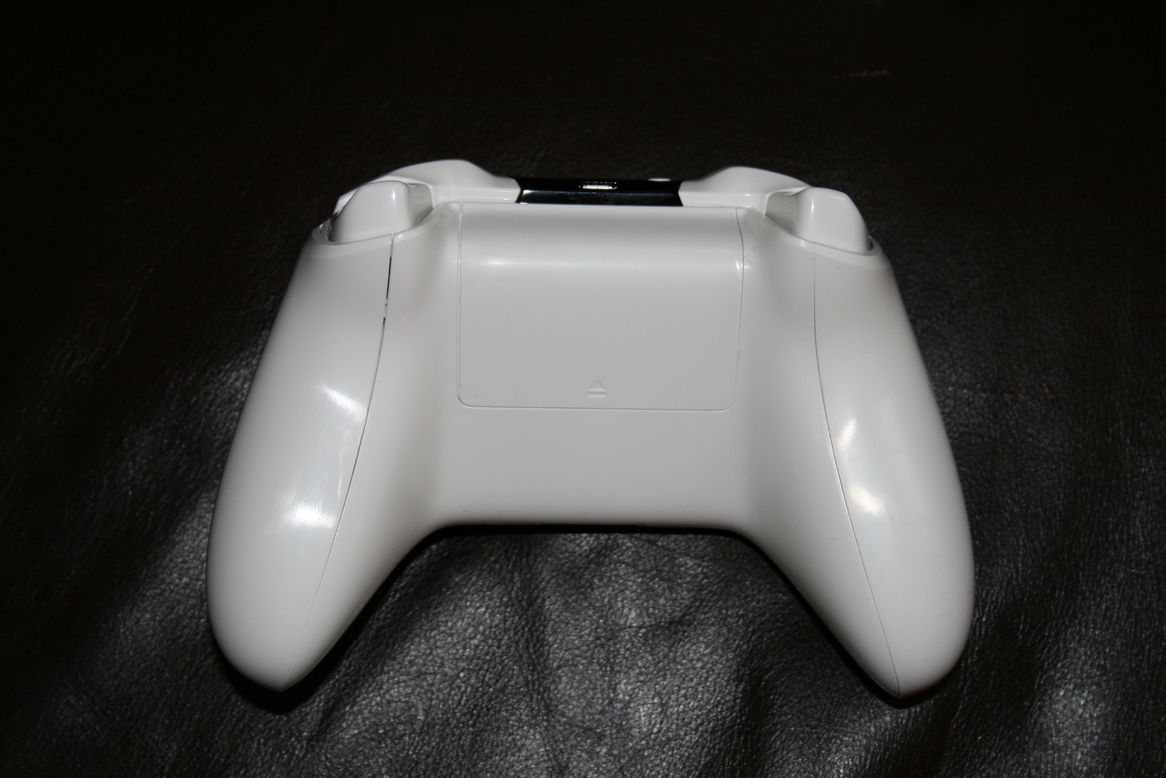

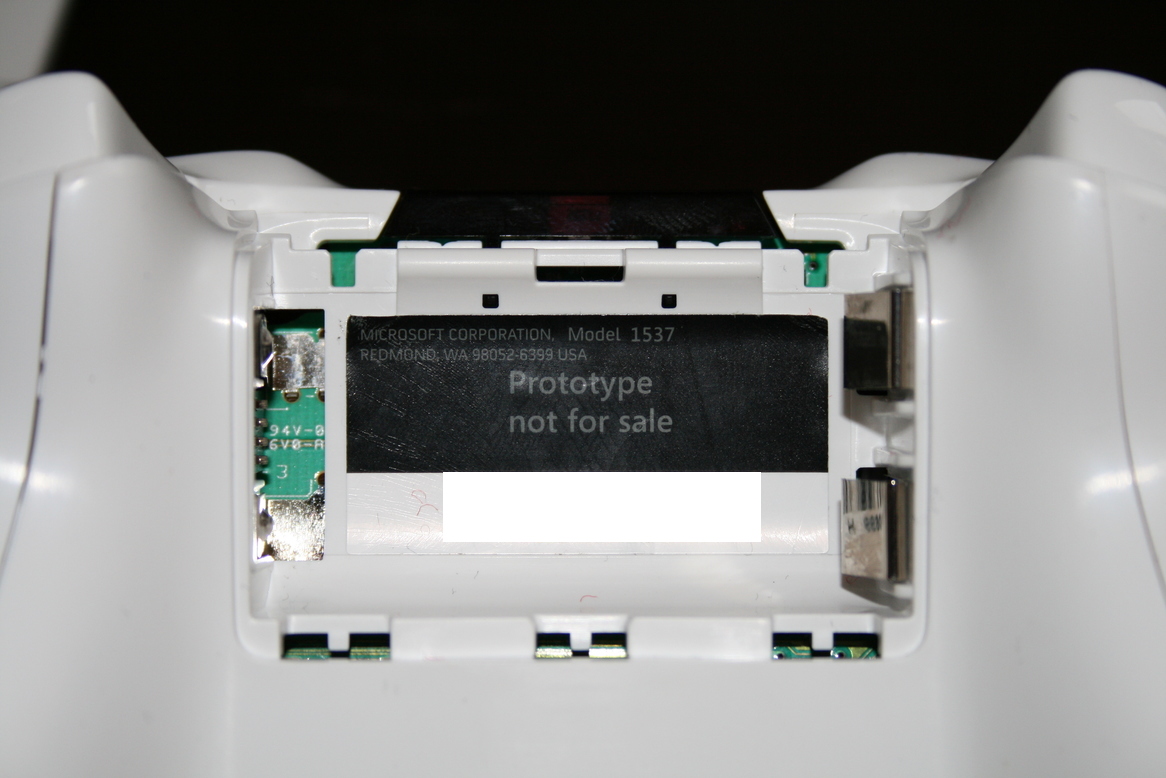

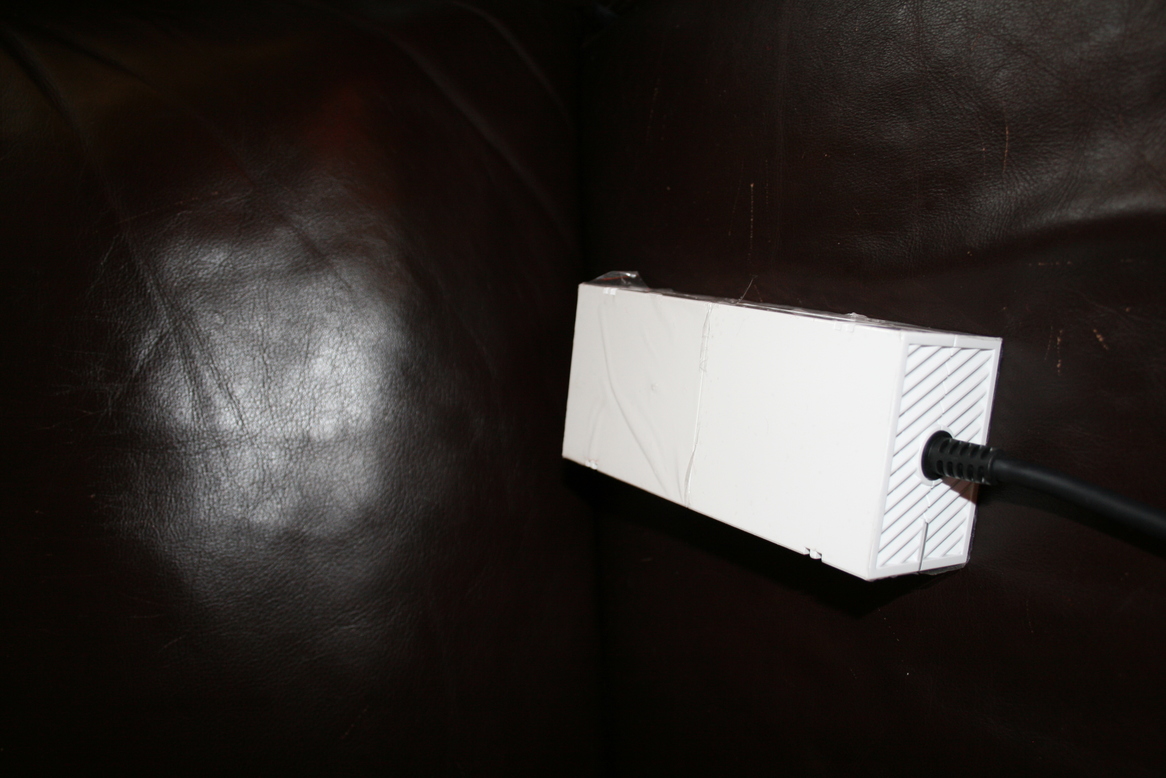

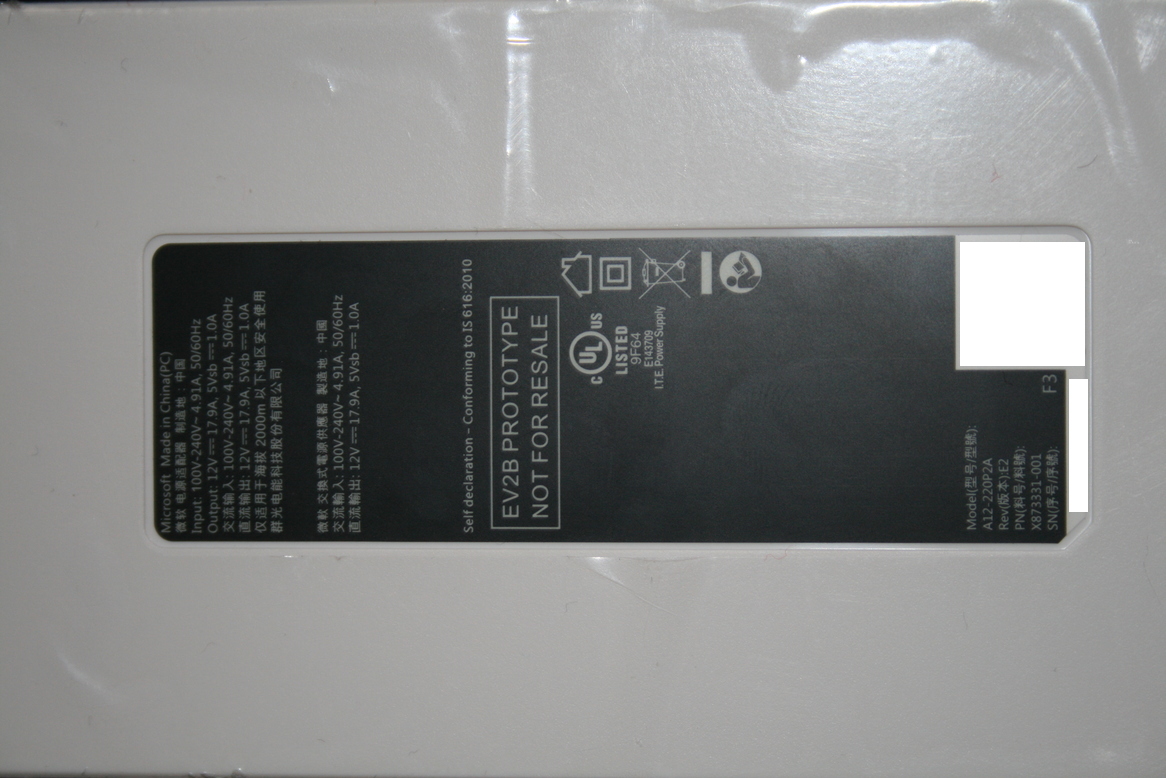

• the stickers on the pad and PSU mention prototype.
• on the left side of the box, there is no usb connector, maybe present on the motherboard but the small opening is closed.
• the pad so far seems to be irresponsive (no light/indicator whatsoever but I don't even know how it is supposed to behave in the first place), tried with regular rechargeable batteries and pluggued in usb on the rear port. No reaction at all.

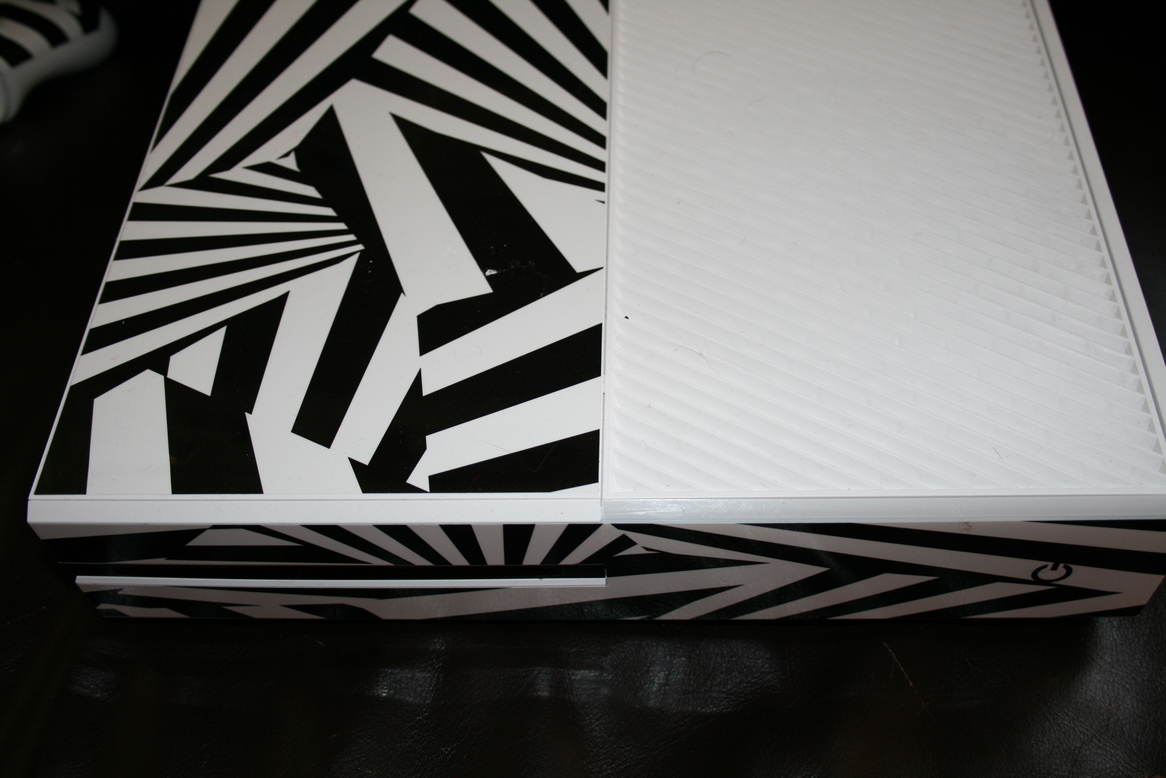

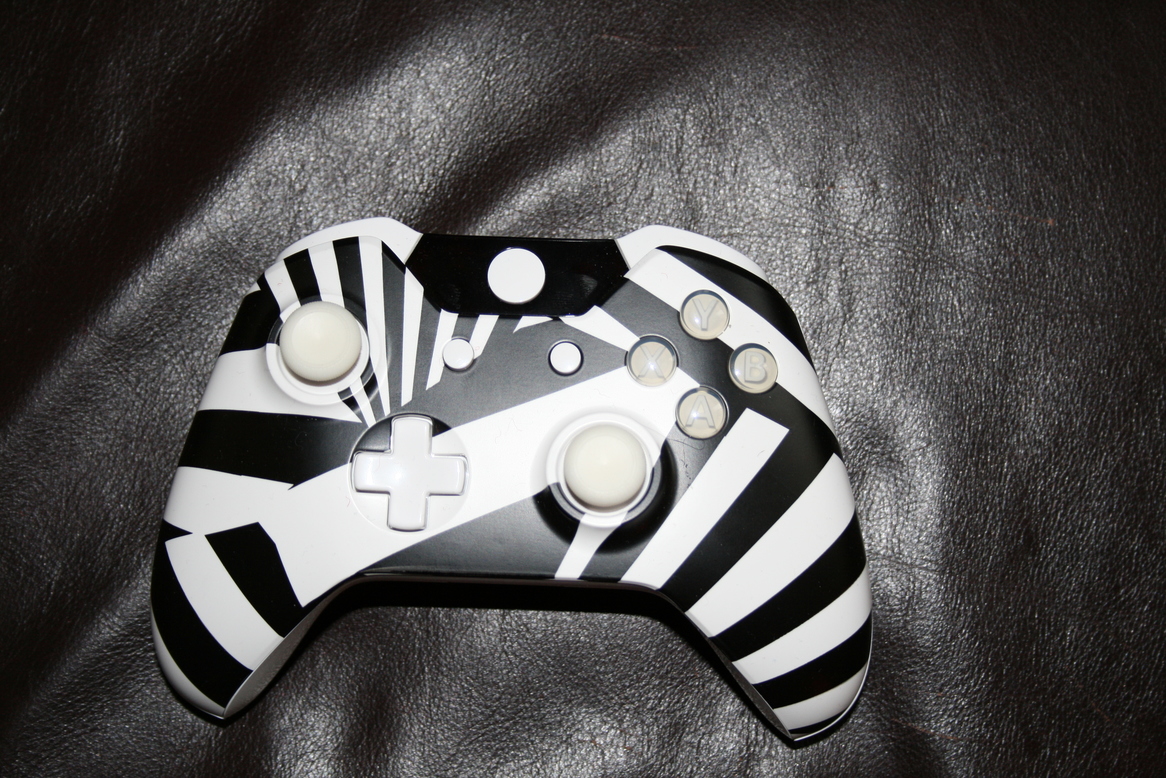

• The stripes/zebra pattern is a sticker put on a white shell basically (not sure for the pad though).
• of course no X sign for the power on, but the same one you can find on the 360 (at least the fat model), never played with the slim.

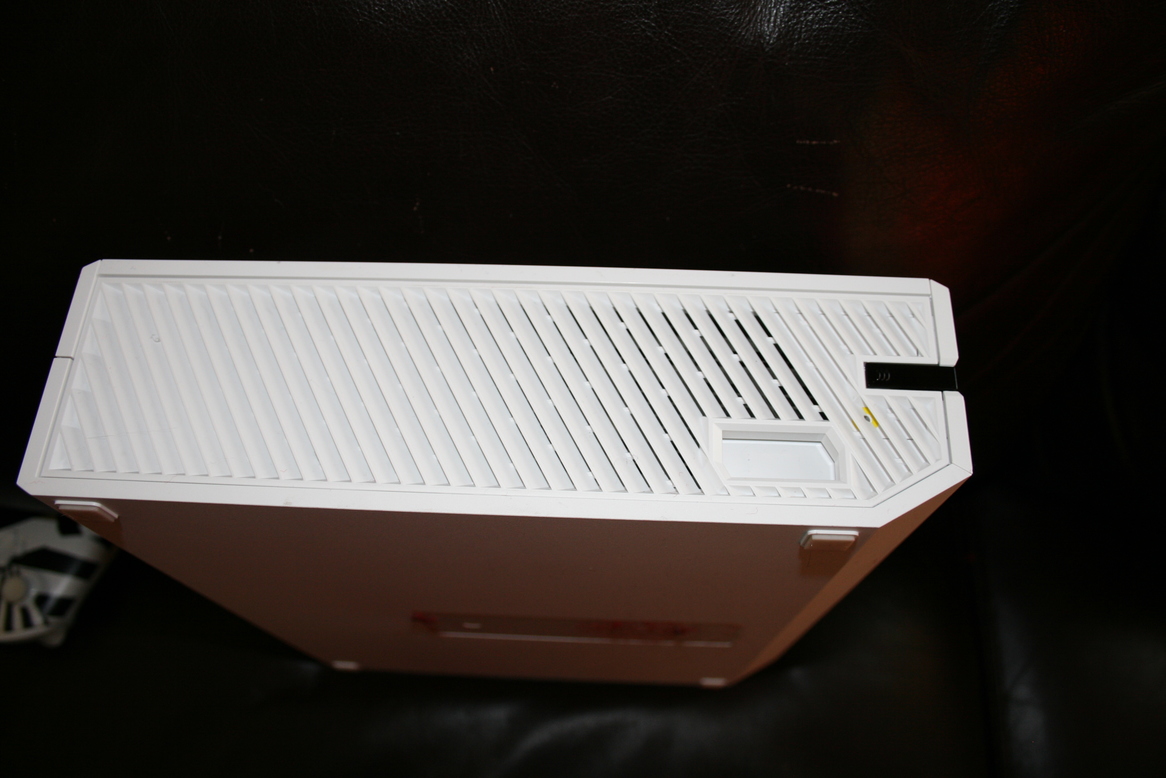

• through the airvents I managed to see different lights and mostly 2 SSD (seven segments display/indicators) which alternate between two numbers as soon as the PSU is plugged in.



Pics would be a bit easier.



corrections :
SSDs turn on when the power button is first touched and stay on after that. there might be more than 2 (hard to see without opening the box)
The side usb is present, and the cover is quite soft (a bit like a more dense/rigid version of electrical tape)



later today or tomorrow.



usb debug port plugged in linux in case it gives any idea to anyone:

[13963.921130] usb 1-1.2: new high-speed USB device number 6 using ehci-pci
[13964.017511] usb 1-1.2: New USB device found, idVendor=0403, idProduct=6011
[13964.017516] usb 1-1.2: New USB device strings: Mfr=1, Product=2, SerialNumber=3
[13964.017520] usb 1-1.2: Product: Greybull FabD+
[13964.017523] usb 1-1.2: Manufacturer: Microsoft
[13964.017525] usb 1-1.2: SerialNumber: XBNDUEW
[13964.365496] usbcore: registered new interface driver ftdi_sio
[13964.365516] usbserial: USB Serial support registered for FTDI USB Serial Device
[13964.365588] ftdi_sio 1-1.2:1.0: FTDI USB Serial Device converter detected
[13964.365627] usb 1-1.2: Detected FT4232H
[13964.365629] usb 1-1.2: Number of endpoints 2
[13964.365631] usb 1-1.2: Endpoint 1 MaxPacketSize 512
[13964.365633] usb 1-1.2: Endpoint 2 MaxPacketSize 512
[13964.365635] usb 1-1.2: Setting MaxPacketSize 512
[13964.365936] usb 1-1.2: FTDI USB Serial Device converter now attached to ttyUSB1
[13964.365956] ftdi_sio 1-1.2:1.1: FTDI USB Serial Device converter detected
[13964.365979] usb 1-1.2: Detected FT4232H
[13964.365981] usb 1-1.2: Number of endpoints 2
[13964.365983] usb 1-1.2: Endpoint 1 MaxPacketSize 512
[13964.365985] usb 1-1.2: Endpoint 2 MaxPacketSize 512
[13964.365986] usb 1-1.2: Setting MaxPacketSize 512
[13964.367095] usb 1-1.2: FTDI USB Serial Device converter now attached to ttyUSB2
[13964.367112] ftdi_sio 1-1.2:1.2: FTDI USB Serial Device converter detected
[13964.367143] usb 1-1.2: Detected FT4232H
[13964.367145] usb 1-1.2: Number of endpoints 2
[13964.367148] usb 1-1.2: Endpoint 1 MaxPacketSize 512
[13964.367150] usb 1-1.2: Endpoint 2 MaxPacketSize 512
[13964.367152] usb 1-1.2: Setting MaxPacketSize 512
[13964.367495] usb 1-1.2: FTDI USB Serial Device converter now attached to ttyUSB3
[13964.367524] ftdi_sio 1-1.2:1.3: FTDI USB Serial Device converter detected
[13964.367579] usb 1-1.2: Detected FT4232H
[13964.367581] usb 1-1.2: Number of endpoints 2
[13964.367583] usb 1-1.2: Endpoint 1 MaxPacketSize 512
[13964.367585] usb 1-1.2: Endpoint 2 MaxPacketSize 512
[13964.367587] usb 1-1.2: Setting MaxPacketSize 512
[13964.368044] usb 1-1.2: FTDI USB Serial Device converter now attached to ttyUSB4​



the pad gets detected too in linux btw so i m hoping it is also working:

[ 1687.955967] usb 1-1.2: new full-speed USB device number 6 using ehci-pci
[ 1688.050630] usb 1-1.2: New USB device found, idVendor=045e, idProduct=02d1
[ 1688.050637] usb 1-1.2: New USB device strings: Mfr=1, Product=2, SerialNumber=3
[ 1688.050641] usb 1-1.2: Product: Controller
[ 1688.050645] usb 1-1.2: Manufacturer: Microsoft
[ 1688.050648] usb 1-1.2: SerialNumber: 0000001
[ 1688.132274] input: Generic X-Box pad as /devices/pci0000:00/0000:00:1a.0/usb1/1-1/1-1.2/1-1.2:1.0/input/input14
[ 1688.133207] usbcore: registered new interface driver xpad​



I finally had time to play with it and I opened the box completely (took a few pics which will be coming later on)
Basically the MB is quite close to this one : http://abload.de/img/20130514-xbox-one-teanzucn.jpg (like really the same except the caps having a different color and the mem chips not having the exact same reference : 2Y instead of 2W. I can t find a real difference except these particular points)
during the opening, the top aluminium part is specifying december 2012, the bottom one january 2013, the br player has a big orange sticker telling it s an engineering sample (also from january 2013).
and here come some specs about the hdd :

Model: ST500LM0 12 HN-M500MBB (scsi)​

Disk /dev/sdb: 500GB​

Sector size (logical/physical): 512B/512B​

Partition Table: gpt​

​

Number Start End Size File system Name Flags​

1 1049kB 17,2GB 17,2GB ntfs Temp Content msftdata​

2 17,2GB 425GB 408GB ntfs User Content msftdata​

3 425GB 468GB 42,9GB ntfs System Support msftdata​

4 468GB 481GB 12,9GB ntfs System Update msftdata​

5 481GB 489GB 7516MB ntfs Future Growth msftdata​

and hdd files (first number is obviously the partition)

./1​

./2​

./2/ConnectedStorage​

./2/manufacturing.exe​

./2/NuiView.ERA_8wekyb3d8bbwe​

./2/VgbView.ERA_8wekyb3d8bbwe​

./2/Xbox.BiometricEnrollmentTool_8wekyb3d8bbwe​

./2/Xbox.Home_8wekyb3d8bbwe​

./2/Xbox.Pixie_8wekyb3d8bbwe​

./2/Xbox.SignIn_8wekyb3d8bbwe​

./2/Xbox.SpeechLab_8wekyb3d8bbwe​

./2/Xos.MteApp_(---edit---some string but not the one above...don t know what it may be related to)​

./3
./4​

./5​

​

So basically, except those files on the second part, nothing lies on the hdd

513M ConnectedStorage​

24K manufacturing.exe​

102M NuiView.ERA_8wekyb3d8bbwe​

102M VgbView.ERA_8wekyb3d8bbwe​

101M Xbox.BiometricEnrollmentTool_8wekyb3d8bbwe​

105M Xbox.Home_8wekyb3d8bbwe​

105M Xbox.Pixie_8wekyb3d8bbwe​

105M Xbox.SignIn_8wekyb3d8bbwe​

103M Xbox.SpeechLab_8wekyb3d8bbwe​

103M Xos.MteApp_(-----)​



Interesting.

Any chance of a strings dump of that manufacturing.exe?



There you go, using strings.exe

!This program cannot be run in DOS mode.
bTC
bTE
Richw
.text
`.rdata
@.data
.pdata
@.rsrc
@.reloc
L$
$0
$X
D$ L
D$ H
$P
L$0
D$
L$0
$0
D$H
D$0
D$@
D$8H
D$@H
T$8H
D$0
|$0
T$0H
L$`
D$(H
D$`H
D$ A
L$@
D$0
|$0
T$0H
L$@
D$0H
L$HH3
D$(
T$pf
D$
|$
D$
L$0
L$0
L$0
L$0
L$0
A8H
@SH
McP
x AVH
Y8H
\$0H
l$8H
t$@H
|$HA
A^
OHc
9PE
='[
D$
AWH
0eH
=6,
|$(
D$ I;
D$ H
|$(
t"H
=}Y
=|Y
=NY
\$@H
t$HH
|$PH
0A_
%$*
@SH
[H
D$HE3
T$PH
L$H
D$@H
|$@
tBH
D$8
D$XH
D$0H
D$`H
D$(H
D$ L
L$@L
D$HH
T$P3
8csm
%*(
u*9Q<|%
HcA<H
8PE
@SH
t(H
f9H\u
LcA<E3
(E;
t"H+
\$0H
HcH<H
9PE
f9Q
\$ UH
H1E
H1E
H1E
H3E
M H
E H
H3E H3E
\$HH
@SH
[H
%t$
t$ WH
D$8H
D$0
L$0E3
L$ H
L$8H3
\$`H
t$hH
\$@H
uoH
l$0
t$8
u)H
l$0H
t$8H
\$@H
\$@
L$
$
$P
L$
L$
$
@SVWAVAWH
|$P
fD9<Ou
D$PH
t$PH
D$XE3
D$HH
D$pE3
D$@L
|$8L
|$0H
|$(D
|$
L$X
L$`
A_A^_^[
\$0H
t$8H
AVH
u%H
\$8H
t$@H
A^
|$0
u)L
y:H
t.H
y'H
|$0H
\$8H
t$@H
A^
@SWH
D$8
D$@H
|$b
uHf
L$@L
D$RH
D$b
D$8A
L$pH
D$
L$PH
D$r
D$H
D$@D
D$D
D$0H
D$PH
T$pA
9w
taL
D$pH
T$0H
xiH
l$0;w
@WH
t1H
\$0f
\$0H
|$ AVH
\$0H
l$8H
t$@H
|$HH
A^
WAVAWH
t+f
t!H
\$@H
l$HH
t$PH
A_A^_
@UVWAWH
D$(3
D$$f
D$
D$$A
D$$H
D$ A
D$ H
D$ f
\$x
\$$L
t$0
F"A
G"A
F&A
G&I
\$xL
t$0H
L$(H3
8A__^]
@SUWH
D$0L
D$,A
D$,H
D$$A
D$$H
D$$H
D$ A
D$ H
t$p
|$
D$ H
D$
D$(A
D$(H
L$(L
t$pH
L$0H3
@_][
u$H
\$0H
t$8H
\$0H
t$8H
\$0H
t$83
|$ AVH
\$0H
l$8H
t$@H
|$HH
A^
WAVAWH
\$@H
l$HH
t$PH
A_A^_
SAUH
D$PI
)t$`L
D$HH
d$HH
|$x
D$0E3
D$(
D$
D$@A
D$DA
L$@
D$DA
L$@f
D$@3
L$HI
D$
D$@9D$H
|$x
(t$`L
L$PH3
A][
D$XA
x#H
D$XL
D$
\$@H
D$
t2H
D$(L+
t E
@UH
@UH
@UH
MFG:
SOFTWARE\Microsoft\MTE\Victoria
Opening registry key.
Failed RegCreateKey. Error: 0x%x
Writing IP to registry.
TesterIp
Failed RegOpenKey. Error: 0x%x
Closing registry key.
Manufacturing bootstrapper running.
X3ConsoleServer.exe
X3ConsoleServer
Attempting connection to %s.
Failed to allocate memory to store IP address.
Failed to copy IP address.
Failed to deserialize IP address. Error: 0x%x
Failed to allocate socket.
Connection to host failed. Error: 0x%x
Connection successful.
Connect function complete.
Retrieving folder %s.
Failed to call session start. Error: 0x%x
Session not ready.
Failed to retrieve session metadata. Error: 0x%x
Server reported session error.
Session ready.
Failed to deserialize IP address for session connection. Error: 0x%x
Failed to generate session socket.
Connecting to host on port %hu.
File %u received successfully.
Failed to receive file %u.
hResult %x GLE %d
Destination file is locked; can't write to it. Error: 0x%x
Failed to reset the connection to the session host. Error: 0x%x
All files downloaded succesfully.
Retrieving and launching file %s from folder %s.
Failed to retrieve folder. Error code: 0x%x
Failed to compute path for file to launch. Error: 0x%x
Computed relative path of file to launch: %s
Failed to compute absolute path of file to launch.
Absolute path of file to launch: %s
Failed to launch %s. Error: 0x%x
Launched %s.
Requesting session start for folder %s.
Failed to allocate buffer for packet.
Transmitting %u bytes of info packet request to tester.
File request transmit failed. Error: 0x%x
Failed to receive session metadata from server.
Requesting session info.
Failed to allocate buffer for session info request.
Transmitting %u bytes of info request to tester.
Session metadata request transmit failed. Error: 0x%x
Receiving session metadata.
Error reading message length: 0x%x
Message length is %u.
Error reading message type: 0x%x
Message type is %u.
Unexpected message type: %u
Failed to allocate buffer to receive metadata.
Failed to read metadata content.
Network read complete. Now deserializing.
GetSessionInfo complete.
File request failed.
File receive failed.
Requesting file %u.
Failed to allocate buffer for file request.
Transmitting %u bytes of file request to tester.
Error reading path length: 0x%x
Path length is %u.
Failed to allocate space to file path.
Error reading path: 0x%x
File path is %s.
Error reading file size: 0x%x
File size is %u.
Failed to write file to disk: %s
Receiving file: %s
Failed to compute final path for file.
Final path on disk: %s
Badly formed file path: %s
Failed to create directory path. Error: 0x%x
Failed to allocate buffer to receive file.
CreateFile on: %s
Failed to open file. Error: %u
%u bytes remaining to receive.
Error reading packet length: 0x%x
Unexpected message type: %hu
Failed in main receive loop. Error: 0x%x
Error in writing file to disk. Error code: %u
Unknown write error in writing file to disk.
File write complete.
Creating folder path: %s
%s is a drive root. Nothing to do.
Unable to create directory. Possibly badly formed: %s
Error in calling create directory. Error: %u %s
Getting final path.
Relative path provided: %s
Failed to allocate memory to compute final path.
e:\Mfg\
Failed to initialize folder path. Error: 0x%x
Failed to initialize alternate folder root. Error: 0x%x
Badly formed relative path encountered.
Failed to concatenate folder paths. Error: 0x%x
Computed final path: %s.
Receive failed. %u bytes read.
Resetting connection to download server.
Failed to regenerate socket.
Connection successfully reset.
RSDS
C:\tfs\MTE_DURANGO\EV2B\Source\Release\x64\MfgBootstrapper.pdb
wcslen
vswprintf
msvcrt.dll
__CxxFrameHandler3
_XcptFilter
_amsg_exit
__wgetmainargs
__set_app_type
exit
_exit
_cexit
__setusermatherr
_initterm
__C_specific_handler
_fmode
_commode
?terminate@@YAXXZ
OutputDebugStringW
RegCloseKey
RegCreateKeyW
RegSetValueExW
Sleep
RtlCaptureContext
RtlLookupFunctionEntry
RtlVirtualUnwind
UnhandledExceptionFilter
SetUnhandledExceptionFilter
GetCurrentProcess
TerminateProcess
GetModuleHandleW
QueryPerformanceCounter
GetCurrentProcessId
GetCurrentThreadId
GetSystemTimeAsFileTime
GetTickCount
kernelx.dll
WS2_32.dll
memcpy_s
wcschr
ntdll.dll
??2@YAPEAX_K@Z
free
malloc
CreateDirectoryW
CreateFileW
WriteFile
CloseHandle
GetLastError
CreateProcessW
WSAStringToAddressW
<?xml version='1.0' encoding='UTF-8' standalone='yes'?>
<assembly xmlns='urn:schemas-microsoft-com:asm.v1' manifestVersion='1.0'>
<trustInfo xmlns="urn:schemas-microsoft-com:asm.v3">
<security>
<requestedPrivileges>
<requestedExecutionLevel level='asInvoker' uiAccess='false' />
</requestedPrivileges>
</security>
</trustInfo>
</assembly>



As promised, I removed all serials just in case



i so want one of theese



want is one think, second is possibiliy to getting beta/alpha or even recovery.
anyway soeone is able to convert final release to be able to run on dev kit?
removing retail flag like on X1 X360



Would love to get my hands on a zebra printed one.



The strings are of what looks like a standard 64-bit Windows application. (.pdata, RtlLookupFunctionEntry and RtlVirtualUnwind tell me that it's 64-bit.)

I'm curious whether the zebra pattern is unique and indicates the serial number of the device.



The strangest thing is that "IS 616:2008" marking - this is a prototype that was presumably designed in the US and made in China - but it doesn't have any US or Chinese compliance markings - just an Indian one...



SamY, do you mind editing your post and deleting everything after "@.reloc" and before "MFG:"? Those are all false positive hits for strings and just clutter this thread.

Thanks! <3

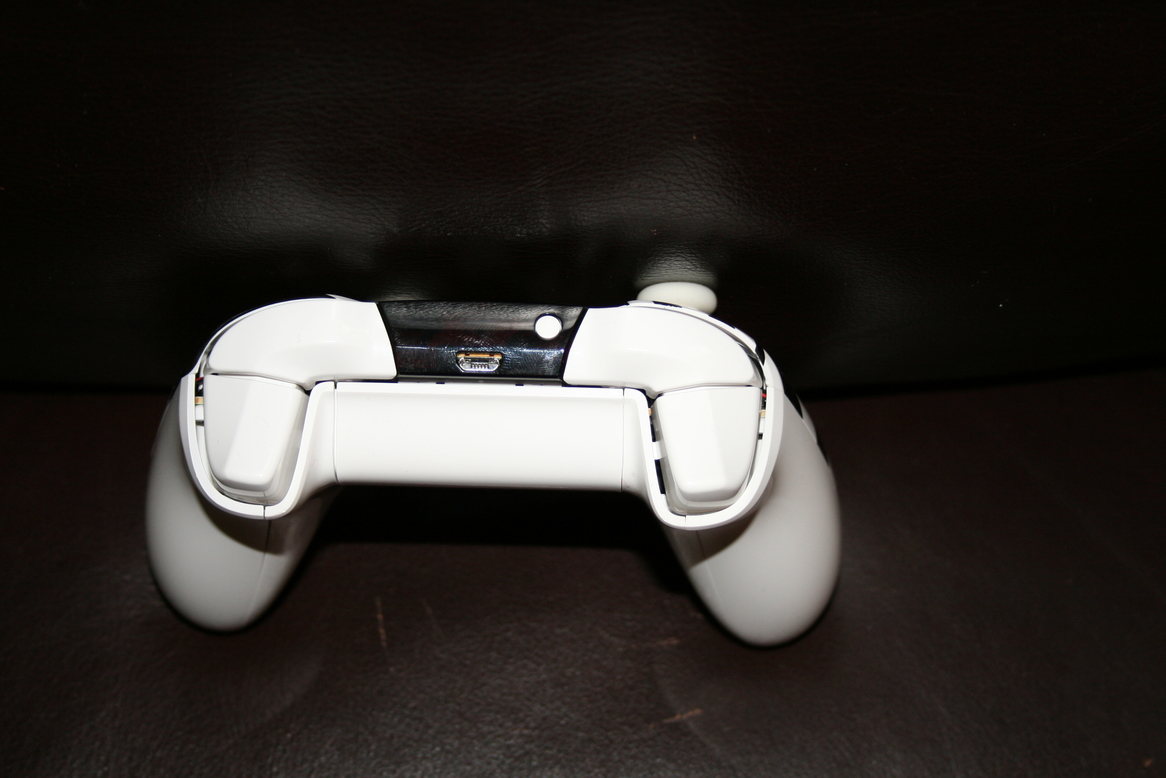

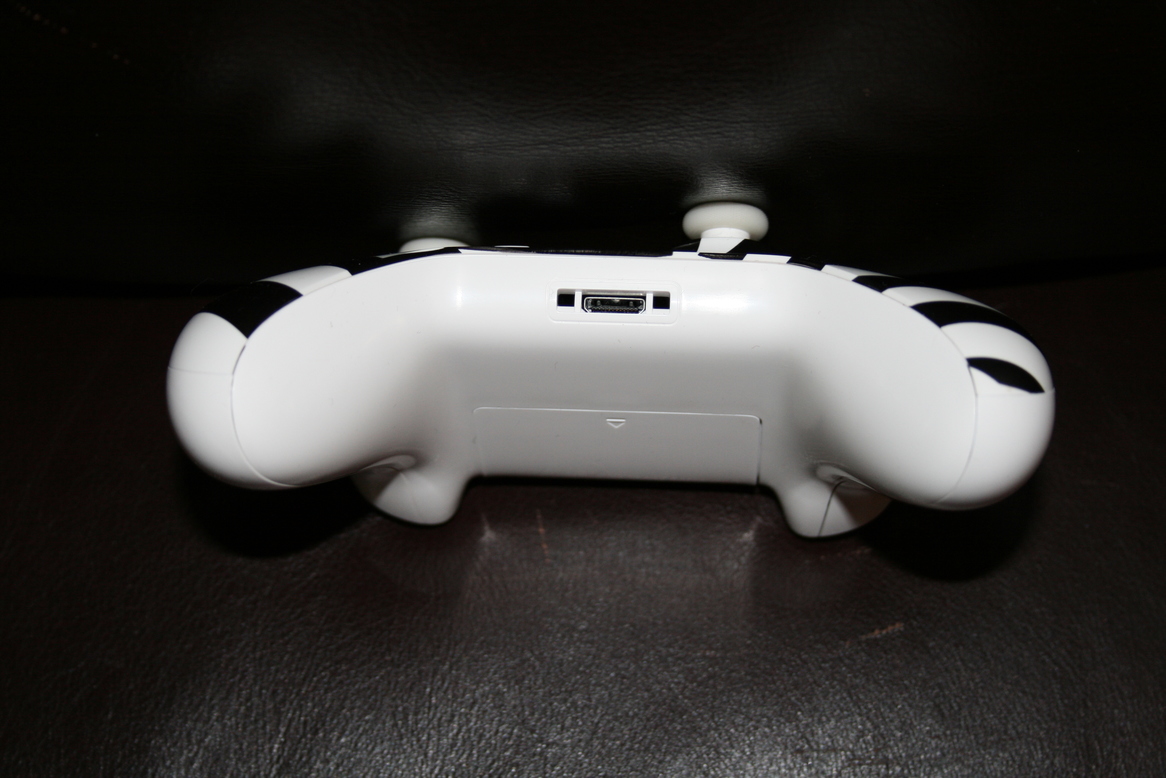

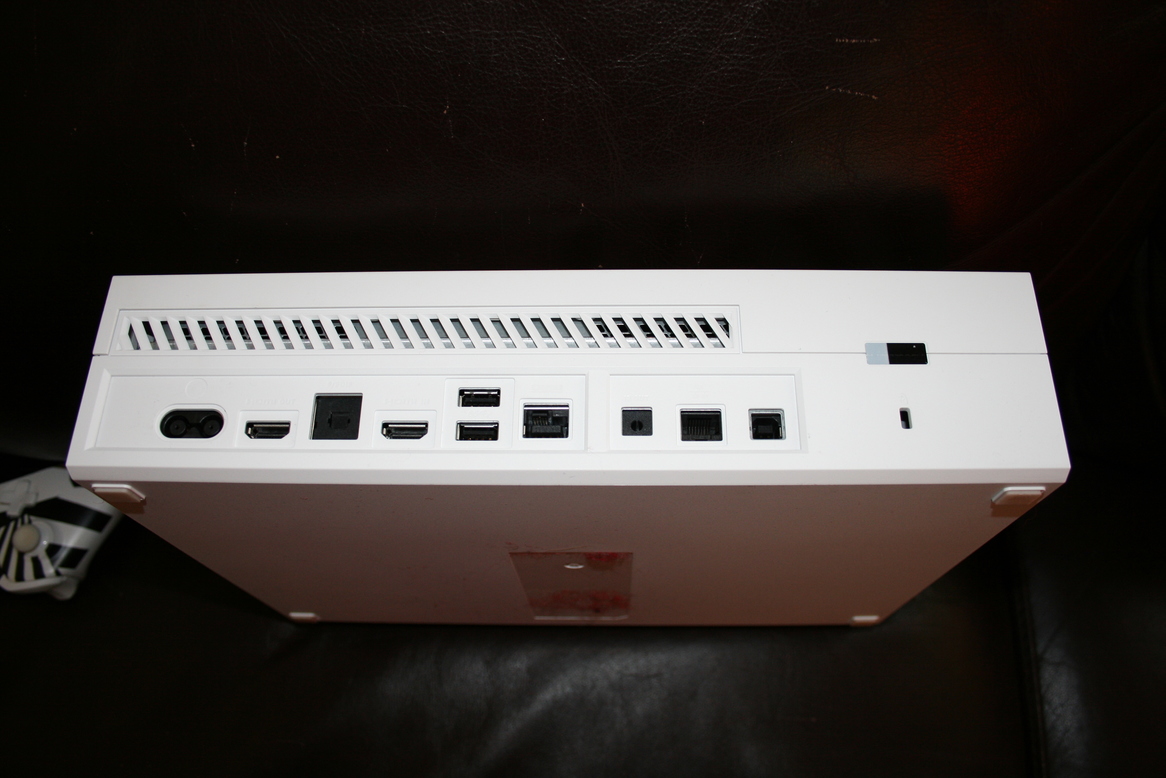

(removed pictures, sorry: see first page of this thread, zebra printed xbox ones)
@Myria
I dont think the zebraprint is unique, but this is missing a QR code (maybe removed or never put on)



Holyshit! Thanks for the pictures SamY!!! Beautiful looking system, Microsoft should really consider this a Limited Edition colour in the future. (will never happen)



@SamY, I thought all Zebras were supposed to be turned in by August, how did you manage to keep yours?



I was thinking about that zebra pattern. Is it possible MS added it for the same reason car manufacturers add it to a prototype?
