Can this saturn be saved ?

i mean the side where the laser eye is.....................

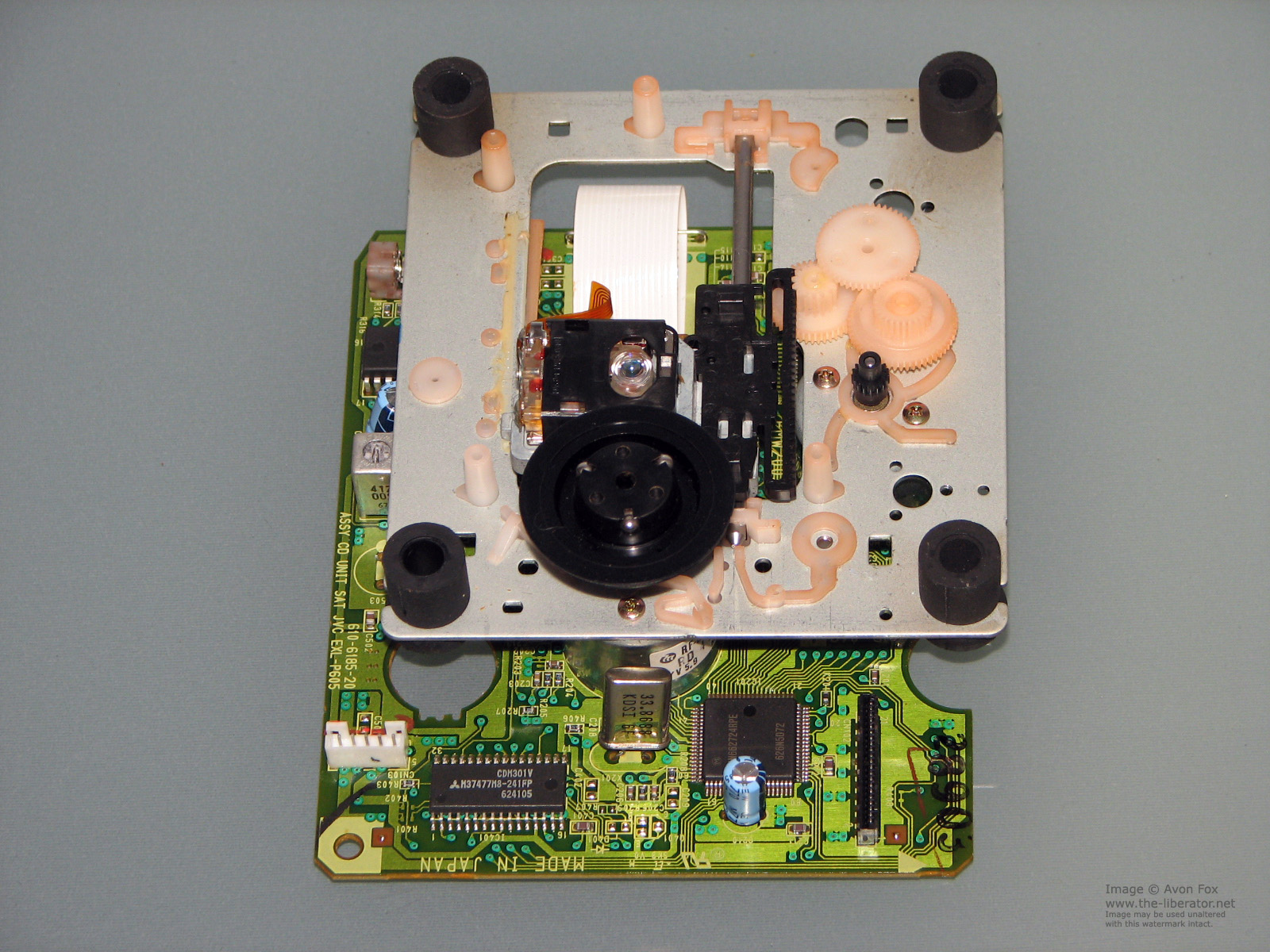

you can see in the below pic at the bottom left theres a chip there , this drive is a 32 Pin



x



There is a photo of the machine on page 3 of this thread - it's using what looks like the JVC EXL-P605 drive and it's 32 pin. I just checked the cable on one of the machines I have here and it's 11.6cm long.



PM APE



I still haven't got a ribbon cable for my saturn.
So i checked ebay. Will this cable do the job ?

http://www.ebay.nl/itm/291124692425?ssPageName=STRK:MEWAX:IT&_trksid=p3984.m1423.l2649



AFAIK you need non inverted version.



No - the pitch is too narrow.

If you get really stuck, I can pull one of a scrap machine and send it to you, but it might take a while to arrive. If you don't mind having a grey reset button, I can send that too.

Edit:

And, as the other poster pointed out, the Saturn cable has the contacts on the same side on both ends.

I just checked, and the full specs are as follows:

Length: 116mm
Stripped length: 4.5mm (each end)
Contact orientation: Same side both ends
Pitch: 1mm
Overall width: 22mm

On this cable, the precise marking is:

E66085 (RU) AWM 2896 80C VW-1 BANDO-S

(RU) = UL component compliance mark, like an inverted RU
