Dreamcast BIOS chips (MX29LV160TMC-90)

Discussion in 'The ASSEMblergames Marketplace' started by Bad_Ad84, Jun 10, 2011.

Thread Status:
Not open for further replies.
  1. TriMesh

    TriMesh Site Supporter 2013-2017

    Joined:
    Jul 3, 2008
    Messages:
    2,324
    Likes Received:
    750
    On the board I have, that via is connected to pin 10 (A1) on the boot ROM and pin 19 (A2) on the TSOP flash - which seems perfectly plausible, since the boot ROM is a 16 bit device with a A-1 line.

  2. Bad_Ad84

    Bad_Ad84 The Tick

    Joined:
    May 26, 2011
    Messages:
    8,566
    Likes Received:
    1,309
    Or just use the schematic
    Or just expose some of the copper of the trace and check each pin on IC502
    or...

  3. DragoonC

    DragoonC Spirited Member

    Joined:
    Jan 15, 2013
    Messages:
    134
    Likes Received:
    16
    @ TriMesh

    Thanks you very much, i'll try it out tomorrow !
    seems like you have the right knowledge, so I might aske you another question.
    which line from the Boot Rom must be connected, Pin numbers?

    @ Bad_Ad84

    which schematic do you mean?
    traces are too tiny to meassure anything good with my multimeter, pins on the TSOP also..

    Last edited: Dec 12, 2013
  4. TriMesh

    TriMesh Site Supporter 2013-2017

    Joined:
    Jul 3, 2008
    Messages:
    2,324
    Likes Received:
    750
    OK, I just had another look, and it's slightly more complicated than I was thinking.

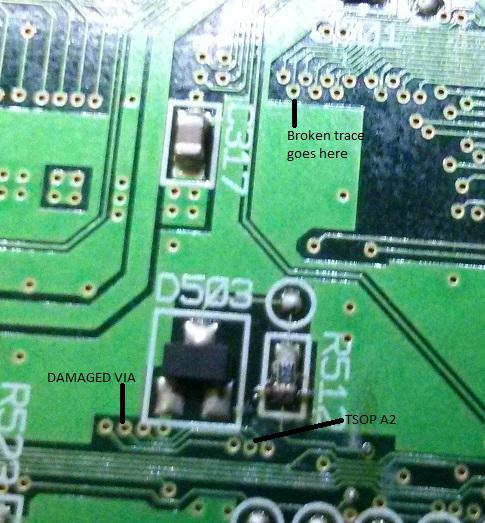

    The damaged via in your photo had 3 connections coming from it - one went to pin 19 of the TSOP (through the via), one went to pin 10 of the boot ROM (the trace going down) and the final one goes to the power VR (the trace heading up) - but the via for this is underneath the TSOP.

    A photo might make it easier.

    You need to connect up all 3 points - if you link the point marked "Broken trace goes here" to "TSOP A2" on the back of the board and then jumper TSOP pin 19 to boot ROM pin 10, it should be right.


    [​IMG]

  5. DragoonC

    DragoonC Spirited Member

    Joined:
    Jan 15, 2013
    Messages:
    134
    Likes Received:
    16
    Big thanks to TriMesh !
    I connected Pin 10 Boot Rom, to alternative point under the board, from there to another point that connects to pin 19 on TSOP and from there to the point under the TSOP that runs to the PowerVR.
    I works again :D

  6. potsigall

    potsigall Newly Registered

    Joined:
    Nov 9, 2014
    Messages:
    2
    Likes Received:
    0
    hello, need to buy bios. please contact

  7. onza120

    onza120 Site Supporter 2014

    Joined:
    Apr 24, 2013
    Messages:
    200
    Likes Received:
    10
  8. retro

    retro Resigned from mod duty 15 March 2018

    Joined:
    Mar 13, 2004
    Messages:
    10,354
    Likes Received:
    822
    Please don't bump an old thread when the first post refers you to the new sales thread. Go there instead.

    Closed.
