[MOD] Aladdin XBlast

In red in the image, how do I do that?



I didn't even think about this option, this would be way better than the flashbios on the backup rom because it has all the options right there for recovery



in the image I did it. and when I power on, it restarted two time in green and then orange light started flashing and the fan starts roaring(spin fast) and automatically just power off.



If you have another modchip, install it and boot the Xbox. After running/booting Evox dashboard, pull the modchip from the LPC header. Connect the second modchip, modified Aladdin_XBlast, to the LPC pin header. Select the System Utils -> Flash BIOS to write/flash the XBlastOS v0.55 to the SST49LF080A on the upgraded Aladdin_XBlast modchip.



If you install a modified Aladdin_XBlast modchip in a v1.6 Xbox, you should not need to cut the LFRAME trace as bennydiamond's updated CPLD code properly disables drive to LFRAME. Use the Aladdin_XBlast's L1 pad for connection to LFRAME.

On v1.0-1.5 Xbox's, instead of L1 use D0 pad on modchip for connection to D0 point/via on Xbox motherboard.



L1 and BT on the original Aladdin XT plus 2 modchip are used for power button (BT) length mode selection enable/disable modchip (some Aladdin modchips used a 2 second power button press to disable write protection of the flash) and L1 to front panel LED for ??? (seen a couple different functions signalled on LED but not sure which is correct). I've not used L1 or BT on Aladdin XT plus2 connected to the front panel power button and LED connect points to verify functionality stated above.

These pads, L1 and BT, are not used in the same manner once the Aladdin XT plus 2's CPLD has been reprogrammed with the Aladdin_XBlast logic code using a JTAG programmer and proper SFV file.

L1 -> LFRAME of a v1.6 Xbox.
BT -> ??? (default bank select)



can you recommend where I can buy the JTAG programmer?



You could build one as bennydiamond did (see first post this thread and docs in the archive). Or, if you use urJTAG software look here for a long list of supported JTAG adapter/cables. If your PC doesn't have a true parallel printer port, there are several supported USB versions listed. It seems some of those cables are no longer in production.

Also, read more about the software and an updated list of supported adapter/cables:

UrJTAG @ sourceforge.net and on the UrJTAG website.
​

Homebrew USB JTAG adapter project.

Try Amazon too for the Altera USB Blaster/Blaster 2. Similar less expensive products are listed under the "Customers who bought this item also bought" section.

Not exactly sure which will or will NOT work. I've not used any of them to program a Lattice LC4032V CPLD -- as I've not yet performed this mod.

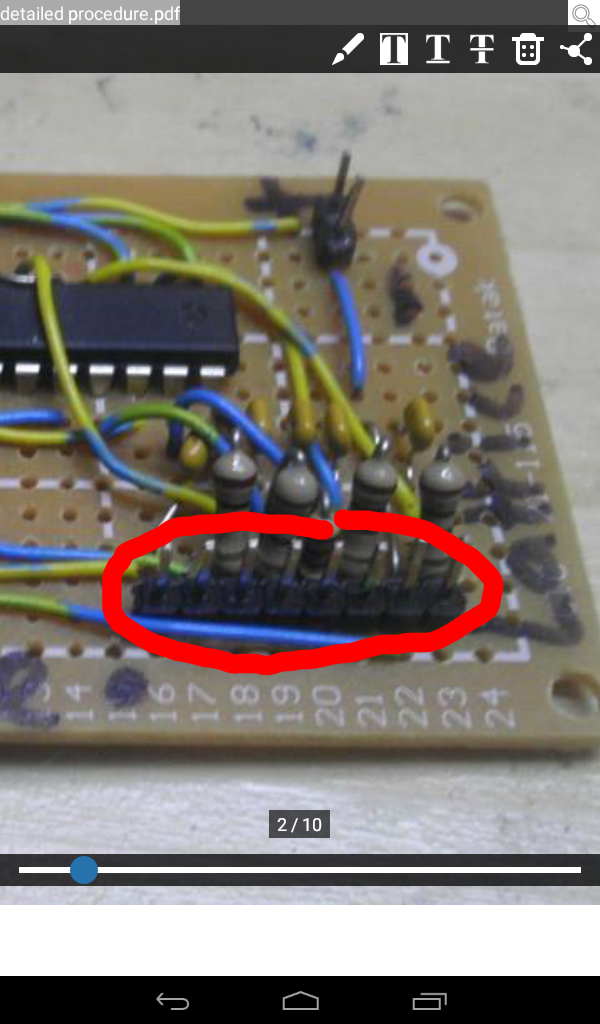

in red, do the Aladdin xt modchip goes there?



Yes, look at the PDF docs in the archive. Bennydiamond's also included a schematic for a USB JTAG programmer you could build instead of the Parallel Port JTAG programmer.

Parallel JTAG Programmer Header

JTAG Programmer Header => AladdinXT JTAG Pads
=========================================
pin 8 SCLK => TCK
pin 7 GND => GND (user supplied power)
pin 6 MODE => TMS
pin 5 RESET => no connection
pin 4 -ispEN => no connection
pin 3 SDIN => TDI
pin 2 SDOUT => TDO
pin 1 Vcc (3.3V) => 3.3V (user supplied power)
Bennydiamond or Bad_Ad84 a bit of help here. Thanks!

Not quite sure if these are the correct connections to the JTAG pads on the Aladdin XT plus 2. I looked at another Xilinx download cable, not quite the same as a Lattice isp Cable - guess I looked at the wrong JTAG cable for comparison, and it had a different ordering of the pins and only the 6 JTAG signals not 8 shown above. That's why the RESET and -ispEN have no connection. Get some Dupont jumper wires with 1 end terminated female header and the other end a male pin to solder to the Aladdin XT. (Use a different color for the six connections to help keep things straight. [Red - Vcc (3.3V), Black - GND, and 4 other colors for TCK, TMS, TDI and TDO]

Lattice Parallel Programming Cable Wire Color Code


You'll need a 3.3V power supply connected to pin 1 (3.3V) and pin 7 (GND) of the 1x8 header to power the programmer and AladdinXT's LC4032V CPLD chip (modchip is not installed in Xbox to program the CPLD).

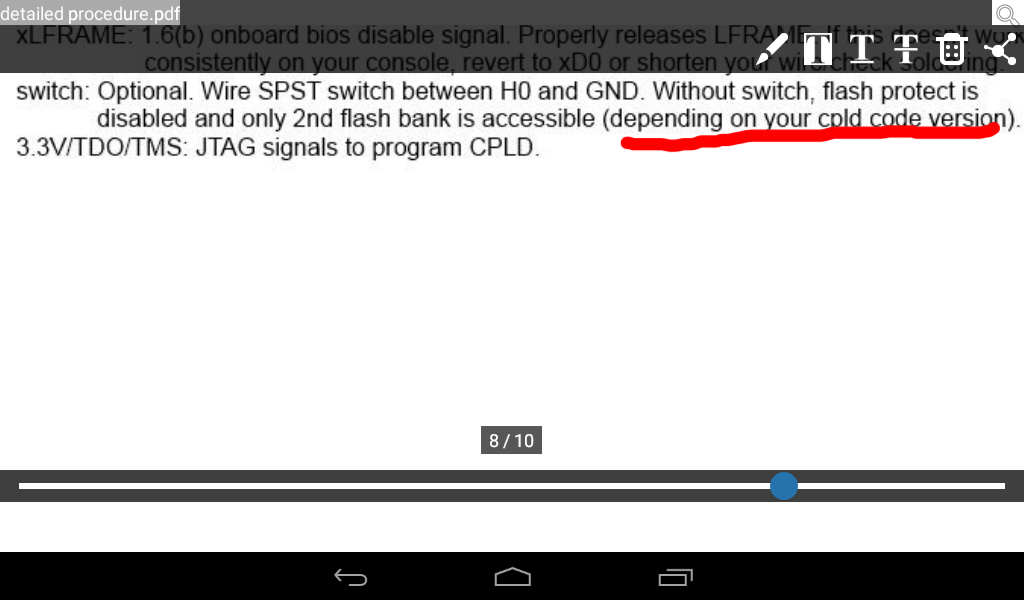

in red underline in the image, I might put a switch if I flash the modchip with a 256kb flash protect .svf, is the 2nd flash bank will be accessible?



there is no second bank on the 256kb only version



Aladdin XT plus 2 updated CPLD non-XBlast code versions support either:

1. one (1) 256KByte bank (2Mbits) with the stock flash memory chip,
2. two (2) 512KByte banks (8Mbits) swapping out stock flash with a SST49LF080A, or
3. one (1) 1MByte bank (8Mbits).

These different bank configurations require different SVF files to reprogram the LC4032V CPLD. The second and third configuration also require swapping out the original 2Mbit flash, SST49LF020A, with an 8Mbit flash - SST49LF080A.

These specifics are discussed in the documentation found inside the AladdinXT_NewCode_v2.zip archive.



can you make me a JTAG programmer hardware? and sale me it



You can probably find one cheaper on eBay than I could build.

Does your PC have a parallel printer port? If so, Lattice HW-DLN-3C on eBay for $25.00 with Free US standard shipping from Israel. wow!

Or, USB HW-USBN-2 for $18.99 + S&H.

Or, the latest ispDOWNLOAD cables at full retail price digikey.com $74.84 and $170.69, respectively.

More information from Lattice Semiconductor:
Programming Cables for PCs



Unless you are making a lot of then, it's cheaper to just buy the chip pre upgraded from me for £15, including the upgraded 1MB flash chip.

If it's for fun/multiple use then disregard.



yes my PC has a parallel printer port. if I buy this http://www.ebay.com/itm/Lattice-25-...3C-/253062944291?_trksid=p2385738.m2548.l4275 , please help me how to use it? and how and what



maybe I will buy chip from you in the future.



You'll use the same software that bennydiamond shows in the first post of this thread. How to use is explained in the documentation there and also in the archive with all the SVF files attached to that post.

There does seem to be a problem finding Lattice's ispVM package for download. Lattice has their latest Diamond Software easily accessible for download/licensing on their website: http://www.latticesemi.com/Products/DesignSoftwareAndIP.aspx

However, I found a copy of the older ispVMSystem version:

hxxp://files.latticesemi.com/ispvm/18.1/ispVMSystem18.1.exe (edit uri protocol)
(32.1MB - MD5: 9AC0F79EC6F04D9C849BF11A2428F45B)

and I'm guessing a minor update version:

hxxp://files.latticesemi.com/ispVM/ispVMSystemV18.1.1.zip (edit uri protocol)
(31.5MB - MD5: 5EB9BEFB00F0BD802F08AE21C81A4375).



How much voltage and time and watts does the Aladdin XT plus2 modchip PCB board used electricity? for example, the printed circuit board I made it only take 2.5v? think i want to upgrade our power supply output (https://assemblergames.com/threads/xbox-power-supply-help.49562/) because the modchip take up voltage and time while it is on the 1.6 motherboard.
