Sega Saturn long life battery

Discussion in 'Sega Saturn Programming and Development' started by ASSEMbler, Mar 14, 2006.

Watch Thread
Page 3 of 4
  1. alphagamer

    alphagamer What is this? *BRRZZ*.. Ouch!

    Joined:
    Jun 25, 2008
    Messages:
    3,255
    Likes Received:
    10
    That's awesome :)

    alphagamer, Feb 5, 2014 Report
    #41 + Quote Reply
  2. 8bitForLife

    8bitForLife Active Member

    Joined:
    Jul 3, 2012
    Messages:
    37
    Likes Received:
    1
    8bitForLife, Feb 5, 2014 Report
    #42 + Quote Reply
  3. ASSEMbler

    ASSEMbler Administrator Staff Member

    Joined:
    Mar 13, 2004
    Messages:
    19,394
    Likes Received:
    995
    I wonder if one could put a clock circuit in a controller and have it automatically correct it.

    1994 -> 2014 correction circuit in controller concept:

    Low power clock + low power logic (could be anything cheap and low power in the nanoamphour

    Power on sense, timed wait for the clock correct screen to pop up.

    Small program to correct the time, varying on location (Do EU saturn units do month first or day?)

    month up/down input +/- 11, right input for next field, correct the date up/down input for +/- 1-30, right input next field, correct year(currently up input 20 times), save, exit and then reset command abcstart

    Chip then disables. I don't know if the controller port voltage drops out in reset, if it does it would make it more complex compared to just sensing for 5v as a trigger for the circuit.



    [TABLE]
    [TR]
    [TD="colspan: 7"] Bit Assignments
    [/TD]
    [/TR]
    [TR]
    [TH="width: 24, bgcolor: #ffffff"] S0
    [/TH]
    [TH="width: 24, bgcolor: #ffffff"] S1
    [/TH]
    [TD="width: 3, bgcolor: #ff0000"][/TD]
    [TH="width: 23, bgcolor: #ffffff"] D0
    [/TH]
    [TH="width: 22, bgcolor: #ffffff"] d1
    [/TH]
    [TH="width: 20, bgcolor: #ffffff"] d2
    [/TH]
    [TH="width: 22, bgcolor: #ffffff"] d3
    [/TH]
    [/TR]
    [TR]
    [TD="width: 24, bgcolor: #000000"] Off
    [/TD]
    [TD="width: 24, bgcolor: #000000"] Off
    [/TD]
    [TD="width: 23, bgcolor: #ffffff"] Z
    [/TD]
    [TD="width: 22, bgcolor: #ffffff"] Y
    [/TD]
    [TD="width: 20, bgcolor: #ffffff"] X
    [/TD]
    [TD="width: 22, bgcolor: #ffffff"] R
    [/TD]
    [/TR]
    [TR]
    [TD="width: 24, bgcolor: #ffff00"] On
    [/TD]
    [TD="width: 24, bgcolor: #000000"] Off
    [/TD]
    [TD="width: 23, bgcolor: #ffffff"] B
    [/TD]
    [TD="width: 22, bgcolor: #ffffff"] C
    [/TD]
    [TD="width: 20, bgcolor: #ffffff"] A
    [/TD]
    [TD="width: 22, bgcolor: #ffffff"] St
    [/TD]
    [/TR]
    [TR]
    [TD="width: 24, bgcolor: #000000"] Off
    [/TD]
    [TD="width: 24, bgcolor: #ffff00"] On
    [/TD]
    [TD="width: 23, bgcolor: #ffffff"] Up
    [/TD]
    [TD="width: 22, bgcolor: #ffffff"] Dn
    [/TD]
    [TD="width: 20, bgcolor: #ffffff"] Lt
    [/TD]
    [TD="width: 22, bgcolor: #ffffff"] Rt
    [/TD]
    [/TR]
    [TR]
    [TD="width: 24, bgcolor: #ffff00"] On
    [/TD]
    [TD="width: 24, bgcolor: #ffff00"] On
    [/TD]
    [TD="width: 23, bgcolor: #ffffff"] -
    [/TD]
    [TD="width: 22, bgcolor: #ffffff"] -
    [/TD]
    [TD="width: 20, bgcolor: #ffffff"] -
    [/TD]
    [TD="width: 22, bgcolor: #ffffff"] L
    [/TD]
    [/TR]
    [/TABLE]

    So six lines and one for voltage sense plus circuit power. I suppose it would be best to use the wireless controllers as they have 2x AA batteries.

    Mind you I am probably inaccurate in some aspects of this and power consumption would be the goal, which might up the costs.

    A button cell could power the circuit for 4-5 years

    Last edited by a moderator: Feb 5, 2014
    ASSEMbler, Feb 5, 2014 Report
    #43 + Quote Reply
  4. Bad_Ad84

    Bad_Ad84 The Tick

    Joined:
    May 26, 2011
    Messages:
    8,566
    Likes Received:
    1,308
    Even if this was a good idea, which I am not so sure about. Why would you put it in the controller? Just put it in the console and add some batteries inside the case. But if you are doing that, may as well just put a much larger battery in the saturn and not worry about it.

    Bad_Ad84, Feb 5, 2014 Report
    #44 + Quote Reply
  5. 8bitForLife

    8bitForLife Active Member

    Joined:
    Jul 3, 2012
    Messages:
    37
    Likes Received:
    1
    now to do the saft battery would i just need to solder wire on both ends of battery and solder the wires were the normal battery goes? I have never done this before. I have changed out my dreamcast batteries for a battery holder for easy change later.

    8bitForLife, Feb 5, 2014 Report
    #45 + Quote Reply
  6. Rogue

    Rogue Intrepid Member

    Joined:
    Feb 15, 2008
    Messages:
    638
    Likes Received:
    28
    Damn... the thing is set for more than a year with a new battery... why bother... ¬¬

    And the Saturn already have a battery holder.. it's not really like the Dreamcast you know...

    Rogue, Feb 5, 2014 Report
    #46 + Quote Reply
  7. ASSEMbler

    ASSEMbler Administrator Staff Member

    Joined:
    Mar 13, 2004
    Messages:
    19,394
    Likes Received:
    995


    Because some of us have a lot of saturn systems and it's problem on all of them.

    Last edited by a moderator: Feb 5, 2014
    ASSEMbler, Feb 5, 2014 Report
    #47 + Quote Reply
  8. Rogue

    Rogue Intrepid Member

    Joined:
    Feb 15, 2008
    Messages:
    638
    Likes Received:
    28
    And what? Totally make sense setting up all the clocks and not using the save feature at all...

    I mean, if you want to "use" some of them, why the clock is more important than the memory.

    Rogue, Feb 5, 2014 Report
    #48 + Quote Reply
  9. ASSEMbler

    ASSEMbler Administrator Staff Member

    Joined:
    Mar 13, 2004
    Messages:
    19,394
    Likes Received:
    995
    If it's not a special collectible Saturn, you can wire it to the board. I'd use some sort of easy disconnect.

    If you have a special Saturn, get a soda can and cut two discs out. Solder the wires the them and then sandwich some epoxy in between ensuring the correct thickness is attained and use it in the stock battery holder.

    ASSEMbler, Feb 5, 2014 Report
    #49 + Quote Reply
  10. ASSEMbler

    ASSEMbler Administrator Staff Member

    Joined:
    Mar 13, 2004
    Messages:
    19,394
    Likes Received:
    995
    It's a pain given the saturn's design. Saturn is also the first system to have games change according to the date and time (xmas nights, etc)

    ASSEMbler, Feb 5, 2014 Report
    #50 + Quote Reply
    A Murder of Crows likes this.
  11. Druidic teacher

    Druidic teacher Officer at Arms

    Joined:
    Jun 6, 2006
    Messages:
    3,643
    Likes Received:
    129
    x

    Last edited: Jun 22, 2017
    Druidic teacher, Feb 5, 2014 Report
    #51 + Quote Reply
  12. Helder

    Helder Site Supporter 2014,2015

    Joined:
    Apr 6, 2013
    Messages:
    981
    Likes Received:
    54
    Could you post a link to that mod? I want to read more info on it and possibly do it if its effective.

    Helder, Feb 5, 2014 Report
    #52 + Quote Reply
  13. SaturnHST

    SaturnHST Spirited Member

    Joined:
    Sep 21, 2010
    Messages:
    190
    Likes Received:
    41
    I just got a "for parts" US Saturn today (which works perfectly fine so I don't know why he said it was non-working). In the battery bay was a CR2032 with the little ribbon still in place. I yanked it out, tested it out, and the time/date was still saved after the console was powered off for awhile. I don't know how the battery could still be alive after all these years. I had the same discovery with another US Saturn a few months ago.

    SaturnHST, Feb 5, 2014 Report
    #53 + Quote Reply
  14. Flash

    Flash Dauntless Member

    Joined:
    Oct 18, 2011
    Messages:
    739
    Likes Received:
    67
    I have Donkey Kong for GB, a few FC carts with batteries - saves are still here. For some games it's almost 30 years.

    Flash, Feb 6, 2014 Report
    #54 + Quote Reply
  15. ASSEMbler

    ASSEMbler Administrator Staff Member

    Joined:
    Mar 13, 2004
    Messages:
    19,394
    Likes Received:
    995
    Difference in design.

    ASSEMbler, Feb 6, 2014 Report
    #55 + Quote Reply
  16. APE

    APE Site Supporter 2015

    Joined:
    Dec 5, 2005
    Messages:
    6,416
    Likes Received:
    138
    APE, Feb 8, 2014 Report
    #56 + Quote Reply
  17. TriMesh

    TriMesh Site Supporter 2013-2017

    Joined:
    Jul 3, 2008
    Messages:
    2,324
    Likes Received:
    750
    I think they are rated at 10+ years shelf life to 90% capacity, so if they were completely off load they might last for a very long time.

    TriMesh, Feb 9, 2014 Report
    #57 + Quote Reply
  18. AndehX

    AndehX You got boost power!

    Joined:
    Apr 7, 2016
    Messages:
    356
    Likes Received:
    68
    Bumping an old thread here, but this is a cool mod, so shoot me.

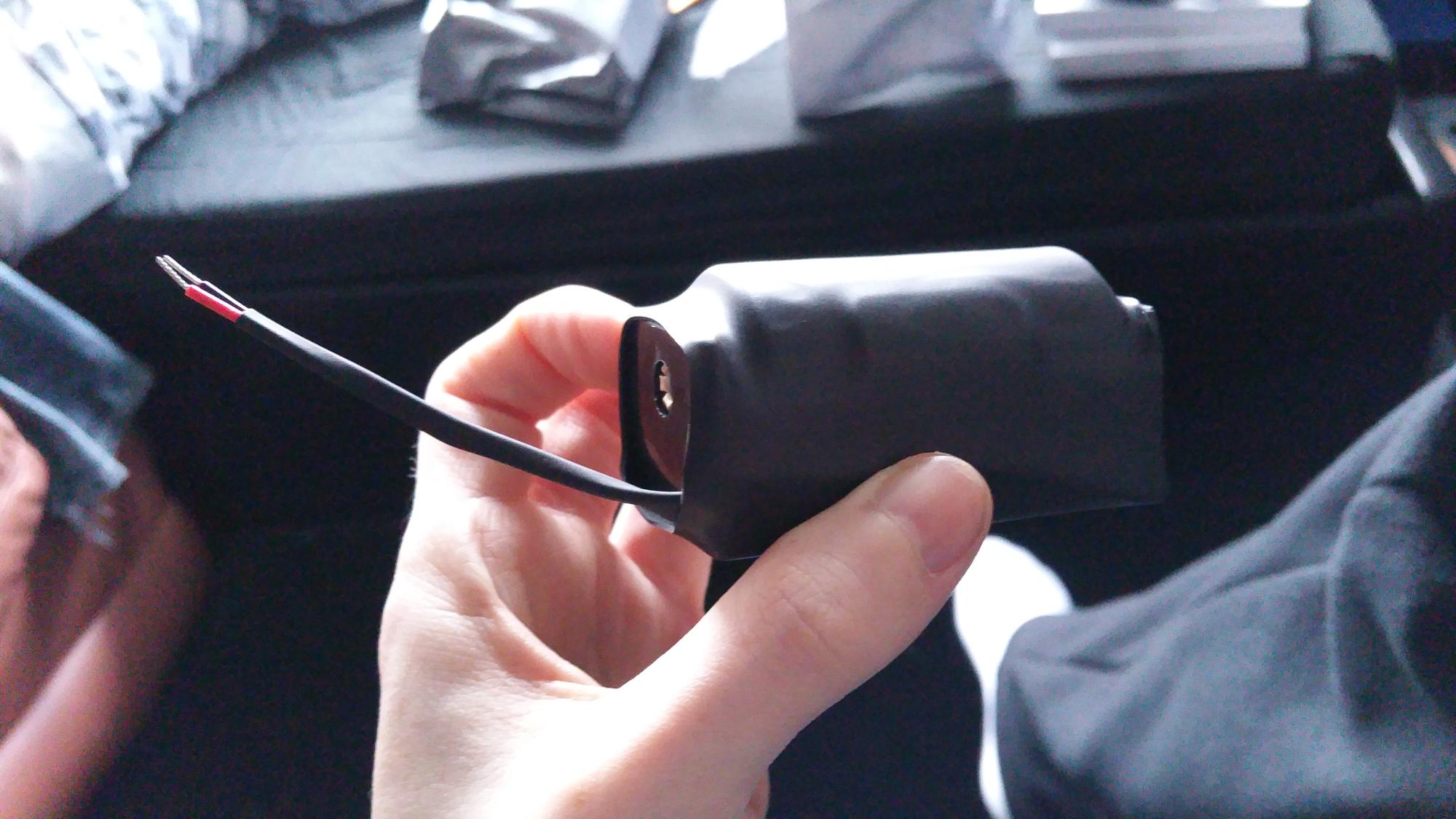

    I managed to grab a SAFT LSH 20 battery off ebay for £10. Put it into a D size battery holder, sealed in heatshrink and soldered it in. It was extremely hard to find somewhere to put the battery inside the console. I managed to squeeze it in where the power supply usually sits, but only because I replaced it with a picoPSU. It's a tight fit, but i'll never have to replace the battery again for a LONG time.


    AndehX, Jan 19, 2017 Report
    #58 + Quote Reply
    Getta Robo and Yakumo like this.
  19. Yakumo

    Yakumo Pillar of the Community *****

    Joined:
    Mar 14, 2004
    Messages:
    20,515
    Likes Received:
    1,050
    I like this and surprised I've never bothered to do it myself.

    Yakumo, Jan 19, 2017 Report
    #59 + Quote Reply
  20. AndehX

    AndehX You got boost power!

    Joined:
    Apr 7, 2016
    Messages:
    356
    Likes Received:
    68

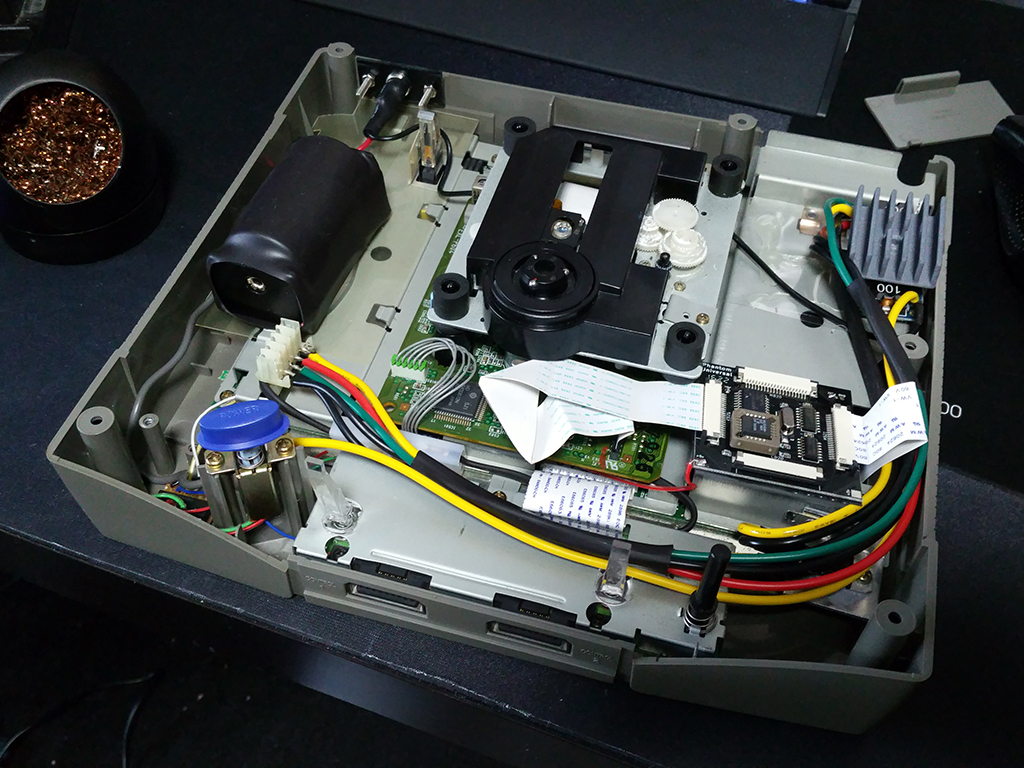

    Ok here's the final layout of all the modifications done to my Saturn. This is literally the only place I could fit the battery, which meant I had to move the picoPSU to the other side. Those 4 SMD capacitors on the picoPSU get VERY hot too, so I dropped a small heatsink on top of them.

    2017-01-24 15.35.21.jpg

    AndehX, Jan 24, 2017 Report
    #60 + Quote Reply
    Getta Robo and Kuririn84 like this.
