Sourcing a Nintendo multi out socket?

Discussion in 'Nintendo Game Development' started by adimifus, Dec 1, 2013.

  1. BuffaloWing

    BuffaloWing Robust Member

    Joined:
    Jul 31, 2012
    Messages:
    277
    Likes Received:
    27

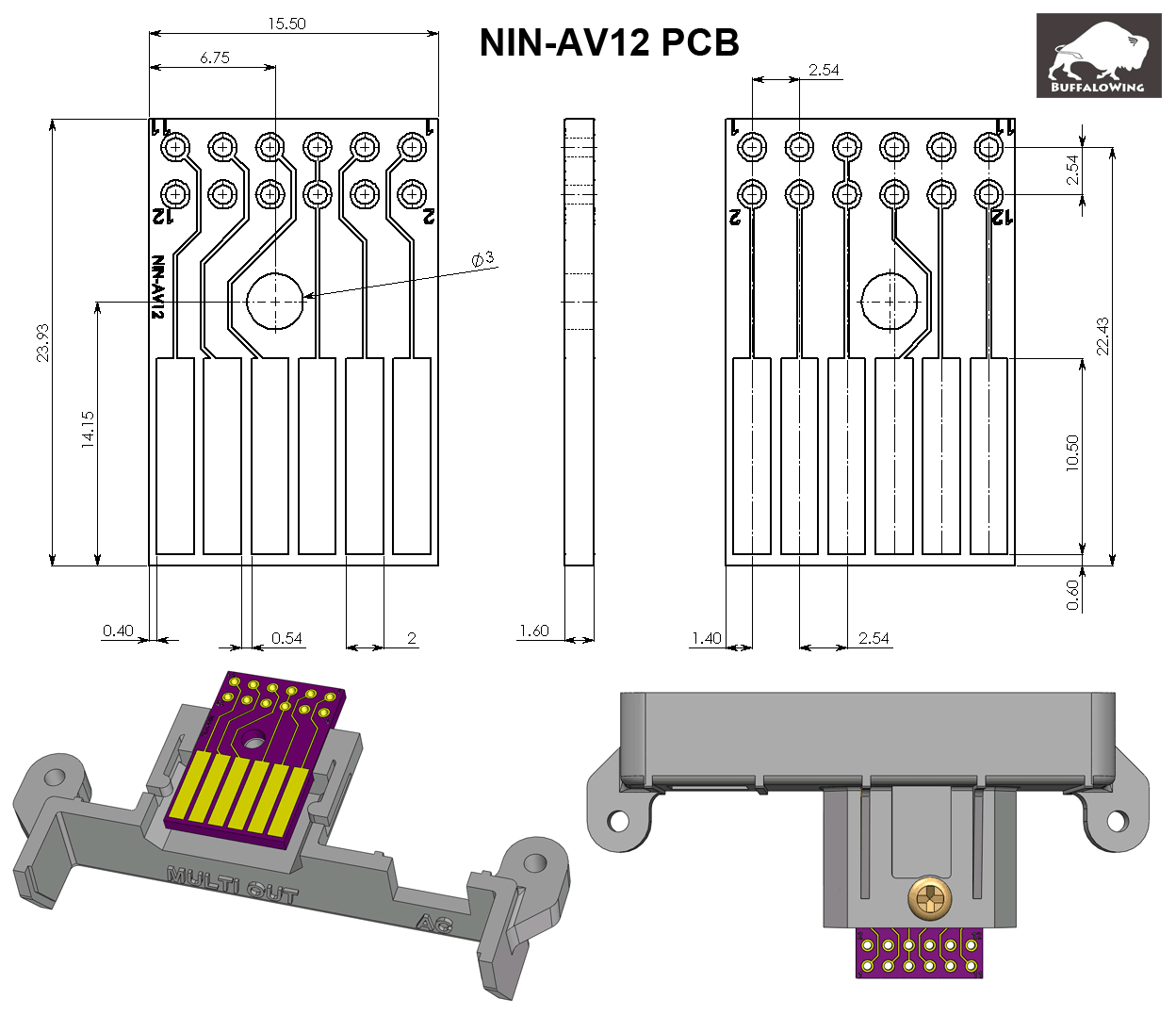

    You guys are right, single hole should work. Here are the dimensions.


  2. Helder

    Helder Site Supporter 2014,2015

    Joined:
    Apr 6, 2013
    Messages:
    981
    Likes Received:
    54
  3. APE

    APE Site Supporter 2015

    Joined:
    Dec 5, 2005
    Messages:
    6,416
    Likes Received:
    138
    I bet the reprap I have access to might be able to print that out. Might not be the prettiest thing ever.

    Last edited: Jan 7, 2014
  4. Helder

    Helder Site Supporter 2014,2015

    Joined:
    Apr 6, 2013
    Messages:
    981
    Likes Received:
    54

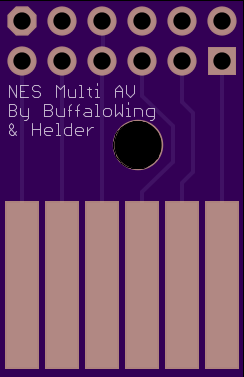

    Ok I have it all to spec now here is what it will look like. I made pin 1 Octagonal and pin 12 square so they're easy to point out. Send me a PM so we can discuss the details of the gerbers.


    Attached Files:

    Last edited: Jan 7, 2014
  5. BuffaloWing

    BuffaloWing Robust Member

    Joined:
    Jul 31, 2012
    Messages:
    277
    Likes Received:
    27
    Excellent! I've PM you.

  6. Marmotta

    Marmotta Dauntless Member

    Joined:
    Apr 14, 2009
    Messages:
    755
    Likes Received:
    49
    Very cool, although a Wii AV one would be nice *hint*.

  7. silverfox0786

    silverfox0786 Gutsy Member

    Joined:
    Nov 3, 2013
    Messages:
    432
    Likes Received:
    1
    just a note

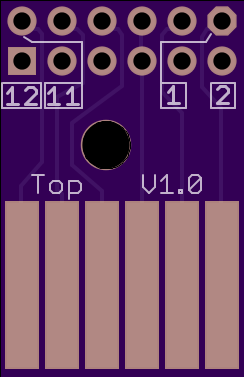

    the screen print on it I would move the 1 and 11 along a bit so the line coming down hits the centre of the square


    btw is pi n 5 and 6 supposed to be joined?

    Last edited: Jan 7, 2014
  8. BuffaloWing

    BuffaloWing Robust Member

    Joined:
    Jul 31, 2012
    Messages:
    277
    Likes Received:
    27
    Baby steps first... Wii's connector is similar in construction but with 18 pins. Let's see if the 12 pins version works or not first. Thanks to Helder's assistance I should find out in a few weeks.

    Pin 5 and 6 are ground. Are you taking about the silkscreening for 1 and 11 indicator? Honestly when the board gets installed into the socket, they will be obstructed.

  9. Helder

    Helder Site Supporter 2014,2015

    Joined:
    Apr 6, 2013
    Messages:
    981
    Likes Received:
    54
    Before I had actual specs I had plenty of room to fit the number by the pins and since I didn't know how small the Fab House could make the silk screen. So I just made something to point what was what besides stating that the pin holes 1 and 12 where different shape and also having TOP written on the board to help discern its orientation. The joined pins where what was in the detailed schematic he posted and that's what I used.

    Last edited: Jan 7, 2014
  10. BuffaloWing

    BuffaloWing Robust Member

    Joined:
    Jul 31, 2012
    Messages:
    277
    Likes Received:
    27

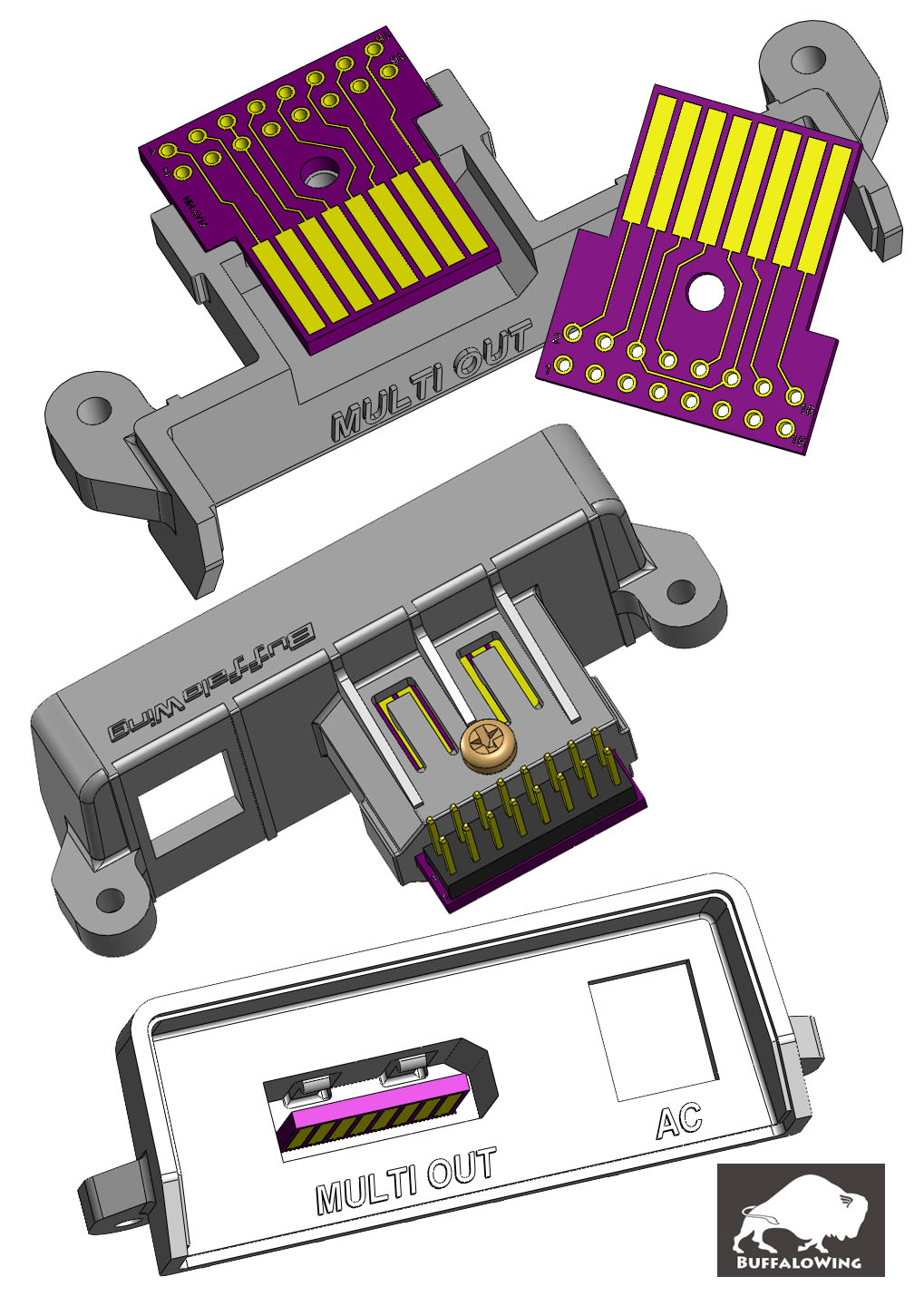

    This is also why the mounting hole is off-centered, so the screw can't go through if the board is flipped. Unfortunately with 2x6 header installed, more silk-screening will be covered too, it's the price to pay to get the board as compact and cost effective as possible. Needless to say, if an user plug or solder the wiring wrong all these mistake proofing efforts will go out of the window.

  11. BuffaloWing

    BuffaloWing Robust Member

    Joined:
    Jul 31, 2012
    Messages:
    277
    Likes Received:
    27
    Wii socket variant designed!


  12. Teancum

    Teancum Intrepid Member

    Joined:
    Aug 2, 2010
    Messages:
    663
    Likes Received:
    5
    Wow! That is amazing. I imagined doing this for the SNES and then stumbled on this thread before.

    How long did it take you to get good at drafting these sorts of things for 3d printing?

  13. Helder

    Helder Site Supporter 2014,2015

    Joined:
    Apr 6, 2013
    Messages:
    981
    Likes Received:
    54
    BuffaloWing and I are in the talks of making a replacement SNES Multi A/V with a replacement AC input jack that is more universal than the proprietary plastic piece of shit it currently has.

  14. BuffaloWing

    BuffaloWing Robust Member

    Joined:
    Jul 31, 2012
    Messages:
    277
    Likes Received:
    27
    I did started with the SNES panel as mentioned on the earlier post, my original intentional was to make a mount where I could mount five RCA jacks for component out when that was a thing.

    As for drafting and 3D printing, I've started doing 2D drafting for 3 straight years and 3D drafting 5 to 6 years on and off. As for 3D printing, I've known about it for a long time before it was somewhat mainstream, but only starting to use it last year. The tricky part is really to design the part around the constraints of the technology. You can model pretty much anything on computer, but they don't always print out the way you expected.

  15. Teancum

    Teancum Intrepid Member

    Joined:
    Aug 2, 2010
    Messages:
    663
    Likes Received:
    5
    This would also be cool. My idea was to use something like a USB charger and build it inside and then use the power jack from a playstation so I could use a universal AC cord.

    I had been thinking of the same thing. I originally though about doing 5 rca jacks but then figured the wii connector would do everything I wanted. If it's setup right it could do component, s-video, and composite using standard wii cables which I found really appealing.

    Wow that's a lot of work experience. I've wondered how some things would be printed. I've seen a few projects where it incorporates scaffolding to print raised portions and then you remove it when your done.

    Last edited: Aug 22, 2014
  16. BuffaloWing

    BuffaloWing Robust Member

    Joined:
    Jul 31, 2012
    Messages:
    277
    Likes Received:
    27

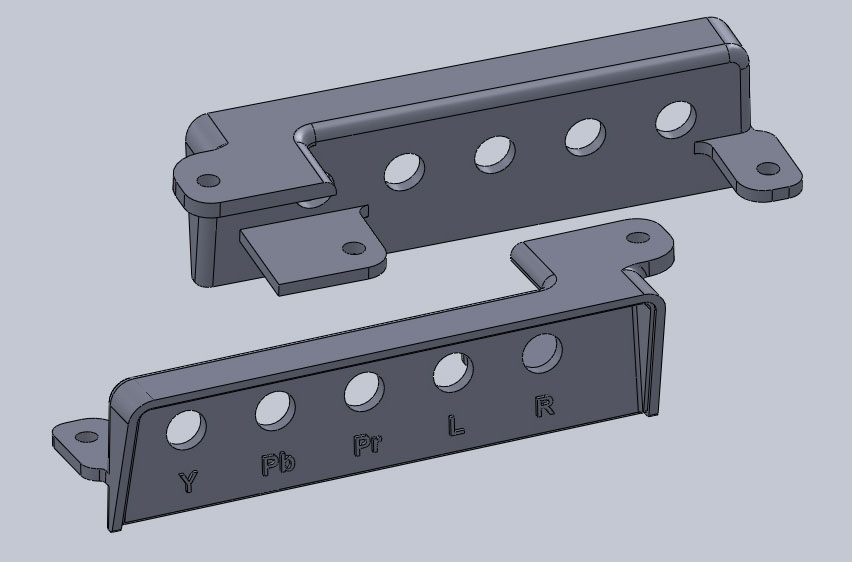

    Here's the said SNES panel sans DC jack. As you can see, with five RCA jacks there's no room for another type of connector. Once you are committed to component there's no way to connect via s-video or fall back on composite.


  17. Teancum

    Teancum Intrepid Member

    Joined:
    Aug 2, 2010
    Messages:
    663
    Likes Received:
    5
    Yeah. That's where the wii multiav comes in connect the component and svideo to the wii connector so both can be used with standard cables. What you just pictured was what I was originally thinking too but figured would take too much space.

  18. Icelvlan8866

    Icelvlan8866 Member

    Joined:
    Jan 9, 2014
    Messages:
    7
    Likes Received:
    0
    These are really nice I've always taken the multi outs from old broken consoles. What would be the cost of these :)

  19. BuffaloWing

    BuffaloWing Robust Member

    Joined:
    Jul 31, 2012
    Messages:
    277
    Likes Received:
    27
    Thanks. I'm currently waiting for the the prototype parts to arrive so it's going to be too premature to discuss cost.

  20. Pikkon

    Pikkon "Moving in Stereo"

    Joined:
    Mar 4, 2005
    Messages:
    2,695
    Likes Received:
    80

    If you use a trrs jack then adding component would be simple.
