TORO - Advanced Video Box for the Dreamcast!

Discussion in 'Modding and Hacking - Consoles and Electronics' started by beharius, Sep 10, 2014.

Watch Thread
Page 1 of 7
  1. beharius

    beharius Resolute Member

    Joined:
    Sep 13, 2011
    Messages:
    923
    Likes Received:
    101
    View attachment 9991

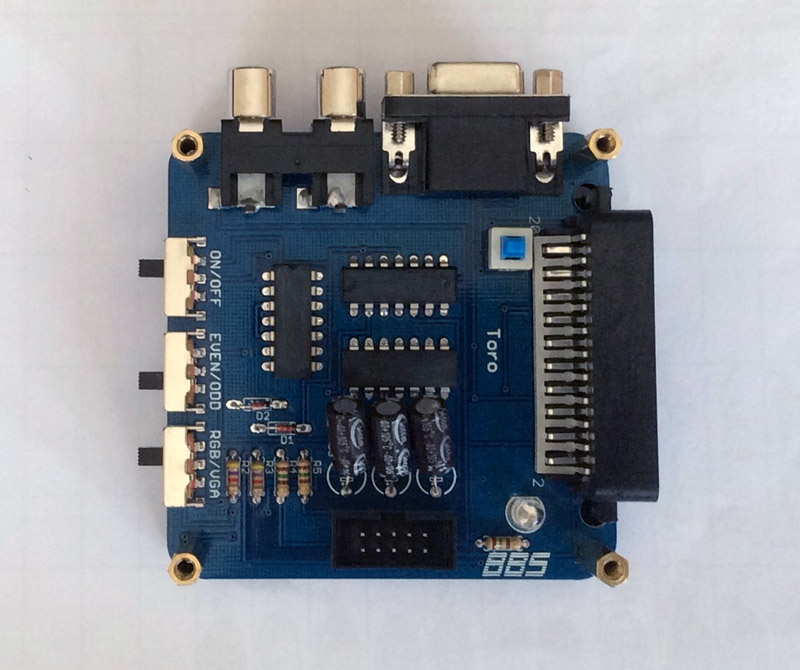

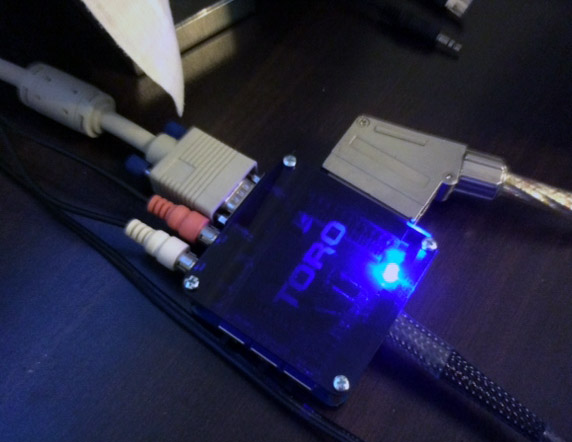

    TORO - ADVANCED 3in1 VIDEO BOX FOR THE DREAMCAST




    From the designer of HANZO & KURO VGA boxes, HERE COMES A NEW CHAMPION!

    MULTI VIDEO SYNC SYSTEM : Both CSYNC and H&V SYNC modes supported
    Scart connector can output RGBS (CSYNC) (Euro Scart) (480i+480p for the XRGB)
    VGA connector can output RGBS or RGBHV (selectable via switch button)

    AUTO     SYNC COMBINER FOR THE UPSCALERS AND MONITORS
    Now you can use your Dreamcast with the XRGB Mini without any additional sync combiner devices!

    SCANLINER FUNCTION
    You can add scanlines and choose even/odd scanlines !

    15KHZ / 31KHZ MODE SELECTION SWITCH
    Both RGB and VGA modes supported for full compatibility! XRGB can be fed with 15/31khz through Scart...

    RCA JACKS FOR STEREO AUDIO
    Clearest possible...



    TO BE LAUNCHED SOON...

    Last edited: Oct 1, 2014
    beharius, Sep 10, 2014 Report
    #1 + Quote Reply
  2. Kaicer

    Kaicer Site Supporter 2014

    Joined:
    Mar 24, 2012
    Messages:
    555
    Likes Received:
    5
    oh this one is sexy.

    Kaicer, Sep 10, 2014 Report
    #2 + Quote Reply
  3. citrus3000psi

    citrus3000psi Housekeeping, you want towel?

    Joined:
    Nov 8, 2013
    Messages:
    1,051
    Likes Received:
    418
    Why not face the scart connector the other direction?

    citrus3000psi, Sep 10, 2014 Report
    #3 + Quote Reply
  4. beharius

    beharius Resolute Member

    Joined:
    Sep 13, 2011
    Messages:
    923
    Likes Received:
    101
    I've only that part available, not easy to find these connectors in these days...

    beharius, Sep 10, 2014 Report
    #4 + Quote Reply
  5. Banjo

    Banjo <B>Site Supporter 2014</B>

    Joined:
    Oct 11, 2012
    Messages:
    606
    Likes Received:
    10
    Looks good

    Banjo, Sep 10, 2014 Report
    #5 + Quote Reply
  6. lolzvid

    lolzvid Peppy Member

    Joined:
    Jan 27, 2012
    Messages:
    340
    Likes Received:
    11
    TORO DREAMCAST HYPE GUYS!

    lolzvid, Sep 10, 2014 Report
    #6 + Quote Reply
  7. mickcris

    mickcris Site Supporter 2014,2015

    Joined:
    Aug 1, 2013
    Messages:
    476
    Likes Received:
    21
    Looks great! I agree that it would be nicer if the scart connector was on the other side of the board so it faced the same direction as the other outputs. Not really a deal breaker though. I will probably pick one up when they go for sale.

    Last edited: Sep 10, 2014
    mickcris, Sep 10, 2014 Report
    #7 + Quote Reply
  8. kuze

    kuze Peppy Member

    Joined:
    Sep 28, 2011
    Messages:
    371
    Likes Received:
    6
    Nice work! I'll probably have to pick one up depending on price. I was wondering why the Dreamcast wasn't working with my XRGB mini via SCART, but had placed the blame on my cheap cable.

    kuze, Sep 10, 2014 Report
    #8 + Quote Reply
  9. darcagn

    darcagn Site Supporter 2013, Site Supporter 2014

    Joined:
    May 12, 2007
    Messages:
    529
    Likes Received:
    246
    It should work fine with a regular SCART cable, but you'll only get 480i. With VGA-> Combined Sync, you get 480p.

    darcagn, Sep 10, 2014 Report
    #9 + Quote Reply
  10. beharius

    beharius Resolute Member

    Joined:
    Sep 13, 2011
    Messages:
    923
    Likes Received:
    101
    beharius, Sep 10, 2014 Report
    #10 + Quote Reply
  11. Maverick

    Maverick Active Member

    Joined:
    Jul 4, 2014
    Messages:
    27
    Likes Received:
    4
    I'm looking forward to this.

    Thread Subscribed! :)

    Maverick, Sep 11, 2014 Report
    #11 + Quote Reply
  12. beharius

    beharius Resolute Member

    Joined:
    Sep 13, 2011
    Messages:
    923
    Likes Received:
    101
    I will soon start to collect orders... Testers first...


    Last edited: Sep 11, 2014
    beharius, Sep 11, 2014 Report
    #12 + Quote Reply
  13. juji

    juji Active Member

    Joined:
    Dec 29, 2013
    Messages:
    25
    Likes Received:
    1
    the beast is unleashed!

    juji, Sep 11, 2014 Report
    #13 + Quote Reply
  14. Friend of Sonic

    Friend of Sonic Spirited Member

    Joined:
    Jul 29, 2013
    Messages:
    152
    Likes Received:
    3
    I am excited. Will this work on a PVM 20l5 (and specifically, display in 31khz since that particular PVM supports 31khz frequency? Just needs the sync combined)

    Friend of Sonic, Sep 11, 2014 Report
    #14 + Quote Reply
  15. beharius

    beharius Resolute Member

    Joined:
    Sep 13, 2011
    Messages:
    923
    Likes Received:
    101
    Yes, it outputs 15 and 31khz through VGA and Scart connectors. There is a switch to select.

    beharius, Sep 11, 2014 Report
    #15 + Quote Reply
  16. duskdawn

    duskdawn Spirited Member

    Joined:
    May 18, 2014
    Messages:
    104
    Likes Received:
    12

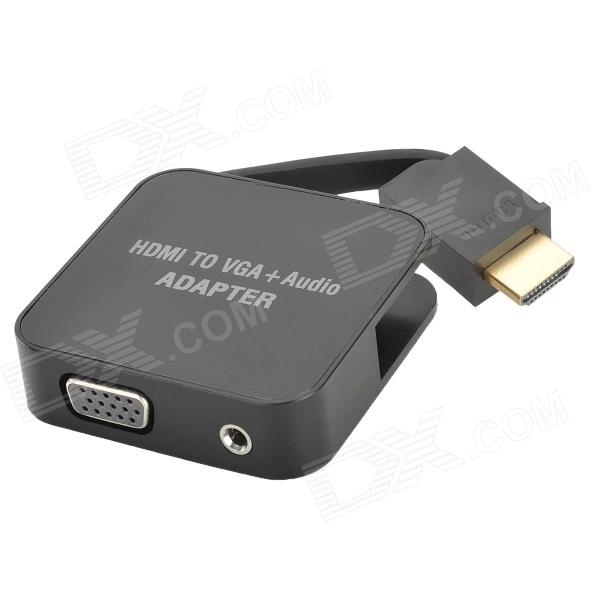

    @beharius Will it be possible to add a HDMI Port? Combine the Audio and Video signal into in to one port?

    [​IMG]

    Would it be nice to combine this into Hanzo or Toro?

    Thanks.

    duskdawn, Sep 12, 2014 Report
    #16 + Quote Reply
  17. LeHaM

    LeHaM Site Soldier

    Joined:
    May 5, 2013
    Messages:
    2,634
    Likes Received:
    292
    How does one become a tester ? :)

    LeHaM, Sep 12, 2014 Report
    #17 + Quote Reply
  18. Askavenger

    Askavenger Member

    Joined:
    Sep 12, 2014
    Messages:
    16
    Likes Received:
    26
    Darn! I just put an order for the Hanzo 3 days ago! I wish I knew this was coming out I would have waited.

    Askavenger, Sep 12, 2014 Report
    #18 + Quote Reply
  19. Friend of Sonic

    Friend of Sonic Spirited Member

    Joined:
    Jul 29, 2013
    Messages:
    152
    Likes Received:
    3
    Fantastic... I will be F5'ing this page to see when I can order ;p

    Friend of Sonic, Sep 12, 2014 Report
    #19 + Quote Reply
  20. beharius

    beharius Resolute Member

    Joined:
    Sep 13, 2011
    Messages:
    923
    Likes Received:
    101
    I can change your order if you want.



    I have currently 3 testers all around the world, in Japan, in Germany and in the USA. I hope for the future products we can work.
    actually Toro is working fine however they have a privilege to test it first...
    until that time they will be built to be shipped from stock immediately.

    Last edited: Sep 13, 2014
    beharius, Sep 13, 2014 Report
    #20 + Quote Reply
