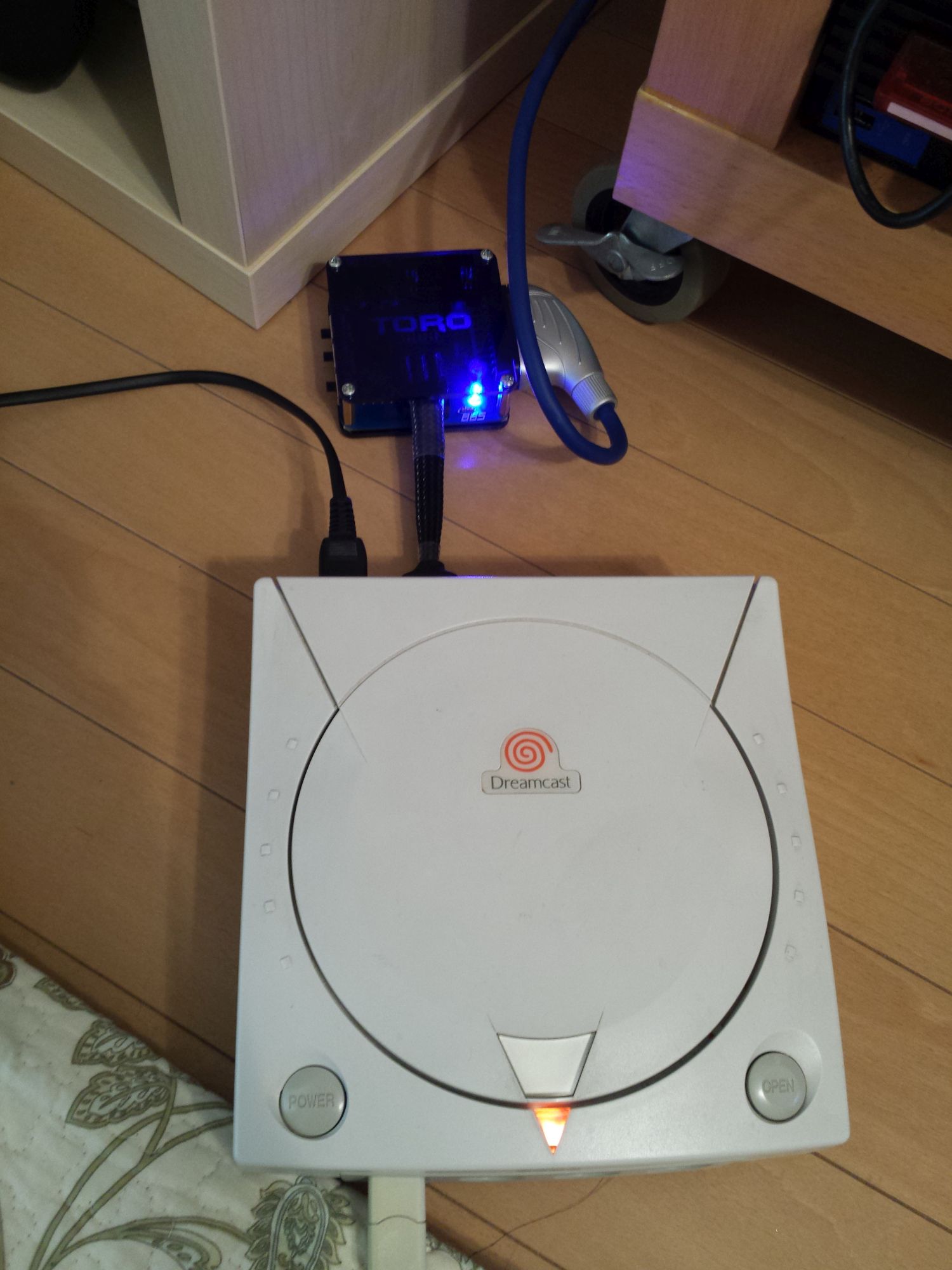

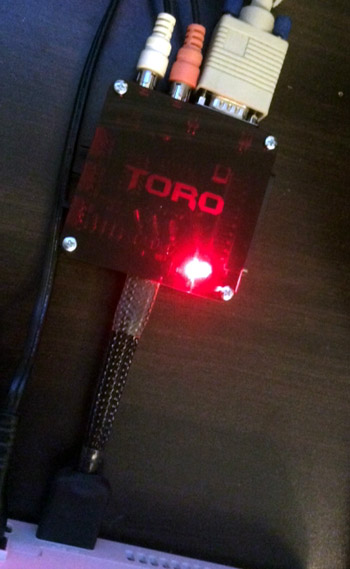

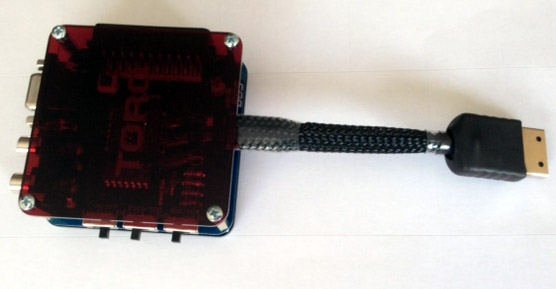

TORO - Advanced Video Box for the Dreamcast!

So do I want this or hanzo?



If you own an Xrgb mini or a scart TV, it would be the better choice.



Is it cool? Comes in cherry flavor also...



I'm not really sure that this is modding / hacking, but I'll leave it in here for now

Not that you would, but please don't take pre-orders via this thread. If you want to advertise it on here, make sure you update your Dreamcast devices for sale thread with a validation photo and the price

It is a bit of a shame about the SCART socket. All right-angled SCART sockets were that way round - you really needed to either design it with the connector on the other side, or use a chassis mounting socket. It will be a deal breaker to some - cable management is considered quite important nowadays and I know I'd be irked with them sticking out all over the place like that. Perhaps it's something to consider for a future revision.

By the way, those flat SCART cables suck



Thanks for your comments. I think using a scart connector with the opposite angle can force the console too much and pull the cord from its plug which causes improper or no operation of the cable. I tested standard simpler black cables too, works better, more flexible than the thick one in the photo. Also it's really difficult for me to find these connectors. You can also use the VGA connector (for the RGBS Csync output) with the XRGB, though you need a custom cable for that.

This is not a preorder thread, It's not launched yet. I will take orders from my site. When it's launched, I will sure put a validation photo. I sent them to the testers only. It will be launched next week.



Launched next week? Omg hype machine 9000. My DC Scart cable just arrived today, too. (Hope the Pelican scart cables are all right)



I am kinda sad about this, reason is that I picked up a hanzo and a kenzei just weeks ago.. And weeks later the all in one solution get's announced .



IMHO this device should also have a 8pin midi-din for use with the framemeister with a 1:1 cable



keropi, is right. rather than having a Scart port, it is much better to have the 8pin midi-din. That way, users don't have to buy additional cables.



Where can I find that 1:1 cable? Thanks for your advice. The advantage of using Scart is for the Europeans,you can plug it directly to the TV to play Scart only PAL games(15khz) like Skies of Arcadia...



^ no idea of a good pre-made 8pin cable but these are the ports for it: http://www.ebay.co.uk/itm/4-Pcs-Rep...?pt=UK_Sound_Vision_Other&hash=item43bea4e496
I just get these male connectors and make my own cables...

Here is the framemeister pinout: http://www.gamesx.com/wiki/doku.php?id=av:micomsoft_xrgb-mini_framemeister

Basically, if you take the RGB lines from the VGA port , add the 2 audio lines and use a combined H+V sync signal, then the mini will display happily both 15 and 31khz RGBs signals.
The only extra thing is the sync combiner which is very simple. I have modified my vga box , you can see the WIP HERE, I am pretty sure you'll understand what I did



Epharisto ! I will consider using it on the future products.
Nice mod! I tried that design before, Darcagn helped me too.
Kenzei and Toro uses a unique design, different than those found on the net. I preferred to design it from the ground up.



^ no prob abi, glad I could "help" a little



Ahhh, so I need a male to male scart box to use with the Toro? I have one but the pins are too shallow to make proper contact with the switch box I use. Guess I'll have to try my luck with another cable



testing...



Interested. Will you post in here when available? What's the site url?



Yeah, it will be launched next week on beharbros.com



Will it comparable in cost to the Hanzo? Lol I will be mashing the F5 key next week



I agree that a mini din socket for connection directly to the XRGB Mini would be a nice feature, as for xrgb users there would be more cables in the link thus producing a weaker signal??.....

DreamCast>>>>TORO>>>>Scart cable>>>>XRGB-Mini Scart adapter>>>>XRGB-Mini>>>>LCD TV



It depends on the cable length and quality. Everyone is using like that, even adding scart switches.

price will be reasonable, 1+1 won't be 2.
